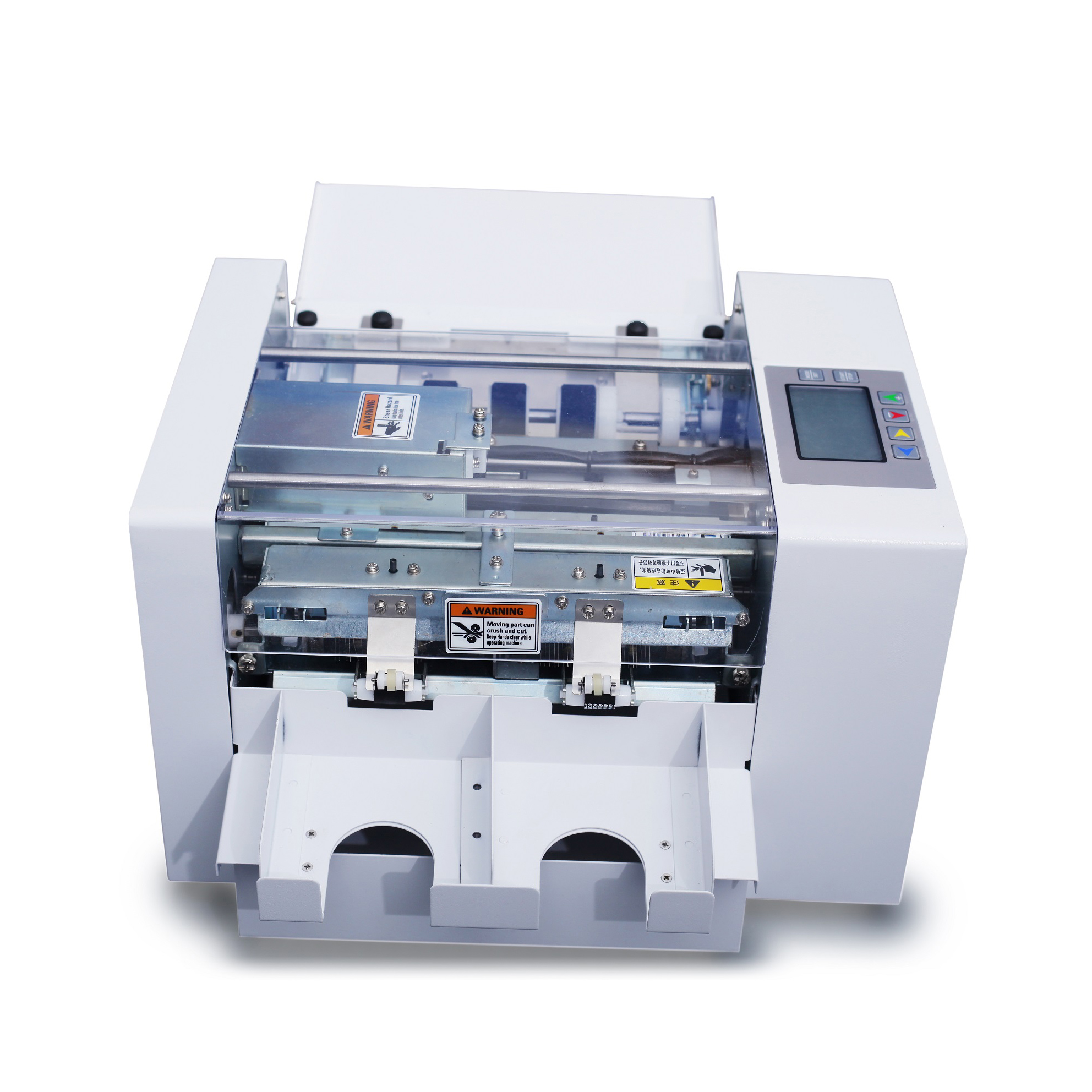

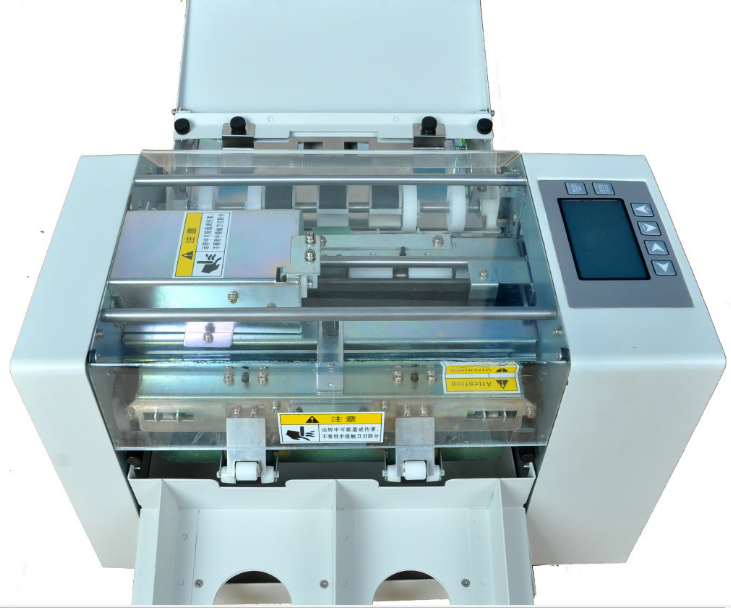

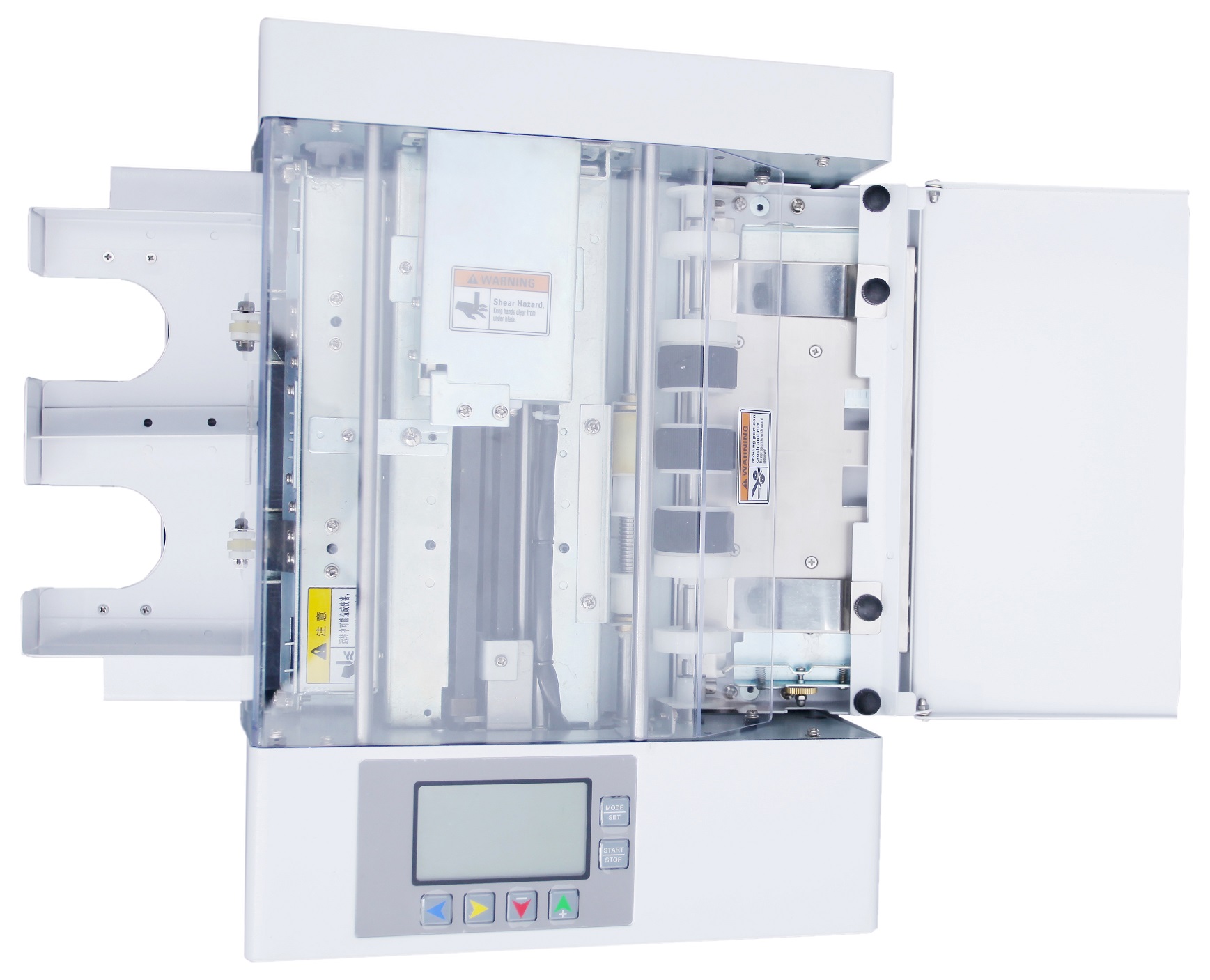

The VICUT photo cutter PC220 is special designed for cutting mini size photos, including ID card photos, passport photos, certificate photos, and so on.
KEY FEATURES
Special design
Inner mechanical structure is special designed for cutting mini size photos.
Different option
Different options for cutting ID photos with 1 inches and 2 inches.
Professional cutting size
Suitable for 5 inches and 6 inches photo paper.
Auto feeding system
Auto stack feeding or set number sheet feeding enables automation of process.
Pre-setting templates
The pre-setting templates can be chosen freely from cutter database.

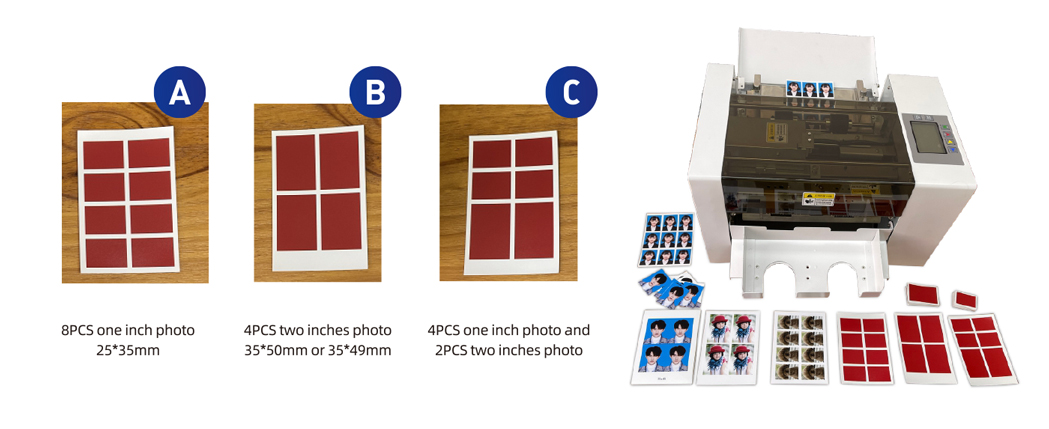

Multi size cutting of one version
Different size photos can be cut from one sheet photo paper automatically.
Technical Parameters
| Model | AUTOMATIC ID PHOTO CUTTER PC220 |
| Photo paper size | 5 inches, 6 inches or any other customized size photo paper |
| Feeding Tray Capacity | Max.20 sheets |
| Cutting position control | front edge detection |
| Cutting photo size | 22*32mm, 25*35mm, 33*48mm, 35*45mm, 35*49mm, 35*50mm, 35*54mm, 35*53mm |
| Cutting method | Longitudinal: cut by self sharpening slitting cassette Horizontal: cutting with a lateral cutter, cut by lateral guillotine cutter |
| Cutting speed | 10 seconds for cutting 8pcs 1 inch photo (25*35mm) from 5 inches photo paper (89*127mm) |
| Cutting accuracy | ±0.2mm |
| Humidity | 35%~70% |
| Operating temperature | -15℃~ +40℃ |
| Power supply | AC 110~220V, 50/60HZ, 0.5A |
| Weight | Net weight: 14.8 kg/ Gross weight: 19 kg |
| Machine dimension | 460 x540 x260mm |
| Packing size | 500x400x340mm |
