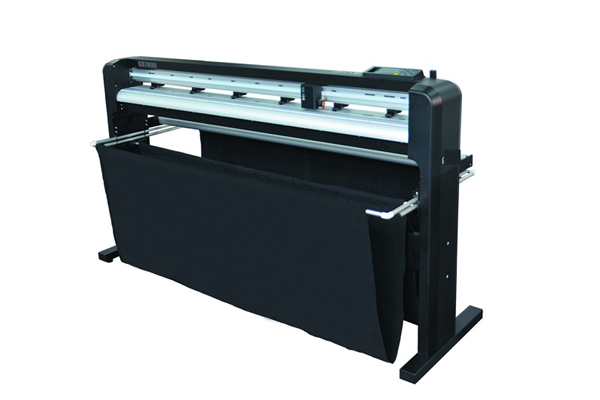

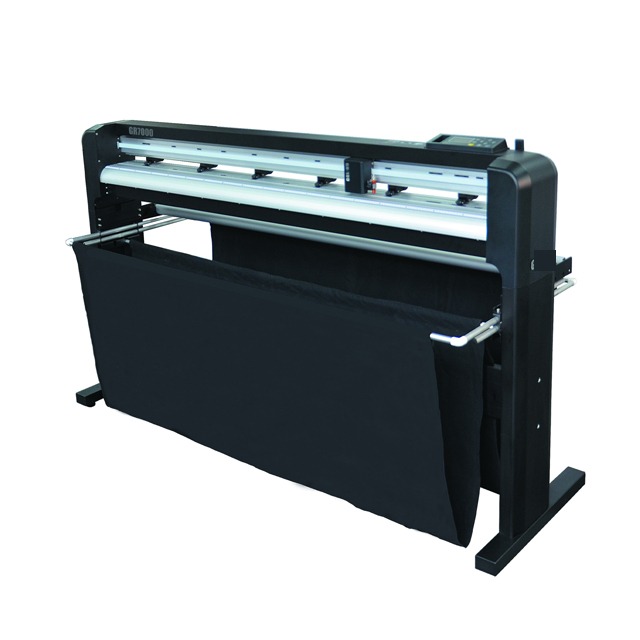

Servo PPF Vinyl Cutting Plotter GC-180

Our push rollers are made from hard materials, it is capable of   working accurately for long time. The push rollers can be set to two pressure   levels: Strong/ Low.The combination of accurate rigid push rollers, precise   material feeding rollers and quality media bracket rollers ensure stable long   length tracking of material.

Tool Carriage is one of the most important parts of the machine.   Taking the sport car structure, driven by silent voice coil motor, GR8000   plotter’s tool carriage is featured as fast, more agility and no overheat for   long-term non-stop operation.

Dense air inlets & strong air flow to hold down the media flatly   and tightly against the table top so that the tool carriage can perform fast,   accurate cutting / plotting.

Cutting / Plotting will be stopped when tool carriage is overloading, it is an important safety   feature to protect tool carriage when media is jammed.

It is inevitable that the cut table or material surface is not at the   same height from point to point, we take Grating Ruler, a precise optical   device, to measure the distance between blade tip and material surface in   real time, and the cutting depth is adjusted in every 0.01mm by the   controller in real time according to the value of distances measured.   Subsequently, the blade travels up and down as material surface goes up and   down in order to keep the same cutting depth at any position of that tool   path across entire working size.In short the cutting depth is consistent; you   will not see different shades.

The complete elimination of static interference is especially   important for PPF installers. VICUT GC series cutter plotter eliminates the   static interference successfully having been tested year-round in different   weather conditions.

For more outstanding performance and long-term reliable working, we   only use world class brand name components such as BANDO belt, MINEBEA   bearing, etc.

The Grating Ruler and correspondent cutting force management deliver clean smooth edge quality, even for the most complex jobs. GR8000 series is   able to cut small text strings and it is easy to peal off the waste material, which cut down workload greatly for the users.

Our system makes blade-tip compensation by hardware(main board) instead of oftware, the cutter works with constant high precision no matter what kind of CAD / CAM software is applied.

One-click to spot the cutting job from those saved in the USB memory by scanning the Bar-code which is printed in media, while not requiring   connecting to PC. This function is especially helpful to increase the   productivity when there are many files stored in the USB memory.

One-click to add registration marks and generate contour(s) of the object(s).

One-click to read the registration marks and carry out the contour cutting.

To match the cutting path(s) and contour(s) to the best, fine adjustment with either keypad or software is available. If material is placed askew (≤15°), the cutter is still able to work fine, this feature helps to save time.

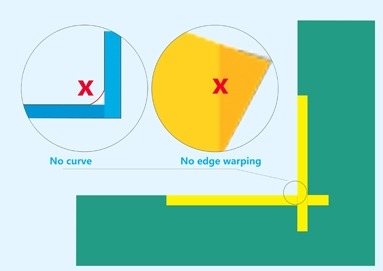

Advanced algorithm and quality hardware allow for obvious elimination of distorted, rounded or lifted corners. Advanced algorithm of motion controller, optimized tool paths, servo motor on XY axis, voice coil motor on Z axis and quality precision driving system, all of these elements make the machine moving faster and processing with more efficiency.

Half cut / Perforation cut are available, every time you may carry out either one or both.

Dotted lines cutting is applicable for medias with 2 layers typically and also kinds of paper.

One-click to install print driver and printout with USB, send cutting  job from any CAD software that with printer feature. Our print driver works with Windows 32/64 bit.

One-click deletion button for the currently print document.

Transfer working files by USB memory and support repeated operation.

Industry leading technology is applied to calibrate the perpendicular between different axes and the parallelism between gantry and cut table.

Leading the same industry, we make software by our-self, we are able  to adapt our system to the latest version of popular CAD / CAM software, such as AutoCAD, Adobe Illustrator, Coreldraw and Flexisign and more.

It is applied to measure the size of media, the cutting/ plotting operation won’t be carried out if media size is not big enough for the contents, and controller will ask operator to enlarge the media or decrease the size of contents. Media sensor helps greatly in saving media and increasing efficiency.
