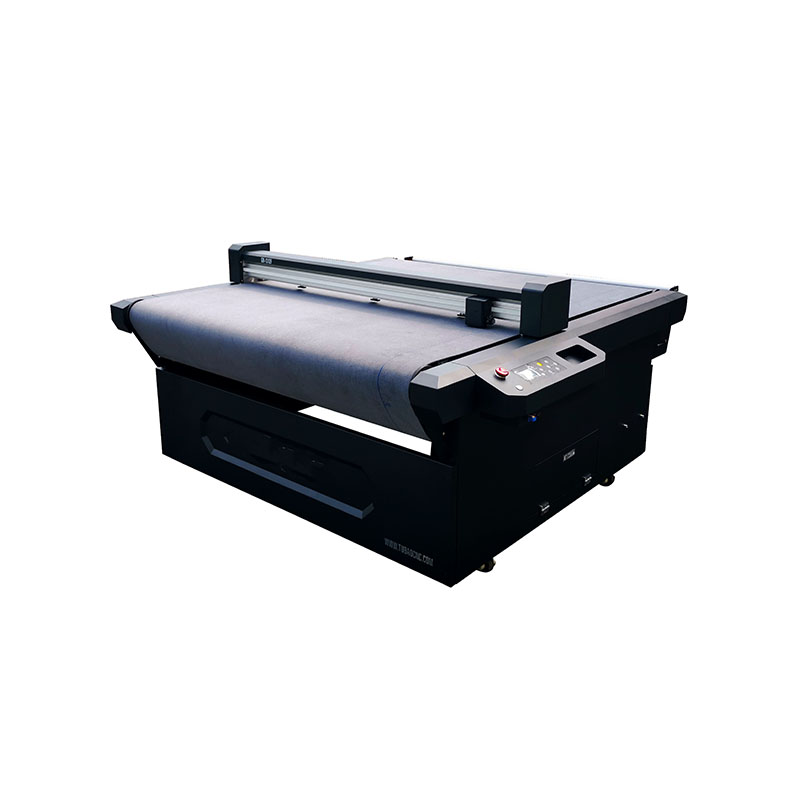

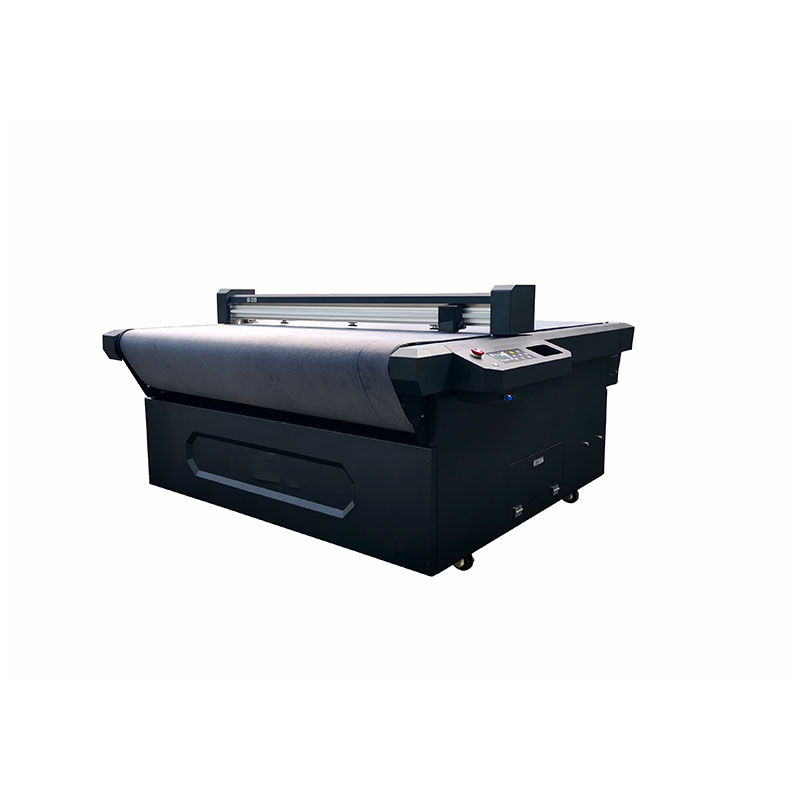

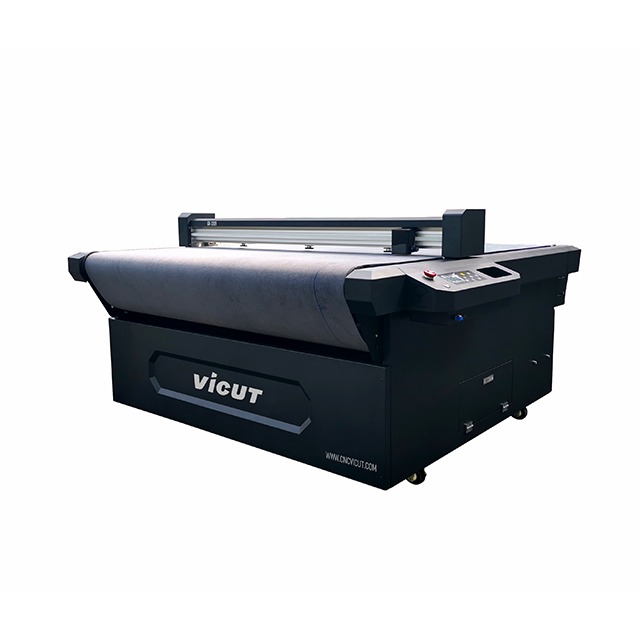

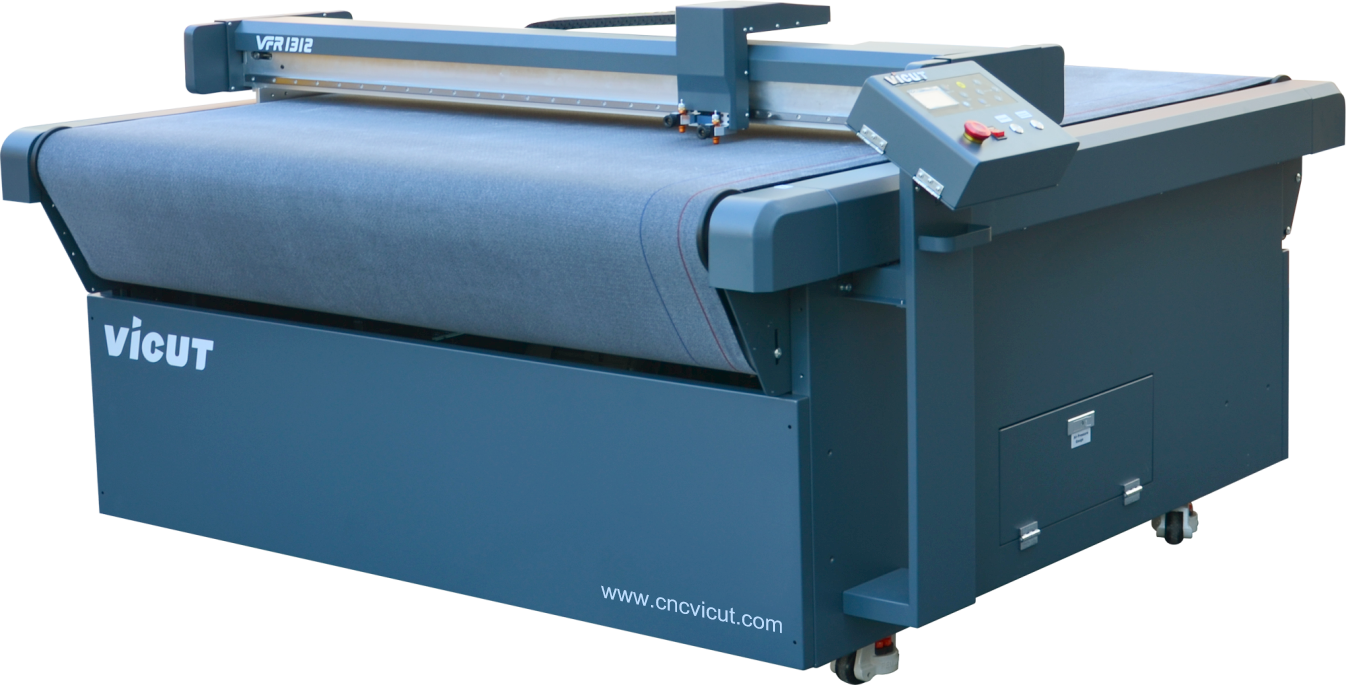

Auto Feeding CNC Flatbed Cutter VFR1312

The VICUT VFR series auto feeding CNC flatbed cutting machine with conveyor table, with grating ruler technology and 8-levels cutting force settlement, mainly used to cut soft medias without cutting dies, it is an efficient solution of full cutting, half cutting, perforating, marking, etc. This series flatbed cutter is ideal for road & traffic safety signs, automotive aftermarket, signage and more.

KEY FEATURES

  • Auto Feeding CNC Flatbed Cutter VFR1312

    Advanced Algorithm

    Obvious elimination of distorted, rounded or lifted corners.

  • Auto Feeding CNC Flatbed Cutter VFR1312

    Static Free

    The problem of friction electrostatic interference when cutting soft thin materials is solved.

  • Auto Feeding CNC Flatbed Cutter VFR1312

    High Precision

    GR series flatbed cutter is able to cut small text strings(minimum 0.8mm circle), and it is easy to tear off the scraps.

  • Auto Feeding CNC Flatbed Cutter VFR1312

    Clean Smooth Edge Quality

    The Grating Ruler and corespondent cutting force management deliver clean smooth edge quality.

  • Auto Feeding CNC Flatbed Cutter VFR1312

    No Need OVERCUT

    In every cutting path, the start and end point join with each other accurately, while no need to setup any OVERCUT.

  • Auto Feeding CNC Flatbed Cutter VFR1312

    Cutting Force in 8 Step, Multiple Layers Solution

    Color the cutting paths differently for various force steps, set the processing sequence as color sequence.This is good for cutting medias with multiple layers, which requires different cutting force in different layer.

  • Auto Feeding CNC Flatbed Cutter VFR1312

    One-click to Clear History

    One-click deletion button for the currently print document and clear it completely from buffer memory.

  • Auto Feeding CNC Flatbed Cutter VFR1312

    Full cut/Half Cut/ Perforation/Marking, etc

    Every time you may carry out either one or both.

  • Auto Feeding CNC Flatbed Cutter VFR1312

    DXF Direct Output

    It is compatible with DXF file directly while no need any format transition.

  • Auto Feeding CNC Flatbed Cutter VFR1312

    Segmented Registration and Cutting

    Multiple registration marks in segmented areas, available for more precise axis alignment. Contour cutting is performed sequentially in each segmented area, which improves accuracy and tracking for heavier media or media that has been laminated during cutting big size image.

  • Auto Feeding CNC Flatbed Cutter VFR1312

    Handshake Protocol

    We supply Software Development Kit/SDK to match with user’s software, provide technical support,meet customization requirements.

Technical Parameters

ModelVFR1312VFR1612VFR1325
Non-contour cutting area1300x1200mm1520x1200mm1300x2500mm
Contour cutting area1240x1180mm1490x1180mm1270x2450mm
Cutting media thickness0.03mm-1.5mm
Applicable mediaSoft and medium rigidity medias
Method to fix mediaVacuum table(2.2kw vacuum pump with muffler)
Method to feed mediaConveyor belt & roll media bracket
Max.cutting speed600mm/s
Max.cutting force600G/5.8N in 8 steps
Cutting force setupAdjustable in every 1G
Cutter blade diameterΦ2.0mm
Cutter blade angles30˚/45˚/60˚
Dotted lines cuttingincluded
DriveAC Servo
Mechanical resolution0.0125mm
Compatible OSWin 10/8/7/XP
Memory buffer2MB
SoftwareWindows driver, Signworkpro, CADtoplotpro
LCD languageEnglish/Chinese
File formatHP-GL, PLT
Port in standardUSB, RS-232
Reg marks detectionCCD Camera
Power input220V/50-60HZ
Power consumptionCutter: 1.5kw; vacuum pump: 2.2kw
Working tools1pcs blade holder, 1pcs pen holder, 10pcs cutting blades
Media bracketincluded
Machine Dimension(L-W)1700x1800mm2100x1800mm1700x2800mm
Packing size(L-W-H)1920x1850x1220mm2150x1920x1220mm1920x3200x1220mm
Weight240kg/320kg260kg/340kg680kg/760kg

Details Description

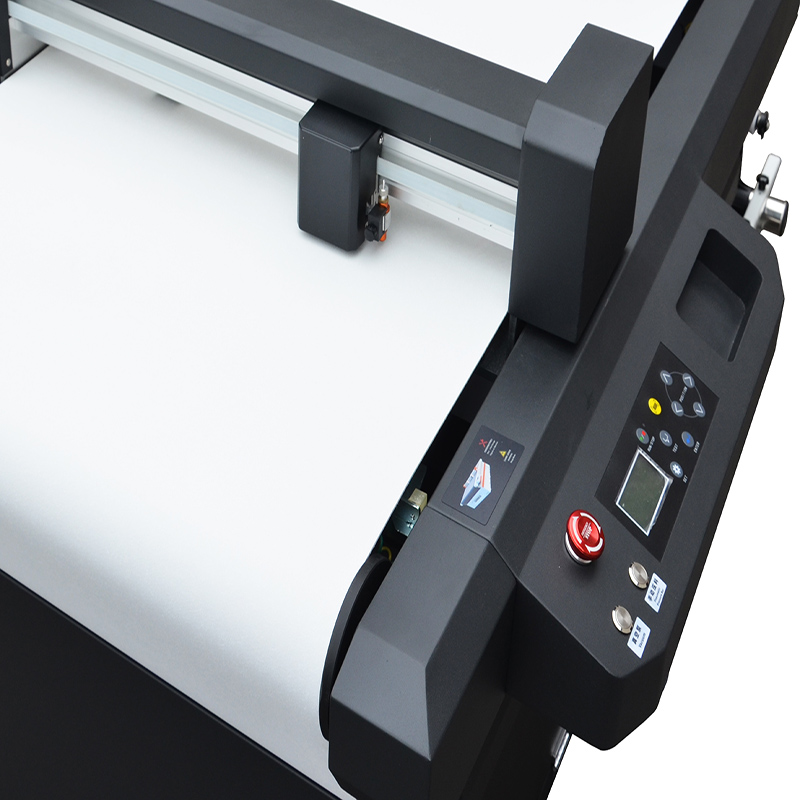

Advanced Tool Carriage

The tool carriage adopts the structure of sports car, using of silent voice coil motor makes it outstrip it’s rivals. The tool carriage is featured as fast, agile and no overheat for long-time non-stop operation. It is a leading tool carriage in the same field in China.

Suction Cup Feeding Device

Several suction cups are installed on the beam of the cutter to help drag the media to the forefront of the machine for convenient processing.

Vacuum System

Strong air flow to hold down the media flatly and tightly against the table top so that the tool carriage can perform fast, accurate cutting / plotting.

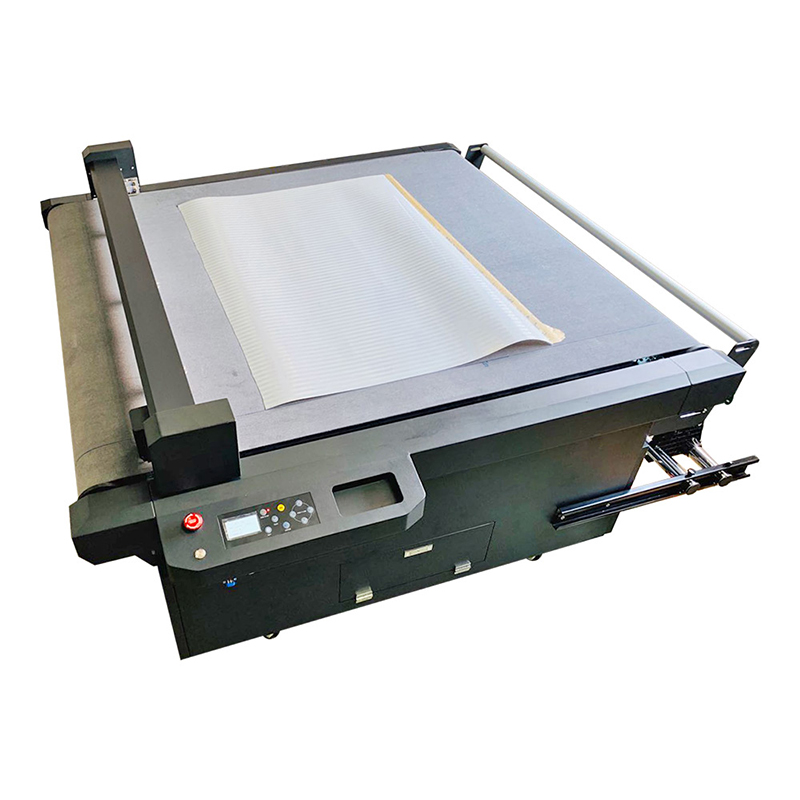

Auto Feeding Conveyor System

Conveyor is able to accomplish long seamless cutting / plotting. With the combination of CCD camera, fast and accurate nesting / contour cutting is performed.

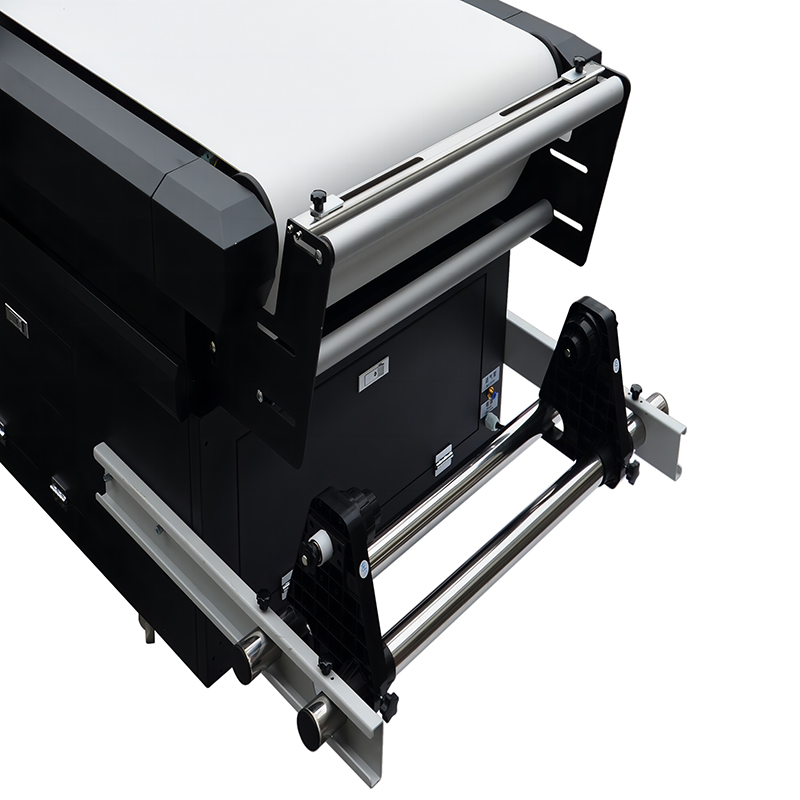

Oriented Roll Media Bracket

It is smooth to feed media with the media bracket, user may setup the bracket according to media feature and specs. The bracket improves productivity.

Grating Ruler

Inevitably material surface is not level from point to point, the grating ruler is applied to measure the distance between blade tip and material surface, and the cutting depth is adjusted in every 0.01mm by the controller accordingly. Then the blade travels up and down as material surface goes to keep the same cutting depth at any position of the tool paths across the entire table. In short, Grating Ruler is of key importance for consistent cutting depth.

Making Blade-tip Compensation by chip

Our system makes blade-tip compensation by hardware(main board) instead of software, the cutter works with constant high precision no matter what kind of CAD / CAM software is applied.

Servo Motor / Closed Loop Control

Intelligent servos bring out smooth acceleration, big torque, precise cutting / plotting operation, excellent durability and volume production. Servos ensure the vinyl cutter to run at Max. Speed: 600mm/s.

Fast Registration Marks Detection with CCD Camera

With our dedicated software, it is able to generate contours in one-click, and it is easy to add registration marks.CCD camera, used in combination with related software is applied to detect the intricate dieless contours fast and more efficiently. Problems caused by position error of human, poor quality printing are resolved. CCD camera is applied for wide varieties of medias.

Automatic Data Retrieving with Bar-code

One touch to find the cutting job out of those saved in the USB memory by scanning the printed Bar-code, while no need to connect to computer. Multiple jobs are processed automatically while production errors are eliminated.

Leading Software Compatibility

Leading the same industry, GR flatbed cutter is able to adapt to the latest version of popular CAD / CAM software, such as AutoCAD, Adobe Illustrator, Coreldraw, Flexisign, Signmaster; Various pattern software in automotive aftermarket like 3M™ Pattern and Solutions Center (PSC), Core by LLUMAR, INTEGO are already compatible to this system.

Intelligent Bleeding for Easier Overlap Operation

Intelligent Bleeding function makes overlap operation easier for the installers, this feature is very important for making and installation of big signs / indicators.

USB memory/ Duplicate cutting jobs offline

Users are enabled to duplicate the cutting jobs offline, which is much convenient than doing that with connecting to PC by USB cord. The function of duplicating cutting jobs with USB memory is a leading technology that developed by our-self. This feature is important for efficient volume production.

Quality Components

For outstanding performance and long-term reliable working, we only use world class brand name components like BANDO belt,NMB bearing, Ultra-silence Guides made by WON Korea, etc.

One-click to Load Print Driver

Optimized the process of loading print driver by one-click. User can easily send cutting jobs by any CAD that with printer feature.

Leading Calibration

Industry leading technology is applied to calibrate the perpendicular between different axes and the parallelism between track of gantry and table top.

Tools & Accessories

  • Auto Feeding CNC Flatbed Cutter VFR1312

    Vacuum blower

    GR flatbed cutter work with stable quality vacuum blower, continually working more than 24 hours without overheating issues.

  • Auto Feeding CNC Flatbed Cutter VFR1312

    Fine blade holder

    Cutter blade runs precisely and won’t drop cutting thick, sticky medias.

  • Auto Feeding CNC Flatbed Cutter VFR1312

    Series cutting blades available

    Angle: 30°/Φ 2.0mm for thicker media or small character
    Angle: 60°/Φ2.0mm for reflective film
    Angle: 45°/Φ2.0mm for PPF/PET film

Application

Suitable materials: Reflective films, heat transfer films, Paint Protection Film/PPF, Vehicle Wrap, Window Tint, Vinyl Sticker, Heat transfer vinyl, Magnetic Sticker, Sandblast Resist Rubber, Mobile Phone Decoration Film (2D/3D), Multiple Layer Film, Film for Flexible Circuit, Glass film, PVC film With Thickness 0.03-0.75mm, PET film with thickness 0.03-1.5mm, Card Paper up to 500GSM; It is an efficient solution of perforation cutting, half cutting, marking, etc.


Suitable Field: Automotive aftermarket, vehicle decoration, traffic signs industry, sign makers, packaging, apparel signing, shoes designing, bags designing, composite industry, offset printing, samples making, POP displays, and more.


Working Samples:

Auto Feeding CNC Flatbed Cutter VFR1312Auto Feeding CNC Flatbed Cutter VFR1312Auto Feeding CNC Flatbed Cutter VFR1312Auto Feeding CNC Flatbed Cutter VFR1312
Auto Feeding CNC Flatbed Cutter VFR1312Auto Feeding CNC Flatbed Cutter VFR1312Auto Feeding CNC Flatbed Cutter VFR1312Auto Feeding CNC Flatbed Cutter VFR1312
Auto Feeding CNC Flatbed Cutter VFR1312Auto Feeding CNC Flatbed Cutter VFR1312Auto Feeding CNC Flatbed Cutter VFR1312Auto Feeding CNC Flatbed Cutter VFR1312
Auto Feeding CNC Flatbed Cutter VFR1312Auto Feeding CNC Flatbed Cutter VFR1312Auto Feeding CNC Flatbed Cutter VFR1312Auto Feeding CNC Flatbed Cutter VFR1312
