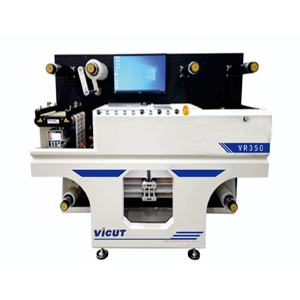

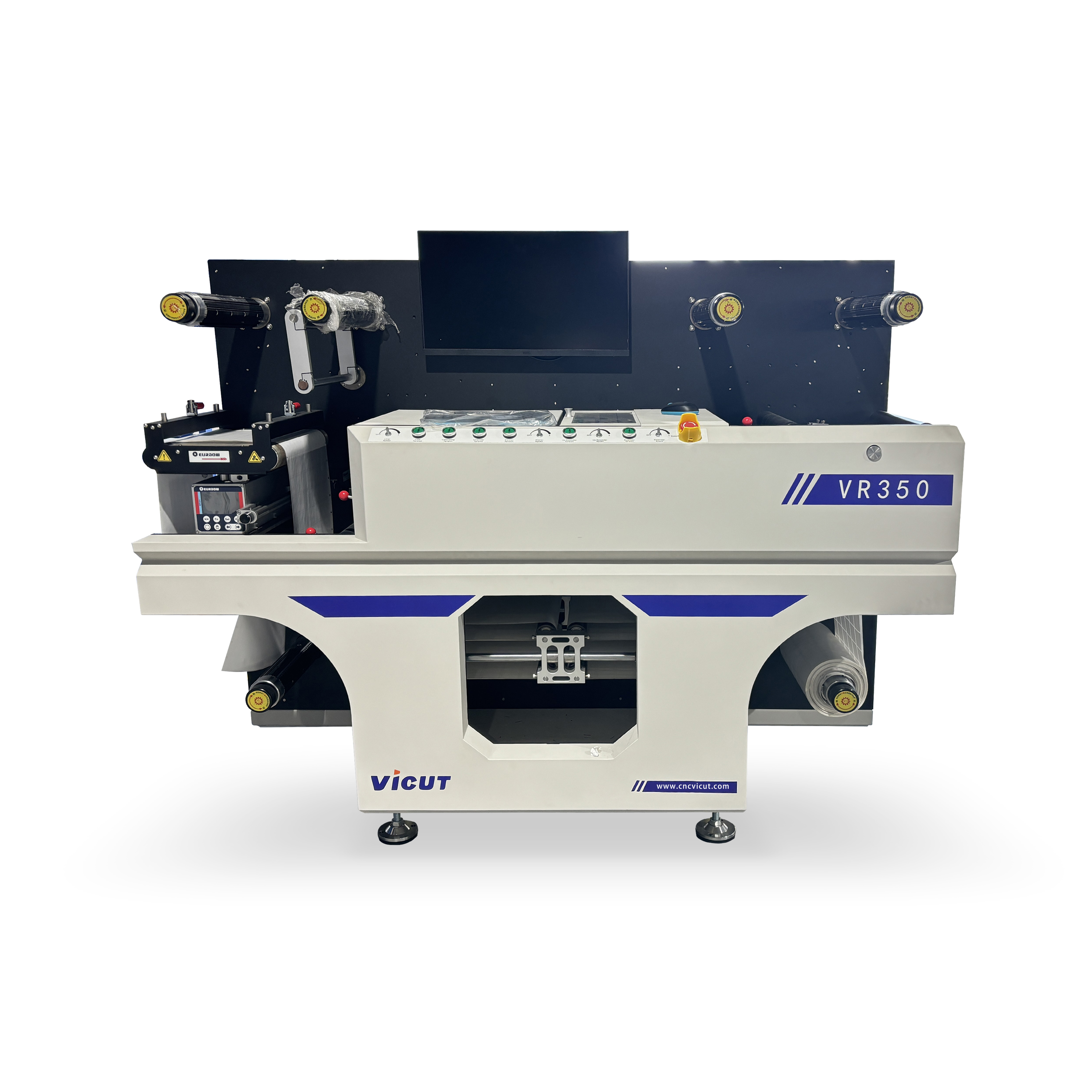

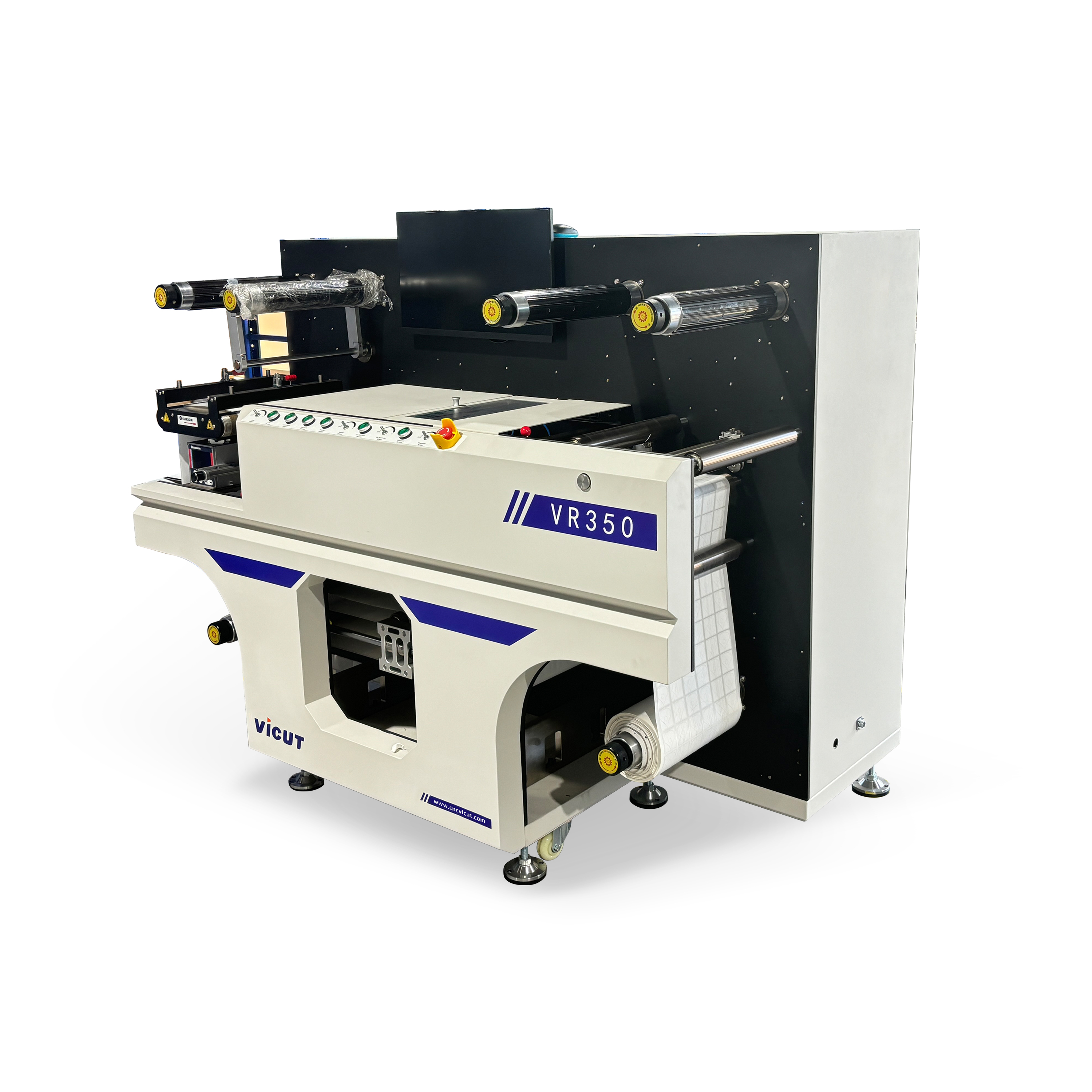

The VICUT multiple blades digital die cutter VR350, equipped with maximum six blades, heads distance is fully automatic adjustable with Al software control, which is perfect for short to medium length print finishing.With linear system,users are able to work with high end laminating films, two re-winders at final step can make it more convenient to rewind the small rolls after slitting.
Optional inline sheeting system is able to cut roll into sheets easily, or it can be used as an offline solution to cut roll products to any length needed!
The VICUT VR350 is also designed with the end user in mind. It features an intuitive software which is easy to learn, as well as an in line codes reader for automatic job changes.
In addition to lamination, slitting, and waste removal, the VICUT VR350 also features an automated web guide to ensure your product is running smooth through the machine at all times.
KEY FEATURES
All-in-One solution
Lamination,matrix removal,slitting,rewinding.ect.
Automatic job exchange
CCD scan the codes marks to read the job data,to realized the cutting job changes.
Automatic Intelligence technology applied
The cutting heads distance is fully automatic adjustable.
Trajectory Optimization
Automatically calculates optimal usage of heads in each step of cutting for a specific job.
Long label cutting ability
Max.340mm x 1250mm size label cutting
Fast cutting speed
Max.die cutting speed 9m/min easily cutting 7x15cm square.
Automatic web guide
Ensure smooth paper feeding with no offset for next step working process.
Optional Accessories
Separate inline roll to sheet cutter.
Technical Parameters
| No.of cutting heads | standard 4 heads,up to 6 heads |
| Working speed | 9m/minute(cut 7cm x l5 cm square) |
| Max.label length | 1250 mm |
| Cutting media width | 100-350mm |
| Maxi.roll diameter | 450mm |
| Maxi.laminating roll diam. | 300mm |
| Max.matrix roll diam. | 350mm |
| Max.rewinder roll diam. | upper rewinder roller 350mm;down rewinder roller 450mm |
| Operation system | Embedded computer with Ai operation software and Large screen LCD monitor |
| Heads distance adjument | Automatic distance adjustment between all cutting heads |
| Unwinder & Rewinder | 1 unwinder and 2 rewinder with mechanic expansion |
| Reg. marks type | dot marks+number codes/QR Code |
| Positioning device | Electric eye+CCD camera |
| Job exchange function | Yes |
| Data transfer method | PC direct |
| Die cutting precision | 0.1mm(repeat) |
| Slitting width | 10-330mm |
| Slitting system | Round knife slitting System with position adjustment (4 slitters, max.15) |
| Slitting speed | max. loomper minute |
| Slitting precision | 0.1mm |
| File format | PLT,DXF |
| Working voltage | AC l00-240V,50-60HZ,1000 Watts |
| Machine dimension | 1800*1080*1460mm |
| Packing Size | 216*130*197CM |
| G.W./N.W. | 1450kg/1400kg |
| Optional | Multiple slitting units&Separate inline sheet cutting system |
Details Description
Unwinding system
The unwinding roller of the VR350 machine can accommodate rolls with a maximum diameter of 450mm
High Precision Web Guide Feeding System
Utilizing the ultrasonic web-guide system,it makes the feeding perfectly

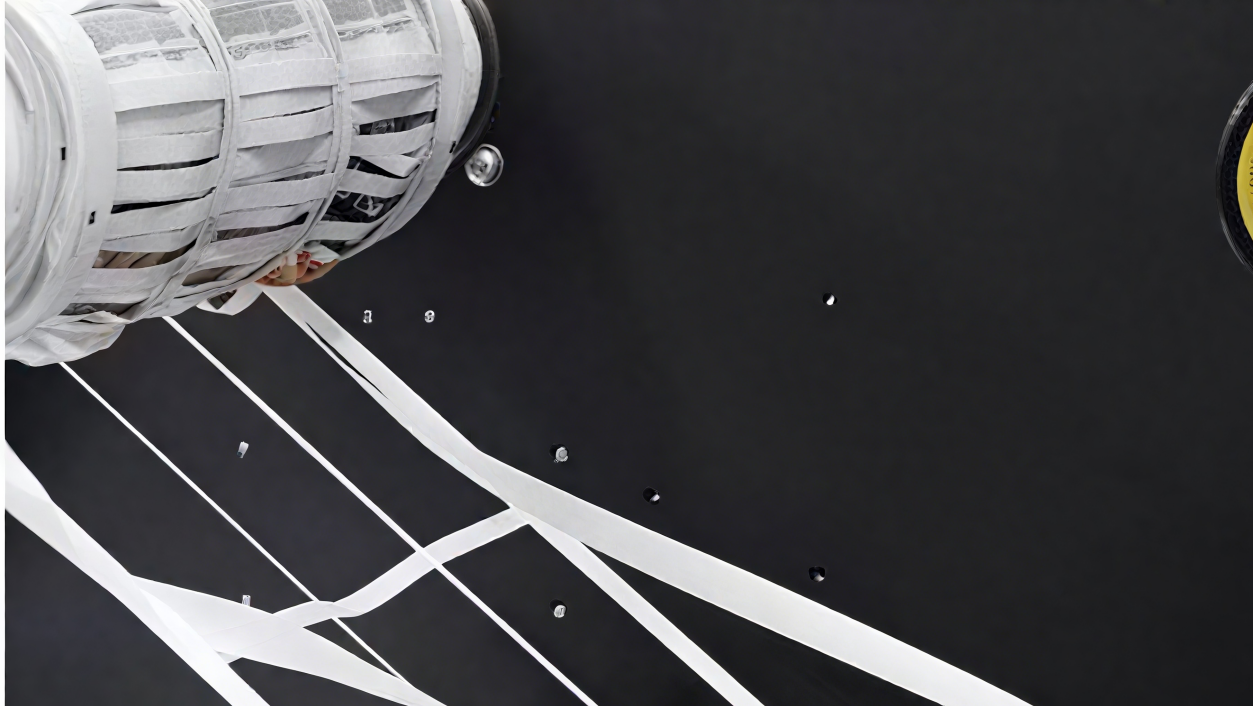

Waste Removing System
The Presion machinery design can control the roller rotating uniform,avoid remaving waste discontinuously due to unstable pressure and keep finished labels clean
Cold Laminating
The VR350 machine comes standard wrth a cold laminating function,making the labels more durable. The maximum diameter of the laminated shaft is 350MM
Laminating Film Liner Removal System
Additionla rewinding roller for remove the back paper of laminabng film,users are able to use high-end laminating film,makes final labels durable and up-market.
Precision Slitting System
Up to 15pcs slitting blades,easily slitting big roll into small rolls for final labeling process. High speed with 100m per minute,it also can be used as independent slitting System

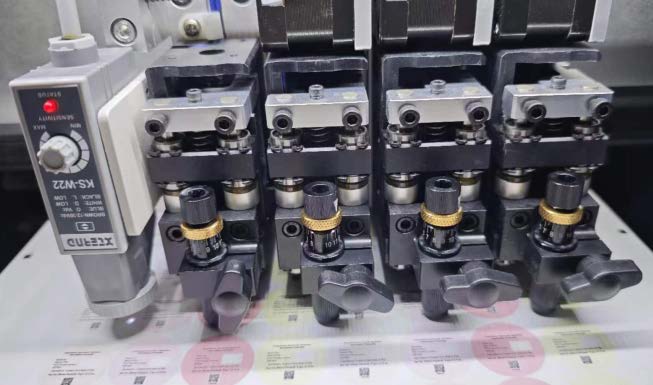

Digital Die-cutting System
VR350 digital label cutter utilizes high precision screw transmission system.Equipped with up to 6pcs cutting heads,the heads distance is fully automatic adjustable according to the labels quantity and shapes. It is easy to install blades and fix it tightly for continually high speed cutting
CCD Identify System
The CCD camera position and identify system can recognize the sequence,reach the function of changing file and cut next graphics automatically

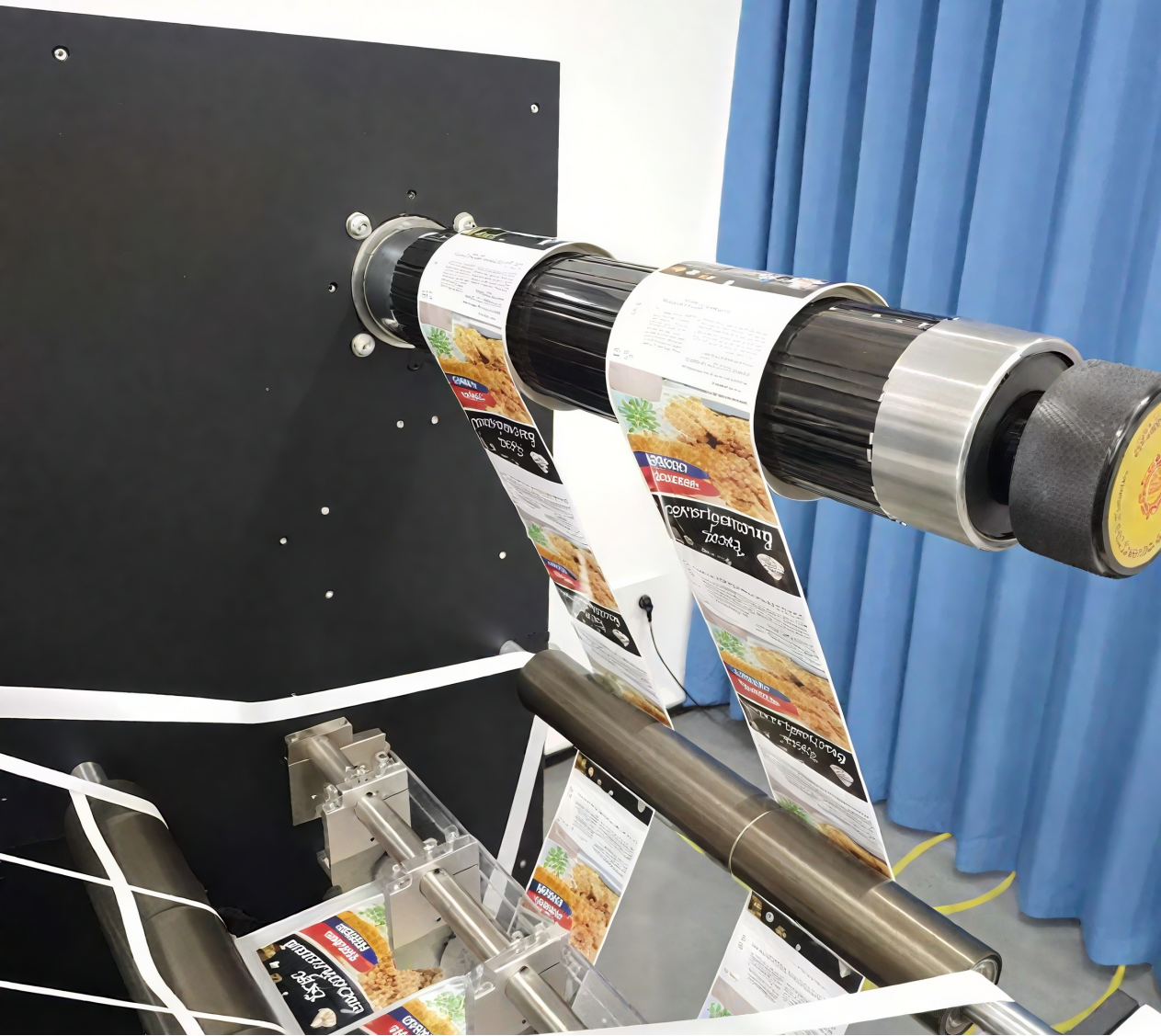

Rewinding System
VR350 featured with two re-winders at final step of roll label finishing,easier to rewind small rolls after slitting. The appropriate tension makes the material collection more precise and the coil material neat, providing great convenience for the next labeling process

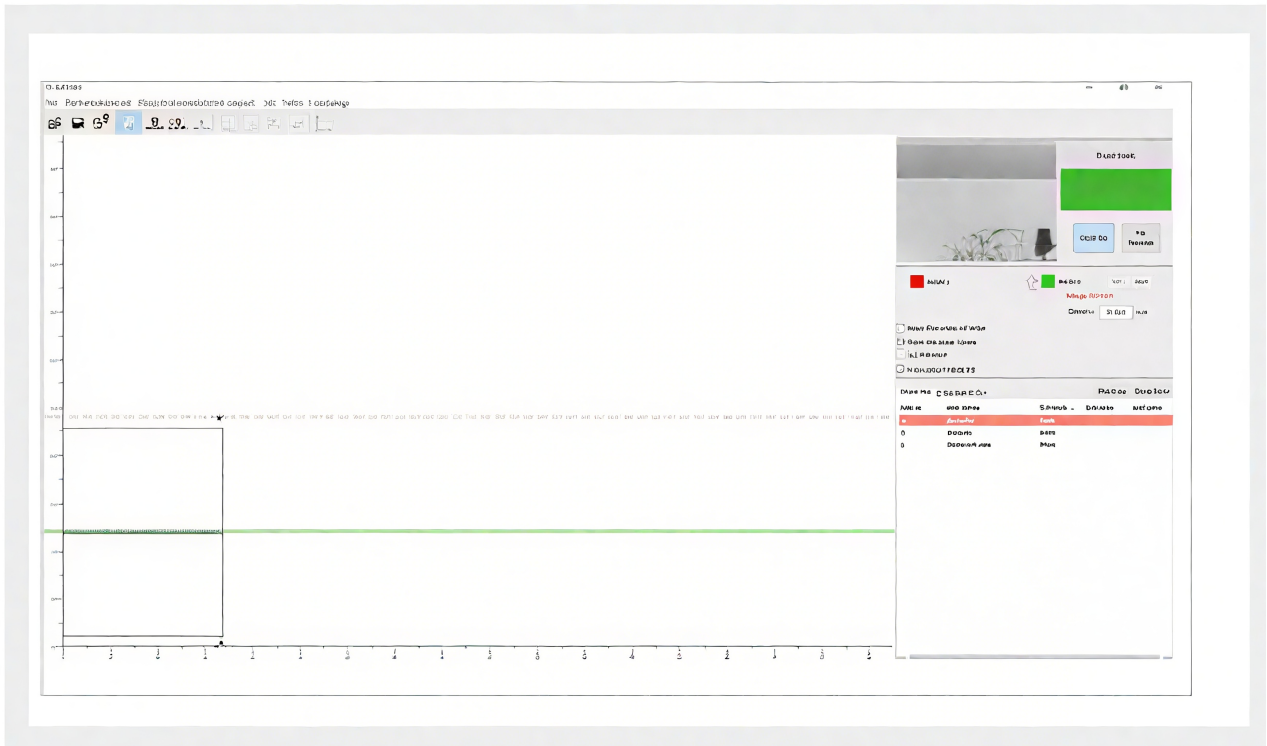

Easy-to-use Cutting Software
unning status can be seen in a reaI-time .Support file database
Choose the quantity of the heads based on graphics Intelligent cutting with trajectory optimization .Choose the heads distance automatically
Auto-generate the working records
Standard Industrial Computer
VR350 label die cutter worked with high-end industrial computer,with software installation and parameters setting ready for users, providing extremely convenience for operators.Cutting files will be sent directly from PC to machine,no need additional U-disk or cables
Optinal Function
Roll to Sheet Cutter RS350
It is suitable for transverse cutting of various roll materials
Suitable materials:
Self-adhesive ,PP synthetic ,aluminum plastic film,PET,PVC,white card,copper plate and other paper and flexible materials.
Techical Parameters:
Cutting media width: 100-350mm
Maxi label width: 350mm
Mini label width: 10mm
Maxi label length: 500mm
Highest paper cutting speed: 150/min
Cutting Tracking: single mark or doulbe mark
Cutting accuracy: 0.1mm
Size(W*D*H)：670*460*915mm
Weight: 180kg
Power Supply: 220-240VAC 50-60HZ ,500W
Tools & Accessories
Blade Holder
Precision blade holder,built-in bearing design,cooperate with machine blade compensation function, make cutting more smooth. Easy to install thebladeandadjust the distance between the blade tips
Die Cutting Blades
Special 45 degree die cutting blade, suitable for cutting 0.25mm thick adhesive label materials such as sticker, coated paper,synthetic paper,PP, PET,etc.
Application
Applocable Industy
VR350 roll to roll label finisher is mainly used for medium volume on-demand label production including blank labels, ink labels, chemical labels, beverage labels, bottled water labels, ch山source labels,coffee labels, cosmetic labels, home appliance label,toiletries label, gum label,wine labels and more
Applicable Materials
Stickers,Paper, PP, BOPP, PET,PVC&More
Sample Display

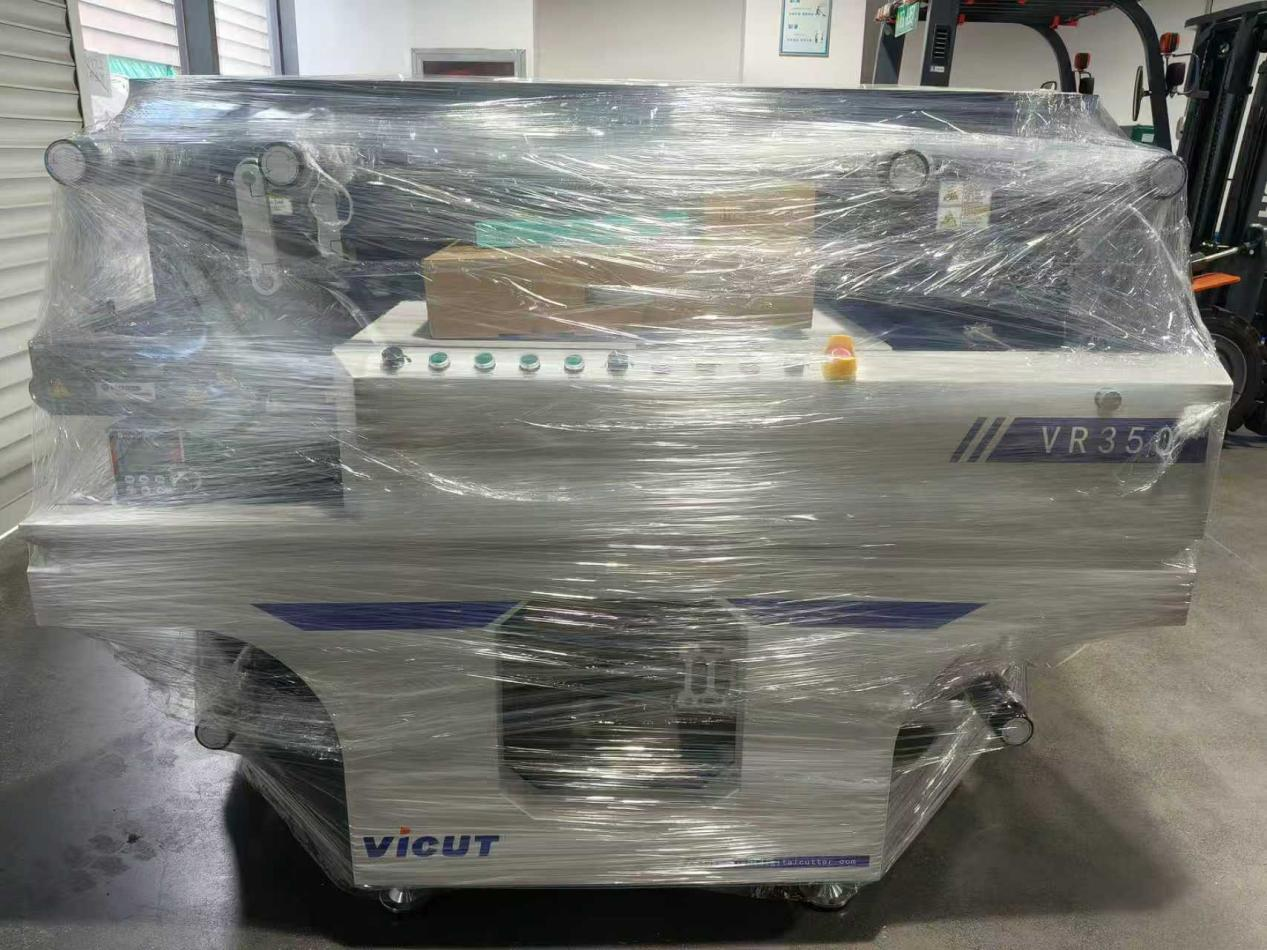

Packing photos
