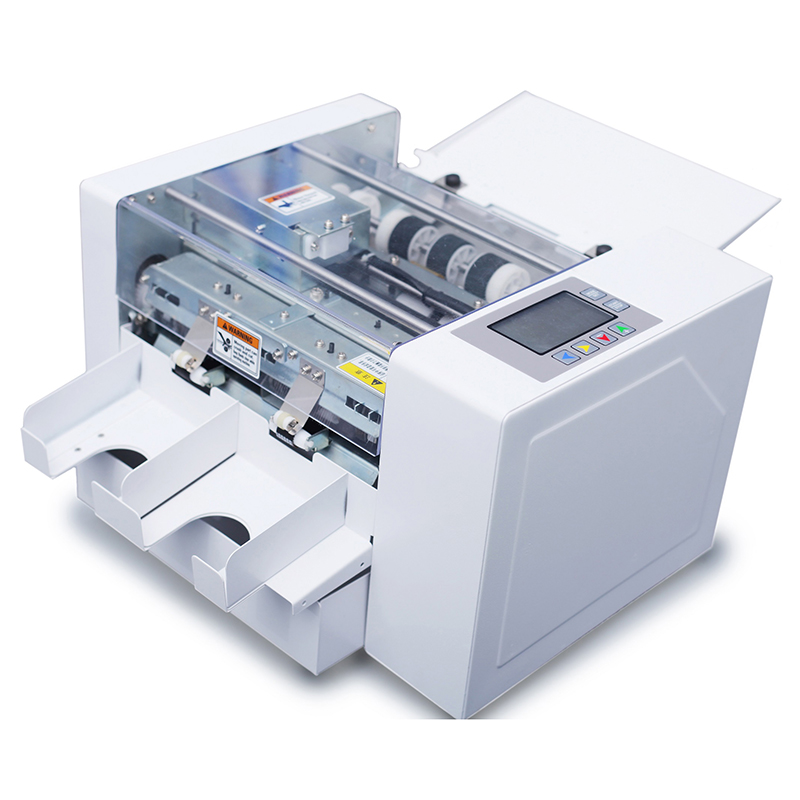

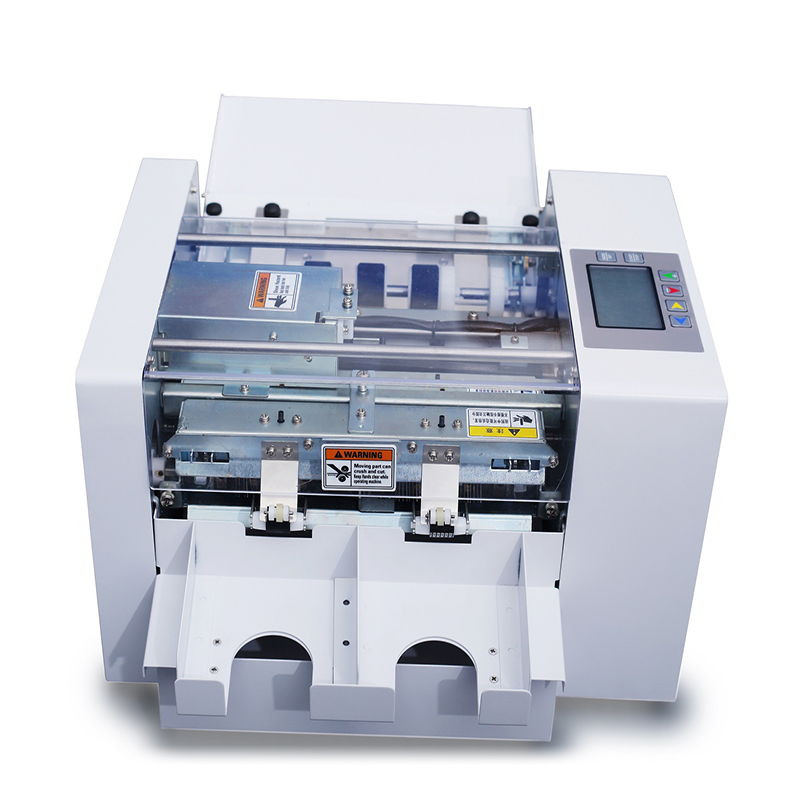

ID Photo Cutter PC-220

The VICUT photo cutter machine PC220 is special designed for cutting mini size photos, including ID card photos, passport photos, certificate photos, and so on. Auto stack feeding or set number sheet feeding enables automation of process. Different size photos can be cut from one sheet photo paper automatically. The card cutting machine is suitable for 5 inches and 6 inches photo paper.

Inquire Now None

KEY FEATURES

Inner mechanical structure is special designed for cutting mini size photos
Different options for cutting ID photos with 1 inches and 2 inches
Suitable for 5 inches and 6 inches photo paper

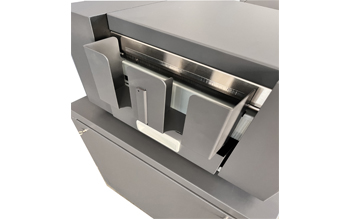

Auto stack feeding or set number sheet feeding enables automation of process
The pre-setting templates can be chosen freely from cutter database
Different size photos can be cut from one sheet photo paper automatically

Technical Parameters

Model	AUTOMATIC ID PHOTO CUTTER PC220
Photo paper size	A4 A4+,or (195-216)*(279-297)mm
Feeding Tray Capacity	Max.80 sheets(0.35mm thickness)or maximum thickness 30mm
Cutting position control	front edge detection or cut registration mark
Cutting photo size	2232mm, 2535mm, 3348mm, 3545mm, 3549mm, 3550mm, 3554mm, 3553mm
Cutting method	Longitudinal: cut by self sharpening slitting cassette
Cutting method	Horizontal: cutting with a lateral cutter,cut by lateral guillotine cutter
Cutting speed	80 seconds for cutting 1pcs SRA3 or 96 seconds for cutting 250pcs business card(90*55mm)
Cutting accuracy	±0.2mm
Humidity	35%~70%
Operating temperature	-15℃~ +40℃
Power supply	AC 110~220V, 50/60HZ, 0.5A
Weight	Net weight: 28.5kg/ Gross weight: 34.5 kg
Machine dimension	780 x448x290mm
Packing size	660x630x450mm

Details Description

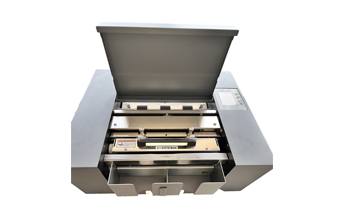

Transparent cover with auto power cut off

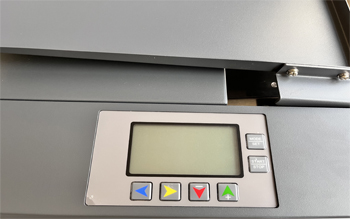

User-friendly control panel

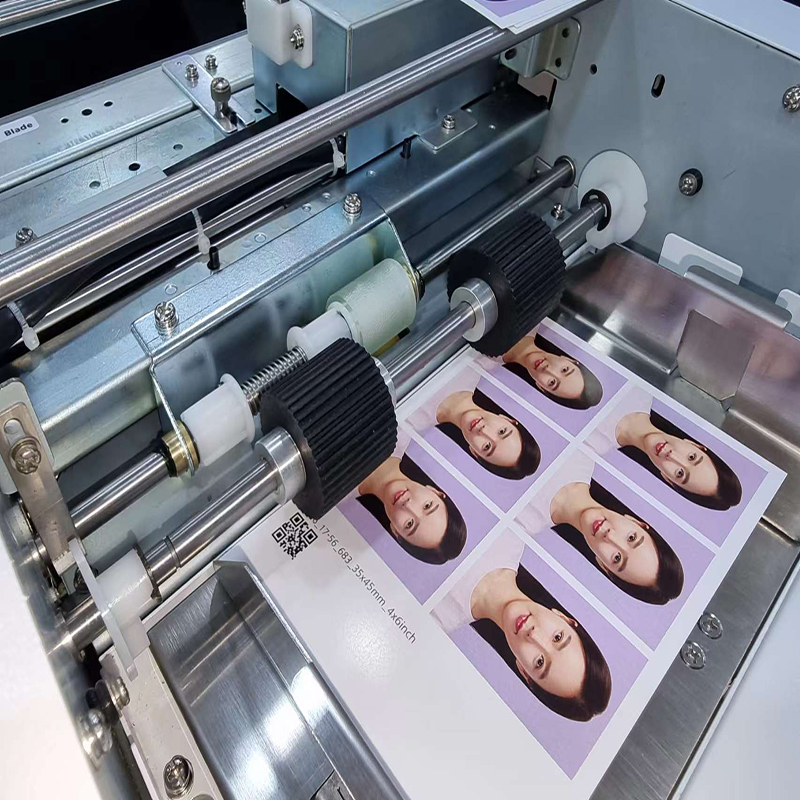

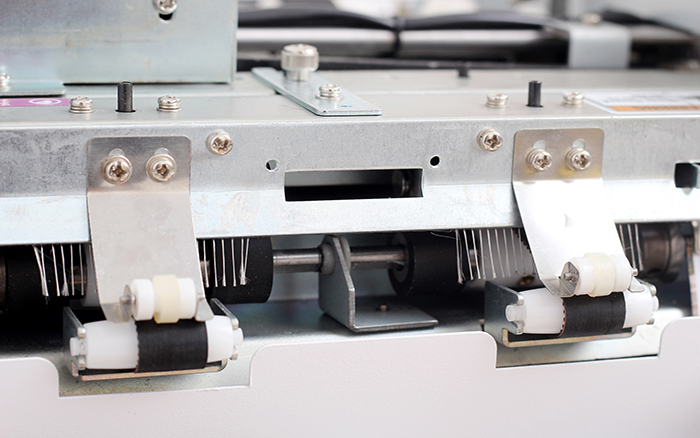

Self-sharpening cutting wheels

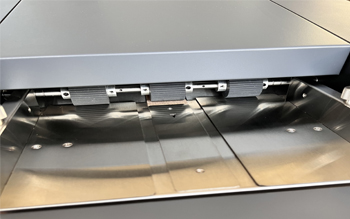

Movable waste collection tray

Inserting cutting cassette

Plug and play, easy installation and operation

Tools & Accessories

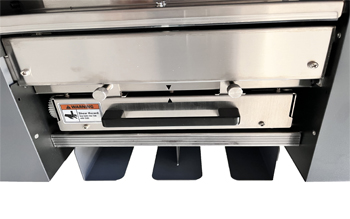

Replaceable cutting cassette

Users can customize different sizes of cutting cassette according to local cards size,so as to realize multi-purpose of one machine. It's very easy to replace the cutting cassette, just need to loosen and tighten two thumb screws.
Cross cutter

Min. cut 300K times.

Application

Ideal for business cards, postcards, photos, greeting cards, tickets and so on.

Photo card cutter suits for printing shops, design shops, DIY shops, online shops, supermarkets, and more.

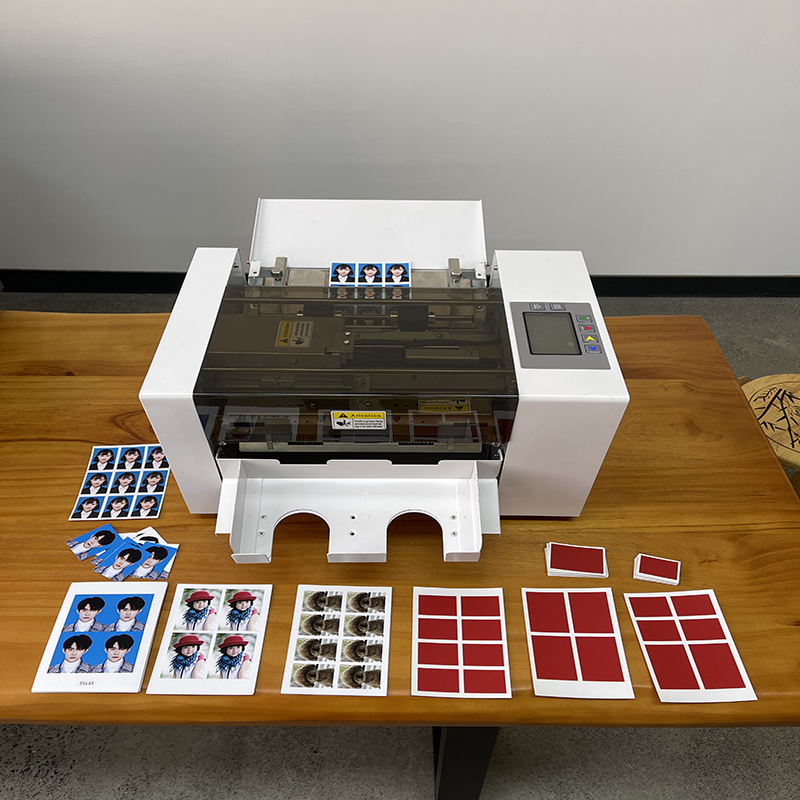

Working Samples:

Company Service

As a professional photo cutter machine supplier, Vicut believe good product quality and service always get loyal clients, CE, SGS and BV certified cutting machines, 24/7 online service, all-round technical support & solutions offered within 8 hours. Remote training, available user manual and operation video are provided.

Packing photos

Photo Cutter Machine Packing
