Desktop Digital Label Die Cutter VR240

The VICUT VR240 is a desktop digital label die cutter designed for commercial and in-house professional labels production. Label die cutting machine can be paired with a variety of full color label printers for a complete label printing and finishing solution. The label finishing machine features dual cutting heads as well as inline lamination and slitting for a full production work-flow, perfect for on-demand label production including cannabis labels, cosmetic labels, custom water bottle labels, stickers, etc.

Inquire Now Rotary die cutting machine VR320

KEY FEATURES

Automatic dual head gap control
Automatic pressure control
Automatic matrix removal
Inline cold lamination
Up to 8pcs slitting knives
Support max. roll width 240mm
Max. die cutting speed 8m/min
Cut max. 330micron thickness
Able to work synchronized online with desktop label printer

Technical Parameters

Model Name	Digital Label Die Cutter VR240
Maxi. r oll d iameter	290mm
Cutting media width	80--240mm
Max. label size	230x300mm
Min.distance from mark to edge	2mm
Min.distance between jobs	2mm
Max. die cutting speed	8m/minute(cut 10cmx10cmsquare)
No. of cutting heads	2sets
No. of slitting blades	4sets(max.8sets)
Die cutting blades	Tungsten steel blades
Die cutting precision	0.1mm(duplicate)
Slitting precision	0.2mm
Slitting blades	Rotary round blades
Marking sensing method	Single mark or double mark
Data t ransfer m ethod	USB2.0/Ethernet 10/100Base-T/GPIO
Working v oltage	110-240VAC 50-60HZ, 1000WATTS
Machine dimension	916374cm(LWH)
Machine weight (N.W/G.W)	120kg/145kg
Optional	Slitting unit up to 8pcs
	Online print components
	Roll to sheet cutter RS350

Details Description

Dual cutting head

VR240 equipped with a dual cutting head system, the gap between heads is adjusted automatically via control system, not manually, greatly improve the cutting efficiency.

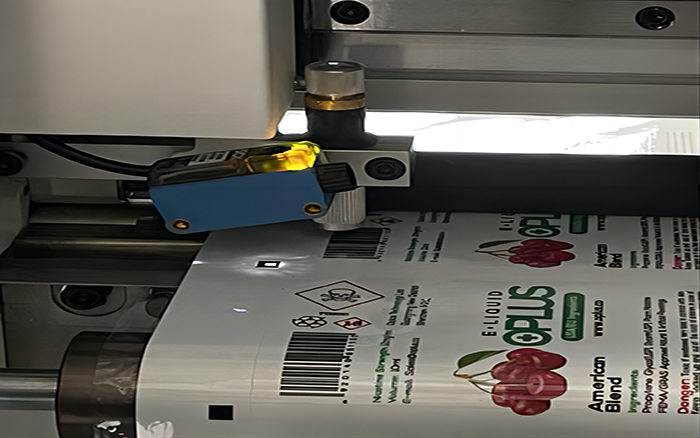

Digital cutting positioning sensor

The positioning sensor scans the marked points printed on the material to obtain the cutting dies information and feed it back to the machine control system, so as to realize the digital cutting.

User friendly touch screen panel

Large size touch screen operation panel, professional UI interface design, in line with user habits, operation is more convenient.

Cold lamination

Automatic lamination before die cutting, makes finishing labels more durable and more widely application.

Automatic waste removal and tension system

Under the tension of the waste discharge system, the label cutting waste paper will be automatically removed and separated from the winding, so as to obtain a clean label roll for the next process.

Slitting system

Utilize rotary round blades, automatically cut the label paper into small rolls as needed,up to 8pcs blades can be used. Maximum slitting speed can reach to 60m/min.

Platform for splicing materials

When you finish cutting a roll of label and prepare to cut another roll, you can use this platform to splice a new roll of material onto the one being processed, so as to realize smooth transition, save paper installation time and improve work efficiency.

U-disk function

VR240 roll label cutter supports network and U disk for die cutting files transmission.

Easy-to-use software

Dedicated software support PLT format file, it can choose the knife down point according to shapes, trajectory optimization is for perfect cutting.

Tools & Accessories

Blade holder

Precision blade holder, built-in bearing design, cooperate with machine blade compensation function, make cutting more smooth. Easy to install the blade and adjust the distance between the blade tips.
Die Cutting Blades

Special 45 degree die cutting blade, suitable for cutting 0.25 mm thick adhesive label materials such as sticker, coated paper, synthetic paper, PP, PET, etc.
Slitting blades

Tungsten steel rotary round blades, stable slitting the paper roll into small rolls for further processing.

Application

Applicable Industry: VR240 roll to roll label finisher is mainly used for small volume on-demand label production including blank labels, ink labels, chemical labels, beverage labels, bottled water labels, chili source labels, coffee labels, cosmetic labels, home appliance label, toiletries label, gum label, wine labels and more.

Applicable Materials: Stickers, Paper, PP, BOPP, PET, PVC & More!

Company Service: As a professional label die cutting machine supplier, Vicut believe good service always get loyal clients, 24/7 online service, all-round technical support & solutions offered within 8 hours. Remote training, available user manual and operation video are provided.

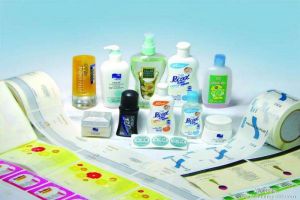

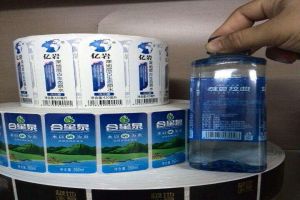

Working Samples:

Packing photos
