The GR8000-140 is professional film cutter plotter of advanced solution for users from automotive aftermarket, road safety, sign, graphic and counter-top installation. With features of grating ruler, static-free and multiple layer cutting force adjustment, it is capable of processing paint protection film (PPF), window tinting, diamond grade reflective film, sandblast resist rubber, card paper, self-adhesive vinyl, Amberlith and Rubylith, etc.
Stable Accurate Tracking for 7000mm / 23ft
Leading most of the competitors, the GR8000 series if able to do stable long length tracking for 700mm / 23ft, which is an important feature for high-level processing, it is ideal for big sign, pattern making.
Cutting small text strings accurately
It can cut minimum 0.8MM circle, and it is easy to tear waste.
Static electricity free
The problem of friction electrostatic interference when cutting soft thin materials is solved on GR8000 cutting plotter.
Compatibility with Adobe Illustrator (AI), CorelDraw, AutoCAD and more
|Max. Cutting Width(Non-contour Cutting）||690mm||1290mm||1630mm|
|Max. Cutting Width（Contour Cutting）||600mm||1220mm||1520mm|
|Max. Mountable Media Width||840mm||1440mm||1780mm|
|Min. Mountable Media Width||70mm|
|Max. Cutting Speed||800mm/s|
|Max. Cutting Force||600gf/5.8N in 8 steps|
|Cutting Force Setup||Adjustable in every 1gf|
|Min. Circle Diameter||0.8mm|
|Min. Character Size||1x1mm|
|Min. Number Size||3x3mm|
|Software||Windows Driver, SignWork Pro, CAD to Plot Pro|
|Port in Standard||USB,RS-232|
|Registration Marks Sensing||GARMS|
|Power Input||90V-240V AC,50-60Hz|
|Cutter Holder/Pen Holder||1 for each|
|Cutter Blade Diameters||0.9mm,1.5mm,2.0mm|
|Cutter Blade Angles||30°,45°,60°|
|Types of Pen||Water based fiber-tip pen & Oil based ball pen|
|Method to Fix Material||Push rollers|
|Media Stock Roller Plates||Included|
|Package Size L-W-H||118x40x57cm(0.27CBM)||171x40x57cm(0.4CBM)||220x40x57cm(0.5CBM)|
Accurate Rigid Push Rollers
Our push rollers are made from hard materials, it is capable of working accurately for long time. The push rollers can be set to two pressure levels: Strong/ Low.The combination of accurate rigid push rollers, precise material feeding rollers and quality media bracket rollers ensure stable long length tracking of material.
Stable Accurate Tracking for 7000mm / 23ft
Leading most of the competitors, the GR8000 series if able to do stable long length tracking for 700mm/23ft, which is an important feature for high-level processing, it is ideal for big sign, pattern making.
Advanced Tool Carriage
Tool Carriage is one of the most important parts of the machine. Taking the sport car structure, driven by silent voice coil motor, GR8000 plotter’s tool carriage is featured as fast, more agility and no overheat for long-term non-stop operation.
Suction Cutting Table
Dense air inlets & strong air flow to hold down the media flatly and tightly against the table top so that the tool carriage can perform fast, accurate cutting / plotting.
Servo Motor / Closed Loop Control
Cutting / Plotting will be stopped when tool carriage is overloading, it is an important safety feature to protect tool carriage when media is jammed.
It is inevitable that the cut table or material surface is not at the same height from point to point, we take Grating Ruler, a precise optical device, to measure the distance between blade tip and material surface in real time, and the cutting depth is adjusted in every 0.01mm by the controller in real time according to the value of distances measured. Subsequently, the blade travels up and down as material surface goes up and down in order to keep the same cutting depth at any position of that tool path across entire working size.In short the cutting depth is consistent; you will not see different shades.
The complete elimination of static interference is especially important for PPF installers. GR8000 series cutter plotter eliminates the static interference successfully having been tested year-round in different weather conditions.
Cut small texts
The GR8000 series vinyl cutter is know as high precision cutting, it is able to cut small text strings, such as circles sized Φ0.8mm, characters sized 1x1mm and numbers sized 3x3mm, and it is easy to tear off the scraps.
For more outstanding performance and long-term reliable working, we only use world class brand name components such as BANDO belt, MINEBEA bearing, etc.
Clean Smooth Edge Quality
The Grating Ruler and correspondent cutting force management deliver clean smooth edge quality, even for the most complex jobs. GR8000 series is able to cut small text strings and it is easy to peal off the waste material, which cut down workload greatly for the users.

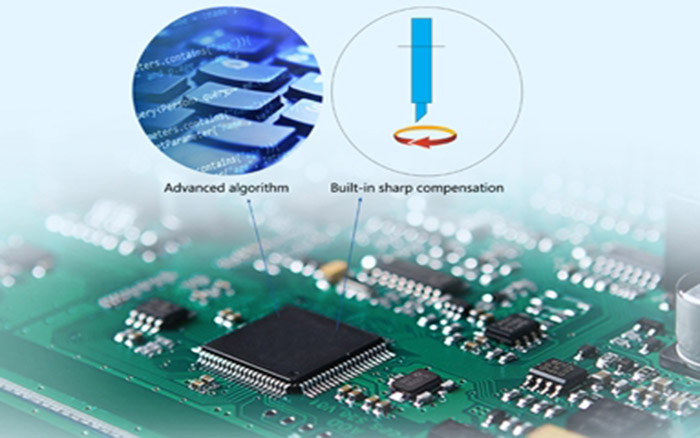

Making Blade-tip Compensation by chip
Our system makes blade-tip compensation by hardware(main board) instead of software, the cutter works with constant high precision no matter what kind of CAD / CAM software is applied.
Scanning Bar-code when offline
One-click to spot the cutting job from those saved in the USB memory by scanning the Bar-code which is printed in media, while not requiring connecting to PC. This function is especially helpful to increase the productivity when there are many files stored in the USB memory.
Advanced Registration Marks Sensing
One-click to add registration marks and generate contour(s) of the object(s).
One-click to read the registration marks and carry out the contour cutting.
To match the cutting path(s) and contour(s) to the best, fine adjustment with either keypad or software is available. If material is placed askew (≤15°), the cutter is still able to work fine, this feature helps to save time.
Cutting force in 8 Steps
In our software CADtoPlotPro, user is enabled to put different colors for different cutting paths, and set the processing sequence as color sequence, and different paths are processed by different steps of cutting force.

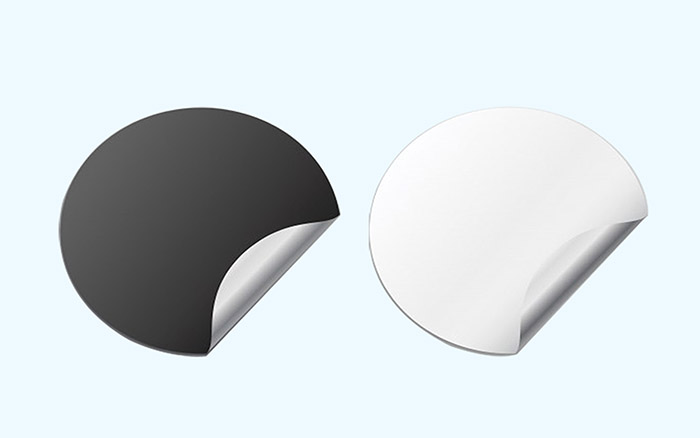

Multiple layers solution
For medias with multiple layers, different cutting force is applied for different layer.
Acceleration: 4000mm/s²/Max. Speed: 800mm/s
Advanced algorithm of motion controller, Optimized tool paths, Servo motor on X,Y, Voice coil motor on Z axis and quality precision driving system, all of these elements make the machine moving faster and processing with more efficiency.
Advanced algorithm and quality hardware allow for obvious elimination of distorted, rounded or lifted corners.
No Need OVERCUT
On every cutting path, the start point and end point coincide accurately, while no need any OVERCUT.
Half Cut / Perforation Cut
Half cut / Perforation cut are available, every time you may carry out either one or both.
Dotted lines cutting
Dotted lines cutting is applicable for medias with 2 layers typically and also kinds of paper.
One-click to Install Print Driver
One-click to install print driver and printout with USB, send cutting job from any CAD software that with printer feature. Our print driver works with Windows 32/64 bit.

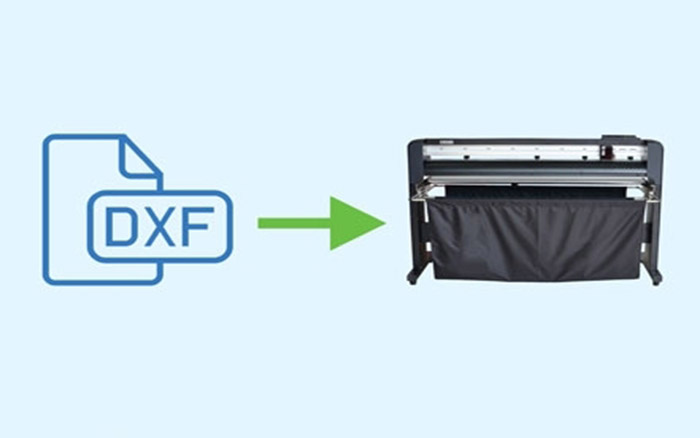

DXF Direct Output
Unnecessary to do any format conversion, GR8000 is compatible with. DXF file directly.
One-click to Clear History
One-click deletion button for the currently print document.
Transfer working files by USB memory and support repeated operation.
Industry leading technology is applied to calibrate the perpendicular between different axes and the parallelism between gantry and cut table.
Compatible with AutoCAD, AI, Coreldraw and Flexisign
Leading the same industry, we make software by our-self, we are able to adapt our system to the latest version of popular CAD / CAM software, such as AutoCAD, Adobe Illustrator, Coreldraw and Flexisign and more.
We supply Software Development Kit / SDK to match with client’s software, which deepen cooperation between Gunner and Professional clients.
Media Sensor (optional)
It is applied to measure the size of media, the cutting/ plotting operation won’t be carried out if media size is not big enough for the contents, and controller will ask operator to enlarge the media or decrease the size of contents. Media sensor helps greatly in saving media and increasing efficiency.
Tools & Accessories
Fine Blade Holder
This precision engineered components sits in the advanced carriage and holds the cutting blade of choice. The tool is manually adjustable to obtain the desired amount of “ blade out” for the job in hand.
Used at set up and then periodically, to calibrate the cutter.
Various blades available for different applications.
Angle: 45° /Φ0.9mm for Vinyl media
Angle: 45°/Φ1.5mm for Thick media
Angle: 30°/Φ1.5mm for Thicker media or smaller character
Angle: 60°/Φ2.0mm for reflective film
Angle: 45°/Φ2.0mm for PPF
Various printable self-adhesive materials can be used. Such as, Photo Paper, T-shirt Transfer Paper, Photo Quality Inkjet Card, Stickers, Glossy paper, Transparent Films, etc.
GR8000-140 working samples:
