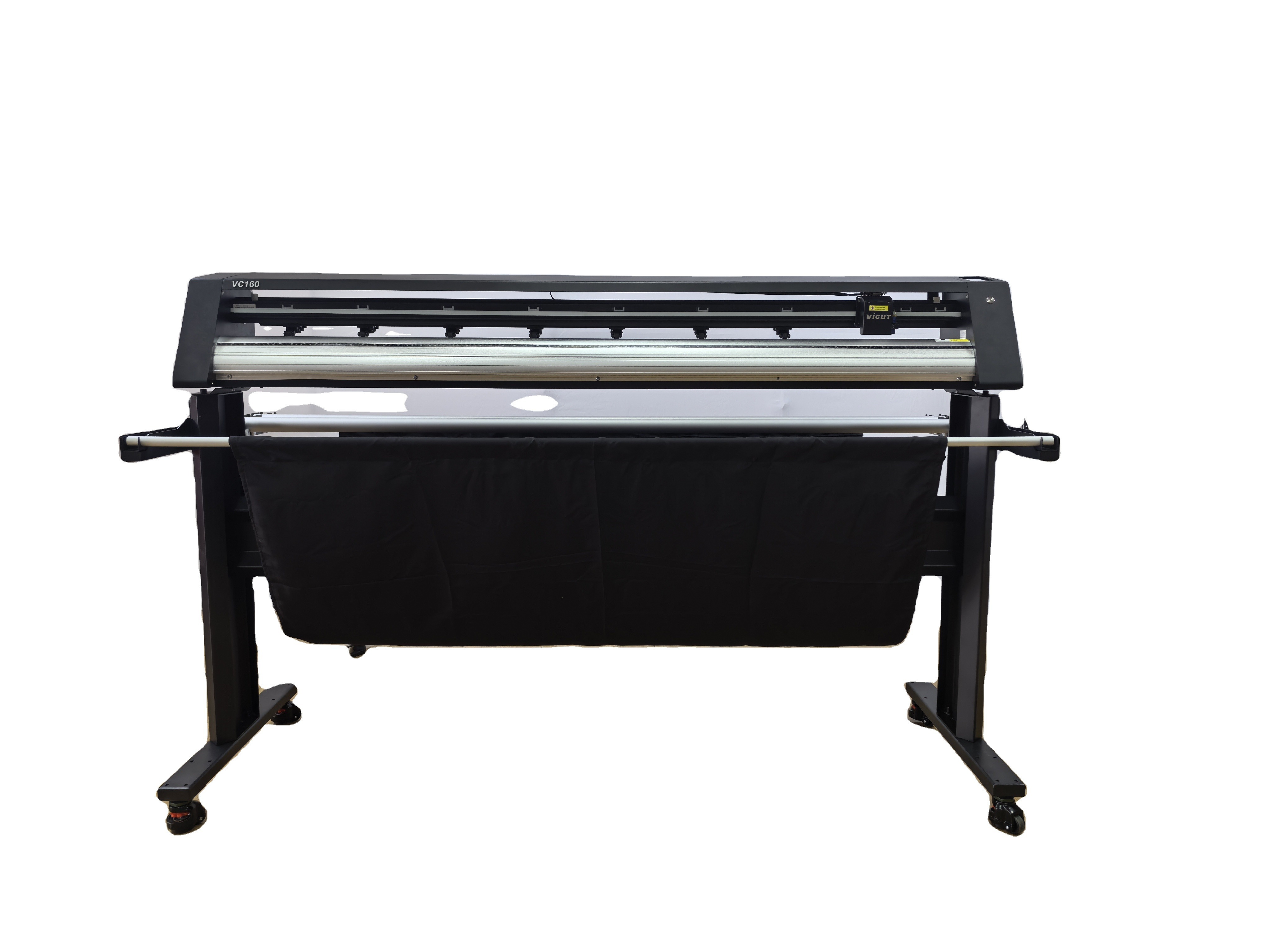

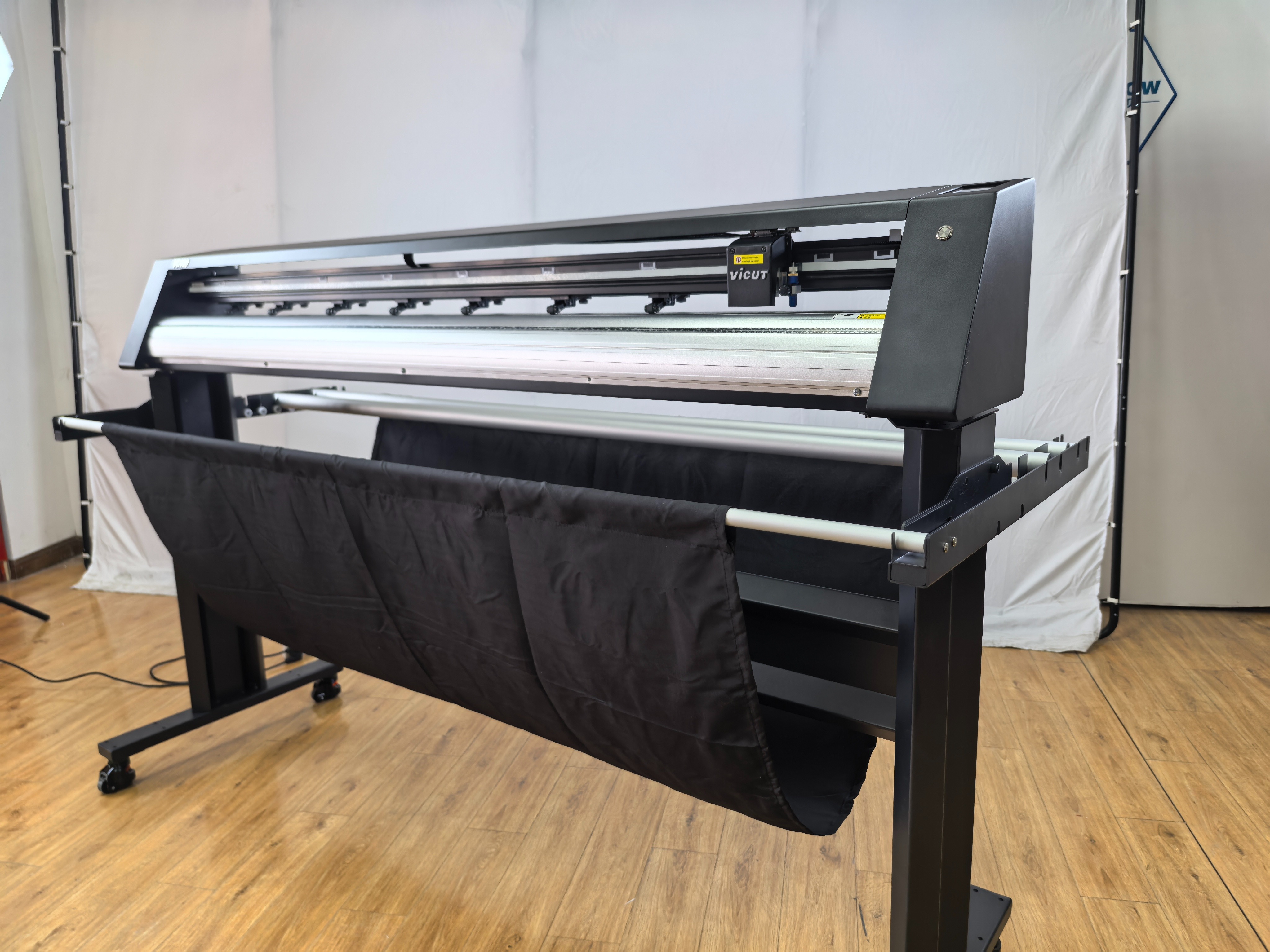

CCD Camera Servo vinyl cutter machine VC160

The VIGUT VC series vinyl cutter plotter is specially designed for users who require working with large plots and processing large quantities in professional quality, without sacrificing cutting speed.

● High speed CCD camera positioning system.

● The control system adopts advanced algorithms to ensure the maximum balance between speed and accuracy.

● The servo drives provides more stability and cutting precision.

● The tool drop point and the start point shall be smoothly connected without burrs.

● With advanced configuration, fast cutting speed, high precision and reasonable price, VC series vinyl cutter is becoming one of the most cost-effective in the market.


KEY FEATURES

  • CCD Camera Servo vinyl cutter machine VC160

    Strong Frame Body

    Steel frame and sheet metal panels for stability.

  • CCD Camera Servo vinyl cutter machine VC160

    Touch Screen

    Simple menu navigation, fast reaction.

  • CCD Camera Servo vinyl cutter machine VC160

    Servo Drives

    Slient, precise and powerful,servo drivers for best cutting results

  • CCD Camera Servo vinyl cutter machine VC160

    CCD Camera Registration

    High resolution CCD camera scan registration marks in fast speed.

  • CCD Camera Servo vinyl cutter machine VC160

    QD code Function

    One click QR code to retrieve the cutting files easily.

  • CCD Camera Servo vinyl cutter machine VC160

    High Precision

    Able to cut small fonts and letters, easy to peel the waste.

  • CCD Camera Servo vinyl cutter machine VC160

    High Speed

    Maximum cutting speed 1200mm/s.

  • CCD Camera Servo vinyl cutter machine VC160

    Long Length Tracking

    Straight cutting 4m vinyl without shifting, process long images easy and fast.

  • CCD Camera Servo vinyl cutter machine VC160

    Multiple File Transfer Modes

    U-disk, Network, USB cable and WI-Fi connection.

  • CCD Camera Servo vinyl cutter machine VC160

    Easy-to-use-software

    Support AI and CDR file direct import.

  • CCD Camera Servo vinyl cutter machine VC160

    Auto Split Function

    Automatic split the media into sheet after die cutting, convenient and practical.

Technical Parameters


Model No.VC80VC140VC160
StructureWith standWith standWith stand
Max. media width720mm1400mm1660mm
Max. cutting width600mm1280mm1540mm
NO. of pressure roller4pcs6pcs7pcs
Cutting accuracy600a+/- 0.02mm
Drive modelServo drives
Cutting speedMax 1200mm/s
File transfer modeUSB/Network/U-Disk/Wi-Fi
Positioning systemAIDCut-CAM, SignMaster
Registration marksCircle marks/Coner marks/QR code
Software Mufti-language SignMaster S/W (Signcut Pro is optional)
Feeding systemPull shaft feeding structure, simple & time-saving
Motor power25watt
Max. force1000G
Power consumption< 100W
Working voltage 110V-130V or 210-230V, 50hz/60hz
Ambient temperature+5°C ~+ 35°C
G.W./N.W.47/44kg61/58kg67/64kg
Packing Size1050 x 380 x 500mm(0.2CBM)1730 x 380 x 500mm(0.33CBM)1990 x 380 x 500mm(0.38CBM)


Details Description

Moving carriage

Steel Frame with inliner bearing, it is with more cutting pressure which is adjustable easily, and it is good in heat dispersion. With built-in high resolution CCD camera, it can scan the multiple mark points automaticlly to realsize contour cutting fuction.

Steel thorn and pressure roller

The plotter equipped with steel which can fix media effecitively to avoid any sliding and ensure the feeding precision. There are several pressure rollers on up side of beam, the distance between each roller can be adjusted to fit for different size media. These high precision imported rollers, assures no offest feeding long distance.

Multiple interface

Multiple data transfer methods supported. U-disk, Network, USB cable and WI-FI connection. Users are allowed to select data transfer method depends on various situation.

Touch control screen

User-freindly touch control screen provides convenient operating experience.

Suction holes

With many suction holes on the cutter working table, material can be fixed tightly, avoid bluging of materials during processing.

Paper feeding system

Auto feeding system, easy to feed the roll material, smooth and fast.

Paper pressing device

There is a row of paper pressing devices behind the plotter beam. During the working process, these paper presses can well fix the materials, ensure that the materials move within the fixed range and reduce the offset.

Press bar

After loading the material, pull down the handle to press the material, so that the material can be fixed during the paper feeding process and reduce the offset.

Graduation

The graduations are marked on the paper feeding side of the working platform. so that the material size can be easily measured and adjusted when feeding the material.

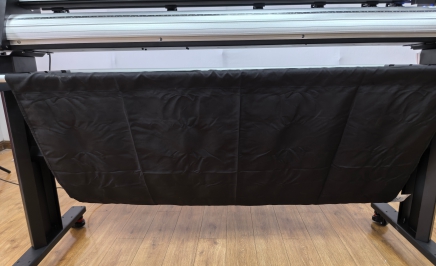

Catch-up basket

The machine equipped with a set of catch-up basket, including 2pcs holding rollers and 1pcs of high quality nylon cloth bag, save space while keeping materials clean and tidy.

Switch on button & power interface

Switch on and off easily with a press button after connecting the power cable with plotter. We offer various worldwide standard power plug. The voltage is also can be customized due to customer needs.

Tools & Accessories

  • CCD Camera Servo vinyl cutter machine VC160

    Blade holder

  • CCD Camera Servo vinyl cutter machine VC160

    Calibration tool

  • CCD Camera Servo vinyl cutter machine VC160

    Cutting blades

  • CCD Camera Servo vinyl cutter machine VC160

    Pliers

  • CCD Camera Servo vinyl cutter machine VC160

    Scraper

  • CCD Camera Servo vinyl cutter machine VC160

    Power cable

  • CCD Camera Servo vinyl cutter machine VC160

    Dust proof cover

  • CCD Camera Servo vinyl cutter machine VC160

    Grounding wire & fuse

  • CCD Camera Servo vinyl cutter machine VC160

    Screws

  • CCD Camera Servo vinyl cutter machine VC160

    U-disk & Wifi connector

  • CCD Camera Servo vinyl cutter machine VC160

    USB cable

  • CCD Camera Servo vinyl cutter machine VC160

    Trimmer

Application

ØSignmaking applications

Every company needs to advertise for itself, but advertising is often far too expensive for small to medium-sized businesses. The vinyl cutter can offer relief. The vinyl cutter is the central device in a company to use in advertising. It doesn't only save a large amount of money, but also provides plenty of room to develop your own creativity and ideas. With a vinyl cutter, you can, for example, advertise in the following ways, quickly and easily:

● Corporate signmaking

● Corporate vehicle signage

● Design of the shop window advertising

● Creating banners and stadium advertising at events

● Design of the premises of the Company (Room label, signs, screening applications, design elements)

● Production of stickers and labels as so-called Print&Cut applications - first you print on eg. sign vinyl, then contour-cut with the vinyl cutter.


ØHome applications

Anyone who wants to individually create his personal environment will find a vinyl cutter to be the right tool. With these machines, many different creative ideas can be realized like this selection shows.

● Customized wall tattoo

● Create kitchen surfaces


ØHobby applications in the fields of decoration, model making, etc.

● Create templates for painting colorful wall design including banners, ornaments, and children's artwork.

● Individual design of garments like t-shirts, jackets, sweat shirts etc. with flock or flex film.
