The VICUT card cutter is designed for automatic cutting many types of paper cards with fast speed, it is controlled by a micro-computer offering convenient cutting through preset layouts for consistency and ease of use. The interchangeable cutting cassette offers more optional functions such as creasing and perforating, and the cutting size also can be customized.
Works along with any digital printer, or even digital photocopier, the card cutting machine CC-330/CC-220 can produce professionally-cut business cards, postal cards, playing cards, photos, tickets and so on. Warmly welcomed by the printing shops, DIY photo shops and design companies, thanks to its affordable cost, flexible functions and fast speed.
KEY FEATURES
FULLY AUTOMATION
Automatic sheet feeding system delivers fully auto process for card cutting.
AUTOMATIC COUNTING
The control system count the cutting times and memory it, to help users better judge the use of knife.
FAST CUTTING SPEED
Cuts 150pcs cards per minute.
CUTS UP TO 450GSM
Vulcan CC-330/CC220 can cut up to 450gsm CCP paper without deformation of sharpness of knife and no slow down.
CUSTOMIZED CUTTING SIZE
Thanks to the interchangeable cutting cassette,the cutting size of the card can be customized according to the user's requirements.
SUPPORT VARIOUS SHEET SIZE
Suitable for paper sheet size A4, A4+, A3, A3+, SRA3, or (297~320)mm x(420~480)mm, capable for cutting different business cards sizes all over the world.
SIMPLE AND SAFE OPERATION
Built in cutting cassette design, to avoid safety hazards. Once sheets ready, one click to start the cutting process, easy to operate even for beginners.
EFFICIENT AND STABLE CUTTING SYSTEM
The cutting blades are self-sharpening and do not require maintenance. One set of cutting cassette can cut 300K time continually, it means, one cutting cassette can produce about 100k standard business cards.
IMAGE SHIFT COMPENSATION
Cut marks registration compensates the offset, ensure that the cutting accuracy will not be affected by material printing error or placement shift.
Technical Parameters
| Model | CC-220 | CC-330 | CC-330S | |
| Paper size | A4, A4+, or (195~216)mm x (279~297)mm | A3, A3+, SRA3,or (297~320)mm x (420~480)mm, | ||
| Cutting size | Longitudinal: (89/85/90/95)mm, or customized | |||
| Horizontal: (45/50/54)mm, or (3~600)mm, fully adjustable | ||||
| Cutting method | Longitudinal: cut by self sharpening slitting cassette | |||
| Horizontal (cross cutting knife):cut by a lateral long cutter | ||||
| Cutting position control | Front edge detection/Multiple Registration Marks | |||
| Paper feeding method | Dual roller auto-feeding paper tray | |||
| Feeding Tray Capacity | 30mm or 85pcs 350gsm sheets | |||
| Paper thickness | 180gsm - 450gsm | |||
| Cutting speed | CC-220, up to 90pcs business cards per minute. (2x5 layout from 210x297mm sheets) | up to 130pcs business cards per minute.(3x8 layout from 320x464mm sheets) | ||
| Output traycard capacity | 180gsm: 280×2 (pcs); 350gsm: 220×2 (pcs) | 180gsm: 280×3 (pcs); 350gsm: 220×3 (pcs) | ||
| Presetting software | YES | |||
| Cutting cassette | Replaceable cutting cassette, change in 2 minutes. | |||
| Life of cutting cassette | Min. cut 43K pcs business cards | Min. cut 100K pcs business cards | ||
| Life of cross knife | Min. cut 300K times | Min. cut 300K times | ||
| Cabinet Stand | NO | NO | YES | |
| Creasing function | YES (optional) | YES (optional) | YES (optional) | |
| Perforating function | YES (optional) | YES (optional) | YES (optional) | |
| Cutting tolerance | ±0.2mm | |||
| Humidity | 35%~70% | |||
| Operating temperature | -15℃~ +40℃ | |||
| Power supply | AC 110~220V, 50/60HZ, 0.5A | |||
| Weight | N/W:26kg;G/W: 31kg | N/W:31kg; G/W:36kg | N/W:92kg; G/W:97kg | |
| Machine dimension | 680x450x310mm | 760x550x310mm | 780x550x1070mm | |
| Packing size | 650x580x380mm | 760x650x950mm | ||
| Customized model 1 | CC-220TPS, special for cutting Testing Papers. | |||
| Customized model 2 | CC-220THN, special for cutting thin paper 80-120gsm. | |||
| Customized model 3 | CC-220JC, special for cutting 157gsm QC card paper. | |||
Details Description

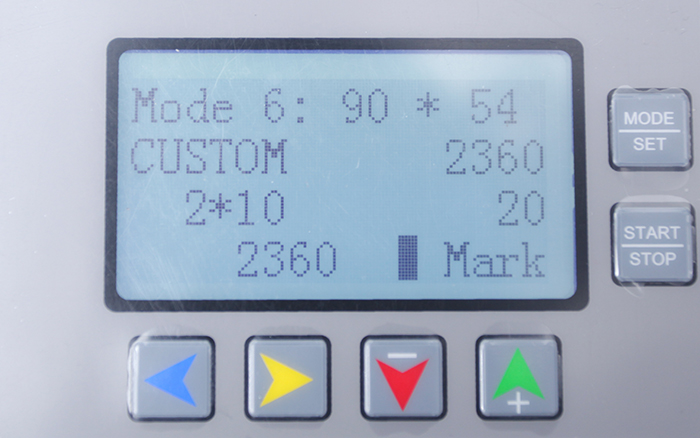

USER-FRIENDLY CONTROL PANEL
The control panel is easy to operate, users can select the appropriate template from the existing layout for cutting, and clearly see the number of cutting times from the display screen.
REPLACEABLE CUTTING CASSETTE
Users can customize different sizes of cutting cassette,so as to realize multi-purpose of one machine. It's very easy to replace the cutting cassette, just need to loosen and tighten two thumb screws.
Self-sharpening cutting wheels
In the cutting process, the cutting blade grinds itself through the grinding wheels to keep the blade sharp and not blunt because of the long cutting time.
Dual roller auto-feeding paper tray
The new version feeding structure allows the paper tray to hold up to 70 sheets per time. Dual roller structure makes paper feeding easily and smoothly.
Movable waste collection tray
During the cutting process, the scraps will be separated automatically and fall into the movable collection tray below, so that the scraps can be cleaned at any time.
Detachable card collection tray
The card cutter is equipped with adjustable card collection tray. By changing its installation mode, it can accommodate business cards of different sizes, even large postcards and photos.
Big size card collection tray(optional for CC-330/CC-330S)
An optional large size collection tray is provided for finishing big size cards and photos.
Cabinet stand(only for CC-330S)
With a cabinet stand, card cutter CC-330S can work easily without additional working table. The cabinet can also collect cutting waste and pack enclosed the card cutter to become an independent small production line.
Tools & Accessories
Replaceable cutting cassette
Users can customize different sizes of cutting cassette according to local cards size,so as to realize multi-purpose of one machine. It's very easy to replace the cutting cassette, just need to loosen and tighten two thumb screws.
Cross cutter
Min. cut 300K times.
Application
Ideal for business cards, postcards, photos, greeting cards, tickets and so on.
Suits for printing shops, design shops, DIY shops, online shops, supermarkets, and more.
Working Sample:
Company Service
As a professional playing card cutter supplier, Vicut believe good product quality and service always get loyal clients, CE, SGS and BV certified cutting machines, 24/7 online service, all-round technical support & solutions offered within 8 hours. Remote training, available user manual and operation video are provided.
Packing photos
 |  |  |  |
