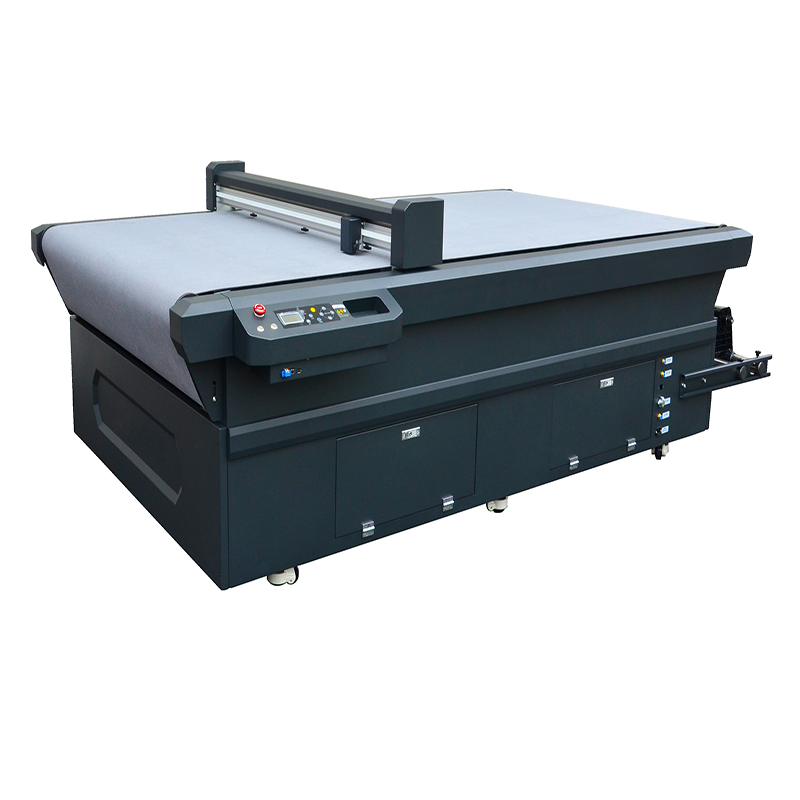

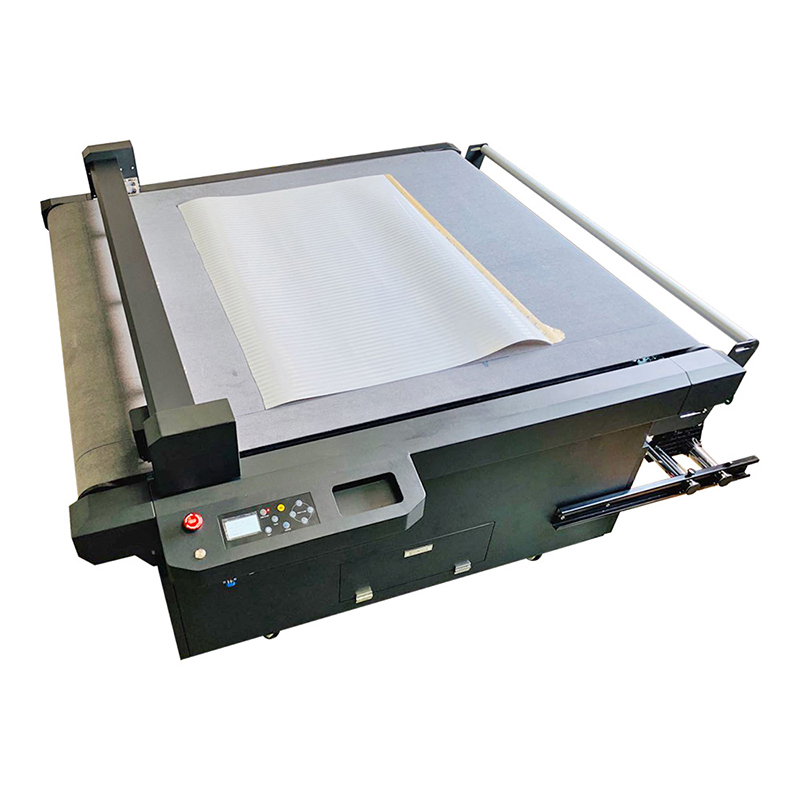

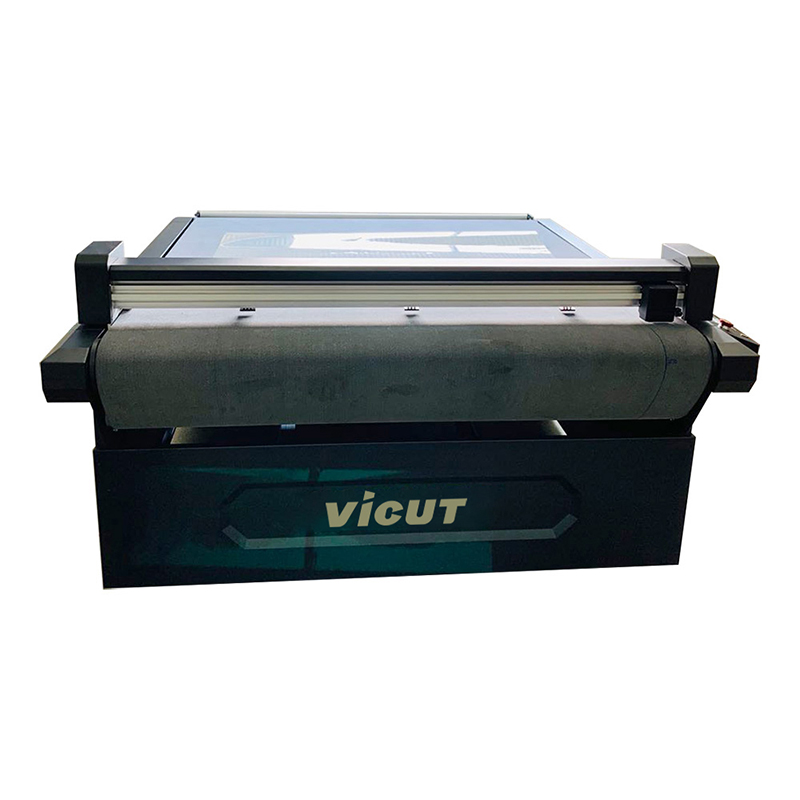

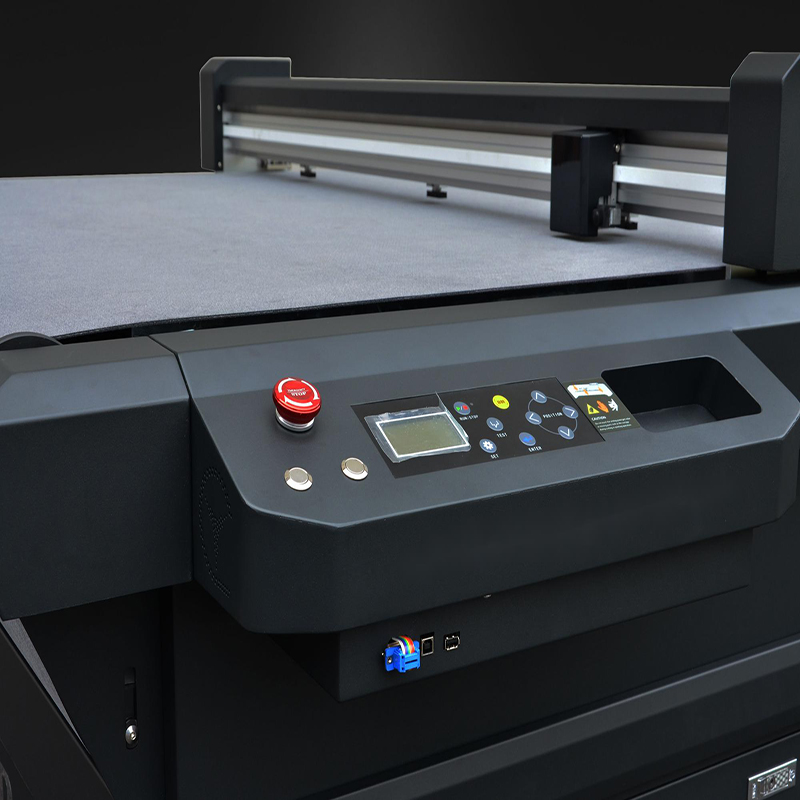

The VICUT VFR series auto feeding CNC flatbed cutting machine with conveyor table, with grating ruler technology and 8-levels cutting force settlement, mainly used to cut soft medias without cutting dies, it is an efficient solution of full cutting, half cutting, perforating, marking, etc. This series flatbed cutter is ideal for road & traffic safety signs, automotive aftermarket, signage and more.
Obvious elimination of distorted, rounded or lifted corners.
The problem of friction electrostatic interference when cutting soft thin materials is solved.
GR series flatbed cutter is able to cut small text strings(minimum 0.8mm circle), and it is easy to tear off the scraps.
Clean Smooth Edge Quality
The Grating Ruler and corespondent cutting force management deliver clean smooth edge quality.
No Need OVERCUT
In every cutting path, the start and end point join with each other accurately, while no need to setup any OVERCUT.
Cutting Force in 8 Step, Multiple Layers Solution
Color the cutting paths differently for various force steps, set the processing sequence as color sequence.This is good for cutting medias with multiple layers, which requires different cutting force in different layer.
One-click to Clear History
One-click deletion button for the currently print document and clear it completely from buffer memory.
Full cut/Half Cut/ Perforation/Marking, etc
Every time you may carry out either one or both.
DXF Direct Output
It is compatible with DXF file directly while no need any format transition.
Segmented Registration and Cutting
Multiple registration marks in segmented areas, available for more precise axis alignment. Contour cutting is performed sequentially in each segmented area, which improves accuracy and tracking for heavier media or media that has been laminated during cutting big size image.
We supply Software Development Kit/SDK to match with user’s software, provide technical support,meet customization requirements.
|Non-contour cutting area||1300x1200mm||1520x1200mm||1300x2500mm|
|Contour cutting area||1240x1180mm||1490x1180mm||1270x2450mm|
|Cutting media thickness||0.03mm-1.5mm|
|Applicable media||Soft and medium rigidity medias|
|Method to fix media||Vacuum table(2.2kw vacuum pump with muffler)|
|Method to feed media||Conveyor belt & roll media bracket|
|Max.cutting force||600G/5.8N in 8 steps|
|Cutting force setup||Adjustable in every 1G|
|Cutter blade diameter||Φ2.0mm|
|Cutter blade angles||30˚/45˚/60˚|
|Dotted lines cutting||included|
|Compatible OS||Win 10/8/7/XP|
|Software||Windows driver, Signworkpro, CADtoplotpro|
|File format||HP-GL, PLT|
|Port in standard||USB, RS-232|
|Reg marks detection||CCD Camera|
|Power consumption||Cutter: 1.5kw; vacuum pump: 2.2kw|
|Working tools||1pcs blade holder, 1pcs pen holder, 10pcs cutting blades|

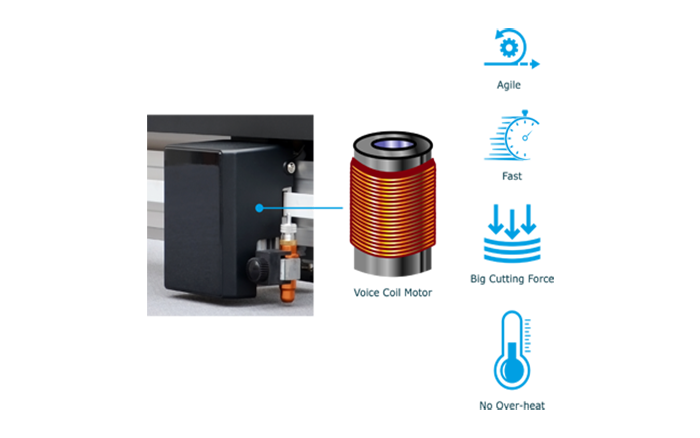

Advanced Tool Carriage
The tool carriage adopts the structure of sports car, using of silent voice coil motor makes it outstrip it’s rivals. The tool carriage is featured as fast, agile and no overheat for long-time non-stop operation. It is a leading tool carriage in the same field in China.
Suction Cup Feeding Device
Several suction cups are installed on the beam of the cutter to help drag the media to the forefront of the machine for convenient processing.
Strong air flow to hold down the media flatly and tightly against the table top so that the tool carriage can perform fast, accurate cutting / plotting.
Auto Feeding Conveyor System
Conveyor is able to accomplish long seamless cutting / plotting. With the combination of CCD camera, fast and accurate nesting / contour cutting is performed.

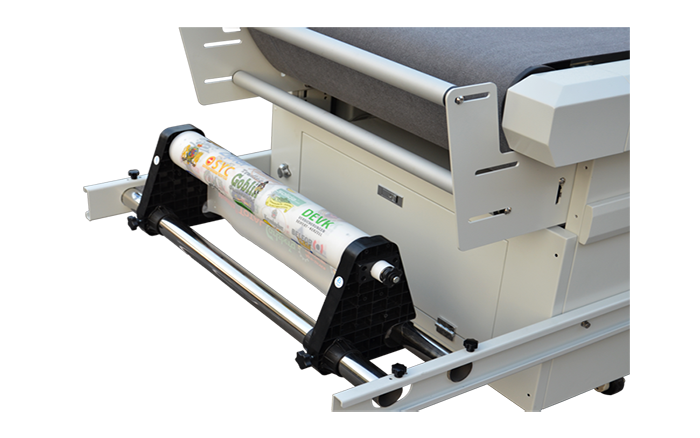

Oriented Roll Media Bracket
It is smooth to feed media with the media bracket, user may setup the bracket according to media feature and specs. The bracket improves productivity.
Inevitably material surface is not level from point to point, the grating ruler is applied to measure the distance between blade tip and material surface, and the cutting depth is adjusted in every 0.01mm by the controller accordingly. Then the blade travels up and down as material surface goes to keep the same cutting depth at any position of the tool paths across the entire table. In short, Grating Ruler is of key importance for consistent cutting depth.
Making Blade-tip Compensation by chip
Our system makes blade-tip compensation by hardware(main board) instead of software, the cutter works with constant high precision no matter what kind of CAD / CAM software is applied.
Servo Motor / Closed Loop Control
Intelligent servos bring out smooth acceleration, big torque, precise cutting / plotting operation, excellent durability and volume production. Servos ensure the vinyl cutter to run at Max. Speed: 600mm/s.
Fast Registration Marks Detection with CCD Camera
With our dedicated software, it is able to generate contours in one-click, and it is easy to add registration marks.CCD camera, used in combination with related software is applied to detect the intricate dieless contours fast and more efficiently. Problems caused by position error of human, poor quality printing are resolved. CCD camera is applied for wide varieties of medias.
Automatic Data Retrieving with Bar-code
One touch to find the cutting job out of those saved in the USB memory by scanning the printed Bar-code, while no need to connect to computer. Multiple jobs are processed automatically while production errors are eliminated.

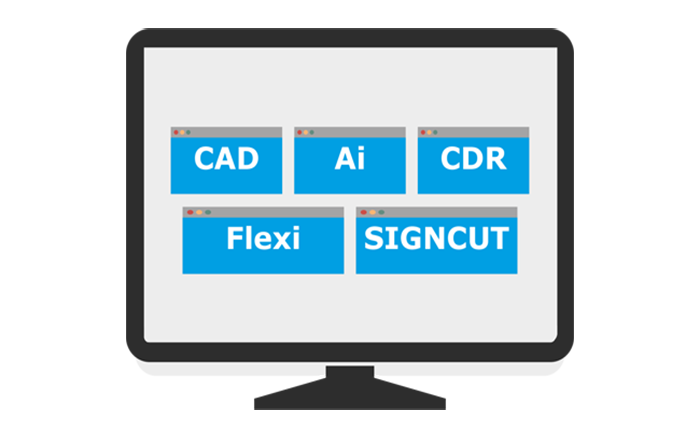

Leading Software Compatibility
Leading the same industry, GR flatbed cutter is able to adapt to the latest version of popular CAD / CAM software, such as AutoCAD, Adobe Illustrator, Coreldraw, Flexisign, Signmaster; Various pattern software in automotive aftermarket like 3M™ Pattern and Solutions Center (PSC), Core by LLUMAR, INTEGO are already compatible to this system.
Intelligent Bleeding for Easier Overlap Operation
Intelligent Bleeding function makes overlap operation easier for the installers, this feature is very important for making and installation of big signs / indicators.
USB memory/ Duplicate cutting jobs offline
Users are enabled to duplicate the cutting jobs offline, which is much convenient than doing that with connecting to PC by USB cord. The function of duplicating cutting jobs with USB memory is a leading technology that developed by our-self. This feature is important for efficient volume production.
For outstanding performance and long-term reliable working, we only use world class brand name components like BANDO belt,NMB bearing, Ultra-silence Guides made by WON Korea, etc.
One-click to Load Print Driver
Optimized the process of loading print driver by one-click. User can easily send cutting jobs by any CAD that with printer feature.
Industry leading technology is applied to calibrate the perpendicular between different axes and the parallelism between track of gantry and table top.
Tools & Accessories
GR flatbed cutter work with stable quality vacuum blower, continually working more than 24 hours without overheating issues.
Fine blade holder
Cutter blade runs precisely and won’t drop cutting thick, sticky medias.
Series cutting blades available
Angle: 30°/Φ 2.0mm for thicker media or small character
Angle: 60°/Φ2.0mm for reflective film
Angle: 45°/Φ2.0mm for PPF/PET film
Suitable materials: Reflective films, heat transfer films, Paint Protection Film/PPF, Vehicle Wrap, Window Tint, Vinyl Sticker, Heat transfer vinyl, Magnetic Sticker, Sandblast Resist Rubber, Mobile Phone Decoration Film (2D/3D), Multiple Layer Film, Film for Flexible Circuit, Glass film, PVC film With Thickness 0.03-0.75mm, PET film with thickness 0.03-1.5mm, Card Paper up to 500GSM; It is an efficient solution of perforation cutting, half cutting, marking, etc.
Suitable Field: Automotive aftermarket, vehicle decoration, traffic signs industry, sign makers, packaging, apparel signing, shoes designing, bags designing, composite industry, offset printing, samples making, POP displays, and more.
