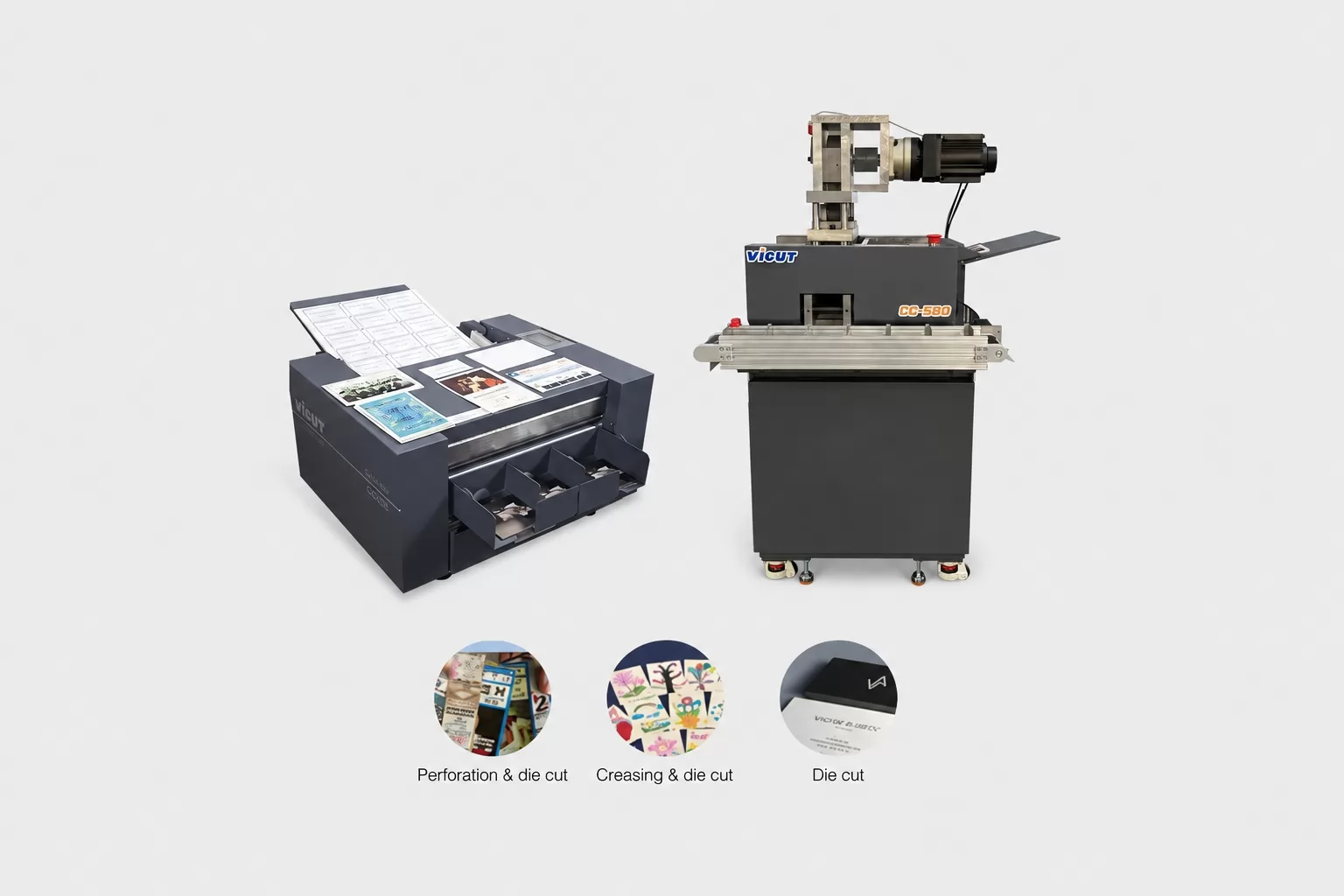

Card Cutter CC-330

The VICUT card cutter is designed for automatic cutting many types of paper cards with fast speed, it is controlled by a micro-computer offering convenient cutting through preset layouts for consistency and ease of use. The interchangeable cutting cassette offers more optional functions such as creasing and perforating, and the cutting size also can be customized.


Works along with any digital printer, or even digital photocopier, the card cutter CC-330/CC-220 can produce professionally-cut business cards, postal cards, photos, tickets and so on. Warmly welcomed by the printing shops, DIY photo shops and design companies, thanks to its affordable cost, flexible functions and fast speed.

KEY FEATURES

  • Card Cutter CC-330

    FULLY AUTOMATION

    Automatic sheet feeding system delivers fully auto process for card cutting.

  • Card Cutter CC-330

    AUTOMATIC COUNTING

    The control system count the cutting times and memory it, to help users better judge the use of knife.

  • Card Cutter CC-330

    FAST CUTTING SPEED

    Cuts 150pcs cards per minute.

  • Card Cutter CC-330

    CUTS UP TO 450GSM

    Vulcan CC-330/CC220 can cut up to 450gsm CCP paper without deformation of sharpness of knife and no slow down.

  • Card Cutter CC-330

    CUSTOMIZED CUTTING SIZE

    Thanks to the interchangeable cutting cassette,the cutting size of the card can be customized according to the user's requirements.

  • Card Cutter CC-330

    SUPPORT VARIOUS SHEET SIZE

    Suitable for paper sheet size A4, A4+, A3, A3+, SRA3, or (297~320)mm x(420~480)mm, capable for cutting different business cards sizes all over the world.

  • Card Cutter CC-330

    SIMPLE AND SAFE OPERATION

    Built in cutting cassette design, to avoid safety hazards. Once sheets ready, one click to start the cutting process, easy to operate even for beginners.

  • Card Cutter CC-330

    EFFICIENT AND STABLE CUTTING SYSTEM

    The cutting blades are self-sharpening and do not require maintenance. One set of cutting cassette can cut 300K time continually, it means, one cutting cassette can produce about 100k standard business cards.

  • Card Cutter CC-330

    IMAGE SHIFT COMPENSATION

    Cut marks registration compensates the offset, ensure that the cutting accuracy will not be affected by material printing error or placement shift.

Technical Parameters

ModelCC-220CC-330CC-330S
Paper sizeA4, A4+, or (195~216)mm x (279~297)mmA3, A3+, SRA3,or (297~320)mm x (420~480)mm,
Cutting sizeLongitudinal: (89/85/90/95)mm, or customized
Horizontal: (45/50/54)mm, or (3~600)mm, fully adjustable
Cutting methodLongitudinal: cut by self sharpening slitting cassette
Horizontal (cross cutting knife):cut by a lateral long cutter
Cutting position controlFront edge detection/Multiple Registration Marks
Paper feeding methodDual roller auto-feeding paper tray
Feeding Tray Capacity30mm or 85pcs 350gsm sheets
Paper thickness180gsm - 450gsm
Cutting speedCC-220, up to 90pcs business cards per minute. (2x5 layout from 210x297mm sheets)up to 130pcs business cards per minute.(3x8 layout from 320x464mm sheets)
Output traycard capacity180gsm: 280×2 (pcs);  350gsm: 220×2 (pcs)           180gsm: 280×3 (pcs);  350gsm: 220×3 (pcs)
Presetting softwareYES
Cutting cassetteReplaceable cutting cassette, change in 2 minutes.
Life of cutting cassetteMin. cut 43K pcs business cardsMin. cut 100K pcs business cards
Life of cross knifeMin. cut 300K timesMin. cut 300K times
Cabinet Stand NONOYES
Creasing functionYES (optional)YES (optional)YES (optional)
Perforating function YES (optional)YES (optional)YES (optional)
Cutting tolerance±0.2mm
Humidity35%~70%
Operating temperature-15℃~ +40℃
Power supplyAC 110~220V, 50/60HZ, 0.5A
WeightN/W:26kg;G/W: 31kgN/W:31kg; G/W:36kgN/W:92kg; G/W:97kg
Machine dimension680x450x310mm760x550x310mm780x550x1070mm
Packing size650x580x380mm760x650x950mm
Customized model 1CC-220TPS, special for cutting Testing Papers.
Customized model 2CC-220THN, special for cutting thin paper 80-120gsm.
Customized model 3CC-220JC, special for cutting 157gsm QC card paper.

Details Description

USER-FRIENDLY CONTROL PANEL

The control panel is easy to operate, users can select the appropriate template from the existing layout for cutting, and clearly see the number of cutting times from the display screen.

REPLACEABLE CUTTING CASSETTE

Users can customize different sizes of cutting cassette,so as to realize multi-purpose of one machine. It's very easy to replace the cutting cassette, just need to loosen and tighten two thumb screws.

Self-sharpening cutting wheels

In the cutting process, the cutting blade grinds itself through the grinding wheels to keep the blade sharp and not blunt because of the long cutting time.

Dual roller auto-feeding paper tray

The new version feeding structure allows the paper tray to hold up to 70 sheets per time. Dual roller structure makes paper feeding easily and smoothly.

Movable waste collection tray

During the cutting process, the scraps will be separated automatically and fall into the movable collection tray below, so that the scraps can be cleaned at any time.

Detachable card collection tray

The card cutter is equipped with adjustable card collection tray. By changing its installation mode, it can accommodate business cards of different sizes, even large postcards and photos.

Big size card collection tray(optional for CC-330/CC-330S)

An optional large size collection tray is provided for finishing big size cards and photos.

Cabinet stand(only for CC-330S)

With a cabinet stand, card cutter CC-330S can work easily without additional working table. The cabinet can also collect cutting waste and pack enclosed the card cutter to become an independent small production line.

Tools & Accessories

  • Card Cutter CC-330

    Replaceable cutting cassette

    Users can customize different sizes of cutting cassette according to local cards size,so as to realize multi-purpose of one machine. It's very easy to replace the cutting cassette, just need to loosen and tighten two thumb screws.

  • Card Cutter CC-330

    Cross cutter

    Min. cut 300K times.

Application

Ideal for business cards, postcards, photos, greeting cards, tickets and so on.

Suits for printing shops, design shops, DIY shops, online shops, supermarkets, and more.


Working Sample:

Card Cutter CC-330

Packing photos

Card Cutter CC-330Card Cutter CC-330Card Cutter CC-330Card Cutter CC-330
