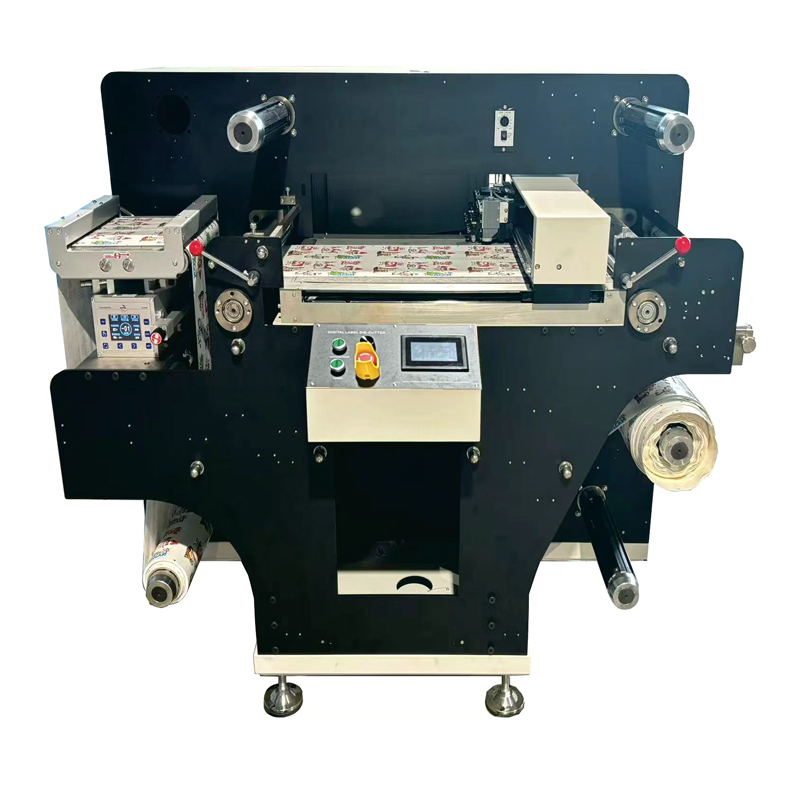

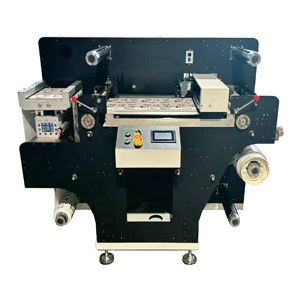

The VICUT VR320X roll to roll die cutter is the most affordable digital label finishing system for small and medium production. It is a combination of flatbed and roll to roll mode system, which offers wider applications in practical use. It is a collection of laminating,die-cutting, slitting and rewinding, best solution for all-in-one label finishing. No cutting dies required, fast and precise digital cutting, fully satisfy on-demand label finishing.
KEY FEATURES
Web guide control system
Segmental cutting for long labels
Real time independent cutting pressure control
One-click repeat cutting function
Automatic correction system to ensure accurate paper feeding
Cold lamination for extended label durability
Automatic matrix removal, slitting and separate rewinding
Quality components ensure machine stability
Unique trajectory optimization function ensures high precision cutting
Automatic heads distance adjustment
Technical Parameters
Model Name | Digital Label Die Cutter VR320X |
Maxi. roll diameter | 450mm |
Cutting media width | 40--340mm |
Max. label width | 320mm |
Max. label length | 400mm (segmentation cut reach to 1200mm) |
Mini. label length | 10mm |
Min. distance between labels | 2mm |
Min.distance from mark to edge | 2mm |
Min.distance between jobs | 2mm |
Max. die cutting speed | 6m per minute (depends on label shape and size) |
No. of die cutting heads | 2pcs(standard ), up to 4pcs. |
Die cutting blades | Tungsten steel blades |
Die cutting precision | 0.1mm (duplicate) |
Die cutting mark track mode | Non-mark, Single mark,double mark |
Slitting width | 10 ~ 310mm |
Slitting blades | 4pcs(standard ), up to 15pcs |
Slitting speed | 100m/min |
Slitting precision | 0.1mm |
Data transfer method | USB2.0/Ethernet 10/100Base-T/GPIO |
Working voltage | 110-240VAC 50/60HZ, 1000WATTS |
Machine dimension | 160*100*136cm(L*W*H) |
Weight(N.W/G.W) | Machine: 530kgs/640kgs Vacuum pump: 14kgs/16kgs |
Packing size | Machine: 175*110*155cm Vacuum pump: 450*450*500mm |
Optional function | Multiple slitting units |
Laminating film backing paper disposal function | |
Separate roll to sheet cutter RS350 |
Details Description
Multiple die cutting heads automatic adjustment distance
VR320X works with multiple die cutting heads, up to 4 heads work at the same time, highly increase working efficiency. The heads distance can be adjusted automatically according to cutting file requirement.

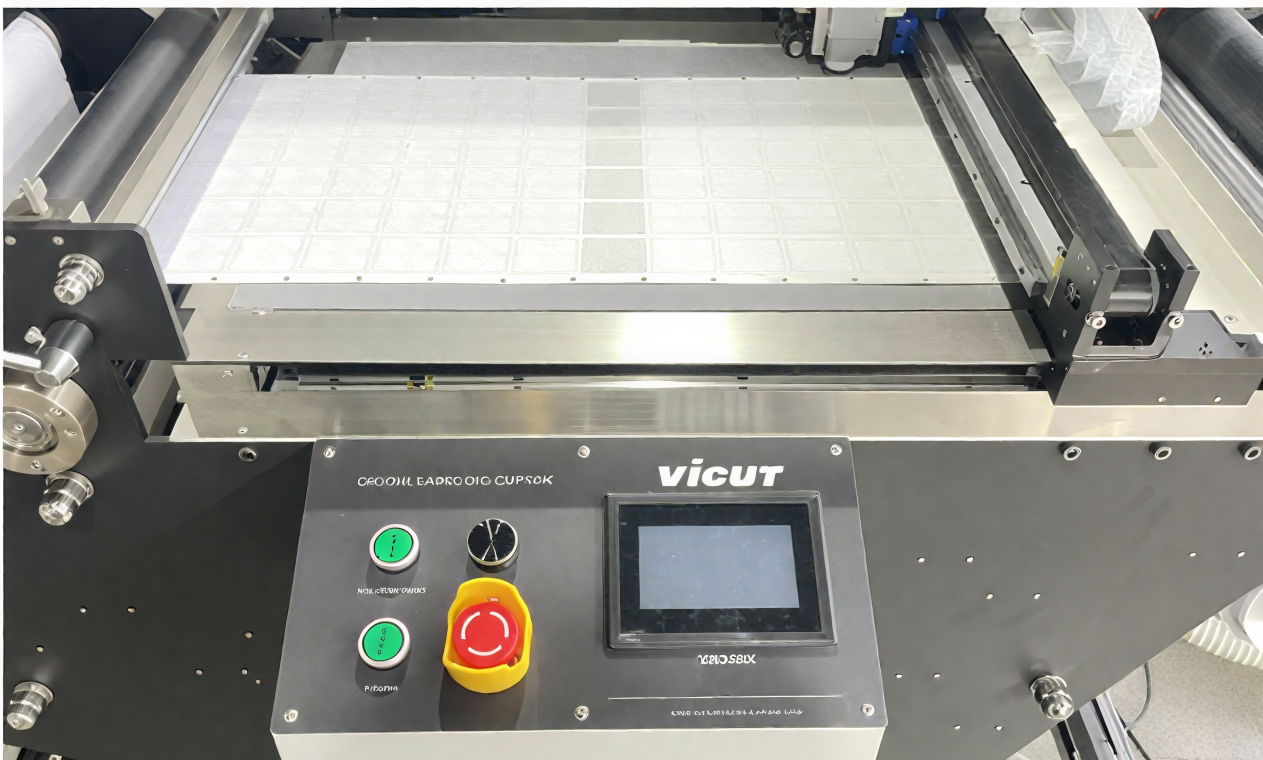

User friendly operation panel
The main operation buttons are integrated into the same panel for easy operation. Touch screen interface, sensitive response, easy to set machine parameters.
Digital cutting positioning sensor
The positioning sensor scans the marked points printed on the material to obtain the cutting dies information and feed it back to the machine control system, so as to realize the digital cutting.

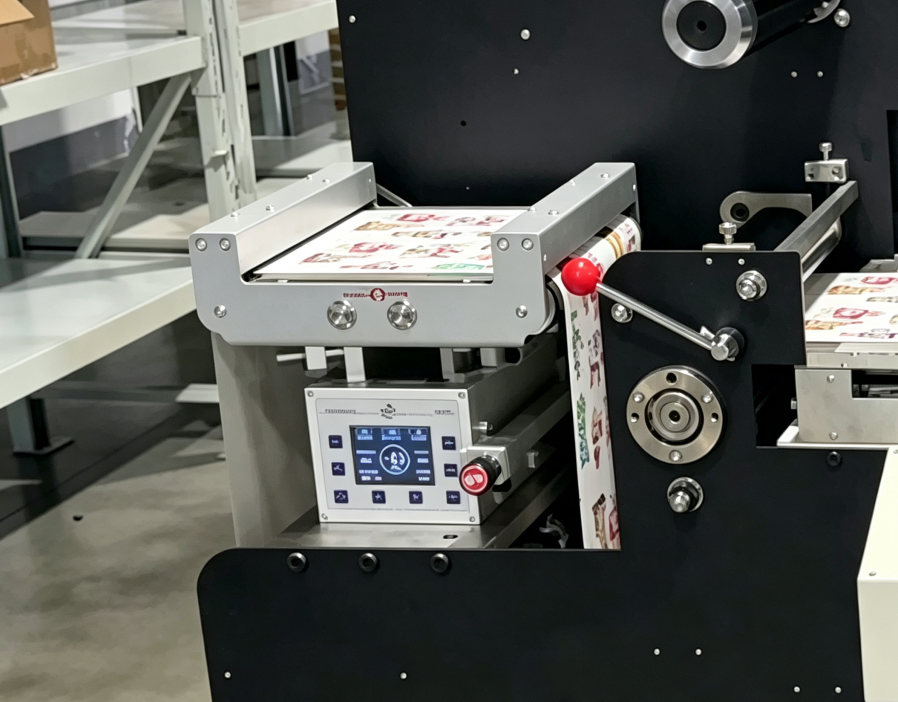

Automatic deviation correction system
Adopting advanced ultrasonic correction system to ensure smooth paper feeding without deviation, laying the foundation for precise cutting in the next step.

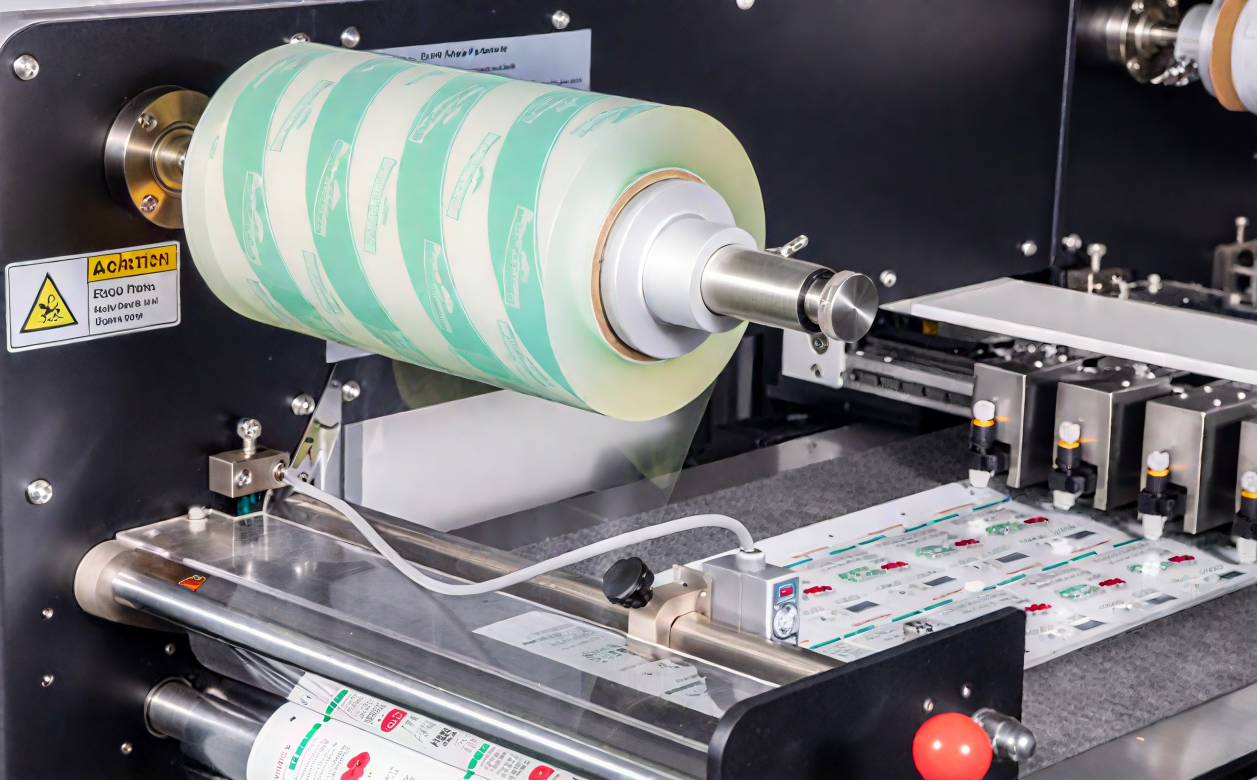

Cold lamination
Automatic lamination before die cutting, makes finishing labels more durable and more widely application.

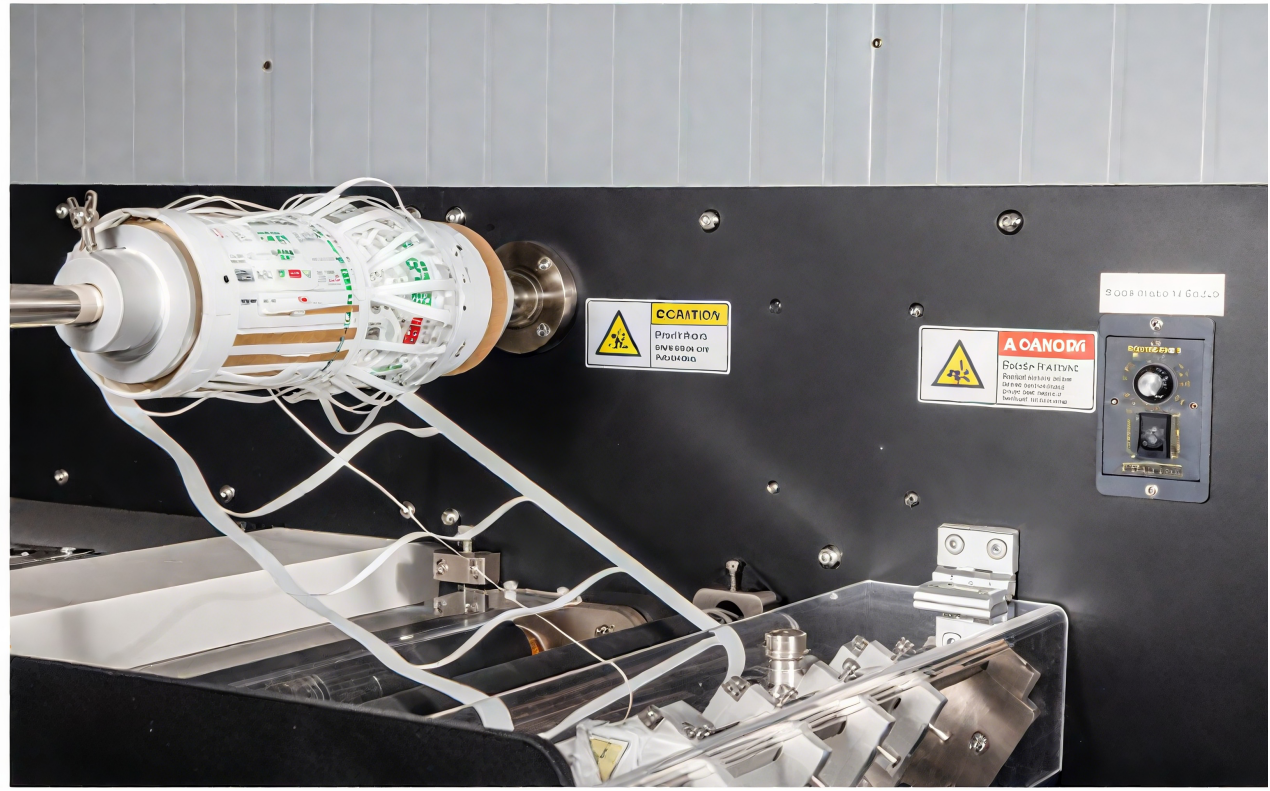

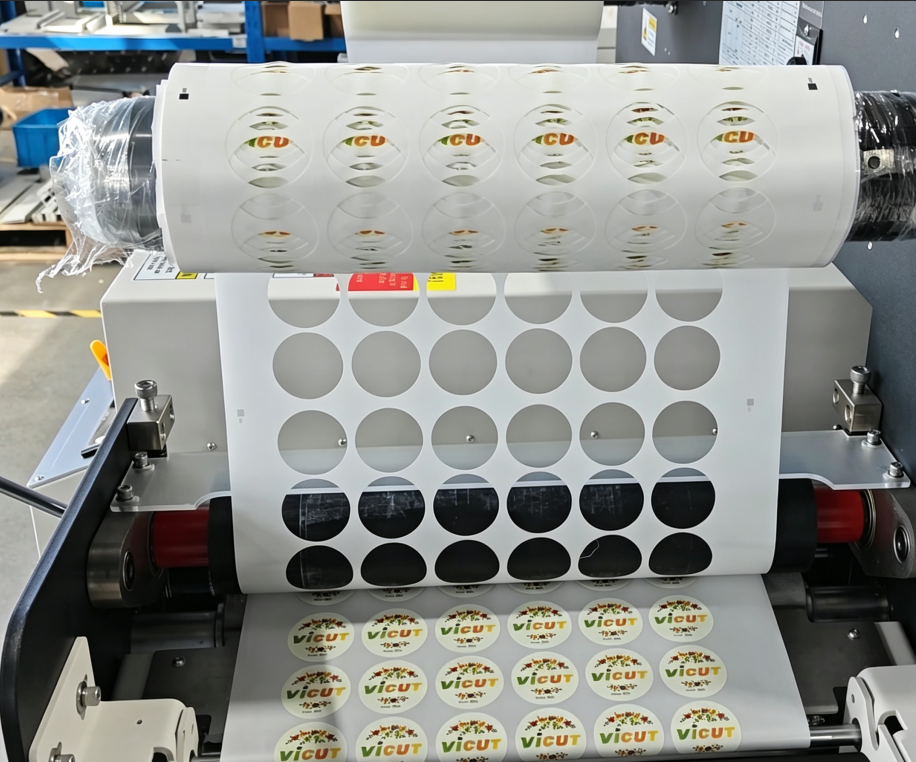

Automatic waste removal and tension system
Under the tension of the waste discharge system, the label cutting waste paper will be automatically removed and separated from the winding, so as to obtain a clean label roll for the next process.

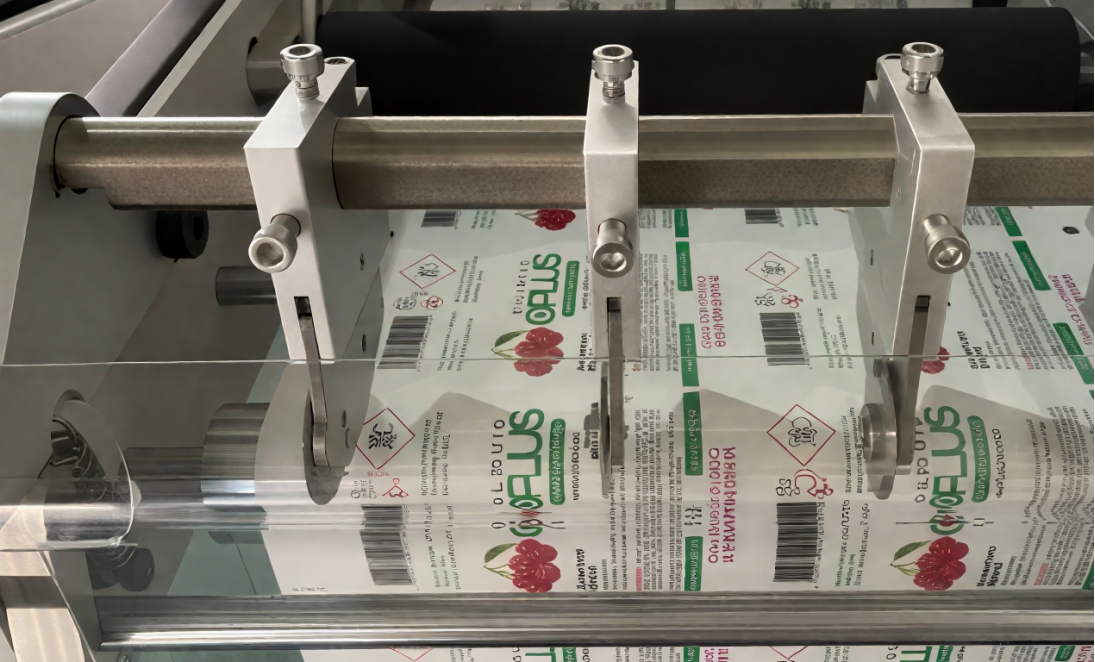

Slitting system
Utilize square blades, automatically cut the label paper into small rolls as needed,up to 15pcs blades can be used. Maximum slitting speed can reach to 100m/min.
Automatic separate rewinding
Up and down independent winding shafts, automatically rewind the multiple label rolls after slitting.
Quality components
All kinds of components used in VR320X are top quality in the industry, such as THK precision class guide rail, imported synchronous belts, Inovance servo motor, etc. Ensures machine quality and longer service life.
Adjustable machine foot pads
VR320X is equipped with adjustable foot pads and mobile wheels. If the ground is uneven, the horizontal position of the machine can be ensured by adjusting the foot pads. A movable wheel is installed beside each foot pad for more convenient machine movement.
Easy-to-use software
Dedicated software support PLT format file, it can choose the knife down point according to shapes, the unique trajectory optimization is for perfect cutting.
Optional Functions Film backing paper disposal device
In some areas,there is backing paper on the cold laminating film, which can be removed before laminating by this function.

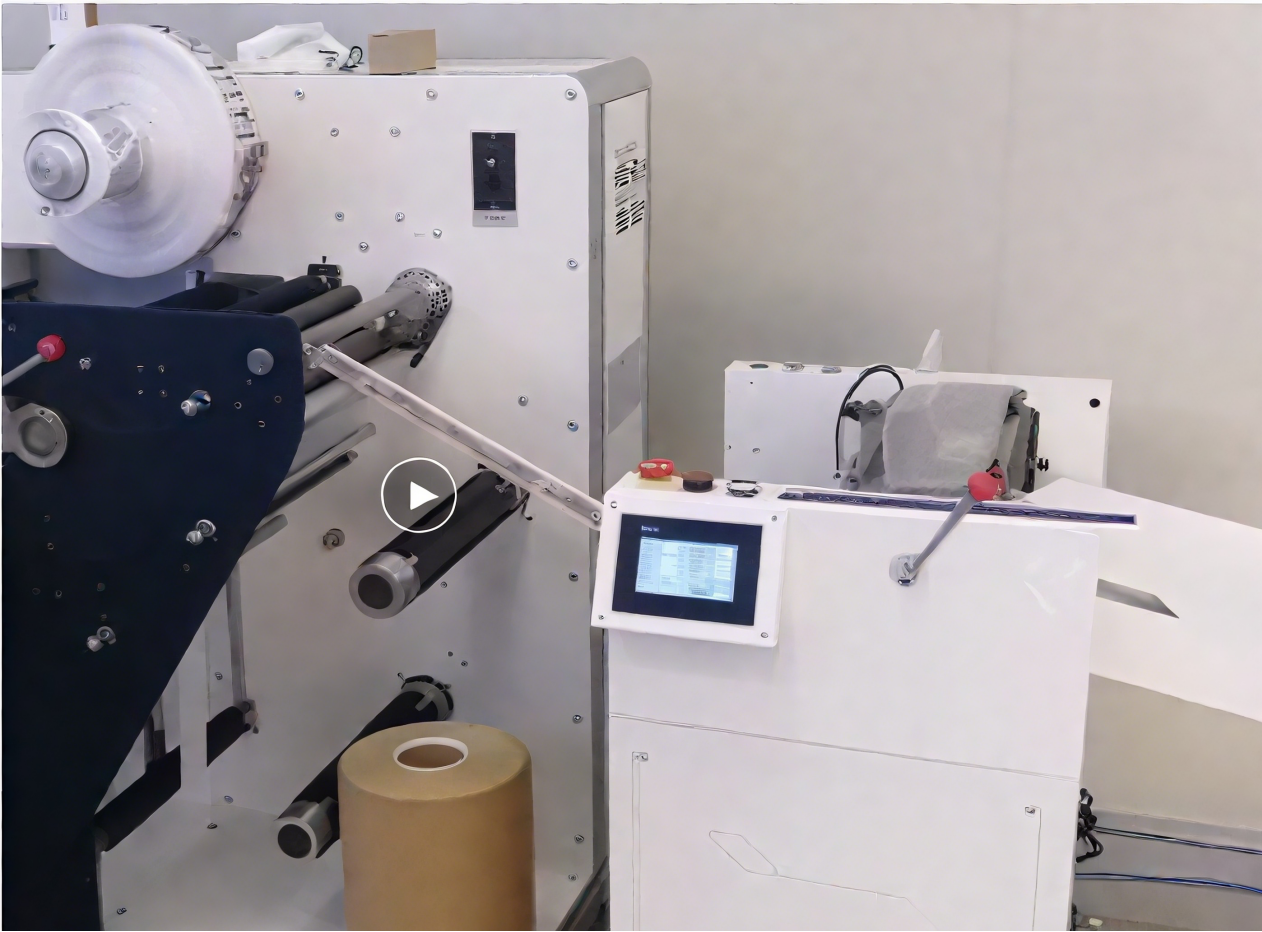

Optional Functions Roll to Sheets Cutter RS350
It is suitable for transverse cutting of various roll materials. Along with VR320X die cutter to achieve in-line working, with high cutting efficiency and accuracy. It can also be used independently.
Tools & Accessories
Blade holder
Precision blade holder, built-in bearing design, cooperate with machine blade compensation function, make cutting more smooth. Easy to install the blade and adjust the distance between the blade tips.
Die Cutting Blades
Special 45 degree die cutting blade, suitable for cutting 0.25 mm thick adhesive label materials such as sticker, coated paper, synthetic paper, PP, PET, etc.
Slitting blades
Tungsten steel square blades, higher cutting precision than traditional round blade.
Application
Applicable Industry: VR320X roll to roll label finisher is mainly used in producing wide range of labels including blank labels, ink labels, chemical labels, beverage labels, bottled water labels, chili source labels,coffee labels, cosmetic labels, home appliance label,toiletries label, gum label,wine labels and more.
Applicable Materials: Stickers, Paper, PP, BOPP, PET, PVC & More!
Working samples
Packing photos
