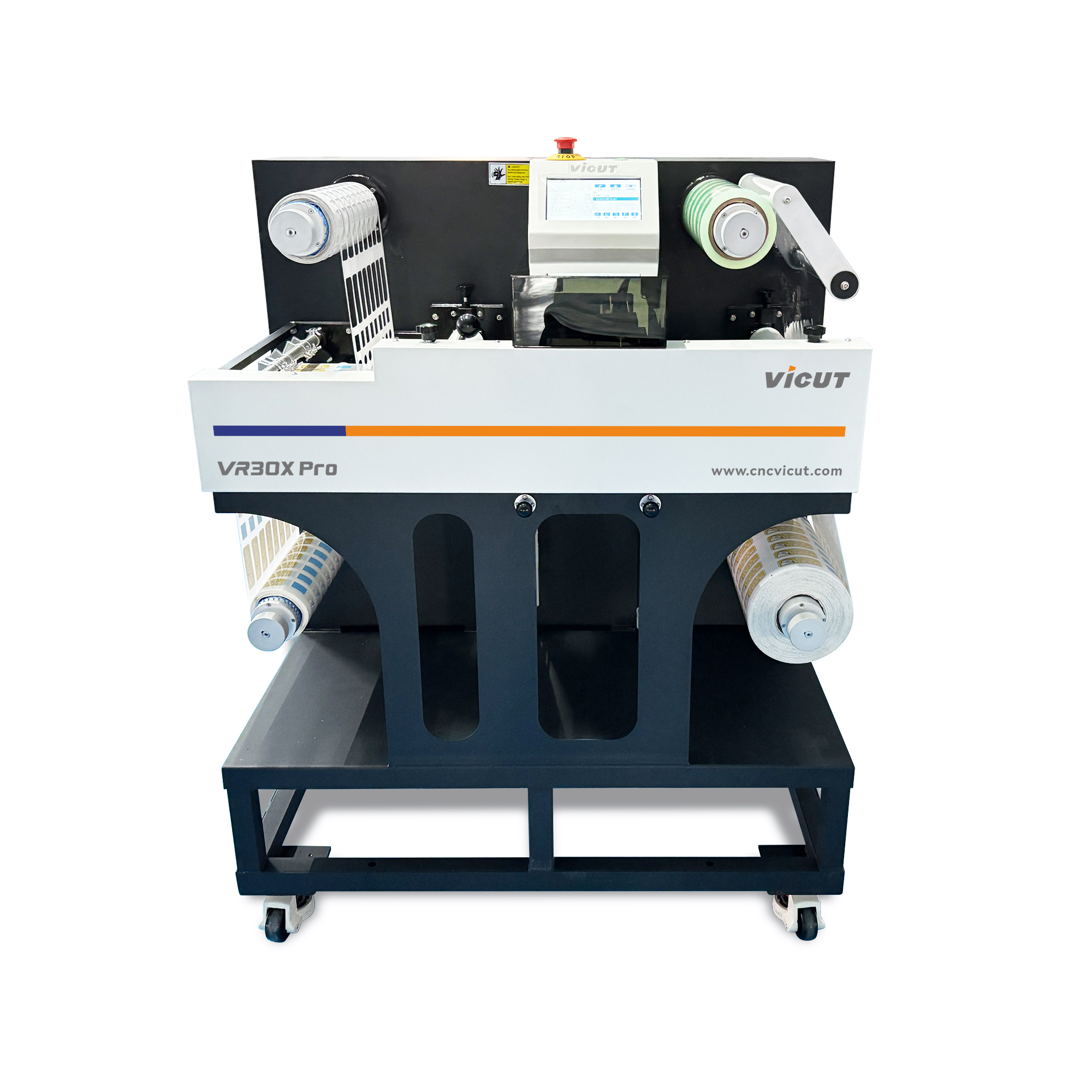

All-in-one blade cutter for in-house label finishing
The VICUT VR30X is a blade finisher designed for commercial and in-house professional labels production. The roll label die cutting machine can be paired with a variety of full color label printers for a complete label printing and finishing solution. The label cutting machine features die cutting as well as inline lamination and slitting for a full production work-flow, perfect for on-demand label production including cannabis labels, cosmetic labels, custom water bottle labels, stickers, etc.
KEY FEATURES
All-in-one web guide system including laminating,die cutting,slitting,wasting,rewinding
HD LCD touch screen,human-computer interaction is more convenient
Easy-to-use CutStudio cutting center, compatible with AI/CDR plugin
USB/U disk/Ethernet/WiFi, multi-mode file transfer
Edge sensor correction slitting system, easy rewinding for next works steps
QR code registration system, available for job exchange function
CCD camera scan device
Blank cut and contour cut
Technical Parameters
Model Name | Digital Label Die Cutter VR30X |
Max.media width | 350mm |
Max.cutting width(blank label） | 340mm |
Max.contour cutting width | 330mm |
Maxi.label size （contour cutting& blank cutting） | 330mmx330mm |
Mini.label size （contour cutting& blank cutting | 10*10mm |
Motor | Servo motor |
Scan device | CCD camera |
Control panel | 7 inch touchscreen |
Registration marks | Dot mark+QR code |
Functions | Laminating/Diecutting/Slitting/ Wasting/Rewinding |
Cutting speed | 15-1050mm/s |
Max.cutting force | 750g |
No. of slitting heads | 4pcs (maximum 8pcs) |
Maxi.dia.of paper feed roll | 350mm |
Maxi.dia. of film roll | 150mm |
Maxi. dia.of paper rewinding roll | 300mm |
Maxi.dia.of waste roll | 300mm |
File transfer mode | USB interface、Net interface、U disk and WiFi |
Working voltage | 100VAC-120VAC,200VAC-240VAC,50/60Hz |
Consumption power | Max. 350W |
Machine dimension | L 1030mm×W 770mm×H 700mm |
Package size | L 1250mm×W 1070mm×H 910mm |
Gross/Net weight | 245±5kg /365±5kg |
Details Description
CCD camera
VR30X die cutting machine adopts CCD camera to read the QR code on the printed files,to realize the job exchange function, so that users can print different jobs in one roll, to fulfill DIY label needs.
User friendly touch screen panel
7 inch touch screen operation panel, professional UI interface design, in line with user habits, operation is more convenient.
Multiple file transfer methods
VR30X roll label cutter supports network and U disk/USB cable/WIFI/LAN/Internal disk for die cutting files transmission.
Easy-to-use software
Dedicated software CutStudio works with AI and CDR plugin, easy to adjust the offset, ending point, etc. to optimize the cutting file.

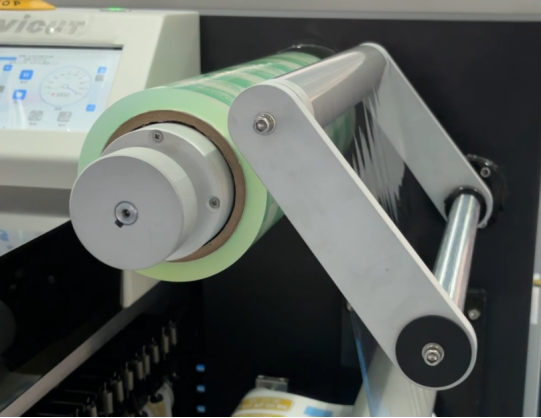

Laminating system
Automatic lamination before die cutting, makes finishing labels more durable and more widely application.
Die cutting center
The VR30X adopts the commonly used plotter cutting type which is fast, low noise, easy to adjust pressure, and easy to install blades.

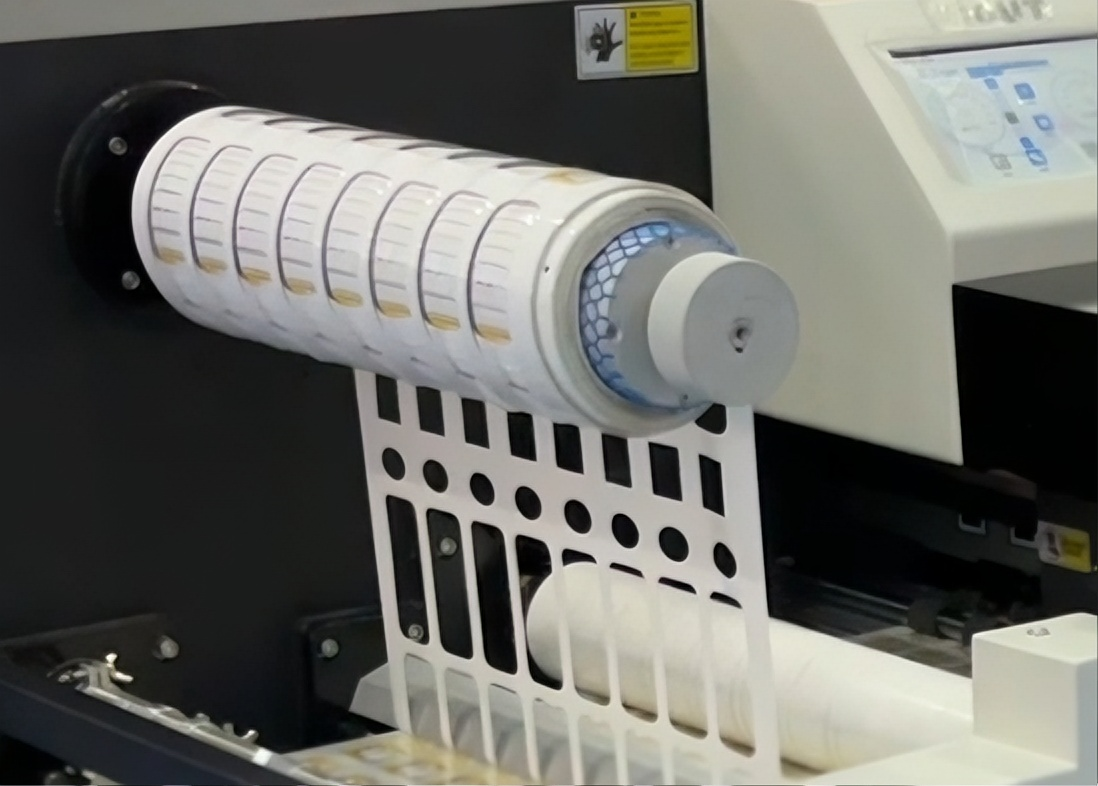

Automatic waste removal and tension system
Under the tension of the waste discharge system, the label cutting waste paper will be automatically removed and separated from the winding, so as to obtain a clean label roll for the next process.
Edge sensor correction slitting system
Two edge sensors used to detect media edge,make sure the slitting accuracy, convenient for next step jobs.It could automatically cut the label paper into small rolls as needed,up to 8pcs blades can be used.
Automatic rewinding system
After slitting,the rewinding roller will automatically rewind the finishing labels, ready for next step(labeling).
Optional Functions--Slitting unit
The standard slitting units for VR30X is 4pcs, user can choose the quantity of slitting blades as required, up to 8pcs. The slitting functions can be used alone, as slitting-only-mode.
Stainless steel blades, stable slitting the paper roll into small rolls for further processing
Tools & Accessories
Blade holder
Precision blade holder, easy to install the blade and adjust the distance between the blade tips.
Die Cutting Blades
1) Drag blade for standard films, script, masking film, etc. Cutting angle 30°, wedge angle 30°，Offset 0.25 mm, diameter 1mm. 2) Drag blade for small fonts, stickers, thin paper, etc. Cutting angle 45°, wedge angle 30°, Offset 0.25mm,diameter 1mm. 3) Drag blade for thick media.Cutting angle 60°, wedge angle 30°, Offset 0.25mm, diameter 1mm.
Slitting blades
Stainless steel blades, stable slitting the paper roll into small rolls for further processing.
Application
Applicable Industry: VR30X digital roll lable die cutter is mainly used for small volume on-demand label production including blank labels, ink labels, chemical labels, beverage labels, bottled water labels, chili source labels,coffee labels, cosmetic labels, home appliance label,toiletries label, gum label,wine labels and more.
Applicable Materials: Stickers, Paper, PP, BOPP, PET, PVC & More!
Company Service: As a professional roll slitter cutting machine supplier, Vicut believe good service always get loyal clients, 24/7 online service, all-round technical support & solutions offered within 8 hours. Remote training, available user manual and operation video are provided.

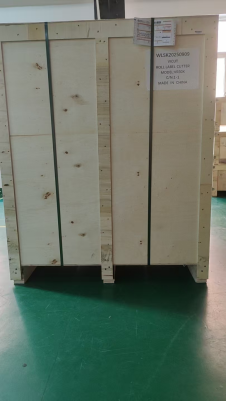

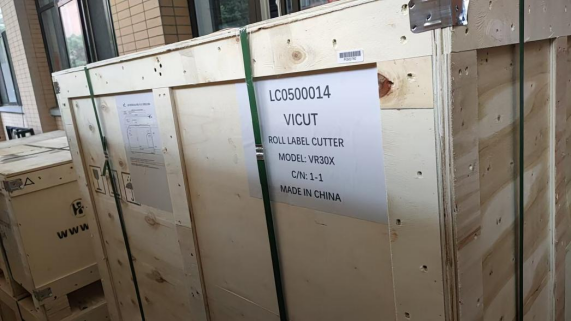

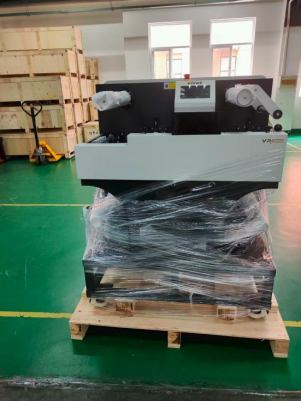

Packing photos
