The VICUT VR320 roll to roll labels cutting machine is the most affordable digital finishing system for medium volume label production. The automatic rotary die cutting machine is a collection of laminating, die-cutting, slitting and rewinding, best solution for all-in-one label finishing. No cutting dies required, fast and precise digital cutting, fully satisfy on-demand label finishing. The label cutting machine can cut long label, and the maximum cutting length of label can reach 1.2m.
KEY FEATURES
Combination of flatbed and roll to roll mode
Segmental cutting for long labels
Real time independent cutting pressure control
One-click repeat cutting function
Automatic correction system to ensure accurate paper feeding
Cold lamination for extended label durability
Automatic matrix removal, slitting and separate rewinding
Quality components ensure machine stability
Unique trajectory optimization function ensures high precision cutting
Technical Parameters
The VR320 is built for label converters who need a compact, efficient, and flexible roll-to-roll finishing solution. It combines die cutting, slitting, rewinding, and optional cold lamination in one workflow, helping you complete label finishing with fewer manual steps and better production consistency. With segmented cutting support for long labels and a maximum segmented length up to 1200mm, it is well suited for modern short-run and medium-volume label production.
Instead of using separate machines for different finishing steps, the VR320 supports integrated label converting in a single line. The machine is designed to improve workflow efficiency by handling feeding correction, die cutting, matrix removal, slitting, and separate rewinding in sequence, which is exactly the kind of integrated functionality commonly highlighted on competitive rotary die cutting machines.
| Model Name | Digital Label Die Cutter VR320 |
| Maxi. roll diameter | 450mm |
| Cutting media width | 40--340mm |
| Max. label width | 330mm |
| Max. label length | 400mm (segmentation cut reach to 1200mm) |
| Mini. label length | 10mm |
| Min. distance between labels | 2mm |
| Min.distance from mark to edge | 2mm |
| Min.distance between jobs | 2mm |
| Max. die cutting speed | 6m per minute (cut 7x15cm square) |
| No. of die cutting heads | 4pcs(standard ) |
| Die cutting blades | Tungsten steel blades |
| Die cutting precision | 0.1mm (duplicate) |
| Die cutting mark track mode | Non-mark, Single mark,double mark |
| Slitting width | 10 ~ 310mm |
| Slitting blades | 4pcs(standard ), up to 15pcs |
| Slitting speed | 100m/min |
| Slitting precision | 0.1mm |
| Data transfer method | USB2.0/Ethernet 10/100Base-T/GPIO |
| Working voltage | 110-240VAC 50/60HZ, 1000WATTS |
| Machine dimension | 160*100*136cm(L*W*H) |
| Weight(N.W/G.W) | Machine: 530kgs/640kgVacuum pump: 14kgs/16kg |
| Packing size | Machine: 1700*1150*1570mmVacuum pump: 450*450*500mm |
| Optional function | Multiple die cutting heads |
| Multiple slitting units | |
| Film base paper removing device | |
| Roll to sheet cutter RS350 |
Details Description
Multiple die cutting heads
VR320 works with multiple die cutting heads, up to 4 heads work at the same time, highly increase working efficiency.
User friendly operation panel
The main operation buttons are integrated into the same panel for easy operation. Touch screen interface, sensitive response, easy to set machine parameters.
Digital cutting positioning sensor
The positioning sensor scans the marked points printed on the material to obtain the cutting dies information and feed it back to the machine control system, so as to realize the digital cutting.
Automatic deviation correction system
There are two optical sensors on both sides of roll holder, automatically adjust the paper offset to ensure the accurate feeding, lay a good foundation for further processing.
Feeding detection system
After automatic deviation correction, there is an optical sensor to detect the material before feeding into the working table, make sure the paper feeding in correct way, ready for next die cutting step.
Vacuum suction cutting table
Vacuum inhaling cutting platform, the adsorption function starts along with die cutting, and automatically loosening valves after cutting finishes, to ensure cutting accuracy and smooth paper feeding.
Platform for splicing materials
When you finish cutting a roll of label and prepare to cut another roll, you can use this platform to splice a new roll of material onto the one being processed, so as to realize smooth transition, save paper installation time and improve work efficiency.
Cold lamination
Automatic lamination before die cutting, makes finishing labels more durable and more widely application.
Automatic waste removal and tension system
Under the tension of the waste discharge system, the label cutting waste paper will be automatically removed and separated from the winding, so as to obtain a clean label roll for the next process.
Slitting system
Utilize square blades, automatically cut the label paper into small rolls as needed,up to 15pcs blades can be used. Maximum slitting speed can reach to 100m/min.
Automatic separate rewinding
Up and down independent winding shafts, automatically rewind the multiple label rolls after slitting.
Well-organized control cabinet
Professional electrical design, orderly arrangement of components, clear circuit, easy maintenance.

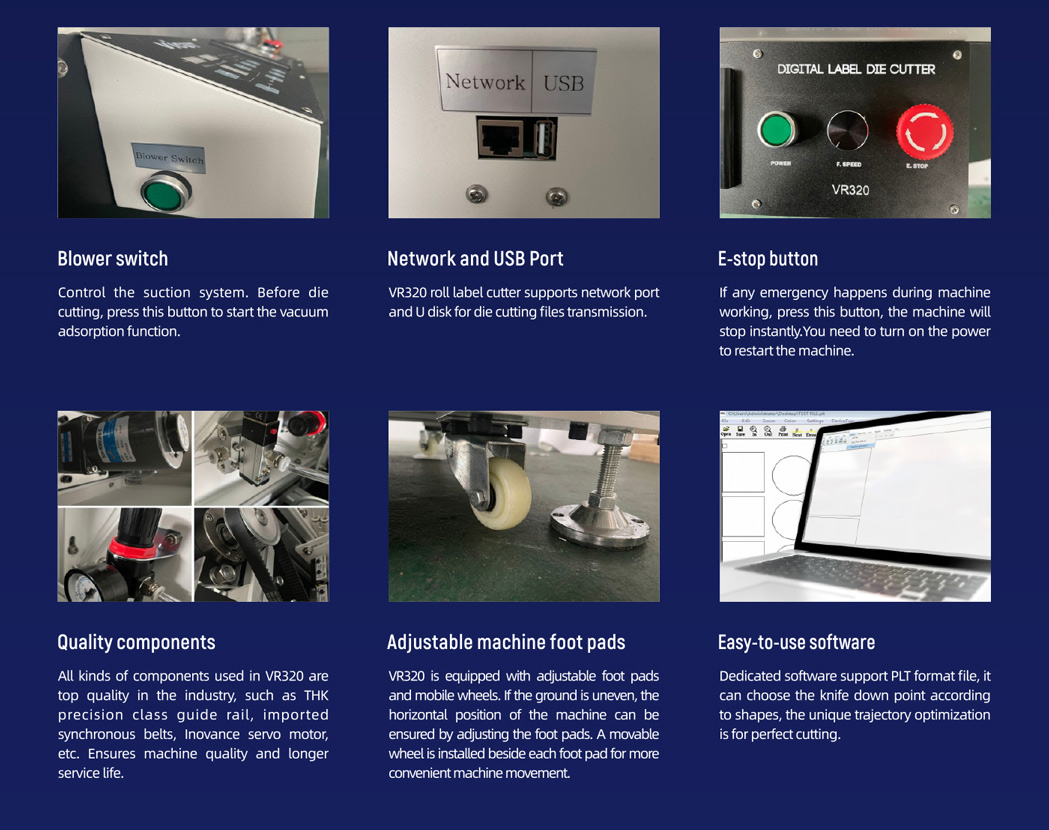

Blower switch
Control the suction system. Before die cutting, press this button to start the vacuum adsorption function.
Network and USB Port
VR320 roll label cutter supports network port and U disk for die cutting files transmission.
E-stop button
If any emergency happens during machine working, press this button, the machine will stop instantly. You need to turn on the power to restart the machine.
Quality components
All kinds of components used in VR320 are top quality in the industry, such as THK precision class guide rail, imported synchronous belts, Inovance servo motor, etc. Ensures machine quality and longer service life.
Adjustable machine foot pads
VR320 is equipped with adjustable foot pads and mobile wheels. If the ground is uneven, the horizontal position of the machine can be ensured by adjusting the foot pads. A movable wheel is installed beside each foot pad for more convenient machine movement.
Easy-to-use software
Dedicated software support PLT & DXF format file, it can choose the knife down point according to shapes, the unique trajectory optimization is for perfect cutting.
Maximum four cutting heads.(optional)
The standard cutting heads for VR320 is 2pcs, user can choose maximum four die cutting heads as required.
Up to 15pcs Slitting units.(optional)
The standard slitting units for VR320 is 4pcs, users can choose the quantity of slitting blades as required, up to 15pcs. The slitting functions can be used alone, as slitting-only-mode.
Film base paper removing device.(optional)
In some areas, there is backing paper on the cold laminating film, which can be removed before laminating by this device.
Paper Cutter RS350.(optional)
It is suitable for transverse cutting of various roll materials. Along with VR320 die cutter to achieve in-line working, with high cutting efficiency and accuracy. It can also be used independently.
Tools & Accessories
Vacuum pump
Vortex type air pump, power: 550W, speed: 2800r / min, with muffler and pressure change valve, connects to the cutting platform, fix the material on the cutting platform during the cutting process.
Blade holder
Precision blade holder, built-in bearing design, cooperate with machine blade compensation function, make cutting more smooth. Easy to install the blade and adjust the distance between the blade tips.
Die cutting blades
Special 45 degree die cutting blade, suitable for cutting 0.25 mm thick adhesive label materials such as sticker, coated paper, synthetic paper, PP, PET, etc.
Slitting blades
Tungsten steel square blades, higher cutting precision than traditional round blade.
Air compressor
VR320 uses automatic pneumatic tension system to ensure smooth paper feeding. Cooperates with vacuum adsorption system, changes the negative pressure into positive, ensure the paper on the cutting platform can move forward smoothly after each die cutting.
Application
Applicable Industry: VR320 roll to roll label finisher is mainly used in producing wide range of labels including blank labels, ink labels, chemical labels, beverage labels, bottled water labels, chili source labels, coffee labels, cosmetic labels, home appliance label,toiletries label, gum label, wine labels and more.
Applicable Materials: Stickers, Paper, PP, BOPP, PET, PVC & More!
Company Service: As a professional roll to roll label cutter manufacturer, Vicut believe good service always get loyal clients, 24/7 online service, all-round technical support & solutions offered within 8 hours. Remote training, available user manual and operation video are provided.
Working Samples:
 |  |  |  |
 |  |  |  |
 |  |  |  |
Packing photos
 |  |  |  |
What is a rotary die cutting machine for labels?
A rotary die cutting machine for labels is used to cut label materials from rolls in a continuous process. It allows high-speed production, precise cutting, and automatic waste removal, making it ideal for label converting and packaging applications.
How does a rotary die cutting machine work?
A rotary die cutting machine works by using a cylindrical die to cut materials as they move through rollers. The process is continuous, enabling faster production compared to flatbed cutting, while maintaining consistent accuracy.
What materials can a label rotary die cutter handle?
A label rotary die cutter can process adhesive paper, coated paper, synthetic paper, PP, BOPP, PET, and PVC materials. These materials are commonly used in self-adhesive labels and flexible packaging.
Can a rotary die cutting machine cut long labels?
Yes, some automatic rotary die cutting machines like the VR320 support segmented cutting for long labels. This allows cutting lengths up to 1200mm, making it suitable for large-format labels and industrial applications.
What is the difference between rotary die cutting and flatbed die cutting?
Rotary die cutting is designed for continuous, high-speed production, while flatbed die cutting is better for short runs and thicker materials. Rotary systems offer higher efficiency and consistency for label production.
What is a roll-to-roll label cutting machine?
A roll-to-roll label cutting machine processes materials directly from roll input to finished roll output. It integrates functions such as die cutting, slitting, and rewinding in one system to improve efficiency.
Does a rotary die cutter include slitting and rewinding?
Yes, most modern rotary die cutters, including the VR320, integrate inline slitting and rewinding. This allows multiple label rolls to be produced in one pass.
What industries use automatic rotary die cutting machines?
Rotary die cutting machines are widely used in industries such as food and beverage, cosmetics, pharmaceuticals, logistics, chemicals, and industrial labeling.
Is a rotary die cutting machine suitable for short-run label production?
Yes. Modern rotary die cutting machines are flexible and suitable for short-run, medium-volume, and customized label production, especially when equipped with efficient setup systems.
What are the advantages of a label finishing machine?
A label finishing machine improves production efficiency by combining multiple processes such as cutting, slitting, and rewinding. It reduces labor costs, improves consistency, and delivers ready-to-use label rolls.
