Digital flatbed die-cutting and creasing machine - for any shape!
Full cut
Kiss cut
Creasing
Perforation cut

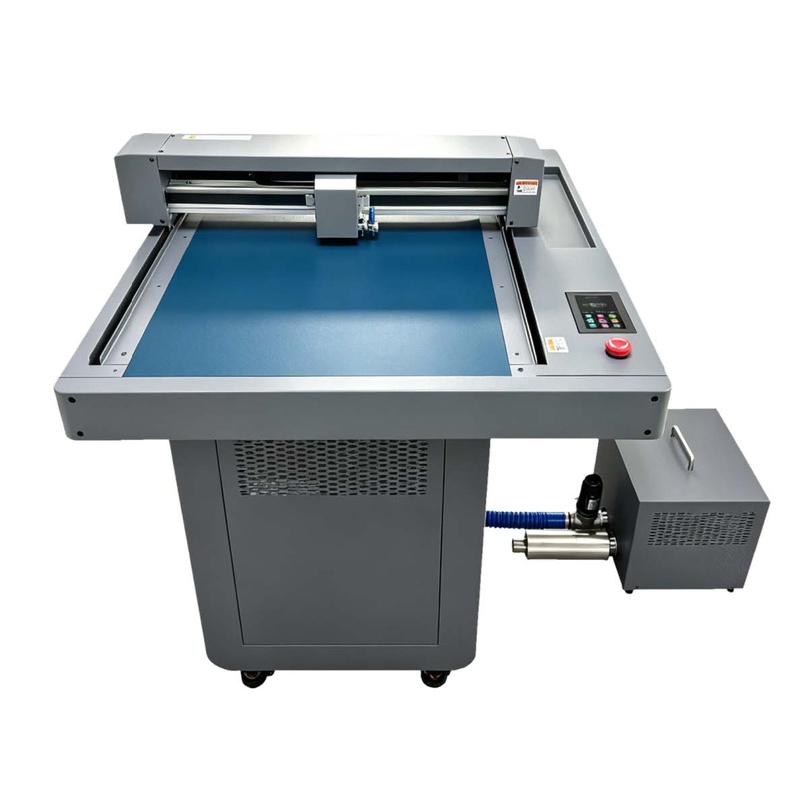

The VICUT FB series flatbed cutter is ideal for small and medium-sized production and samples of packaging, swing tickets, cards and labels. Processing materials include paper, cardboard, synthetics, films and kinds of labels, up to 600gsm.
Using advanced digital contour cutting technology,no cutting dies required, FB series flatbed cutter plotter is able to produce the sheets to any shapes, instantly and directly from the desktop. It can handle full cutting, half cutting, creasing, perforating and plotting.
Two models are available, FB7050 flatbed plotter suits for placing 2pcs SRA3 sheets or 1pcs B2 sheet, while FB1290 flatbed cutting plotter allows for 2pcs B2 sheets or 1pcs B1/A0 sheet. Users can choose suitable size reasonably according to the size of processing materials, production capacity, floor space, project budget, etc.
KEY FEATURES
Easy install and operate
Plug and play, simple installation, no additional drivers needed.
Back cutting/creasing
it's necessary for professional users who always like perfect results.
Multiple data transfer method
The FB cutter supports cutting file transfer via USB flash drive, USB cable, Wifi and network cable. Users can select the most suitable working mode based on their specific needs.
Powerful software applications
We offer free plugins for CDR, AI, PS and CAD. The third-party ADICUT software is also included free of charge. It supports basic design and cutting file output. Powerful functions bring higher application flexibility, including hot folder, automatic typesetting, box templates and more.
High resolution camera positioning system
The FB cutter adopts a high-resolution camera to precisely detect multiple reg marks, applicable to colored and transparent materials alike. Recognition of miniature marks helps minimize material waste and cut production costs. Four registration marks can be scanned in under 3 seconds, effectively boosting efficiency and lowering expenses.
Process material up to 600gsm
Digitally cut-through any shape on up to 600gsm media, or kiss-cut sheet labels, all at up to 1200mm/s. it significantly boosts work efficiency and shortens production cycles.
Powerful vacuum suction table
The FB cutter equipped with vacuum adsorption workbench to hold materials during operation. The vacuum blower can be activated with one click prior to cutting.
Multiple cut and crease
For hard and thick materials, single cutting or creasing may not deliver ideal results, and 2 to 3 passes are required. Cutting and creasing can be operated separately to achieve superior processing effect.
QR-code system
The flatbed cutter reads QR-codes on the printed media, allowing automatic matching of print and cut files. This both speeds production and eliminates any chance of mismatched files.
Free Firmware Upgrade
Our factory continuously develops and optimizes the machine’s functions, providing regular free firmware updates for all sold units to enhance performance and add new features.
One-click repeat function
It is great for cutting same jobs, just need to replace paper, press "Back to Origin", then press "Repeat", no skilled people also run it easily.
Continue cutting
If you need to process two or more sheets, when cutting second paper, users can replace first paper, save time for replacing papers.
Technical Parameters
Model Name | FB7050 | FB1290 |
Table size | 700x500mm | 1200x900mm |
Blank cutting area | 655x445mm | 1000x755mm |
Contour cutting area | 635x425mm | 980x735mm |
Supported regular sheet | A4, A3, SRA3, A3+ | A4, A3, SRA3, A3+, B4, B3, B2,B1,A0 |
Configuration | digital servo system, flatbed | |
Paper placement | manually | |
Ways to fix material | vacuum inhaling working table with blower | |
Positioning method | high resolution CCD camera | |
Reg marks type | L mark, dot mark, QR code | |
Repeat cut | One click to repeat continue cut | |
Marks detecting time | 4 seconds (SRA3 sheet) | |
Maximum cutting speed | 1800mm/s | |
Maximum cutting force | 1000gram | |
Data transfer | USB2.0 (full Speed) / U disk (offline) / network cable/ Wifi | |
Motherboard Memory | 256MB | |
Command language | HPGL | |
Number of tool holder | two tool holders at one carriage | |
Tools type | kiss cut blade, die cut blade, creasing tool, calibration tool. | |
Control panel | 5.1 inch LCD touch screen | |
Voltage | 100 to 240 V AC, 50/60 Hz(auto switching) | |
Consumption power | Max.150W (machine); max. 550w (vacuum blower) | |
Temperature | 10 to 35 degrees C (35 to 95 degrees F) | |
Software | ADICUT software； Independent plugin for CorelDRAW®/ Illustrator® /Adobe Photoshop® /AutoCAD® | |
Software functions | Auto typesetting optimization, hot folder, box templates, auto batch files creation, etc. | |
Support Computer OS | Windows and Mac | |
Land size | 106x92x106cm | 150x130x106cm |
Package size | 120x100x55cm(machine) 44x39x48cm (blower) | 160x145x55cm (machine) 44x39x48cm (blower) |
Gross / Net weight | 100kg / 86kg (machine) 21kg/20kg (blower) | 150kg / 136kg 21kg/20kg (blower) |
Details Description

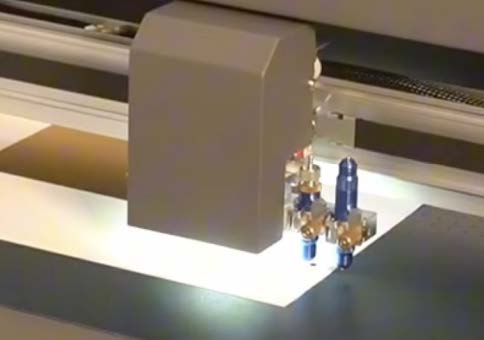

Dual heads
Dual heads with high resolution camera registration

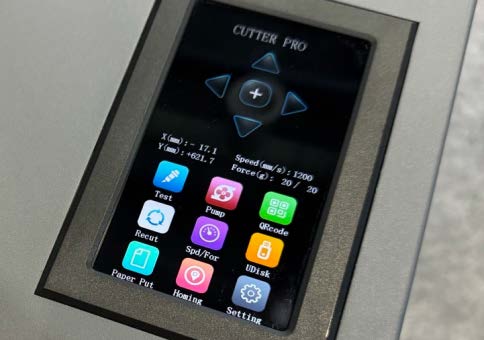

Screen
User friendly touch screen
Vacuum

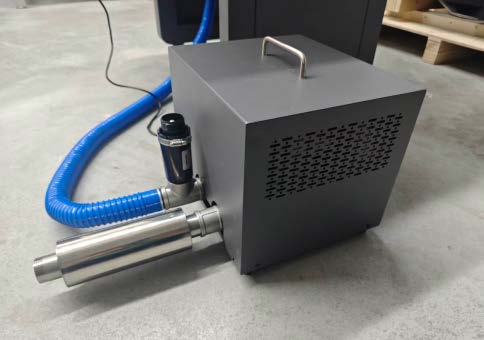

Vacuum blower with acoustic cover
Muffler

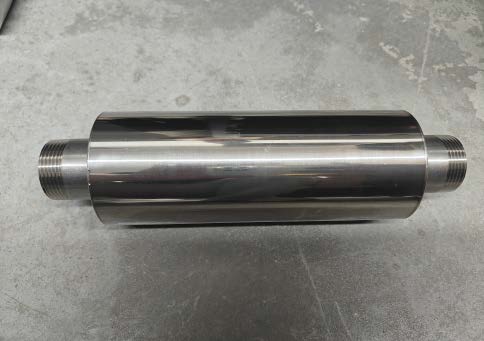

Muffler for vac blower
Tools & Accessories
Double side rubber cutting Mat
The green self-healing mat is ideal for obtaining crisp cuts on thinner materials.This cutting mat can be used on both sides, greatly saving the cost of users.
Grey felt cutting mat
This cutting mat is perfect for achieving deeper creasing lines and cuts on thicker substrates. It's also very durable.
Cutting Blades
Dedicated cutting blades are specially used for Vulcan series flatbed cutting plotters. The thickest cutting material can reach 2.5mm.
Creasing Tool
This tool is double-ended, offering choices of wide or narrow creases. It creases all fold lines with its ball-bearing head, to avoid corrugated damage on media face.
Calibration tool
Used for setting up and calibrate cutter before machine working.
Blade holder
This precision engineered components sits in the dual tool head and holds the cutting blade of choice. The tool is adjustable manually to obtain the desired length of blade-tip.
Application
Application Field: Prototype and light production, DIY paper crafts, tags, on-demand packaging and sheet card cutting system – also suitable for sheet labels.
Process Material: cardboard, craft paper, fibrous cardboard, eva rubber, PVC, sandblast, vinyl, sticker, magnetic sticker,PET, TPU, reflective film and thin film etc.
FB7050 |
| Marketing Position: Table size 500x700mm, Effective cutting area 445x655mm. It is suitable for placing 2pcs SRA3 sheets or 4pcs A4 sheets next to each other for light production applications, enabling users to achieve higher productivity. Because of its high matching with economical printers on the market, and the competitive price,this model is currently the most popular one. |
FB1290 | | Marketing Position: Table size 900x1200mm, Effective cutting area 755x1000mm. This flatbed plotter is suitable for bigger size sheets production. Four sheets of A3+ size paper can be placed on this table next to each other, and it is also suitable for 2pcs B2 sheets or a single sheet of B1 size paper. This model flatbed usually most suitable for post-processing of inkjet and press printing applications. |
Working Smaples
Packing photos
