Digital flatbed die cutting and creasing machine - for any shape!Ease to cut the sheet media under 5mm (media with greater
thickness and low density).
Full cut/Kiss cut/Creasing/Perforation
Tangential knife +Tangential Creasing Wheel

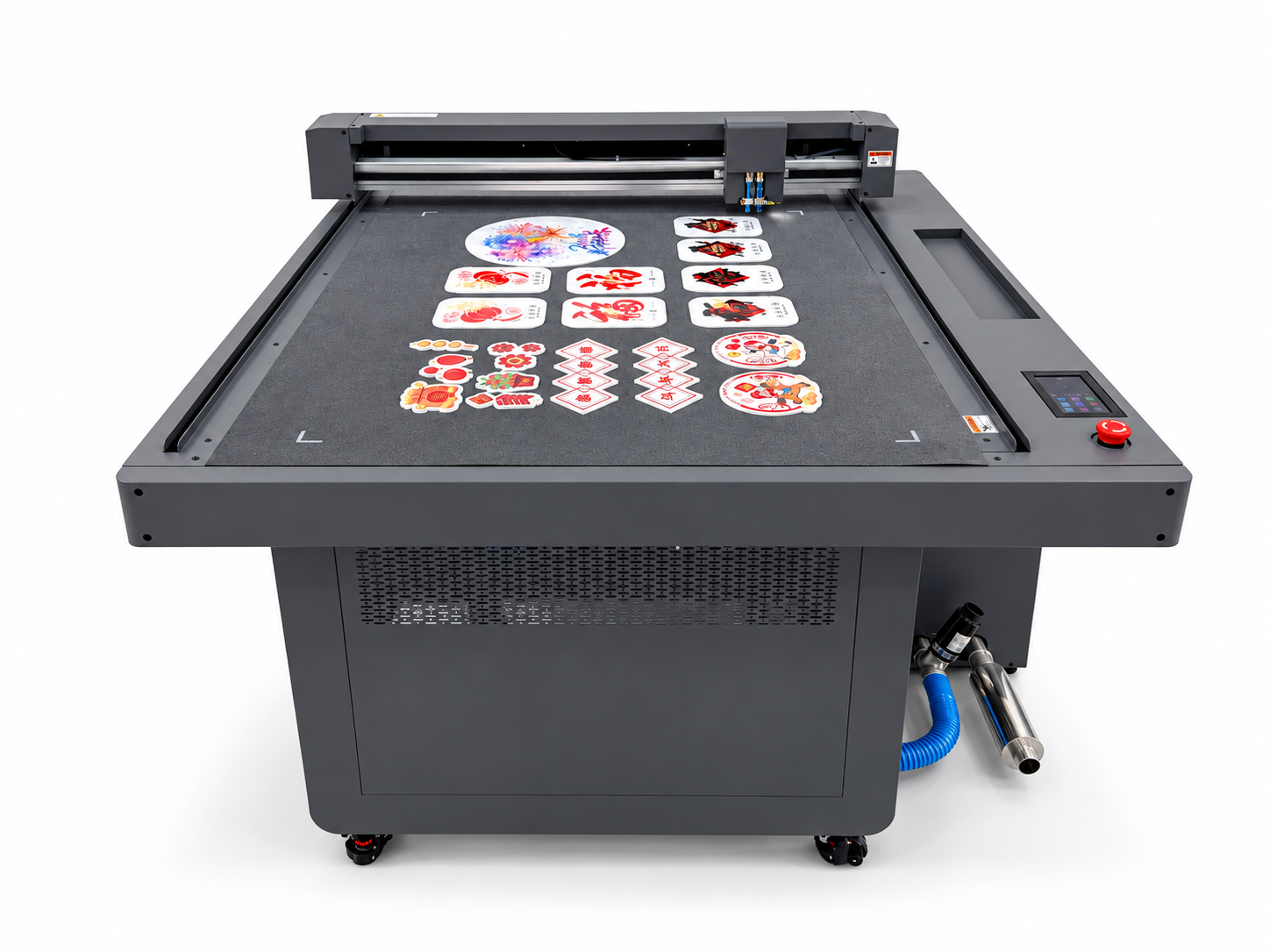

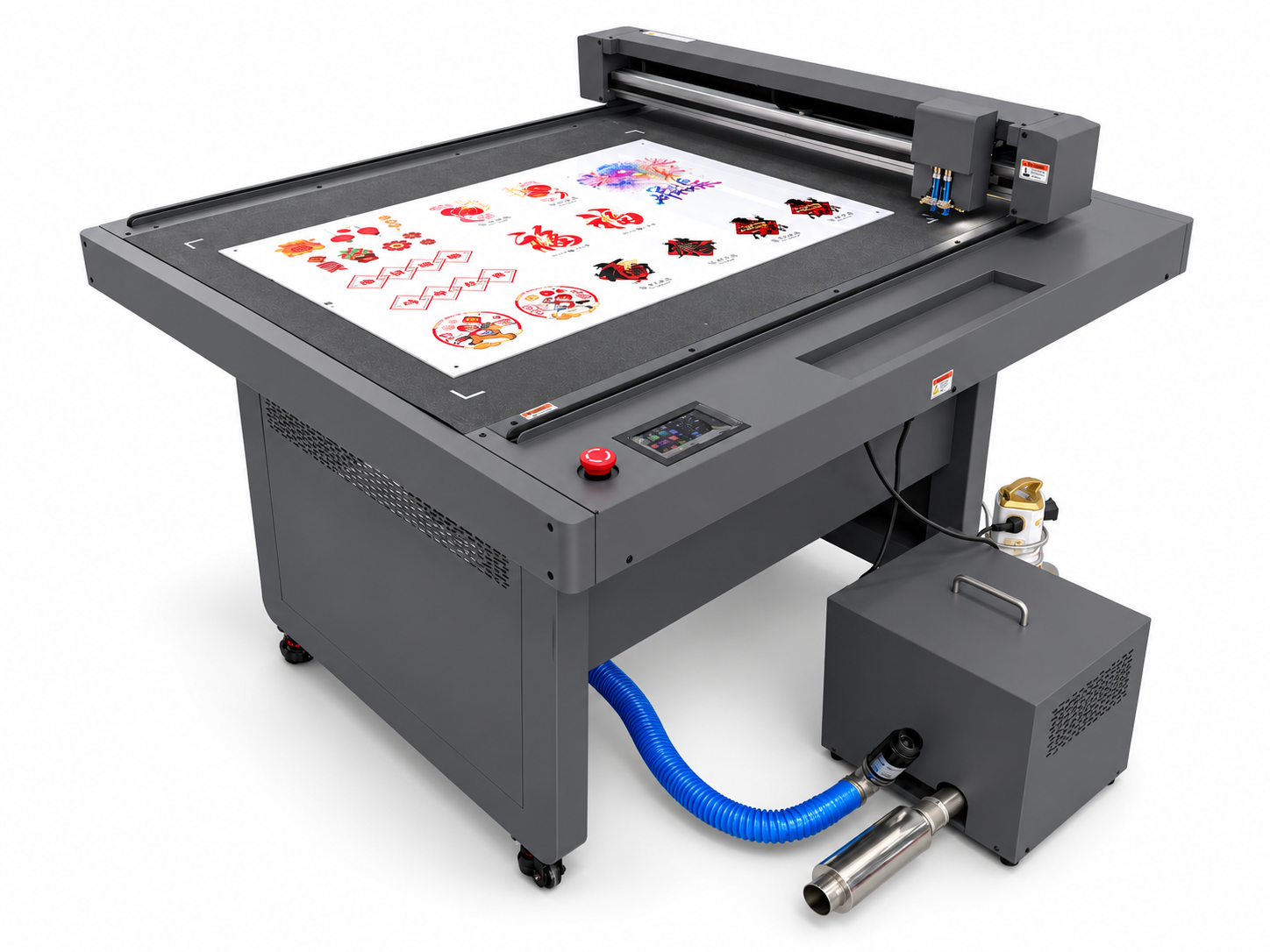

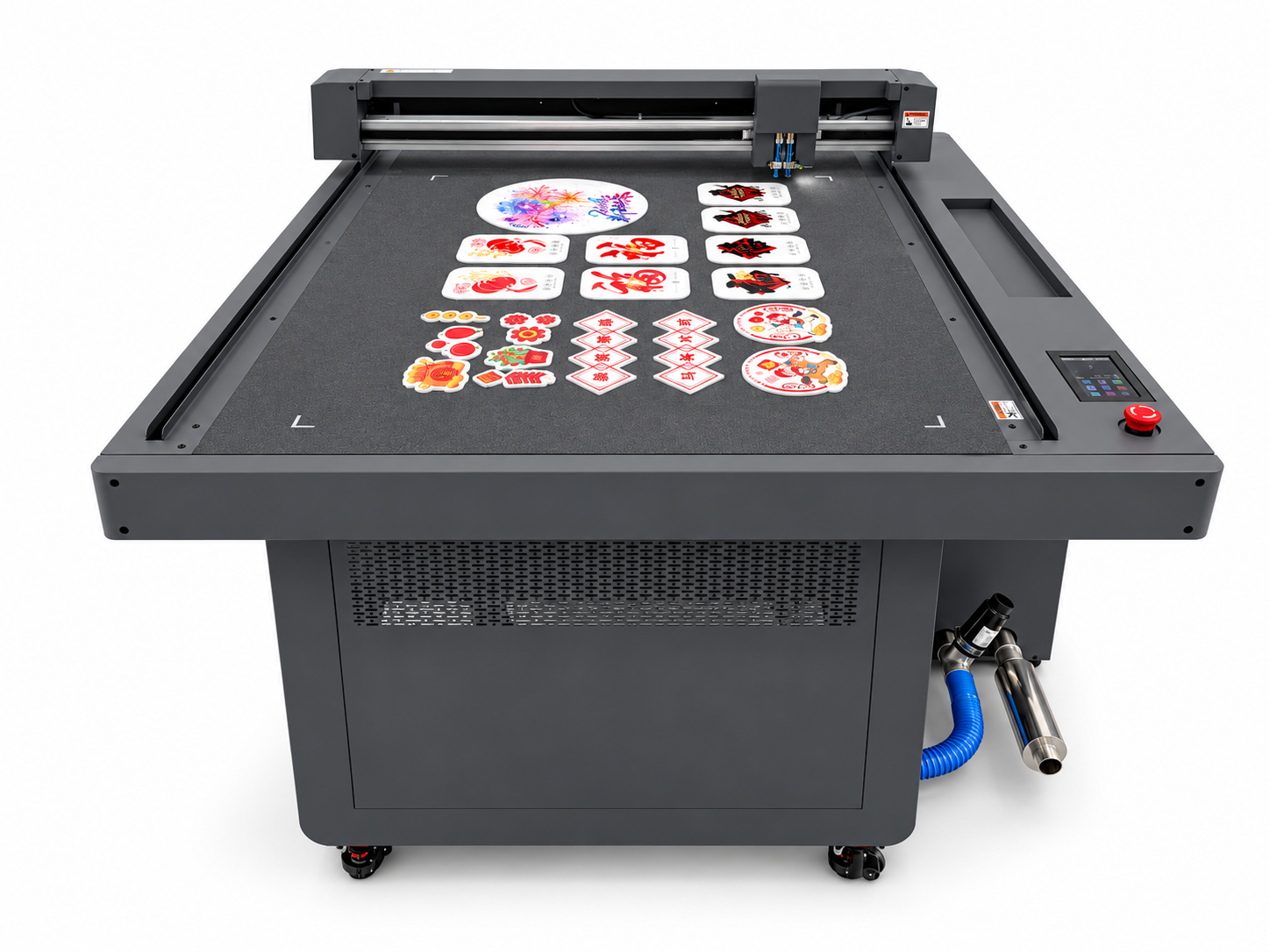

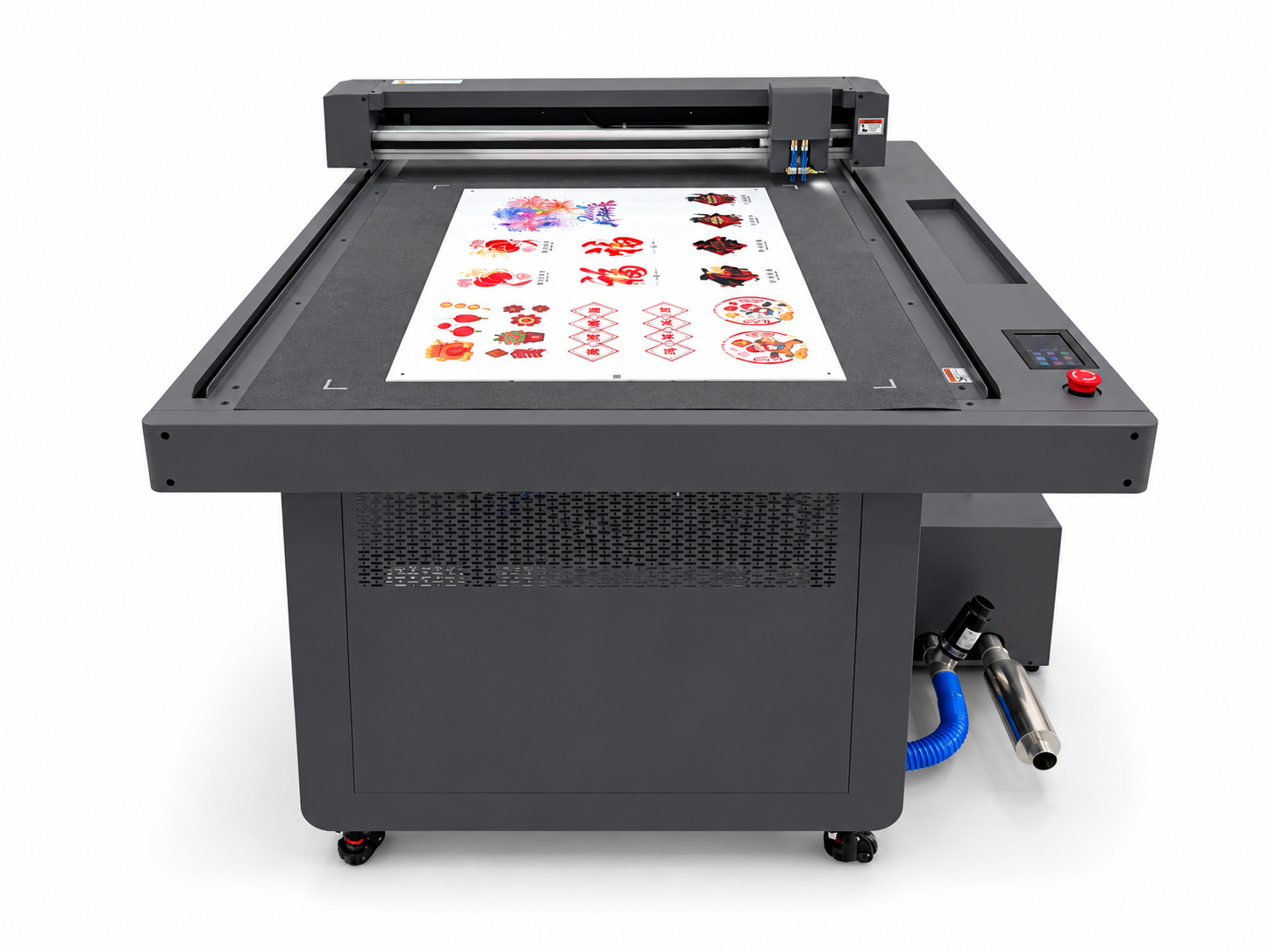

The VICUT FB70oUltra flatbed cutter is ideal for small and medium-sized production and samples of packaging, swing tickets, cards and labels.Processing materials include paper, cardboard, synthetics,films and
kinds of labels, up to 600gsm, As well as thicker KT board and corrugated paper.
Using advanced digital contour cutting technology,no cutting dies required, FB series flatbed cuter plotter is able to produce the sheets to any shapes, instantly and directly from the desktop. It can handle full
cutting,half cutting,creasing,perforating and plotting.
Easy install and operate
Plug and play, simple installation, no additional drivers needed.
High resolution camera positioning system
The FB cutter adopts a high-resolution camera to precisely detect multiple reg marks, applicable to colored and transparent materials alike. Recognition of miniature marks helps minimize material waste and cut production costs. Four registration marks can be scanned in under 3 seconds, effectively boosting efficiency and lowering expenses.
Process material up to 5mm
It enables digital full cutting of any shape on paper media up to 600 gsm,KT boards,corrugated insert boxes,as well as kiss-cut sheet labels,with a maximum cutting speed of 1200 mm/s.It greatly improves work efficiency and shortens production cycles.
Powerful vacuum suction table
The FB cutter equipped with vacuum adsorption workbench to hold materials during operation. The vacuum blower can be activated with one click prior to cutting.
QR-code system
The flatbed cutter reads QR-codes on the printed media, allowing automatic matching of print and cut files. This both speeds production and eliminates any chance of mismatched files.
Multiple cut and crease
For hard and thick materials, single cutting or creasing may not deliver ideal results, and 2 to 3 passes are required. Cutting and creasing can be operated separately to achieve superior processing effect.
One-click repeat function
It is great for cutting same jobs, just need to replace paper, press "Back to Origin", then press "Repeat", no skilled people also run it easily.
Continue cutting
If you need to process two or more sheets, when cutting second paper, users can replace first paper, save time for replacing papers.
Back cutting/creasing
it's necessary for professional users who always like perfect results.
Multiple data transfer method
The FB cutter supports cutting file transfer via USB flash drive, USB cable, Wifi and network cable. Users can select the most suitable working mode based on their specific needs.
Powerful software applications
We offer free plugins for CDR, AI, PS and CAD. The third-party ADICUT software is also included free of charge. It supports basic design and cutting file output. Powerful functions bring higher application flexibility, including hot folder, automatic typesetting, box templates and more.
Free Firmware Upgrade
Our factory continuously develops and optimizes the machine’s functions, providing regular free firmware updates for all sold units to enhance performance and add new features.
Model Name | FB700Ultra |
Table size | 1200x900mm |
Blank cutting area | 1000x755mm |
Contour cutting area | 945x715mm |
Supported regular sheet | A4, A3, SRA3, A3+,B4,B3,B2,B1,A0 |
Configuration | digital servo system, flatbed |
Paper placement | manually |
Ways to fix material | vacuum inhaling working table with blower |
Positioning method | high resolution CCD camera |
Reg marks type | L mark, dot mark, QR code |
Repeat cut | One click to repeat continue cut |
Marks detecting time | 4 seconds (SRA3 sheet) |
Maximum cutting speed | 1200mm/s |
Cutting Pressure | Tool1:1000G Tool2: 1000G |
Data transfer | USB2.0 (full Speed) / U disk (offline) / network cable/ Wifi |
Motherboard Memory | 256MB |
Command language | HPGL |
Number of tool holder | two tool holders at one carriage |
Tools type | Tool library 1:die cutting knife,wave knife,perforation kinfe,disc knife. Tool library 2:Single-wheel creasing tool, Double-wheel creasing tool, Spherical creasing tool, Sharpangle carving knife. |
| Mechanical resolution | 0.005 mm(5μm) |
| Programmable resolution | HPGL:0.025 mm |
| Repeatability | 0.1mm |
Control panel | 5.1 inch LCD touch screen |
Voltage | 100 to 240 V AC, 50/60 Hz(auto switching) |
Consumption power | Max.150W (machine); max. 550w (vacuum blower) |
Temperature | 10 to 35 degrees C (35 to 95 degrees F) |
Software | ADICUT software； Independent plugin for CorelDRAW®/ Illustrator® /Adobe Photoshop® /AutoCAD® |
Software functions | Auto typesetting optimization, hot folder, box templates, auto batch files creation, etc. |
Support Computer OS | Windows and Mac |
Land size | 150(Y)x130(X)x106(H)cm |

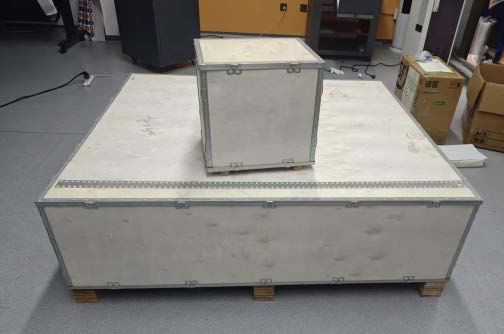

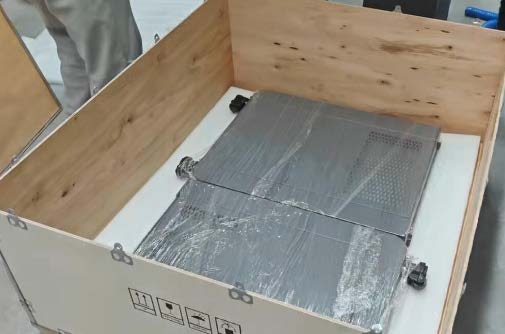

Package size | 160x450x550cm(machine) 44x39x48cm (vacuum pump) |
Gross / Net weight | 150kg / 136kg (machine) 21kg/20kg (vacuum pump) |

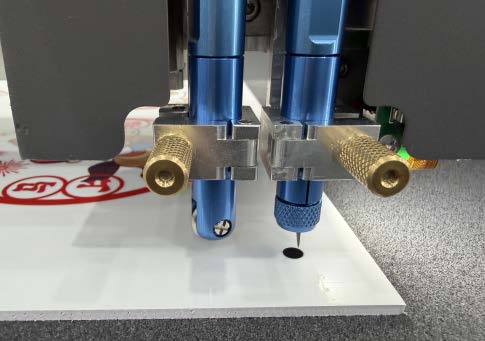

Dual heads
Dual heads with high resolution camera registration .Tangential knife and creasing wheel enables more applications
Screen
User friendly touch screen

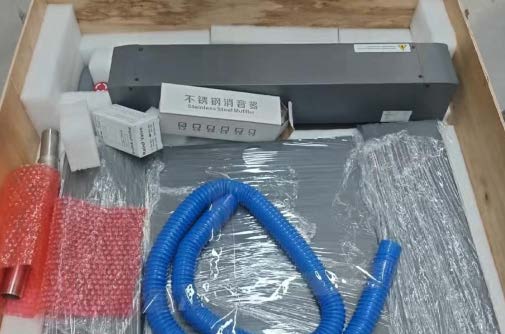

Vacuum
Vacuum blower with acoustic cover
Muffler
Muffler for vac blower

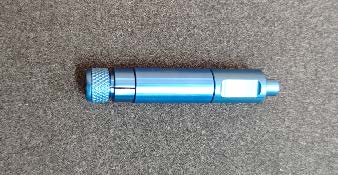

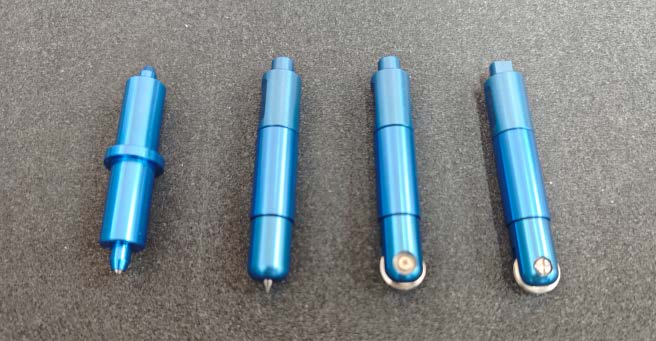

Tangential blade holder
Tangential Creasing Wheel

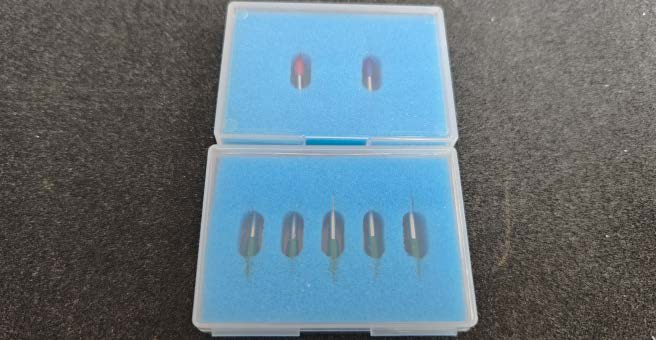

Cutting Blades
Double side rubber cutting Mat
The green self-healing mat is ideal for obtaining crisp cuts on thinner materials.This cutting mat can be used on both sides, greatly saving the cost of users.
Grey felt cutting mat
This cutting mat is perfect for achieving deeper creasing lines and cuts on thicker substrates. It's also very durable.
Application Field:Prototype and light production, DlY paper crafts,tags, on-demand packaging and sheet card cutting system also suitable for sheet labels.
Process Material:1-5mm sheet media (Material subject to Actual Testing) cardboard, craft paper, fibrous cardboard,eva rubber, PVC, sandblast, vinyl, sticker, magnetic sticker, PET, TPU,vreflective
film,thin film, KT board, Corrugated paper and etc.
Working Samples
