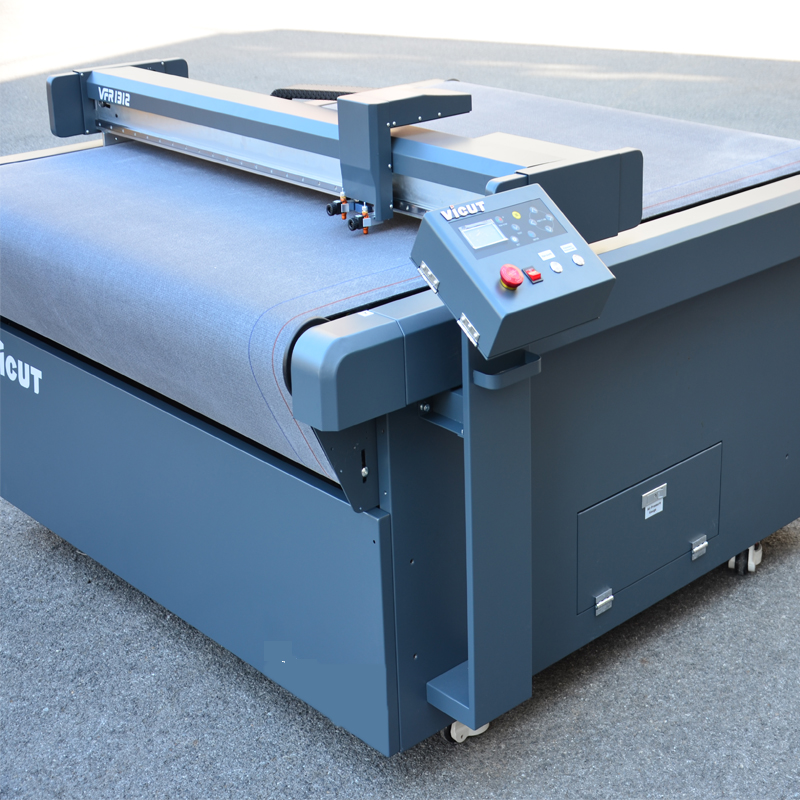

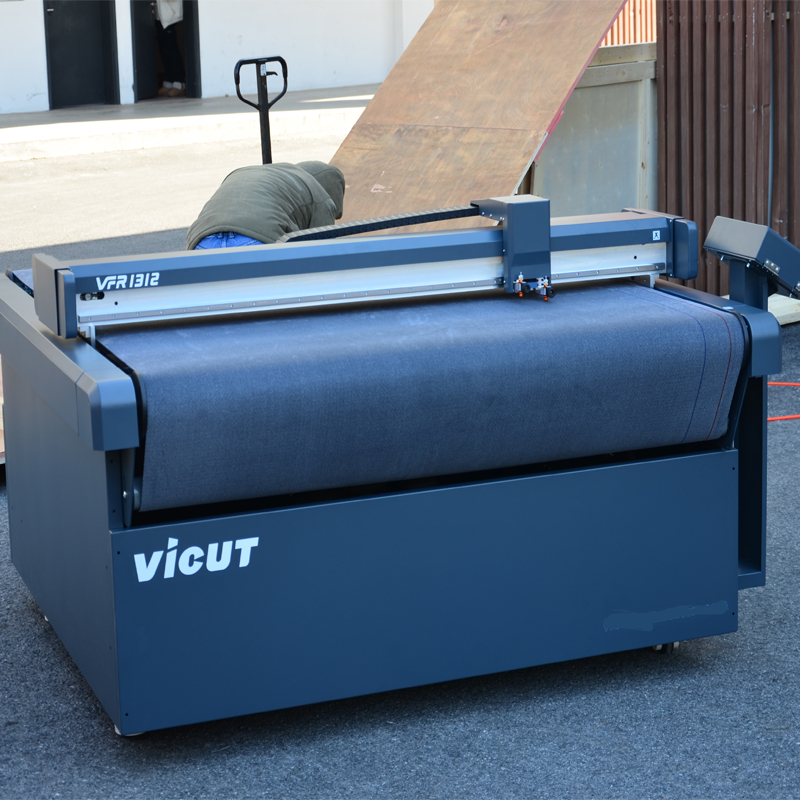

The VICUT VFR-D series auto feeding digital flatbed cutter with dual heads,by using mechanical methods to control the operation of different cutting heads, it is more convenient to perform full and half cutting operations on the same file.Greater pressure control makes cutting thick materials easier, it is an efficient solution for Traffic Safety Signs, Automotive Aftermarket, Packaging Industry, Die Cutting Industry, and other Graphic Signs, etc.
KEY FEATURES
Dual Cutting heads.
According to the file settings, the dual head automatic switching achieves half cutting and full cutting, making the operation convenient.
Cut thicker materials
Z-axis adopts a mechanical hanging plate structure to achieve independent control of dual head pressure, resulting in greater cutting pressure and the ability to cut 500GSM thick cardboard with one cut.
Static Electricity Free.
Static interference is a big headache to cutters, while that is not the case with Gunner, as we eliminate it and have tested that year-round in different weathers.
Follow-up blade ensure cutting accuracy.
3.Even if the material is uneven, accurate depth cutting can be carried out.
Advanced Algorithm.
Obvious elimination of distorted, rounded or lifted corners.
No need overcut.
On every cutting path,the start point and end point coincide accurately,while no need any OVERCUT.
One-click to Clear History.
One-click deletion button for the currently print document and clear it completely from buffer memory.
Wider Cutting Applications.
Half cut, Perforation cut, Full Cut, Creasing. You can choose any one of these processing methods or a combination of any two of them.
Handshake Protocol.
We supply Software Development Kit / SDK to match with client’s software, which deepen cooperation between Gunner and Professional clients.
Technical Parameters
Model | VFR90D | VFR1312D | VFR1612D | VFR1325D | ||
X axis working size (non-contour cut) | 735mm | 1300mm
| 1600mm | 1300mm
| ||
X axis working size (contour cut) | 725mm | 1270mm | 1520mm | 1270mm | ||
Y axis working size(sheet) | 900mm | 1250mm | 1250mm | 2500mm | ||
Max. media width | 800mm | 1469mm | 1689mm | 1469mm | ||
Max.media thickness | 1.5mm | |||||
Applicable media | Soft and medium rigidity medias(Reflective films, PET, PVC, Magnetic stickers, Vinyl stickers, Paper cards, etc.) | |||||
Method to fix media | Vacuum inhaling table | |||||
Max.cutting speed | 800mm/s | |||||
No. of Heads | Two heads | |||||
Process methods | half cut, full cut, perforate, creasing(optional) | |||||
Cutter blade diameter | Φ2.0mm | |||||
Cutter blade angles | 30˚, 45˚,60˚ | |||||
Drive | AC Servos | |||||
Mechanical resolution | 0.0125mm | |||||
Compatible OS | Win 10/8/7/XP | |||||
Memory buffer | 2MB | |||||
Standard software | Windows driver, Signworkpro, CADtoplotpro | |||||
Compatible software | Cadlink, Flexsi, RIIN, SignCut Pro, etc. | |||||
LCD language | English/Chinese | |||||
File format | HP-GL, PLT | |||||
Port in standard | USB, RS-232 | |||||
Reg marks detection | CCD Camera | |||||
Reg marks type | Dot marks & QR code | |||||
Power input | 220V/50-60HZ | |||||
Standard tools | 2pcs blade holder, 1pcs pen holder, 3pcs cutting blades | |||||
Media bracket | included | |||||
Power consumption | 3.2kw | 3.2kw | 7.5kw | |||
Floow size(W-L) | 1.3x1.8m | 1.9x2.2m | 2.1x2.4m | 1.9x3.4mm | ||
Packing size(L-W-H) | 1.6x1.4x1.22m | 1.95x2.1x1.22m | 2.16x2.1x1.22m | 3.12x1.95x1.22m | ||
Weight | 210/305kg | 240kg/320kg | 260kg/340kg | 680kg/760kg | ||
Details Description

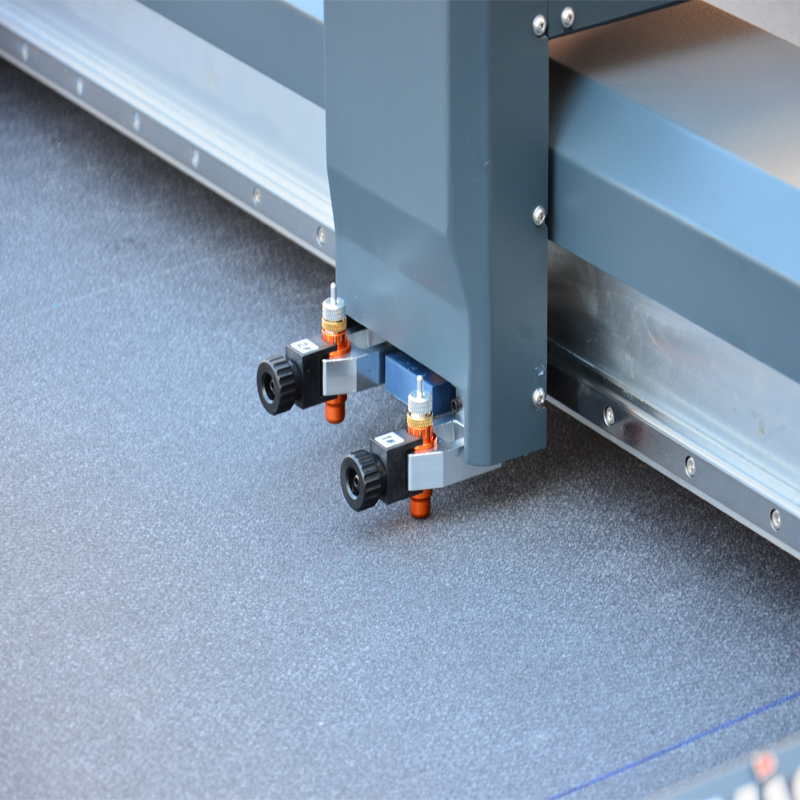

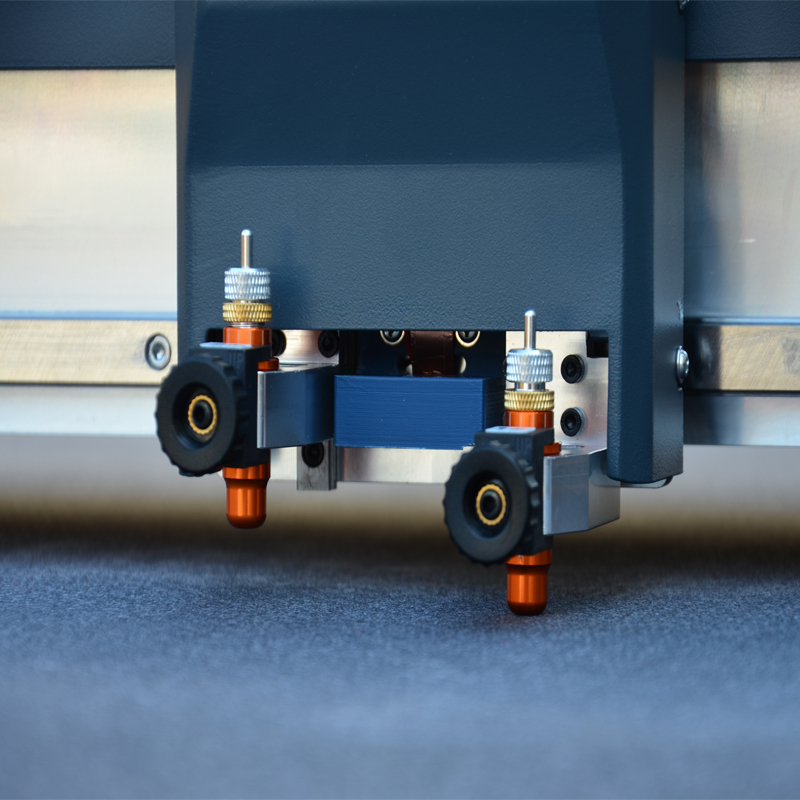

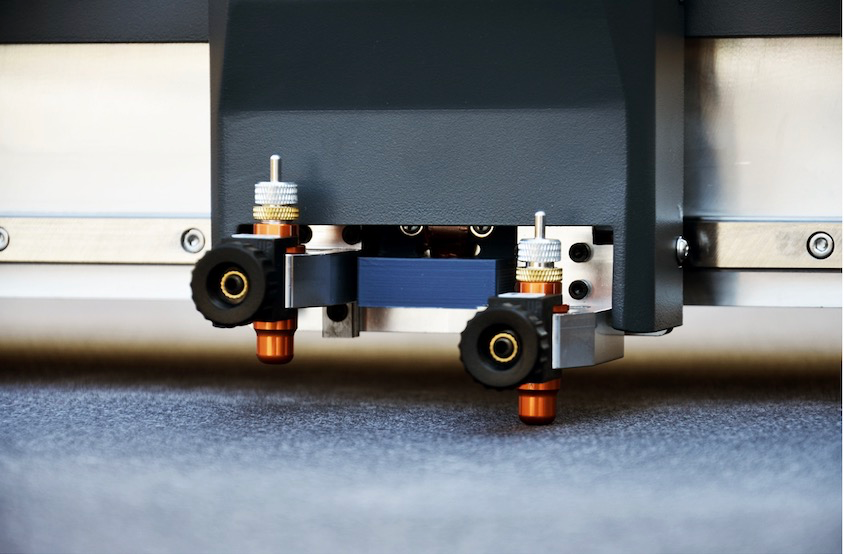

Dual Cutting Heads.
Mechanical control method to guide the dual heads movement, ensure large cutting force for processing thicker materials, follow-up blade also ensures cutting depth accuracy.

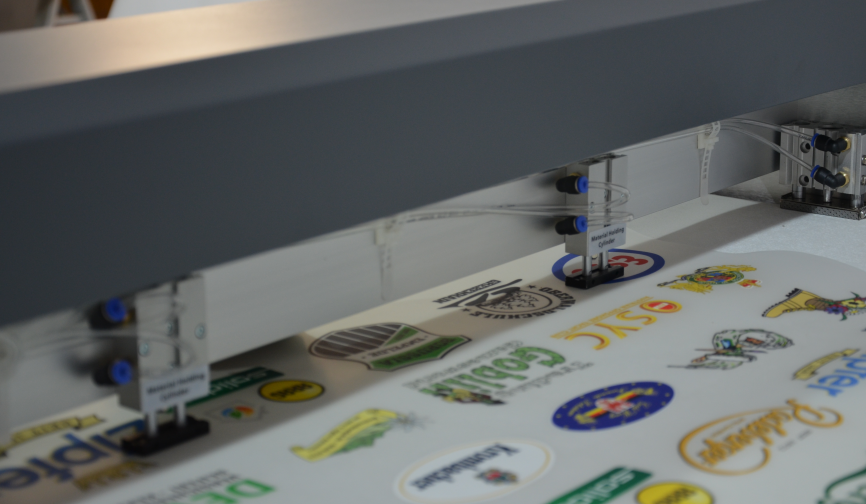

Suction cup feeding device.
Several suction cups are installed on the beam of the cutter to help drag the media to the forefront of the machine for convenient processing.
Vacuum System.
Strong air flow to hold down the media flatly and tightly against the table top so that the tool carriage can perform fast, accurate cutting / plotting. With stable quality vacuum blower, continually working more than 24 hours without overheating issues.

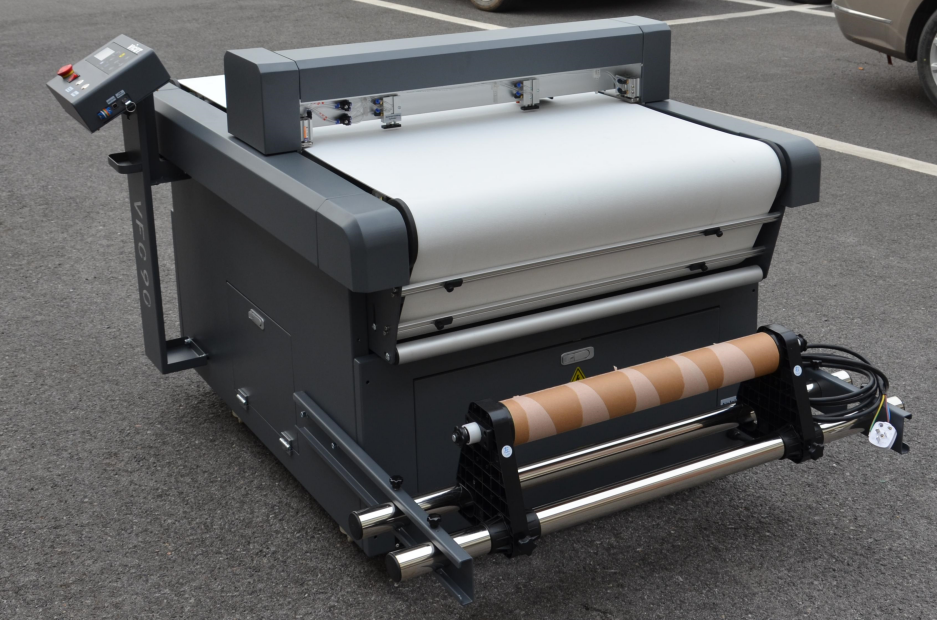

Oriented Roll Media Bracket
It is smooth to feed media with the media bracket, user may setup the bracket according to media feature and specs. The bracket improves productivity.
Servo Motor / Closed Loop Control.
Cutting / Plotting will be stopped when tool carriage is overloading, it is an important safety feature to protect tool carriage when media is jammed. Servos also bring out smooth acceleration, big torque, precise cutting / plotting and excellent durability.
Making Blade-tip Compensation by Hardware.
Our system makes blade-tip compensation by hardware(main board) instead of software, the cutter works with constant high precision no matter what kind of CAD / CAM software is applied.
Fast Registration Marks Detection with CCD Camera.
CCD camera detects the intricate dieless contours fast and more efficiently. Problems caused by position error of human, poor quality printing are resolved. CCD camera is applied for wide varieties of medias.
Quality Components.
For outstanding performance and long-term reliable working, we only use world class brand name andcomponents like BANDO belt, NMB bearing, Ultra-silence Guides made by WON Korea, etc.
Segmented Area Cutting Operation.
Additional marks are available for more precise axis alignment.Contour cutting is performed sequentially in each segmented area, which improves accuracy and tracking for heavier media or media that has been laminated.
Clean Smooth Edge Quality.
Accurate control of high cutting pressure can ensure smooth and perfect cutting actions, deliver clean smooth edge quality, even for the most complex jobs. It is easy to peal off the waste material, which cut down workload greatly for the users.

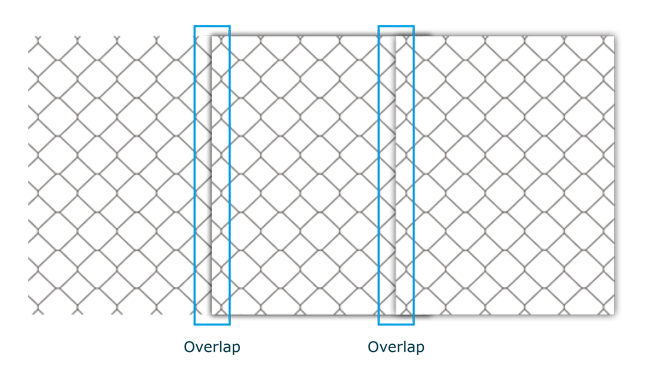

Intelligent Bleeding for Easier Overlap Operation.
Intelligent bleeding function makes overlap operation easier for the installers, this feature is very important for making and installation of big signs / indicators.
DUPLICATE CUTTING JOBS OFFLINE
Users are enabled to duplicate the cutting jobs offline, which is much convenient than doing that with connecting to PC by USB cord. The function of duplicating cutting jobs with USB memory is a leading technology that developed by our-self. This feature is important for efficient volume production.
Compatible with Mainstream Software.
Leading the same industry, we make software by our-self, we are able to adapt our system to the latest version of popular CAD / CAM software, such as AutoCAD, Coreldraw, CADLINK, Flexi, RIIN, etc.
Series Cutter Blades Available
Angle: 60°/ Φ2.0mm for reflective film
Angle: 45° / Φ2.0mm for PPF
Application
Suitable materials: Reflective films,heat transfer films, Paint Protection Film / PPF,Vehicle Wrap,Window Tint,Vinyl Sticker, Heat transfer vinyl, Magnet Sticker, Sandblast Resist Rubber,Glass film, PVC, PET, Card Paper up to 500GSM;
Suitable Field: Automotive aftermarket, vehicle decoration, traffic safety signs industry, sign makers, packaging, apparel signing, shoes designing, bags designing, composite industry, offset printing, samples making, POP displays, and more.
