Suitable for A4, A3, A3+, SRA3 card paper from 180gsm-1000gsm

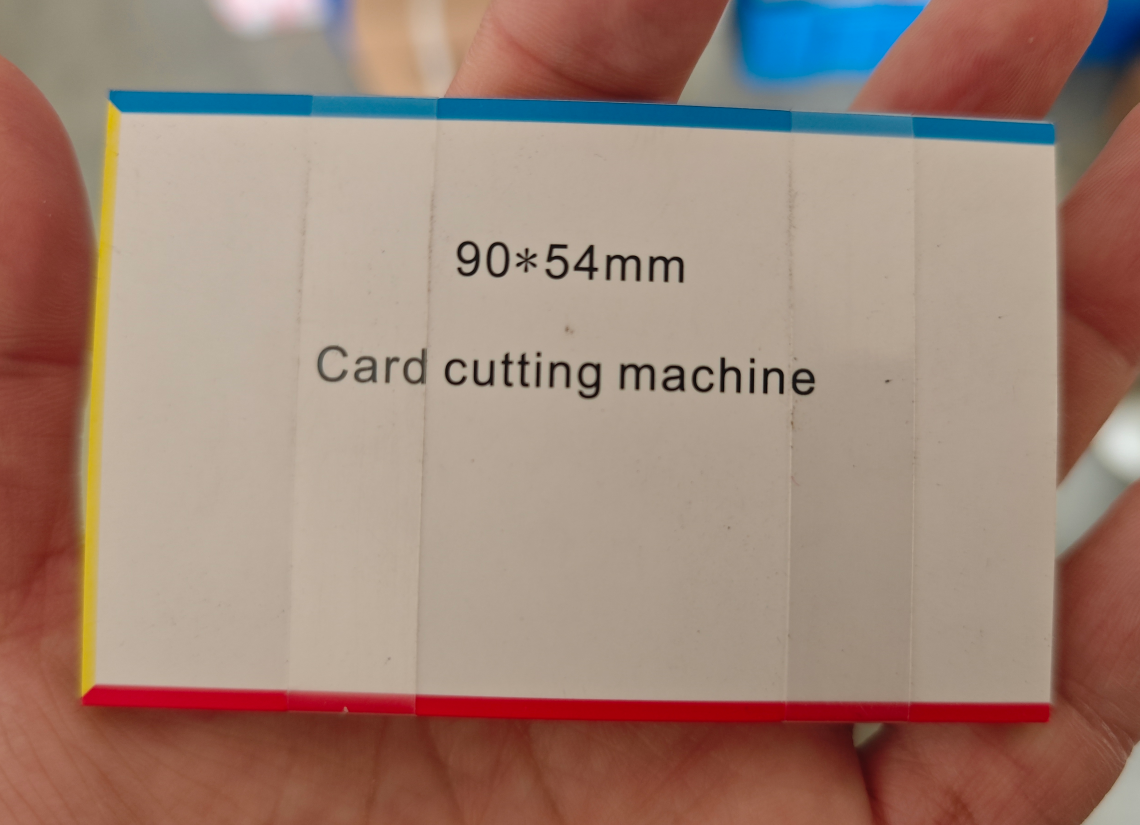

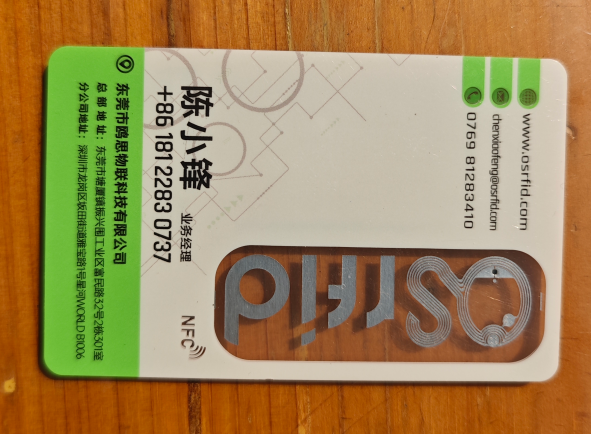

Round Corner Cutting for business name card

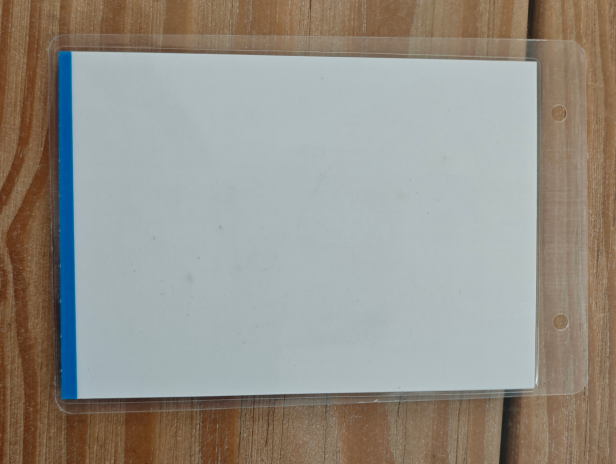

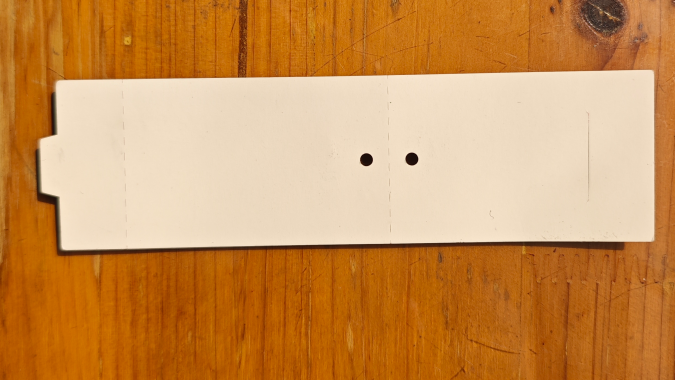

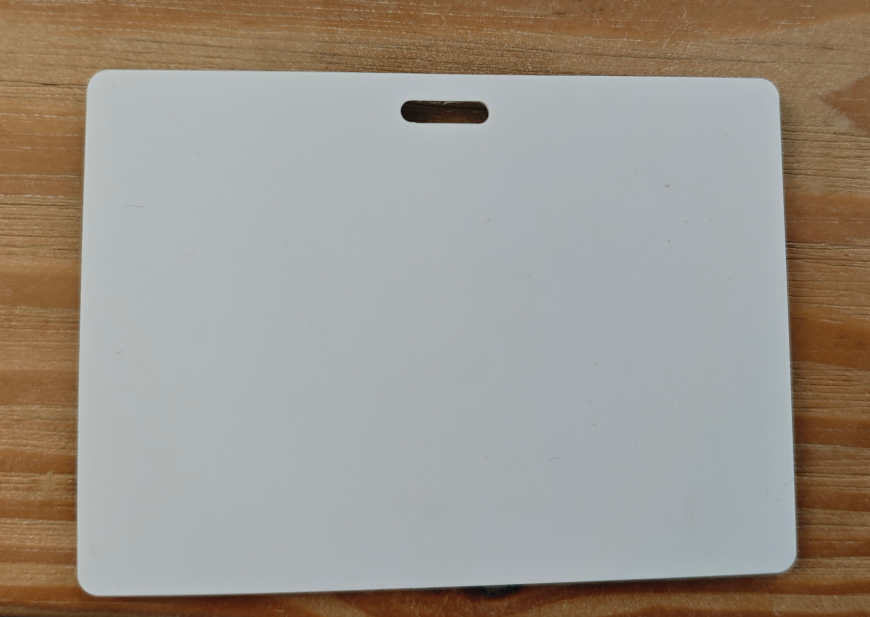

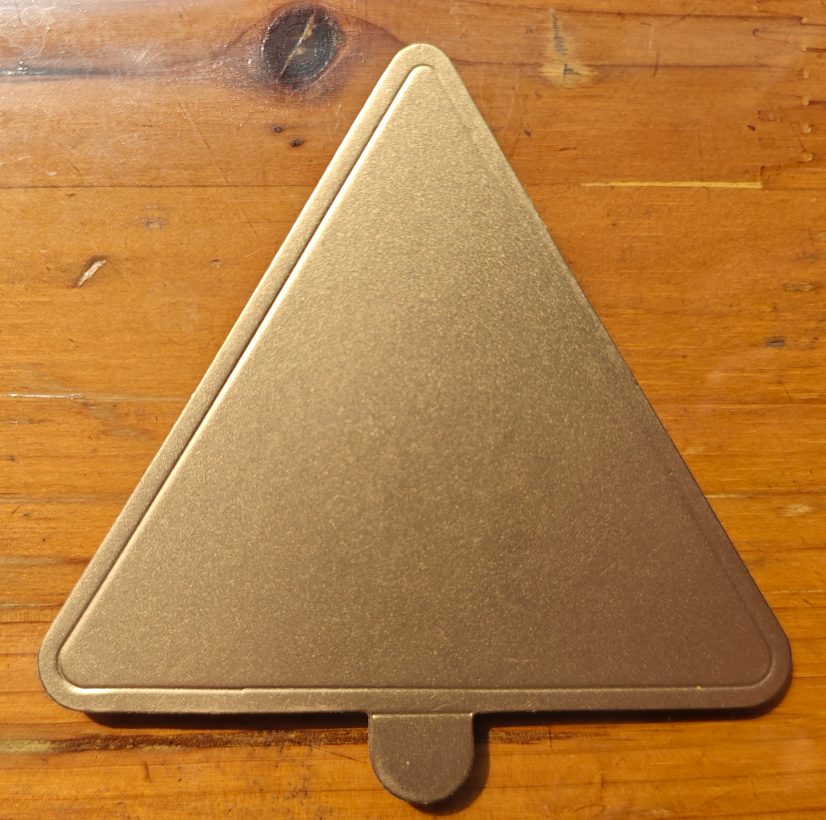

Any Shape acceptable not only for square cutting

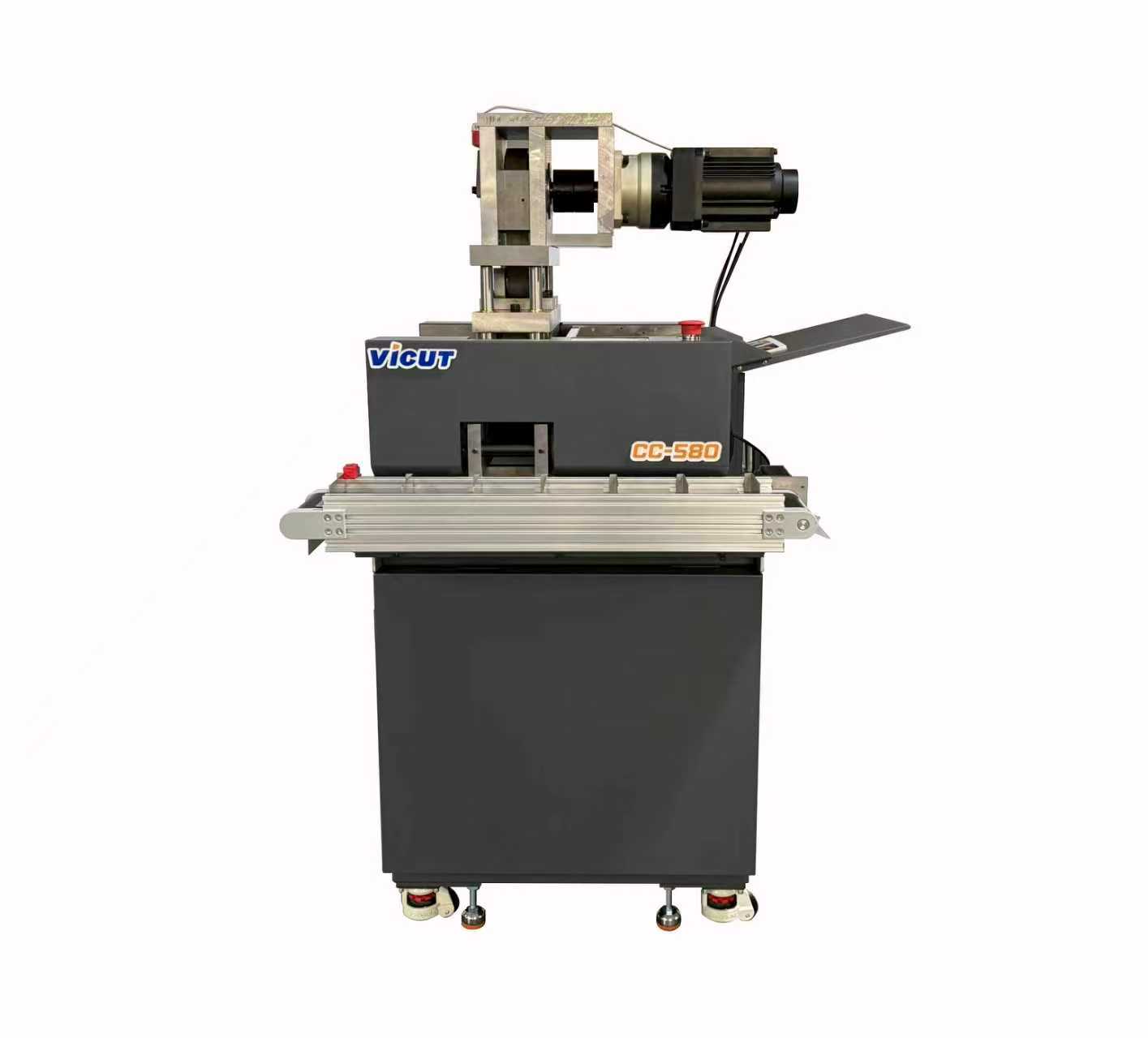

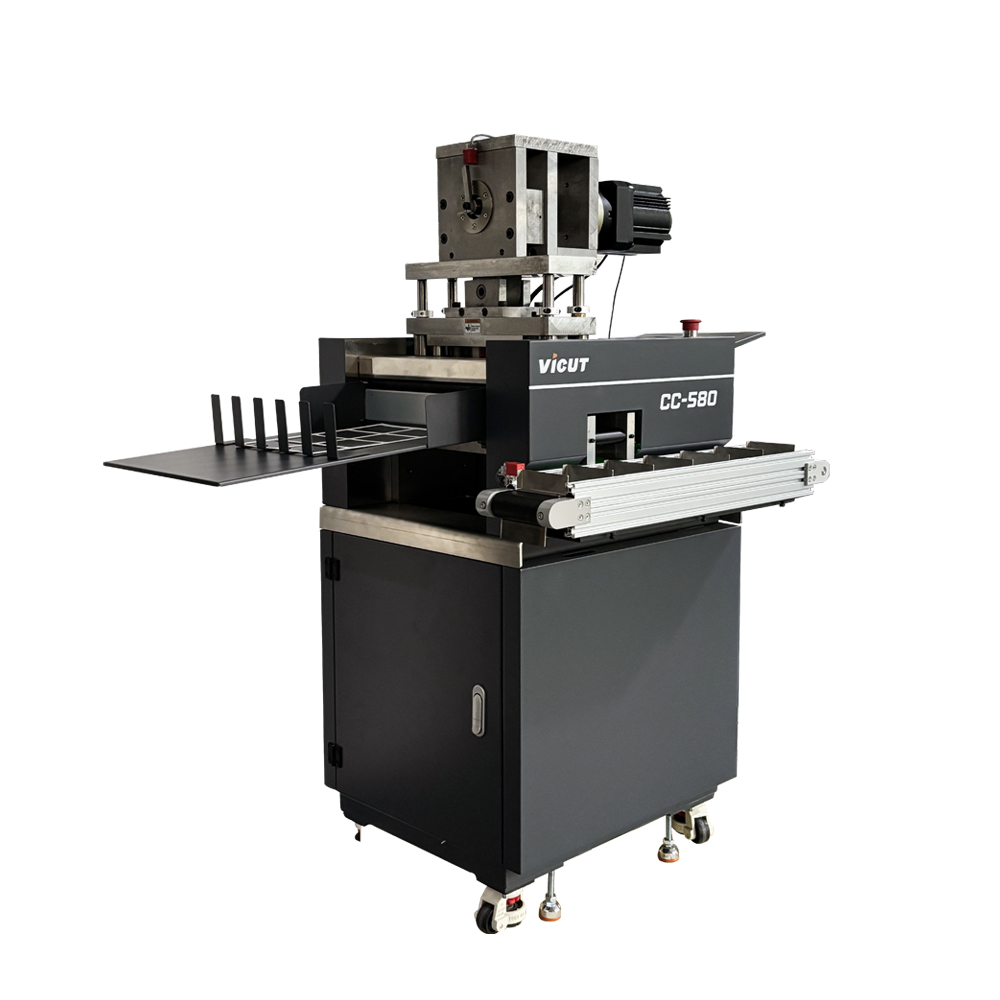

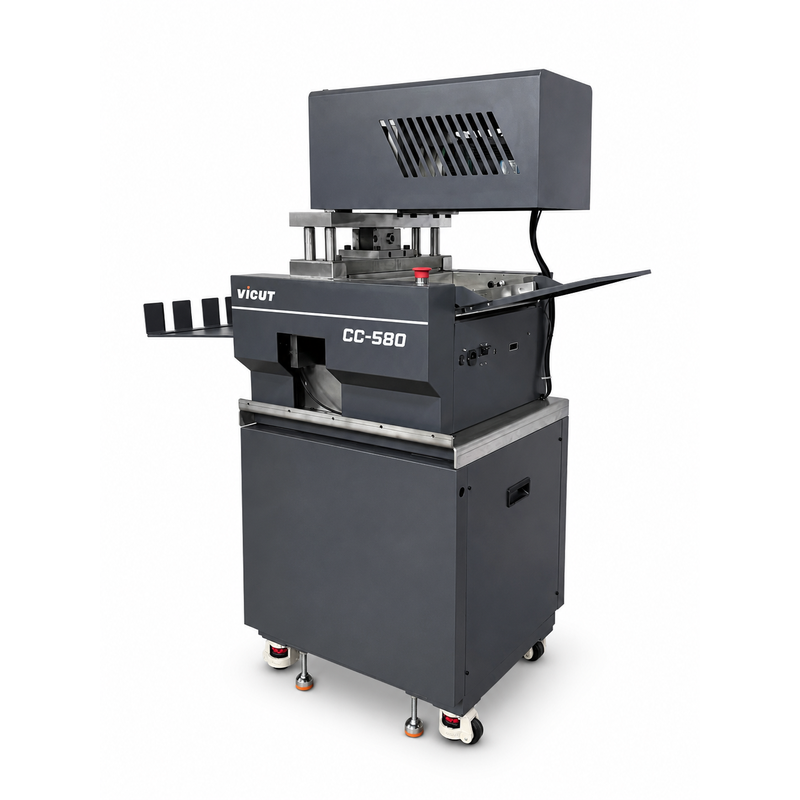

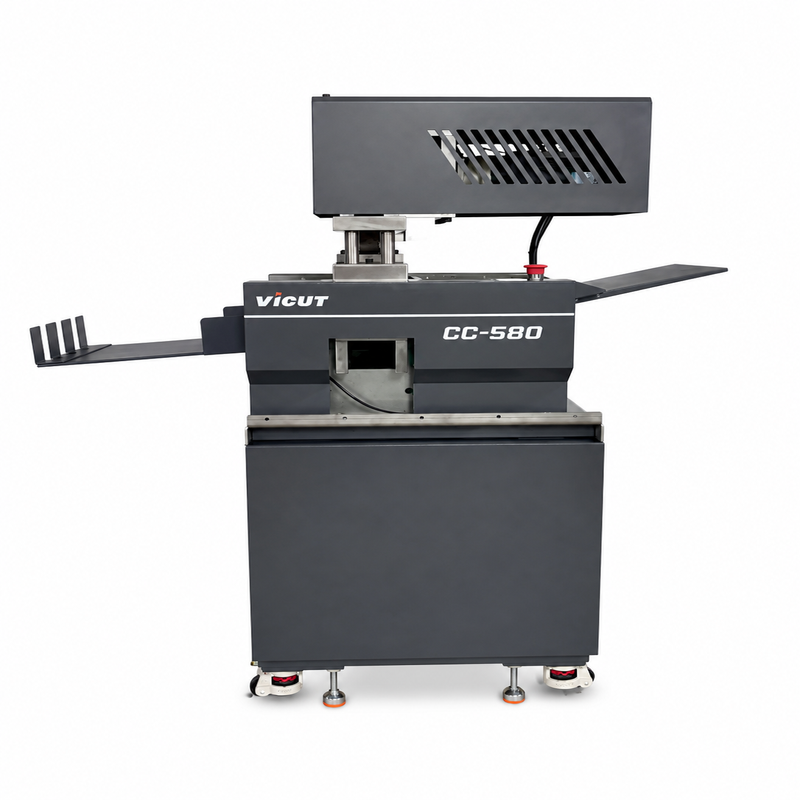

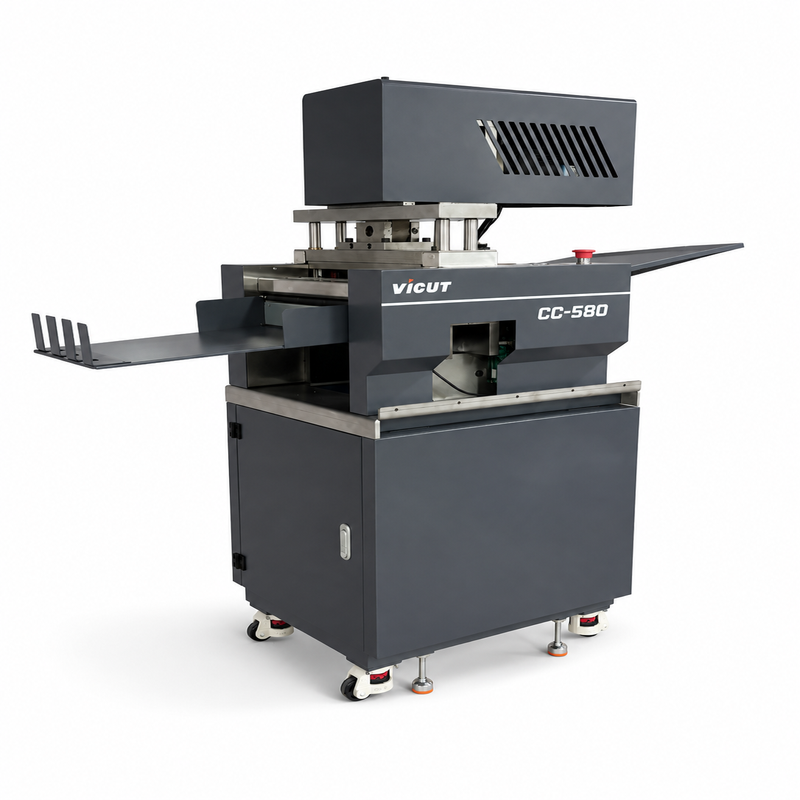

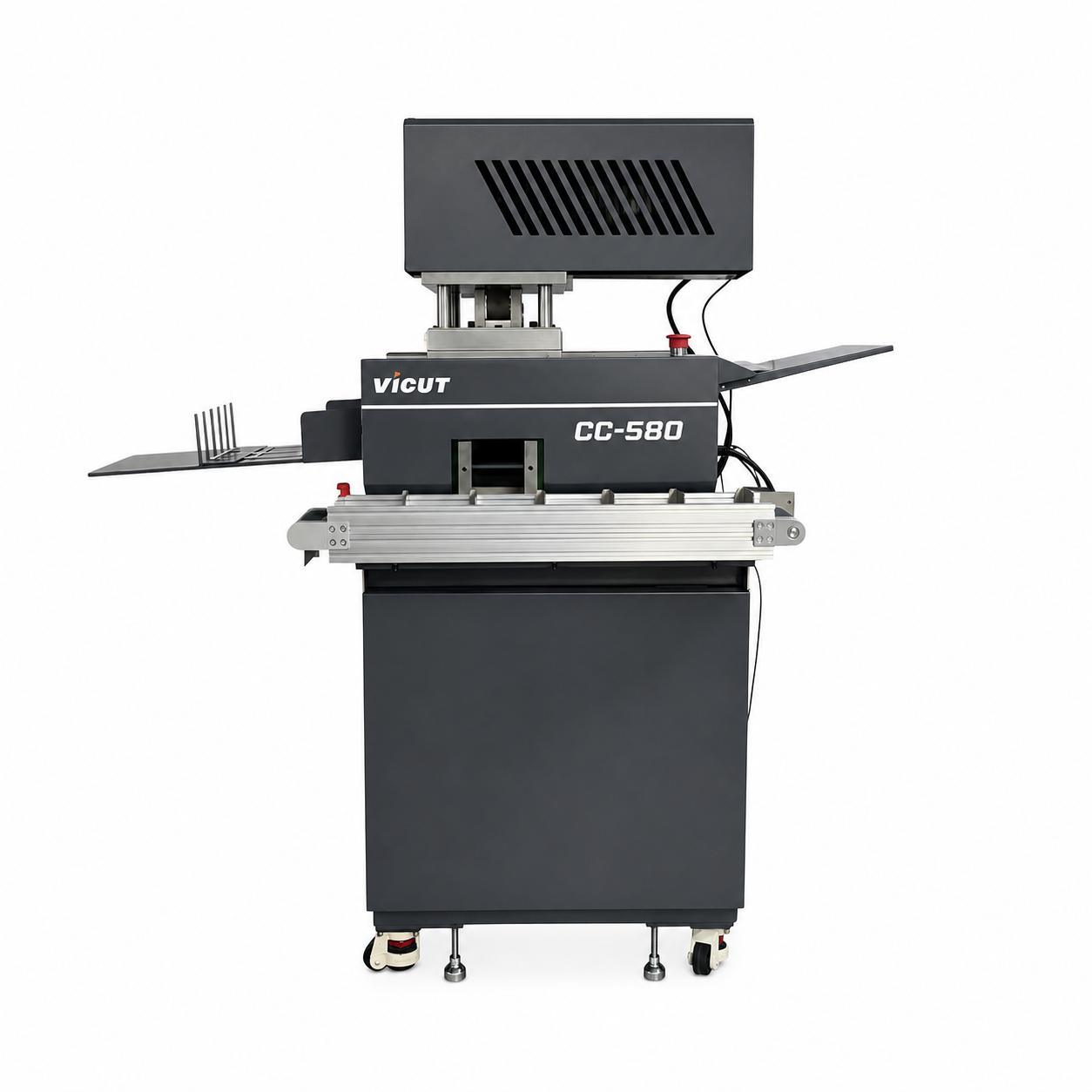

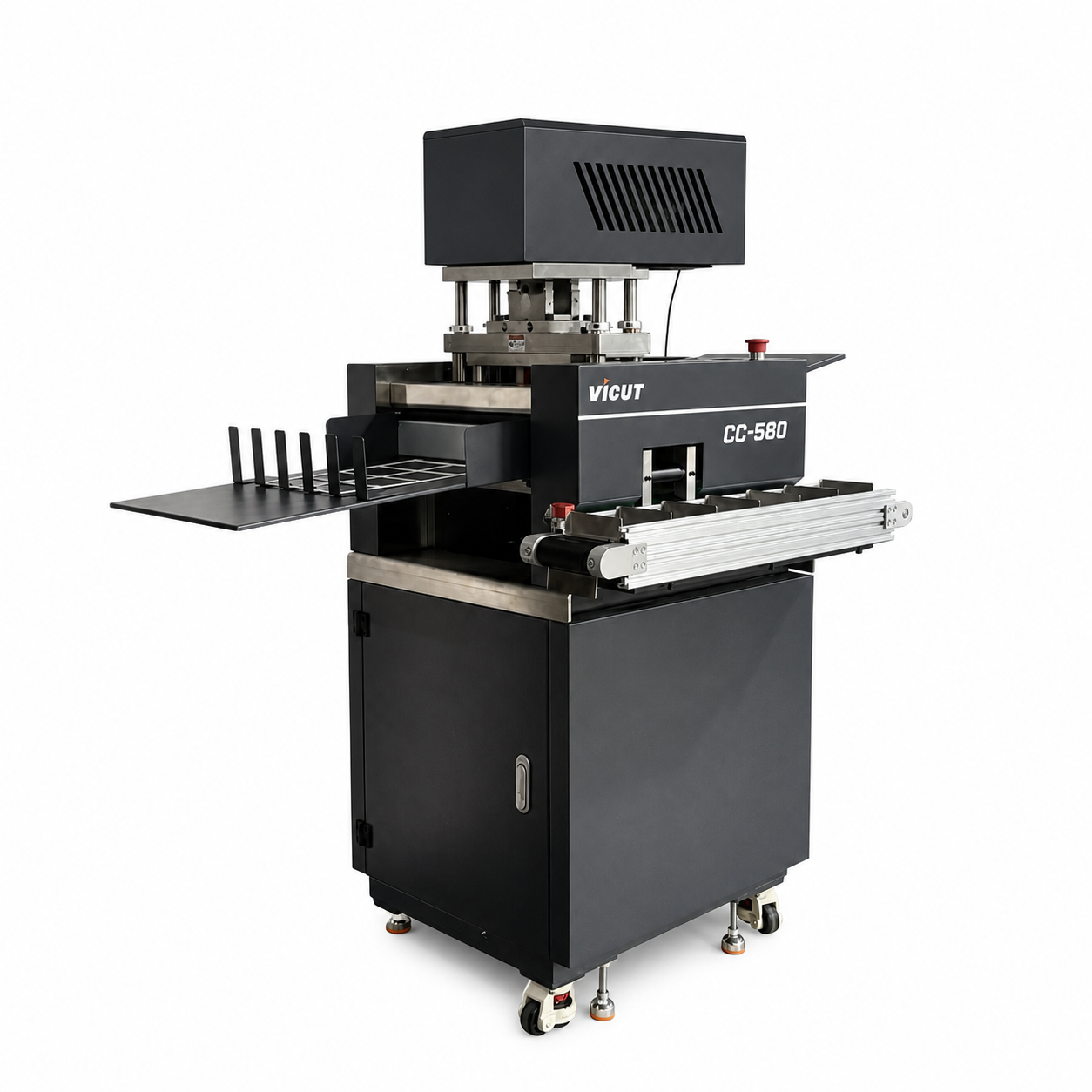

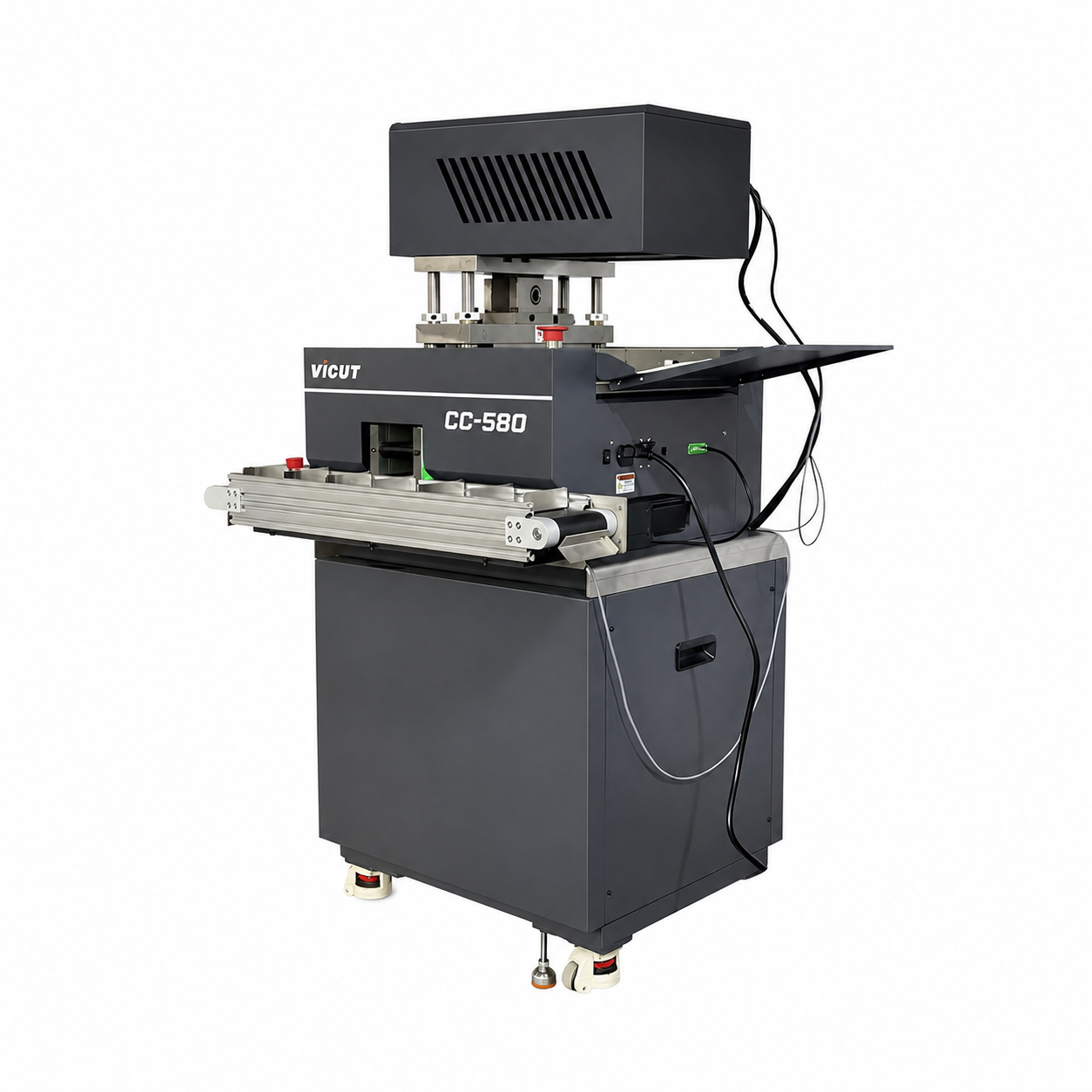

The VICUT card cutter is designed for automatic cutting many types of paper cards with fast speed, it is controlled by a micro-computer offering convenient cutting through preset layouts for consistency and ease of use. The interchangeable cutting mould offers more shape according to customer cutting requirements, and the cutting size also can be customized.

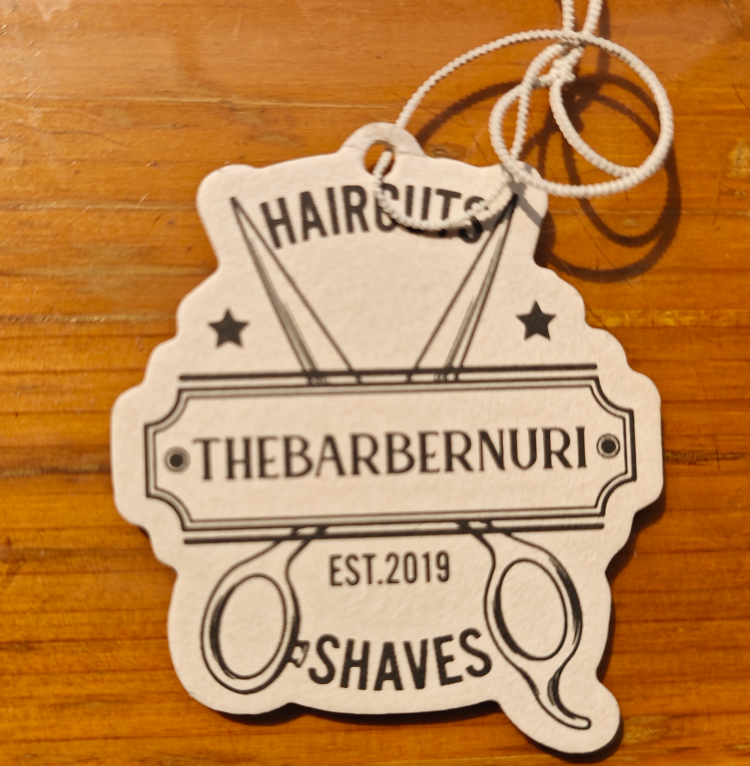

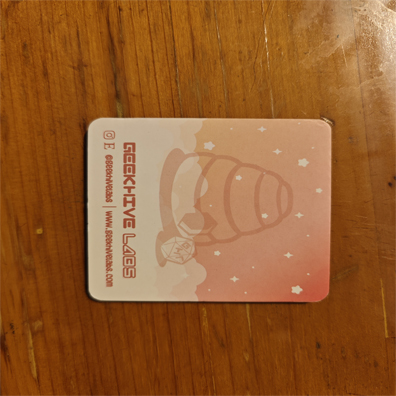

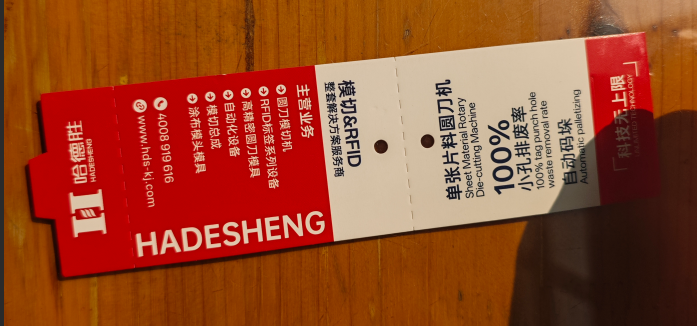

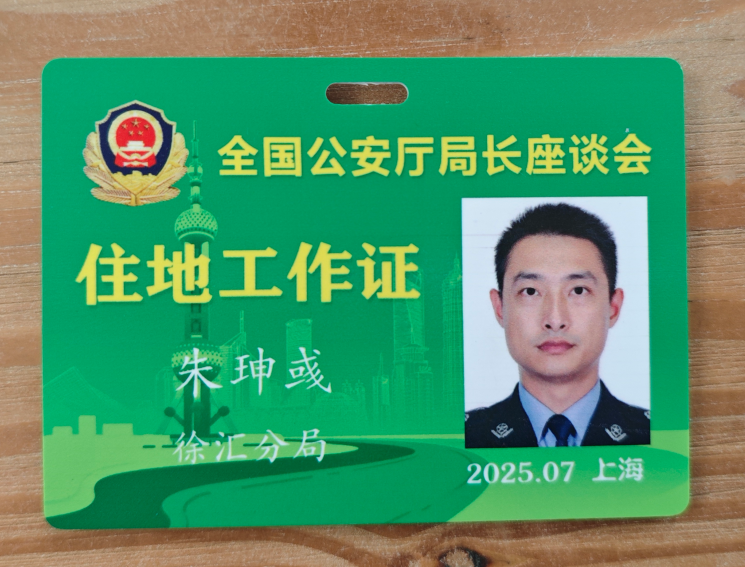

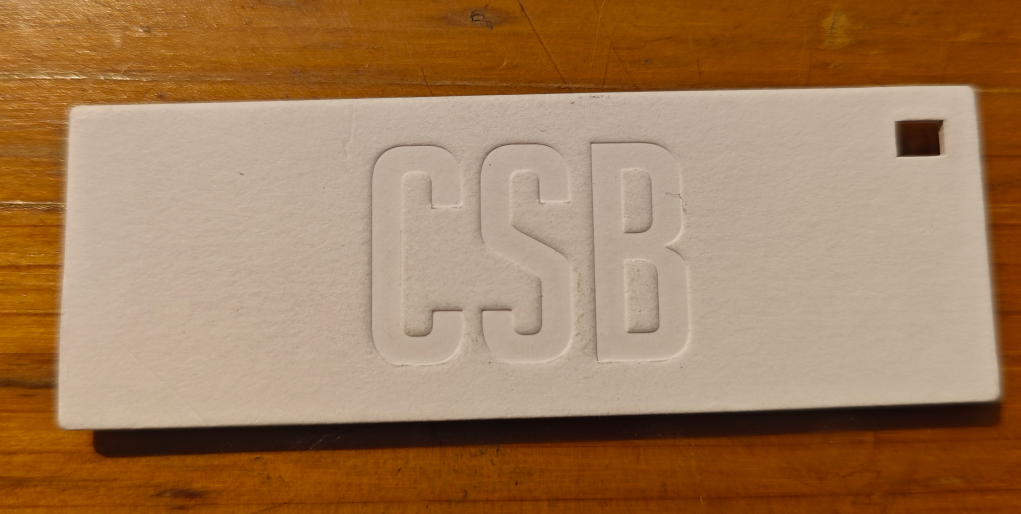

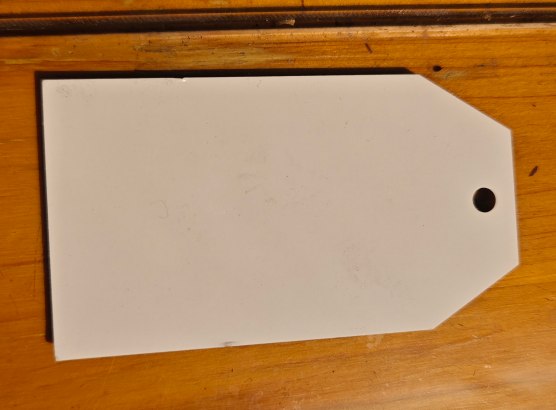

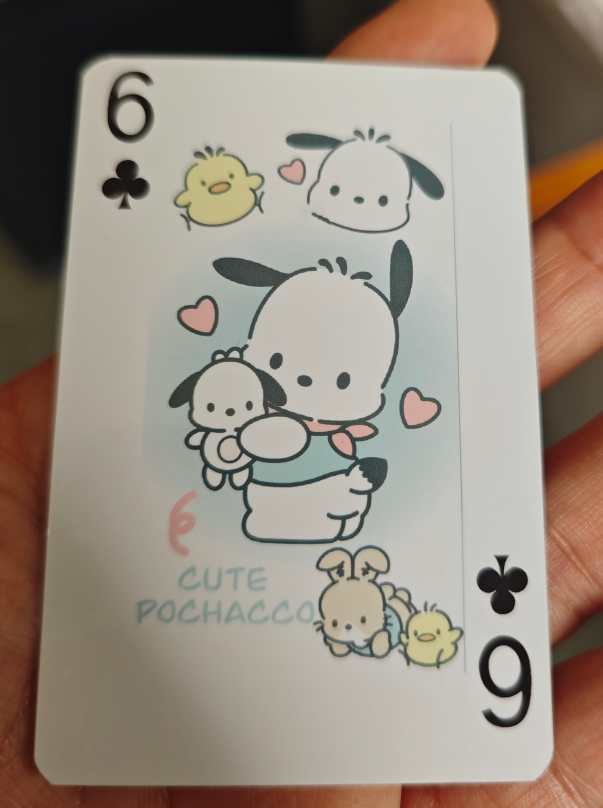

Works along with any digital printer, or even digital photocopier, the card cutter CC-580 can produce professionally cut business cards, postal cards, photos, playing cards, cloth tags and so on. Warmly welcomed by the printing shops, DIY photo shops and design companies, thanks to its affordable cost, flexible functions and fast speed.
KEY FEATURES
FULLY AUTOMATION
Automatic sheet feeding system delivers fully auto process for card cutting.
AUTOMATIC COUNTING
The control system count the cutting times and memory it, to help users better judge the use of knife.
FAST CUTTING SPEED
Cuts 180pcs cards per minute.
CUTS UP TO 1000GSM
VICUT CC-580 can cut up to 1000gsm CCP paper without deformation of sharpness of knife and no slow down.
CUSTOMIZED CUTTING SIZE
Thanks to the interchangeable cutting cassette,the cutting size of the card can be customized according to the user's requirements.
SUPPORT VARIOUS SHEET SIZE
Suitable for paper sheet size A4, A4+, A3, A3+, SRA3,or (297~320)mm x(420~480)mm , capable for cutting different business cards sizes all over the world.
SIMPLE AND SAFE OPERATION
Built in cutting cassette design, to avoid safety hazards. Once sheets ready, one click to start the cutting process, easy to operate even for beginners.
EFFICIENT AND STABLE CUTTING SYSTEM
The cutting blades are self-sharpening and do not require maintenance. One set of cutting cassette can cut 25million time continually, it means, one cutting cassette can produce about 5million standard business cards.
IMAGE SHIFT COMPENSATION
Cut marks registration compensates the offset, ensure that the cutting accuracy will not be affected by material printing error or placement shift.
Technical Parameters
Model | CC-580 | |
Paper size | A4, A4+, or (195~216)mm x (279~297)mm | A3, A3+, SRA3,or (297~320)mm x (420~480)mm, |
Cutting size | Longitudinal: (89/85/90/95)mm, or customized | |
Horizontal: (45/50/54)mm, or (3~600)mm, or customized | ||
Cutting method | Customized Cutting Mould | |
Cutting position control | Front edge detection/Multiple Registration Marks | |
Paper feeding method | Dual roller auto-feeding paper tray | |
Feeding Tray Capacity | 30mm or 85pcs 350gsm sheets | |
Paper thickness | 180gsm - 1000gsm | |
Cutting speed | Cuts 180pcs cards per minute. | |
Presetting software | YES | |
Cutting cassette | Replaceable cutting mould, change in 2 minutes. | |
Cabinet Stand | YES | |
Cutting tolerance | ±0.2mm | |
Humidity | 35%~70% | |
Operating temperature | -15℃~ +40℃ | |
Power supply | AC 110~220V, 50/60HZ, 0.5A | |
Weight | N/W: kg:180-220kg G/W: kg:220-260kg | |
Machine dimension | 70cm(Length)x75cm(Width)x130cm(Height) | |
Packing size | 64cm(Length)x83cm(Width)x160cm(Height) | |
Application
