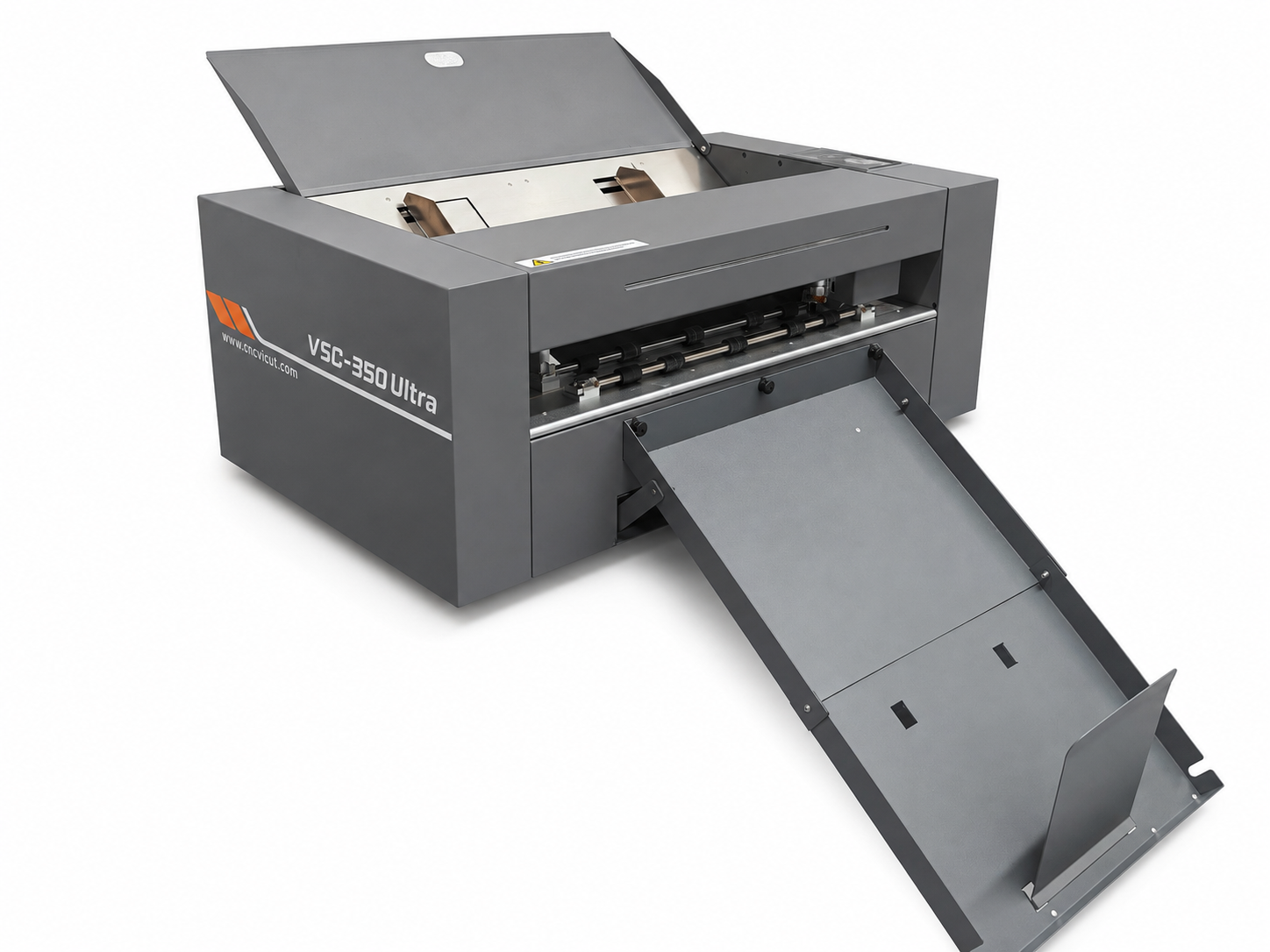

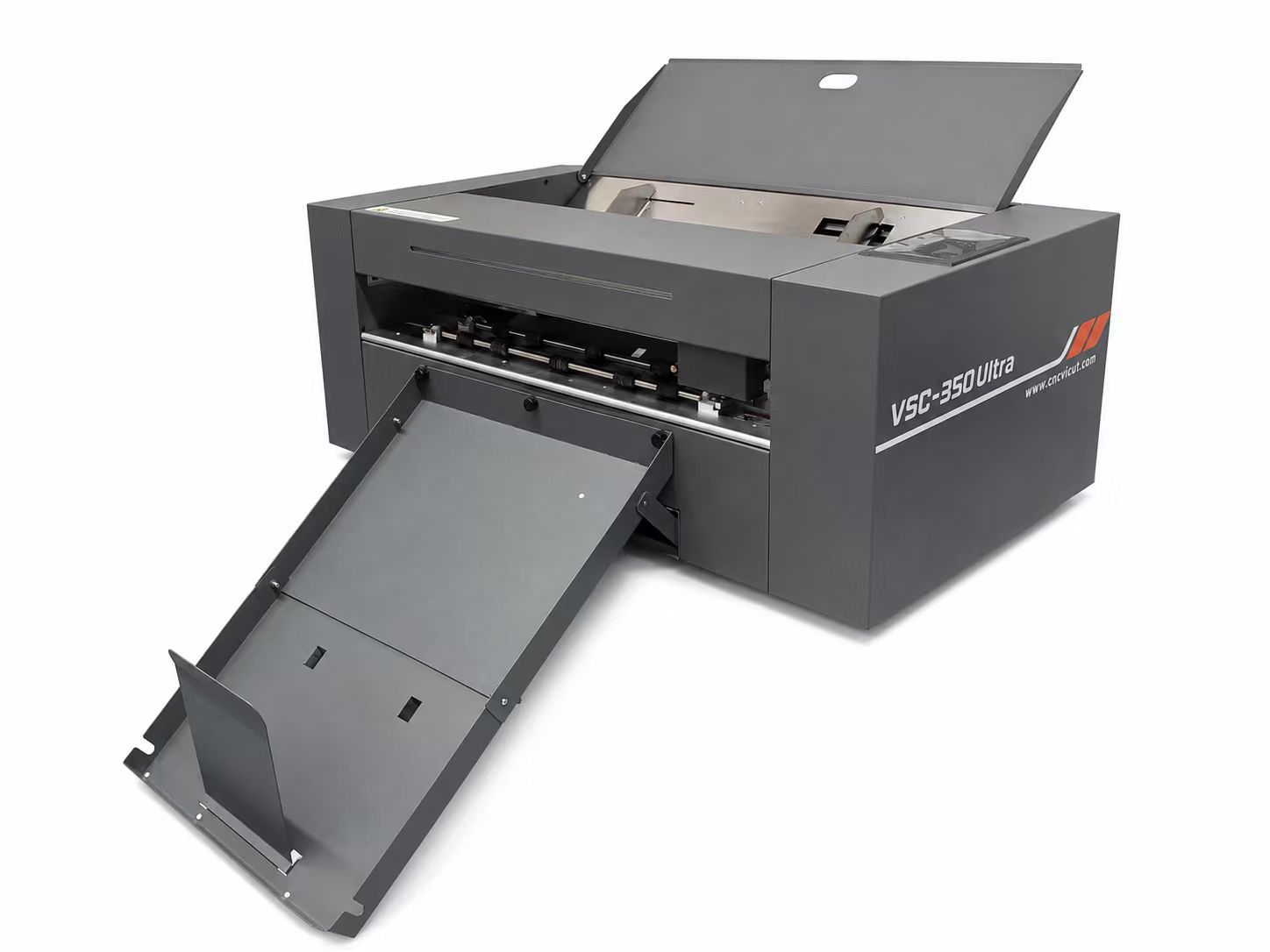

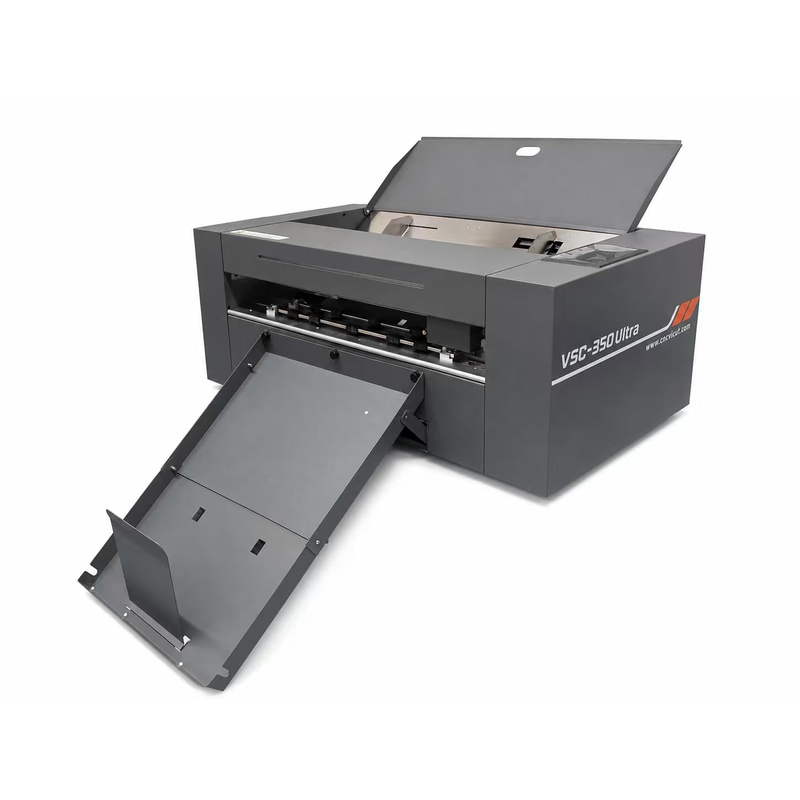

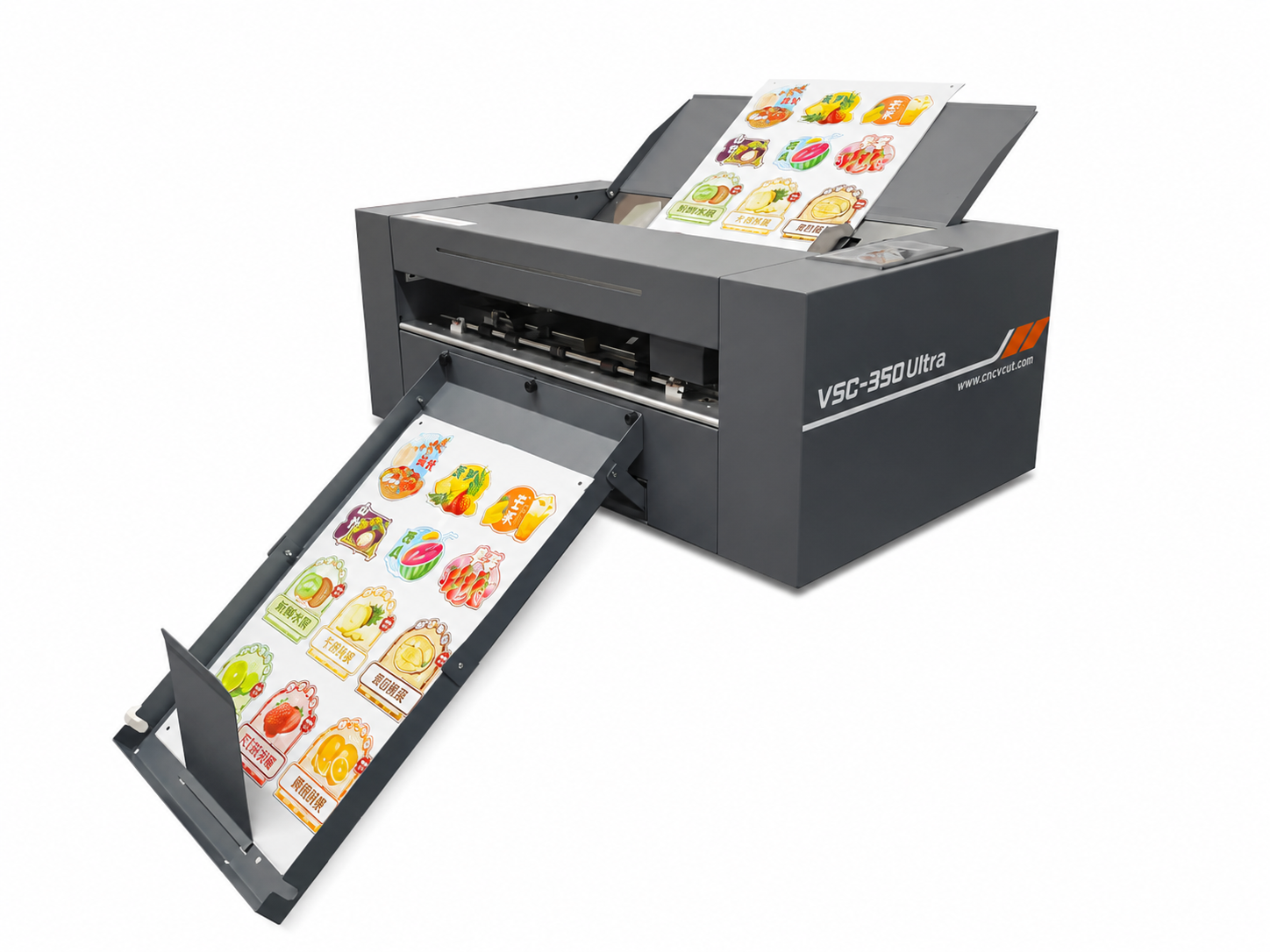

The VICUT VSC-350ULTRA is an automatic sheet-fed digital die cutter designed for short-run label finishing, custom stickers, paper cards, tags, and lightweight packaging prototypes. Combining automatic sheet feeding, CCD vision alignment, QR code job recognition, and a dual-tool carriage, it brings multiple digital finishing operations into one compact production workflow.
The VSC-350ULTRA processes compatible printed or blank sheets without requiring a conventional physical cutting die for every design. Its vision-guided workflow helps align cutting paths with printed graphics, while QR code recognition allows different jobs to be identified during mixed-sheet production.
All-in-One Finishing Capability
Integrated functions include full cutting (for final sheet separation), half cutting (for adhesive labels without cutting the liner), and precision creasing (for clean, smooth folding). A single machine meets multiple post-press requirements, eliminating the need for additional separate tools.
Stable & Fast Paper Feeding
Equipped with a fully automatic, advanced constant paper feeding system, it ensures continuous multi-sheet cutting without paper jams, truly enabling "unattended" operation.
Speed Equals Productivity
With a maximum cutting speed of 1800mm/s, it significantly boosts work efficiency and shortens production cycles.
High-Precision Vision Alignment
A built-in CCD camera automatically detects pre-printed registration marks, achieving micron-level positioning accuracy. This guarantees perfect alignment for pre-printed designs, logos, or variable data—even on irregularly shaped sheets.
User-Friendly & Versatile
Featuring an intuitive control interface, it is compatible with mainstream design software (Adobe Illustrator, CorelDRAW, etc.) and supports a wide range of materials (adhesive labels, paper, cardstock, thin PET, etc.).
Multiple Data Transfer Modes
The VSC-350Ultra supports cutting file transfer via USB flash drive, USB cable, and network. Users can select the most suitable working mode based on their specific needs.
Free Firmware Upgrade
Our factory continuously develops and optimizes the machine’s functions, providing regular free firmware updates for all sold units to enhance performance and add new features.
Cost-Effective On-Demand Production
It eliminates die-making costs and setup time, making it ideal for small-batch, personalized, and urgent orders. This reduces labor and equipment investment while greatly improving production flexibility.
Small Footprint, Robust Structure & Stable Performance
The VSC-350Ultra adopts a heavy-duty mechanical structure and high-quality components (including Taiwan PMI guide rails, Taiwan MW power supply, a full-aluminum voice-coil motor moving carriage, and a 5.1-inch color touch screen), ensuring a long service life and consistent, stable operation.
Model name | Automatic Dual Heads Sheet Cutter VSC-350Ultra |
Supported media size | Width:185 to 350mm.Length:150 to 500mm; A4,A3,SRA3,A3+ sheets and customized sheets |
Qty of Tool Head | Dual tools at one moving carriage |
Tool Type | Blade/ pen /tangential creasing wheel/Dual dot creasing tool |
Scan device | High resolution CCD camera |
Register mark type | dot mark |
Job retrieval | QR code |
Paper feeding time | 2 seconds(SRA3 sheet) |
Marks detecting time | 9 seconds(SRA3 sheet) |
Maximum cutting speed | 1800mm/s (high speed mode) |
Data transfer | USB 2.0(full speed)/U-disk/Network |
Software | AID Cut (supports Ai/coreldraw plugin)/ SignCutPro is optional |
Max.force | 1,000gram |
Driving system | Servo |
Command type | HPGL |
Working method | PC/U-DISK |
Mechanical resolution | 0.025mm |
Cutting accuracy | 0.1mm (contour cutting) |
Material thickness | Up to 350gsm |
Capacity of feeding tray | Up to 20mm (100pcs /150gsm sheets) |
Operation panel | 5.1 inch colorful touch screen |
Compatible OS | Windows, Mac(only with SignCutPro sw) |
Working voltage | 100 to 240 V AC, 50/60 Hz (Auto switching) |
Power consumption | 100w |
Operating environment
| Temperature: 10 to 35 degree, Humidity: 35 to 75% RH (non-condensing) |
Land Size | 750*1025*625mm |
N.W./G.W. | 37kg/40kg |
Packing Size | 745*432*280mm/ 0.09CBM |
Warranty | 1 year since arrival |
The VSC-350ULTRA combines digital job preparation, automatic feeding, vision recognition, and tool-based finishing.
Step 1: Prepare the Artwork and Cutting File
Create the artwork and corresponding cutting paths in compatible design software. Generate the required registration marks and QR codes using the supported workflow.
Step 2: Load the Sheets
Place compatible sheets in the automatic feeding tray. Check that the stack is aligned and that the material is suitable for the feeding mechanism.
Step 3: Identify the Job
The CCD camera detects the supported registration mark, while QR code recognition retrieves the corresponding cutting job where the workflow is configured to use it.
Step 4: Align the Cutting Path
The vision system helps align the cutting data with the printed artwork. Confirm the registration setup and run a test sheet when introducing a new material or print layout.
Step 5: Perform the Required Finishing Operations
The configured tools execute the required full cutting, kiss cutting, creasing, perforation, or plotting operations.
Step 6: Collect and Inspect the Finished Sheets
Inspect contour alignment, cut depth, fold lines, and sheet condition. Confirm that the results meet the job requirements before continuing with a larger batch.
For mixed jobs, test representative sheets from different designs to verify QR code recognition, file matching, and processing consistency.

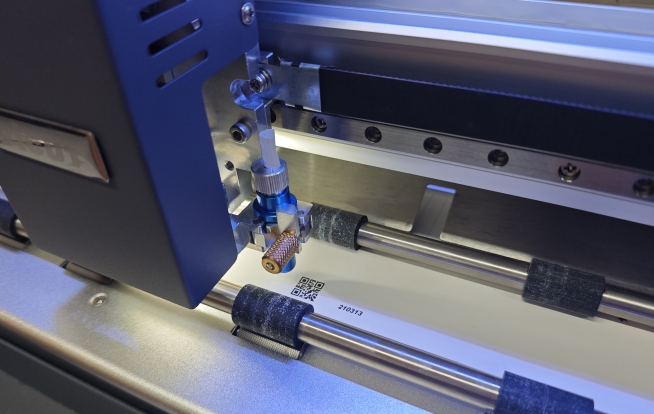

QR Code Positioning System
The system scans QR codes printed on media to automatically align printing and cutting files. It accelerates production efficiency while completely eliminating the risk of file misalignment.

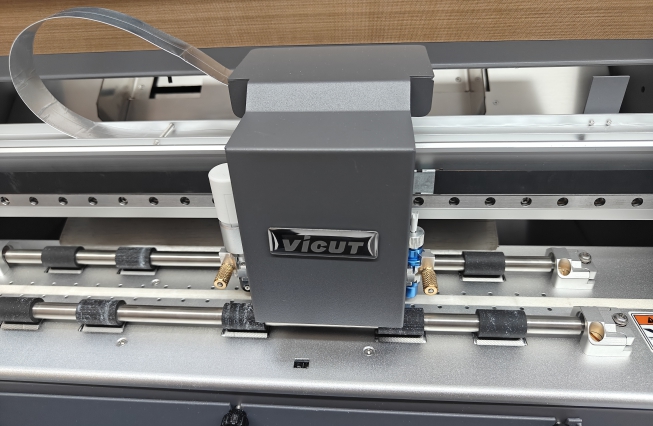

Robust Aluminum Carriage with Dual Tool
Dual-tool integrated design (cutting blade + creasing tool) enables kiss cut, die cut, crease & perforation.
Solid aluminum frame ensures long service life, rapid response and excellent heat dissipation, with low maintenance and few breakdowns.
AIDCut software
Core Built-in Functions of AIDCut.
1) Built-in graphic design module eliminates reliance on third-party professional design software.
2) Automatically generates registration marks in batches for printing and cutting files.
3) Preloaded with over 100 carton templates for direct use; no additional packaging design software purchase required.
4) Hot Folder function streamlines workflow collaboration between designers and machine operators.
5) The auto-nesting feature calculates the most material-efficient layout based on your paper dimensions and label profiles, cutting both material and labor costs. One-click operation delivers optimized economical nesting instantly.
Multiple Data Transfer Modes
Featuring multiple data transfer options including network cable, USB cable and Wi-Fi, the device supports stable, high-speed file transmission. U-disk offline working is also available, allowing users to choose the best mode for different working scenarios.
Led Working Light
Built-in LED light strip delivers consistent lighting conditions to avoid external light interference during camera scanning, enabling stable operation of the cutter in all environments.
Large capacity of exit tray
This movable output tray comes with size adapters to accommodate sheets of various formats.It features a 40mm deep large storage space that can stack up to 200 sheets (capacity varies based on material thickness). Quick to disassemble for convenient use.
Automatic paper feeding system
Our exclusive feeding mechanism supports a wider range of materials and holds up to 300 sheets of A4 paper in one loading cycle. Compatible with various sheet sizes including A4, A3 and A3+.It prevents sheet shifting during operation to maintain high cutting precision, with a paper feeding cycle completed within 2 seconds.
Easy-to-use 5.1inch touch screen
Easy toggle of arrow key speeds for carriage control High touch sensitivity, supports bare finger, thin glove touch (custom upgrade)
Stable signal, low false touch rate, anti-electromagnetic interference
Plug-ins for CorelDRAW, Adobe Illustrator & Photoshop
The VSC350Ultra is bundled with complimentary plug-ins compatible with CorelDRAW, Adobe Illustrator and Photoshop to expand users' operational options.
Die cutting blade holder
Dual dot creasing tool
Die cutting blades

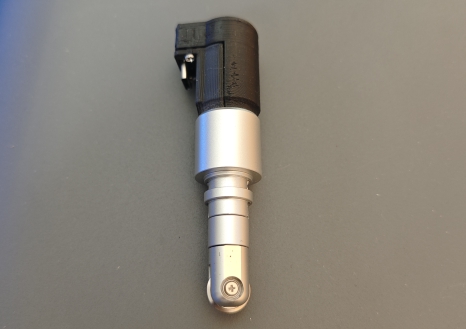

Tangential Creasing Wheel
The VSC-350ULTRA is designed for businesses that need flexible digital finishing of printed sheets, self-adhesive labels, paper cards, tags, and lightweight packaging materials.
Produce custom-shaped stickers and sheet labels for product packaging, retail products, promotional campaigns, and personalized orders. CCD registration helps align cutting paths with printed artwork, while QR code job recognition supports suitable mixed-design workflows.
Cut paper tags and swing tickets into custom shapes without requiring a dedicated physical die for each design. The appropriate cutting tool and material settings should be selected according to the tag stock and required finish.
Process custom-cut greeting cards, invitations, and other printed paper products. Full cutting and pen plotting can support different finishing requirements, while creasing can be used for compatible folding applications.
Create samples and short runs of lightweight packaging designs, folding cartons, and presentation materials using compatible paperboard and card stock.
Creasing and cutting should be tested together to confirm that the selected material folds cleanly without cracking or unwanted deformation.
Support customized paper products, decorative shapes, scrapbooking materials, and small-batch creative projects where frequent design changes make digital cutting useful.
The automatic sheet feeding and digital job workflow can help print shops add contour cutting and basic finishing to their existing printing services. Suitability depends on the volume, material range, and required production turnaround.
The published application range includes printable self-adhesive label sheets and paper cards from approximately 120 gsm to 350 gsm for specified cutting and creasing applications.
The product page also lists paper and card stock up to 350 gsm. Actual compatibility depends on the sheet's dimensions, stiffness, coating, adhesive structure, liner, and the selected tool.
Before ordering, provide VICUT with your material specification and representative artwork so that the required cutting and creasing operations can be evaluated.
Applicable Media:
1. Various printable self-adhesive A4, A3, A3+ sheet label media, half cut to make sheet labels.
2. Paper cards thickness from 120gsm to 350gsm, for full cutting and creasing, to make packaging boxes, tags, etc.
Field: Sheet label cutter VSC-350 is the ideal machine for reliable and automatic production of contour-cut stickers and labels in the business areas of copy shops, product labeling, office applications and many others. It could be also used for cutting custom packaging boxes, greeting cards, invitation cards, paper crafts, and scrapbooking materials, supporting personalized small-batch production.
The VSC-350ULTRA is an automatic sheet-fed digital die cutter designed for printed labels, stickers, paper cards, tags, and compatible lightweight packaging materials.
Vision-guided cutting uses a camera to detect supported registration marks and help align cutting paths with printed artwork.
The system reads a supported QR code and retrieves the corresponding cutting job, helping manage different designs in mixed-sheet production workflows.
No conventional physical die is required for its digital cutting process. The appropriate digital cutting file and tool setup must be prepared for each job.
The published supported media range is 185–350 mm in width and 150–500 mm in length, including A4, A3, SRA3, A3+, and compatible custom sizes.
The listed applications include printable self-adhesive label sheets and paper cards up to 350 gsm under specified conditions. Confirm the suitability of your actual material, especially for coated stock, adhesive labels, and multilayer sheets.
Yes, the VSC-350ULTRA supports cutting and creasing with compatible tools. The available operations and sequence depend on the installed tool configuration and job settings.
The published maximum cutting speed is up to 1,800 mm/s in high-speed mode. Actual production speed depends on the material, cutting path, registration process, and job complexity.
The product page lists AID Cut software, with SignCutPro available as an option. Confirm the included software version, supported plugins, operating system, and file formats before ordering.
It can support mixed-sheet workflows using QR code job recognition, provided the sheets, codes, cutting files, and software setup are compatible.
Contact VICUT to discuss a sample test using your actual media and cutting files. Confirm the sample process, shipping arrangements, and any applicable charges.
Provide your sheet dimensions, material type and weight, required cutting and creasing operations, estimated order volume, software requirements, and examples of your artwork. This helps the sales team evaluate the appropriate configuration.
