Automatic Sheet Feeding System.
Dual-head design supports half cut, full cut, perforating and creasing functions.
A smart integrated solution for the label and packaging industry.

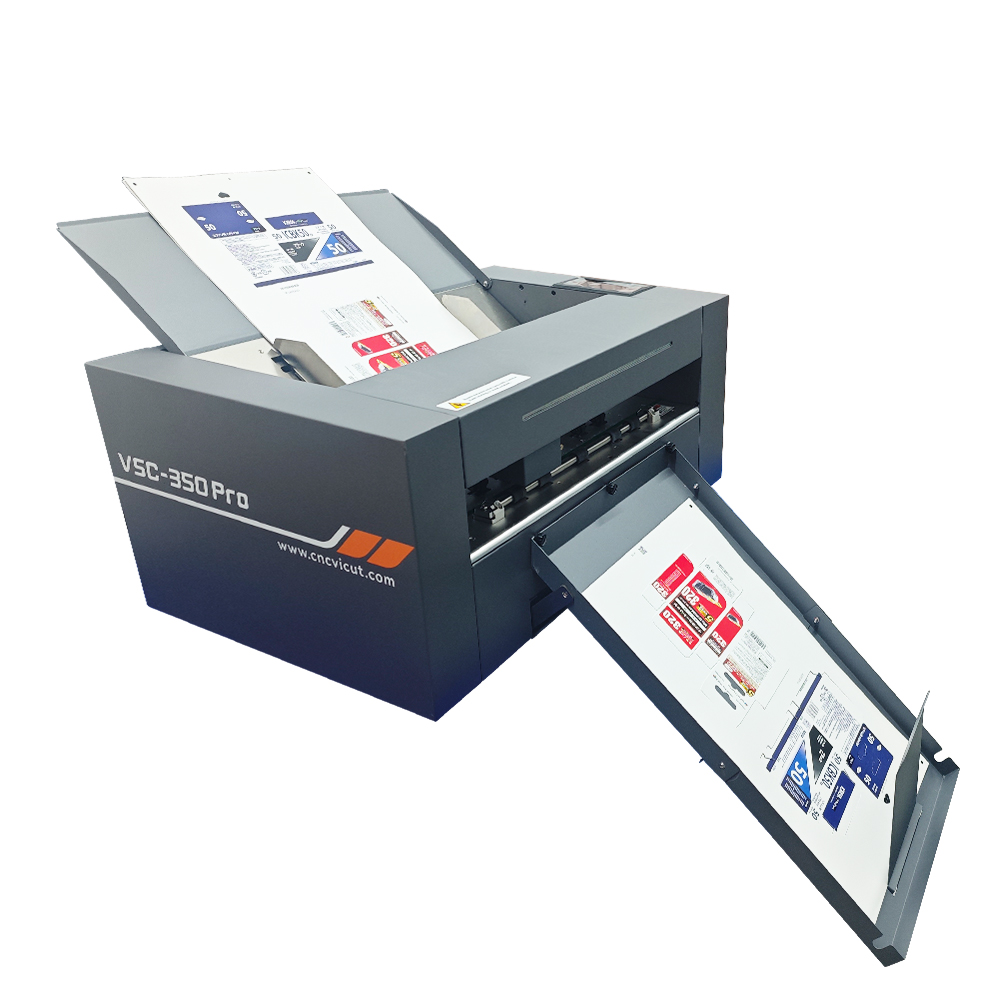

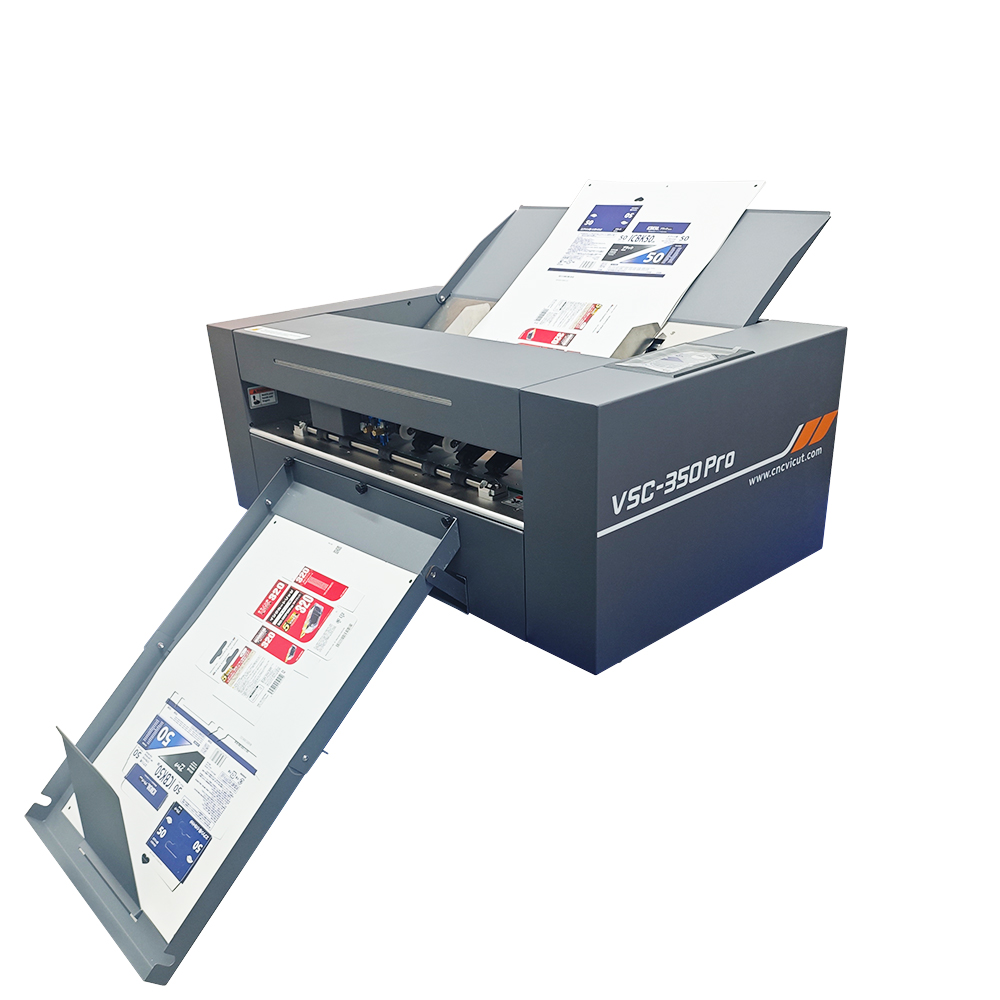

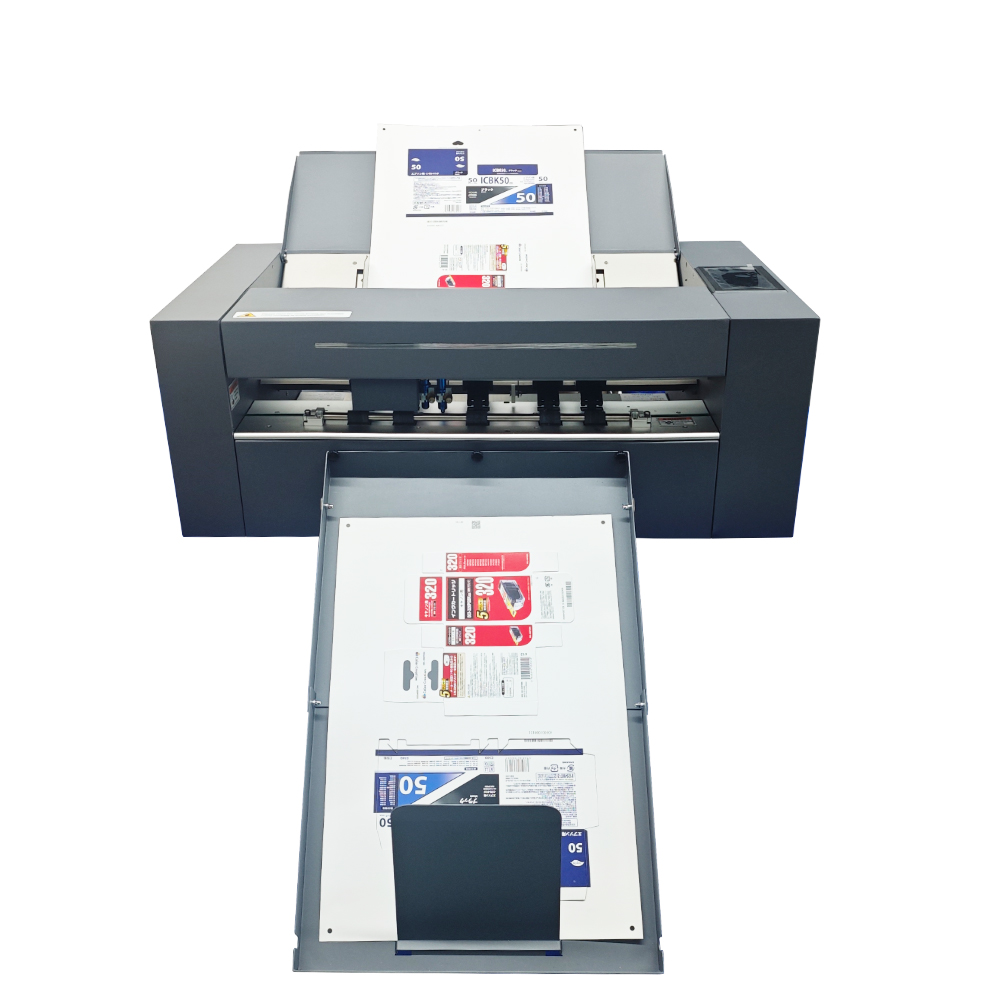

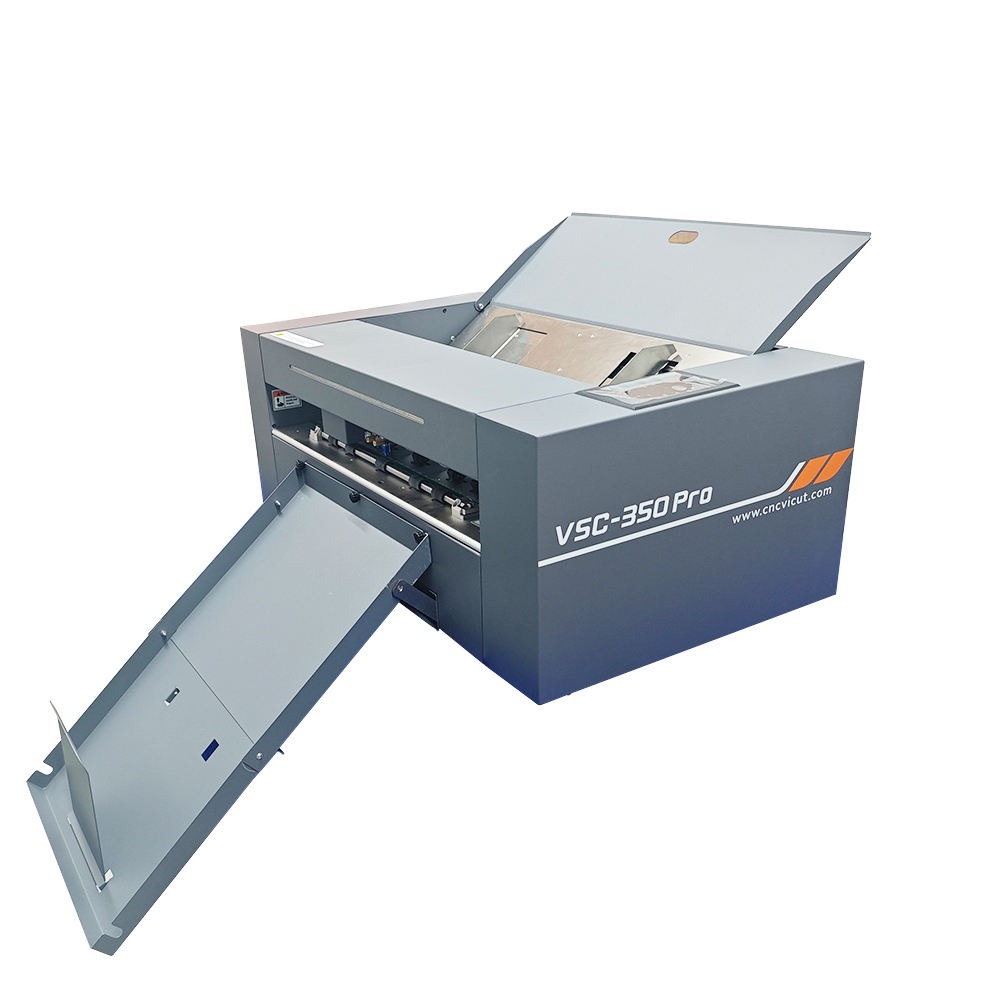

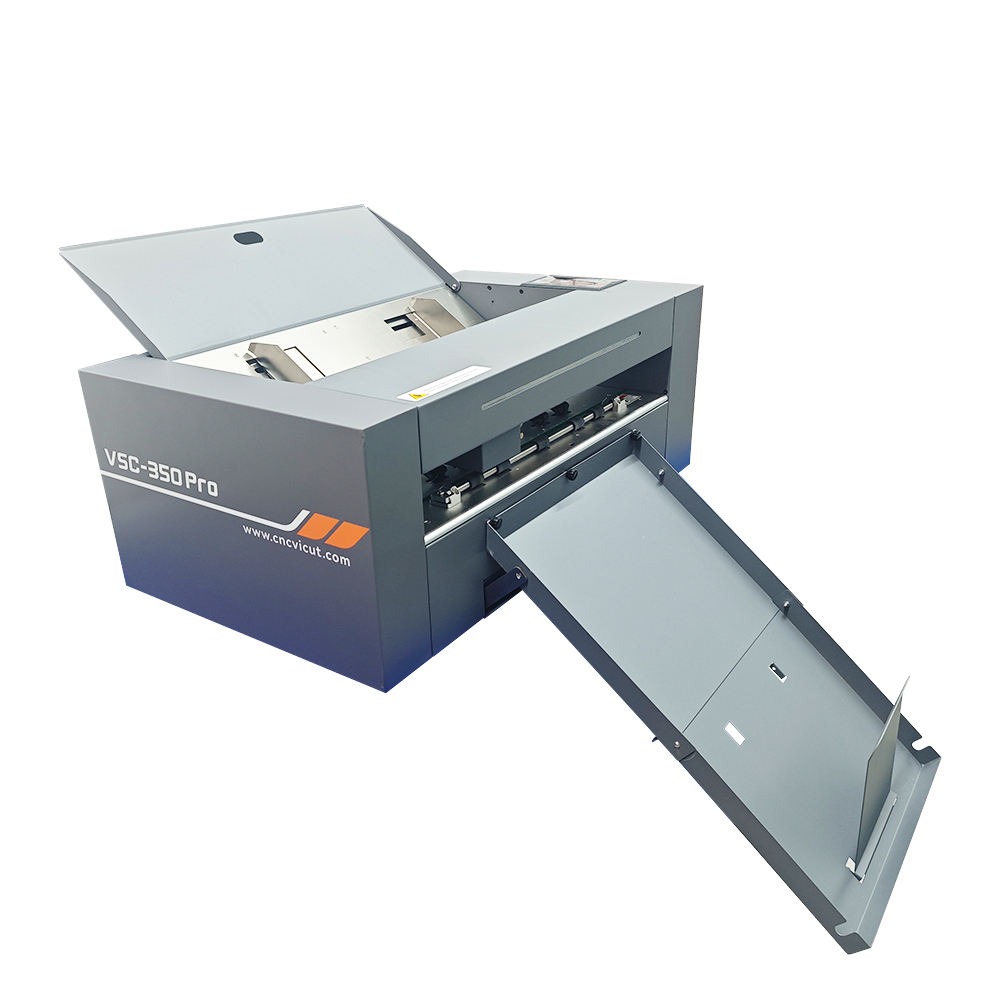

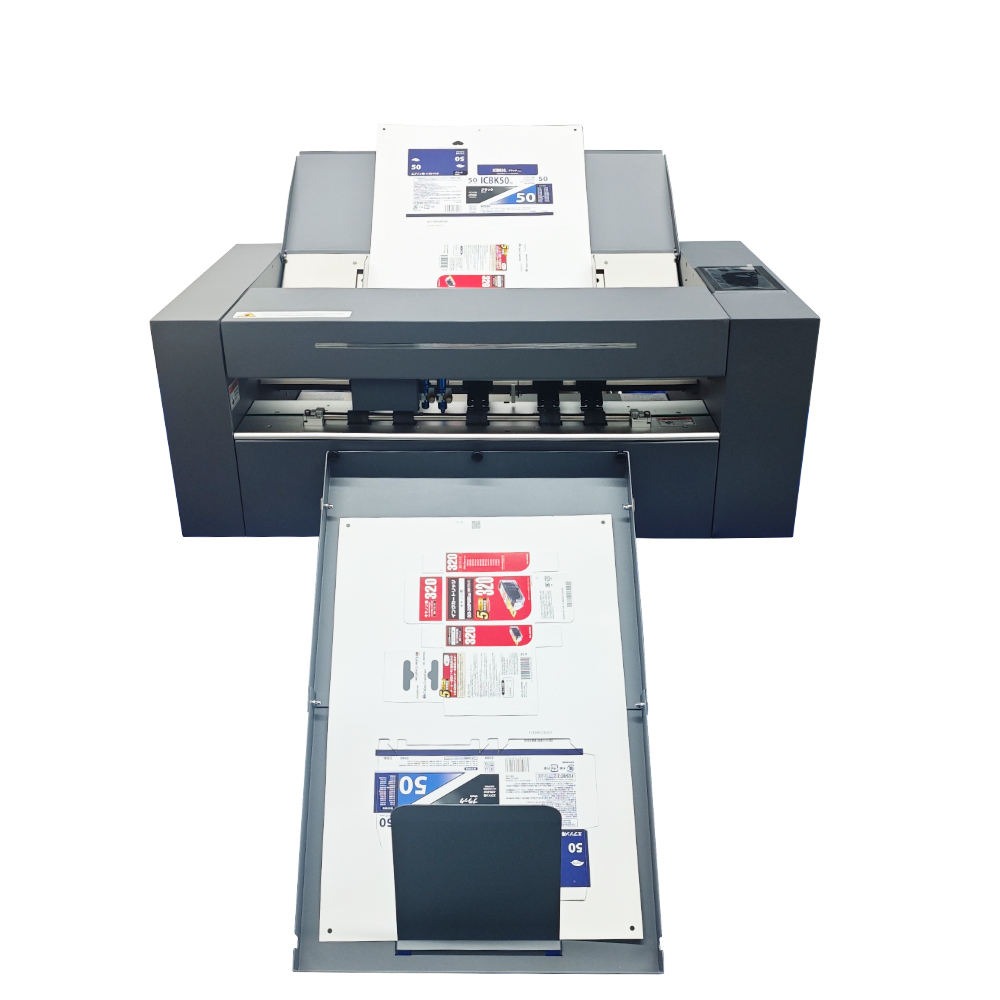

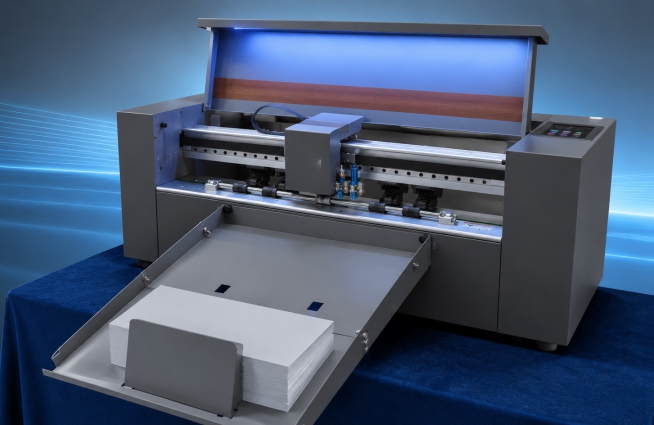

The VICUT VSC-350Pro dual-head sheet-fed label cutter is ideal for reliable, automated small-batch production and DIY businesses. Its single carriage integrates two cutting heads, enabling fast and precise contour die cutting, kiss cutting, creasing, and perforating on pre-printed or blank sheets—including label sheets, sticker sheets, cardstock, and thin packaging materials—all without dies or manual setup.
Equipped with a high-resolution CCD camera, the VSC-350Pro easily recognizes a unique QR code at the start of each sheet, allowing mixed sheets with different cutting jobs to be processed continuously.
KEY FEATURES
All-in-One Finishing Capability
Integrated functions include full cutting (for final sheet separation), half cutting (for adhesive labels without cutting the liner), and precision creasing (for clean, smooth folding). A single machine meets multiple post-press requirements, eliminating the need for additional separate tools.
Stable & Fast Paper Feeding
Equipped with a fully automatic, advanced constant paper feeding system, it ensures continuous multi-sheet cutting without paper jams, truly enabling "unattended" operation.
Speed Equals Productivity
With a maximum cutting speed of 1600mm/s, it significantly boosts work efficiency and shortens production cycles.
High-Precision Vision Alignment
A built-in CCD camera automatically detects pre-printed registration marks, achieving micron-level positioning accuracy. This guarantees perfect alignment for pre-printed designs, logos, or variable data—even on irregularly shaped sheets.
User-Friendly & Versatile
Featuring an intuitive control interface, it is compatible with mainstream design software (Adobe Illustrator, CorelDRAW, etc.) and supports a wide range of materials (adhesive labels, paper, cardstock, thin PET, etc.).
Multiple Data Transfer Modes
The VSC-350Pro supports cutting file transfer via USB flash drive, USB cable, and network. Users can select the most suitable working mode based on their specific needs.
Free Firmware Upgrade
Our factory continuously develops and optimizes the machine’s functions, providing regular free firmware updates for all sold units to enhance performance and add new features.
Cost-Effective On-Demand Production
It eliminates die-making costs and setup time, making it ideal for small-batch, personalized, and urgent orders. This reduces labor and equipment investment while greatly improving production flexibility.
Small Footprint, Robust Structure & Stable Performance
The VSC-350Pro adopts a heavy-duty mechanical structure and high-quality components (including Taiwan PMI guide rails, Taiwan MW power supply, a full-aluminum voice-coil motor moving carriage, and a 5.1-inch color touch screen), ensuring a long service life and consistent, stable operation.
Technical Parameters
Model name | Automatic Dual Heads Sheet Cutter VSC-350 |
Supported media size | Width:185 to 350mm.Length:150 to 500mm; A4,A3,SRA3,A3+ sheets and customized sheets |
Qty of Tool Head | Dual tools at one moving carriage |
Tool Type | Knife/ pen /creasing tool |
Scan device | High resolution CCD camera |
Register mark type | dot mark |
Job retrieval | QR code |
Paper feeding time | 2 seconds(SRA3 sheet) |
Marks detecting time | 9 seconds(SRA3 sheet) |
Maximum cutting speed | 1600mm/s (high speed mode) |
Data transfer | USB 2.0(full speed)/U-disk/Network |
Software | AID Cut (supports Ai/coreldraw plugin)/ SignCutPro is optional |
Max.force | 1,000gram |
Driving system | Servo |
Command type | HPGL |
Working method | PC/U-DISK |
Mechanical resolution | 0.025mm |
Cutting accuracy | 0.1mm (contour cutting) |
Material thickness | Up to 350gsm |
Capacity of feeding tray | Up to 20mm (100pcs /150gsm sheets) |
Operation panel | 5.1 inch colorful touch screen |
Compatible OS | Windows, Mac(only with SignCutPro sw) |
Working voltage | 100 to 240 V AC, 50/60 Hz (Auto switching) |
Power consumption | 100w |
Operating environment
| Temperature: 10 to 35 degree, Humidity: 35 to 75% RH (non-condensing) |
Land Size | 750*1025*625mm |
N.W./G.W. | 37kg/40kg |
Packing Size | 745*432*280mm/ 0.09CBM |
Warranty | 1 year since arrival |
Details Description

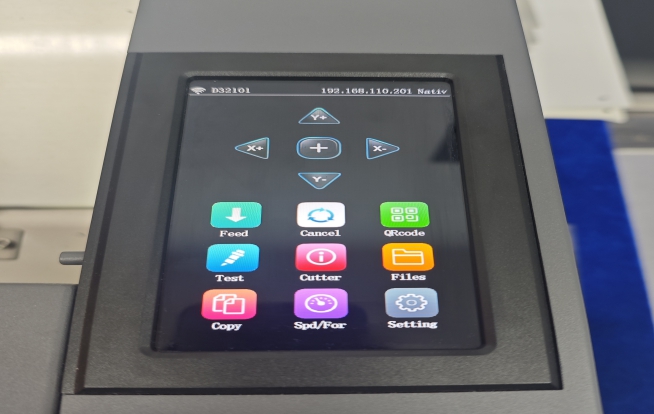

Easy-to-use 5.1inch touch screen
Easy toggle of arrow key speeds for carriage control High touch sensitivity, supports bare finger, thin glove touch (custom upgrade)
Stable signal, low false touch rate, anti-electromagnetic interference

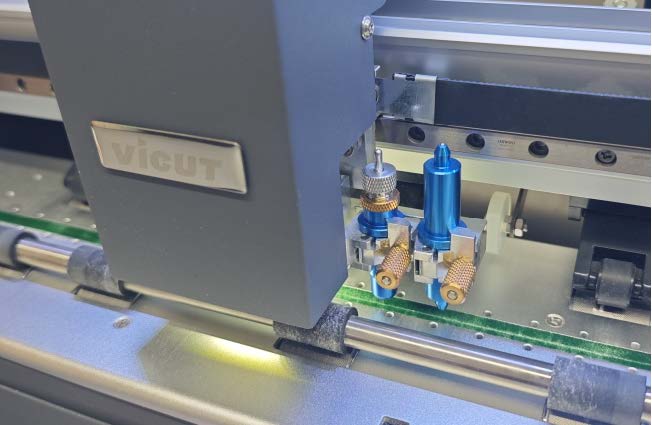

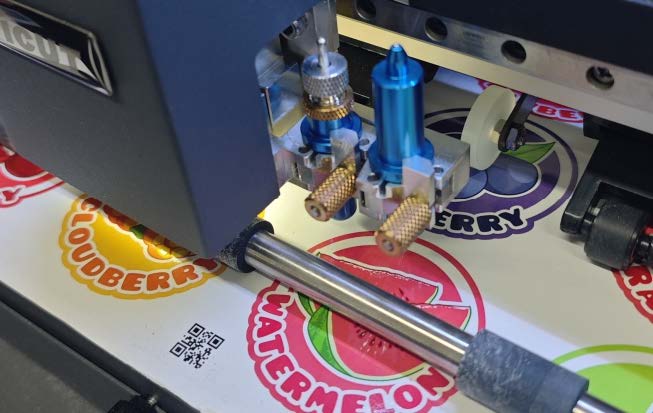

Robust Aluminum Carriage
Dual-tool integrated design (cutting blade + creasing tool) enables kiss cut, die cut, crease & perforation.
Solid aluminum frame ensures long service life, rapid response and excellent heat dissipation, with low maintenance and few breakdowns.
QR Code Positioning System
The system scans QR codes printed on media to automatically align printing and cutting files. It accelerates production efficiency while completely eliminating the risk of file misalignment.

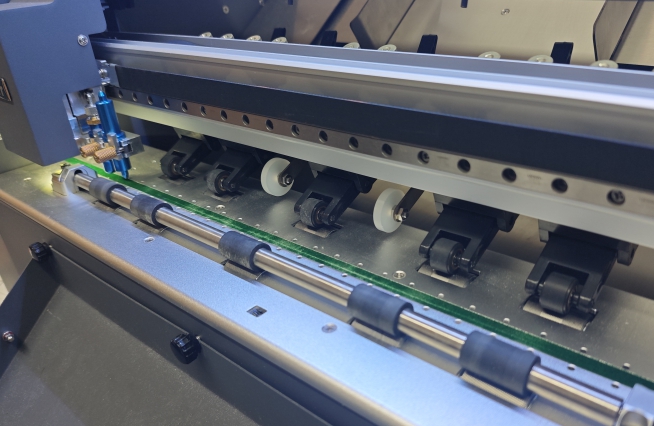

Automatic paper feeding system
Our exclusive feeding mechanism supports a wider range of materials and holds up to 300 sheets of A4 paper in one loading cycle. Compatible with various sheet sizes including A4, A3 and A3+.It prevents sheet shifting during operation to maintain high cutting precision, with a paper feeding cycle completed within 2 seconds.
Large capacity of exit tray
This movable output tray comes with size adapters to accommodate sheets of various formats.It features a 40mm deep large storage space that can stack up to 200 sheets (capacity varies based on material thickness). Quick to disassemble for convenient use.
Led Working Light
Built-in LED light strip delivers consistent lighting conditions to avoid external light interference during camera scanning, enabling stable operation of the cutter in all environments.

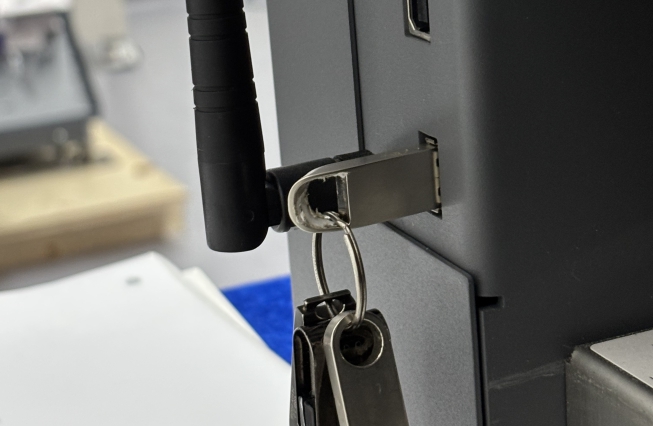

Multiple Data Transfer Modes
Featuring multiple data transfer options including network cable, USB cable and Wi-Fi, the device supports stable, high-speed file transmission. U-disk offline working is also available, allowing users to choose the best mode for different working scenarios.
AIDCut software
Core Built-in Functions of AIDCut.
1) Built-in graphic design module eliminates reliance on third-party professional design software.
2) Automatically generates registration marks in batches for printing and cutting files.
3) Preloaded with over 100 carton templates for direct use; no additional packaging design software purchase required.
4) Hot Folder function streamlines workflow collaboration between designers and machine operators.
5) The auto-nesting feature calculates the most material-efficient layout based on your paper dimensions and label profiles, cutting both material and labor costs. One-click operation delivers optimized economical nesting instantly.
Plug-ins for CorelDRAW, Adobe Illustrator & Photoshop
The VSC350Pro is bundled with complimentary plug-ins compatible with CorelDRAW, Adobe Illustrator and Photoshop to expand users' operational options.
Tools & Accessories

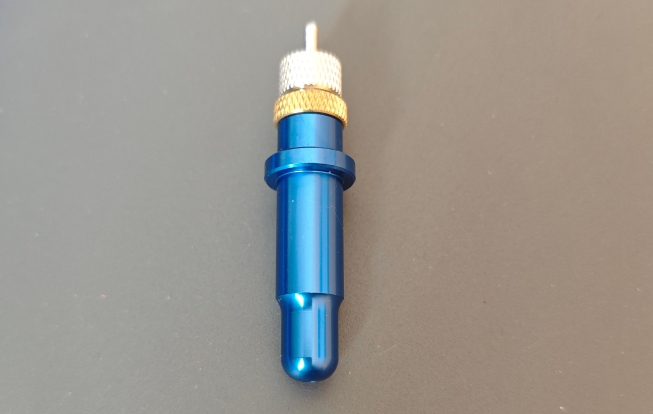

Die cutting blade holder

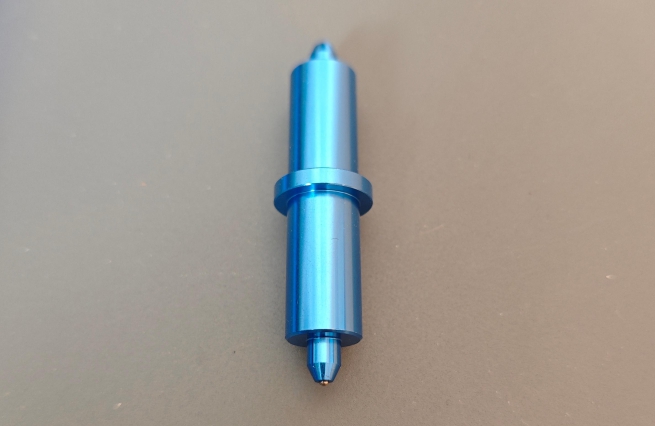

Dual dot creasing tool

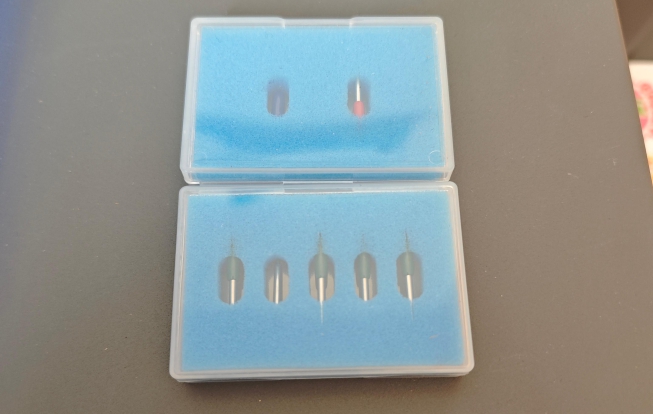

Die cutting blades
Application
Applicable Media:

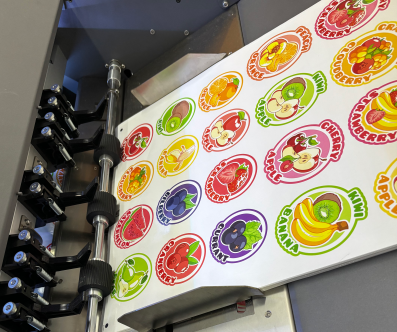

1. Various printable self-adhesive A4, A3, A3+ sheet label media, half cut to make sheet labels.
2. Paper cards thickness from 120gsm to 350gsm, for full cutting and creasing, to make packaging boxes, tags, etc.
Field: Sheet label cutter VSC-350 is the ideal machine for reliable and automatic production of contour-cut stickers and labels in the business areas of copy shops, product labeling, office applications and many others. It could be also used for cutting custom packaging boxes, greeting cards, invitation cards, paper crafts, and scrapbooking materials, supporting personalized small-batch production.

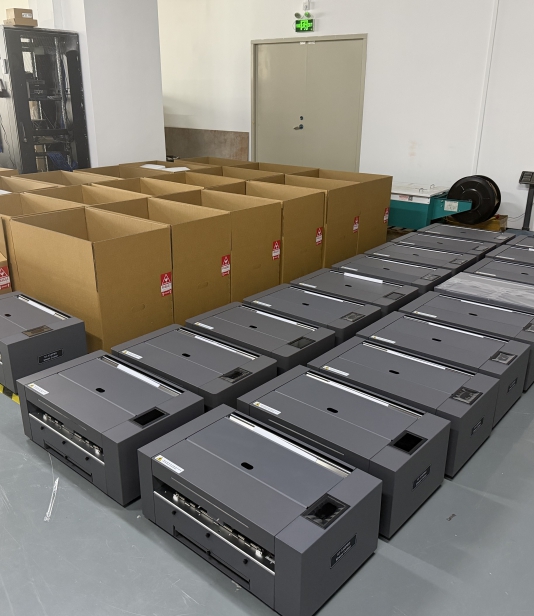

Packing photos
