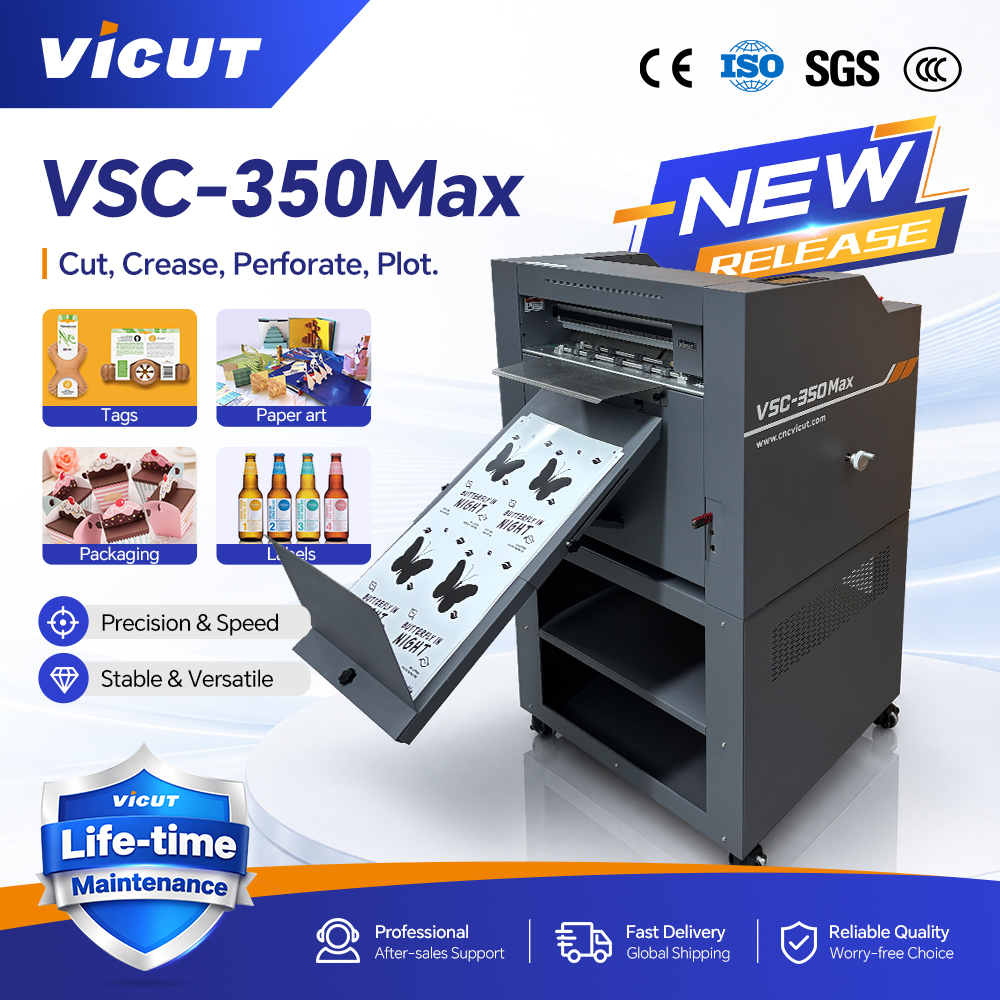

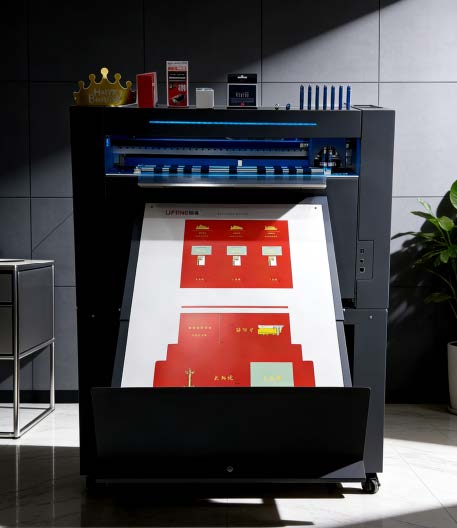

Automatic Sheet Fed Die Cutting and Creasing Machine VSC-350MAX

Cut, Crease, Perforate, Plot.

Speed, Precision, Versatility.

Cost-Effective On-Demand Production.

The VICUT digital sheet-fed cutting machine VSC Max series is designed to deliver multiple functions.It integrates ultra-reliable feeding, an instant job retrieval system, high-speed cutting, and a tangential creasing wheel for consistent performance. Equipped with dual tools, it can effortlessly perform full cutting, kiss cutting, creasing, perforating, and plotting. Its unique air suction paper feeding method is compatible with a broader range of materials, such as self-adhesive materials, paper cards, films, and more. As an ideal solution for the reliable, automated production of labels and small packaging boxes, it is an excellent choice for copy shops, product labeling, office applications, and various other scenarios. By eliminating die-making costs and setup time, it is perfectly suited for small-batch, personalized, and urgent orders. This not only reduces labor and equipment investment but also significantly enhances production flexibility.

Inquire Now

KEY FEATURES

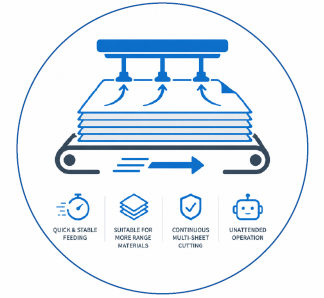

Top Suction feed system

Paper feeding quick and stable. Suitable for more range materials. Equipped with a fully automatic, advanced constant paper feeding system, it ensures continuous multi-sheet cutting without paper jams, truly enabling "unattended" operation.

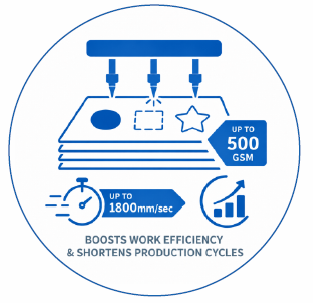

Process material up to 500gsm

Digitally cut-through any shape on up to 500gsm media, or kiss-cut sheet labels, all at up to 1800mm/sec. it significantly boosts work efficiency and shortens production cycles.
Paper Stacking Height 12cm

Auto feeder stacks up to 1,000 sheets (80gsm vinyl sticker) or 375 sheets (250gsm hard paper) Up to 350 x 600mm and up to 530 x 740mm for the VSC Max model and custom sizes - with self-centred function and air blade separation with extendable paper tray.

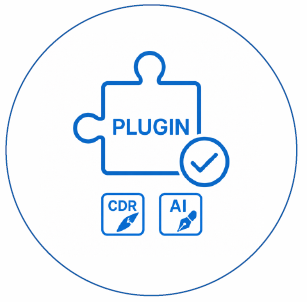

Independent plugin for Coreldraw and Adobe Illustrator

We provide free plugin for CDR. and AI. design software, and it can be used independently without 3rd party software. It means, you can get the finished product without color difference issue at all. Beside, our plugin is compatible with the latest CDR and AI design software.
Multiple Data Transfer Modes

The VSC MAX cutting machine supports cutting file transfer via USB flash drive, USB cable, Wifi and network cable. Users can select the most suitable working mode based on their specific needs.
Free Firmware Upgrade

Our factory continuously develops and optimizes the machine’s functions, providing regular free firmware updates for all sold units to enhance performance and add new features.
Powerful AID Cut Software

The defaulted AIDCut software is more than a 3rd party programmer, it is kind of design software, you do the layout for the artwork. And you can add the marks and create the printing file & cutting file in batch with one click, save your time and effort. It offers more than 100 types box template for you, you can do the design based on these template, save the cost for buying extra packaging software. The hot folder function makes the job-link more easier between designer and operator. Automatic typesetting function can help you to do most reasonable layout due to your paper size and label shape, definitely save your material cost and labor cost. press one button, could do the most economic layout according to your paper size.

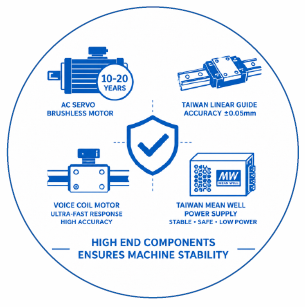

High end components ensures machine stability

The VSC Max sheet cutting machine is equipped with an AC servo brushless motor, featuring a service life of 10 to 20 years. It delivers far higher durability than brushed DC motors, which only have a lifespan of 1500–2500 hours.Fitted with Taiwan precision linear guides that ensure a horizontal leveling accuracy within 0.05mm, along with an all-aluminum cutting carriage, the machine achieves superior cutting performance and extended service life.The cutting carriage adopts a voice coil motor for ultra-fast response and high positioning accuracy.Built-in Taiwan Mean Well power supply provides the entire machine with stable, safe and low-power-consumption operation.

Technical Parameters

Model Name	VSC-350MAX	VSC-530MAX
Functional Features	Adopting a suction-type paper feeding method, with a larger capacity paper bin, effectively preventing the feeding of double sheets, and featuring anti-static material design.
Electrical machinery	The adoption of a brand-new AC servo motor for driving ensures a longer motor lifespan 10-20Years.
Configuration	High precision servo system, automatic paper feeding, automatic CCD positioning scanning and cutting.
Ways to fix material	Double row platen
Maximum cutting speed	1800mm/s
Maximum cutting force	1000gram
Effective cutting area	350×600mm	530×740mm
Paper Stacking Height	12cm
Positioning method	CCD camera positioning
Applicable Media Size	A4, A3, A3+	A4, A3, A3+, B4, B3, B2
Machine Precision	0.005 mm (5μm)
Programming Resolution	HPGL: 0.025mm
Repeatability	0.1mm
Machine input interface	USB2.0 (Full Speed) / U disk (offline) / network cable/ Wifi
Motherboard Memory	256MB
Command language	HPGL

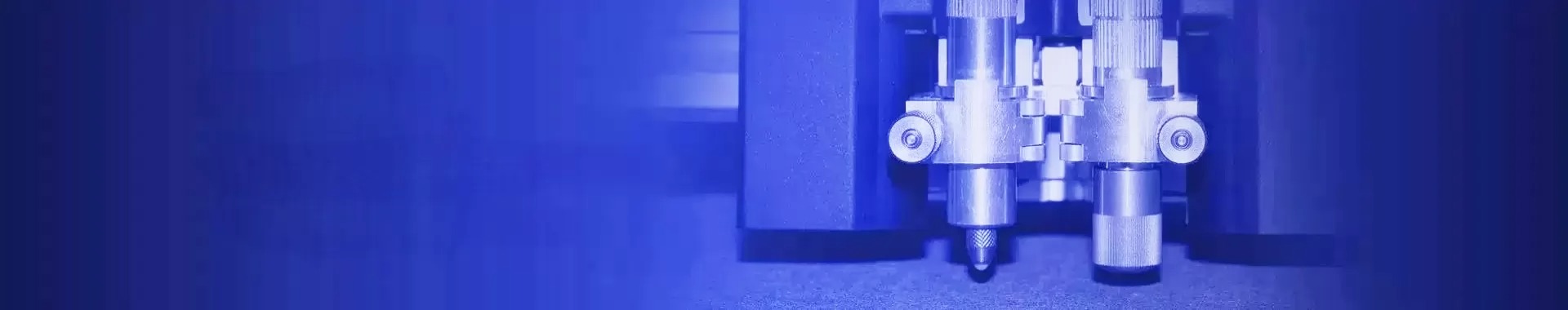

Number of tools	two tools
Tool Type	Cutting blade, tangential creasing wheel, perforation tool, plotting pen.
Control Panel	5.1 inch LCD touch screen
Voltage	100 to 240 V AC, 50/60 Hz(auto switching)
Machine Power	Max. 200VA (machine)
Temperature	10 to 35 degrees C (35 to 95 degrees F)
Humidity	35 to 75% RH
Land size	775×600×1205mm	900×700×1205mm

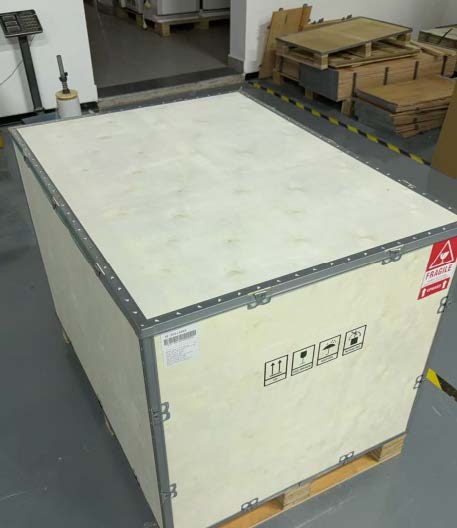

Package size	750×680×1020mm	800×780×1200mm
Gross / Net weight	150kg / 130kg	180kg / 150kg
Software	ADICUT software & independent plugin for cdr.& Ai.
Software functions	auto typesetting optimization, hot folder, box template, auto batch files creation, etc.
Compatible OS systems	Windows and Mac (only work with SignCutPro)

Details Description

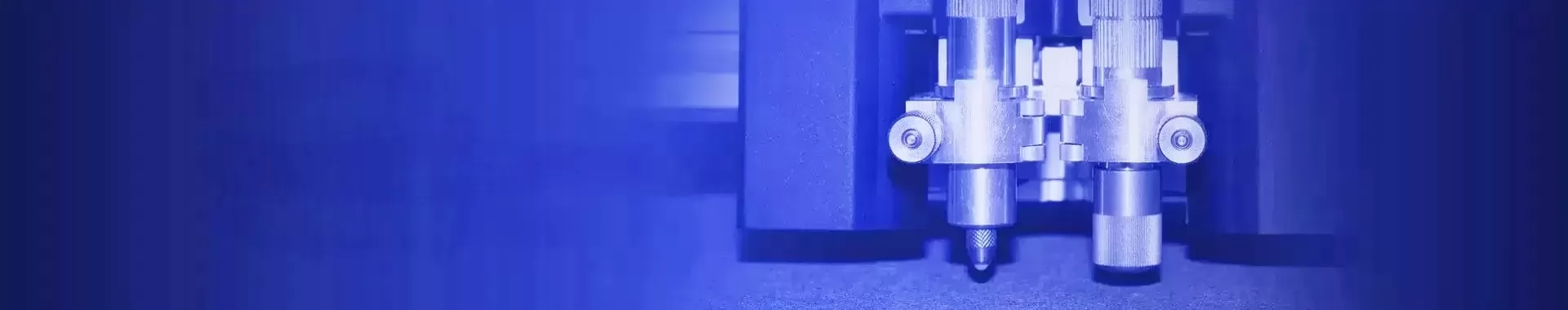

Aluminum Cutting Carriage

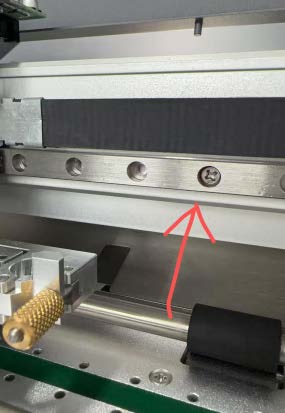

Taiwan Hiwin Guiding Rails

Brushless Servo Motor

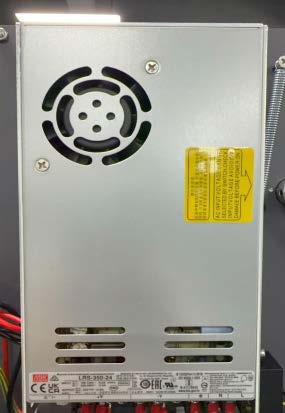

Taiwan MW Power Supply

Touch Screen

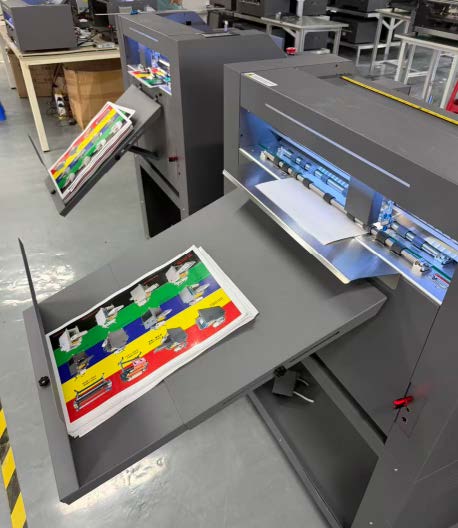

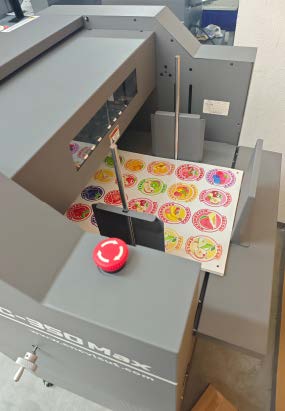

Paper Feeding System

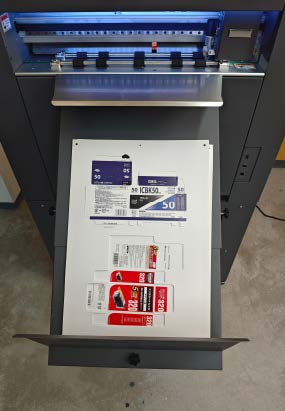

Paper collecting tray

Tools & Accessories

Blade Holder
Dual Dot Creasing Tool
Tangential Creasing Wheel
Perforating Tool
Die Cutting Balde

Application

Material: label media, photo paper, T-shirt transfer paper, stickers, glossy paper, paper cards, etc.

Field: It integrates the functions of kiss cutting, die cutting and creasing. It is widely used for proofing and small batch production of labels, tags, packaging boxes, processing of advertising signs and paper art, etc.

Working Samples

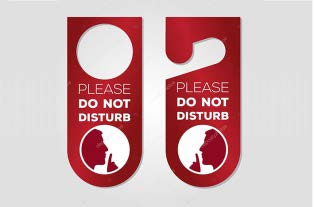

Labels:
