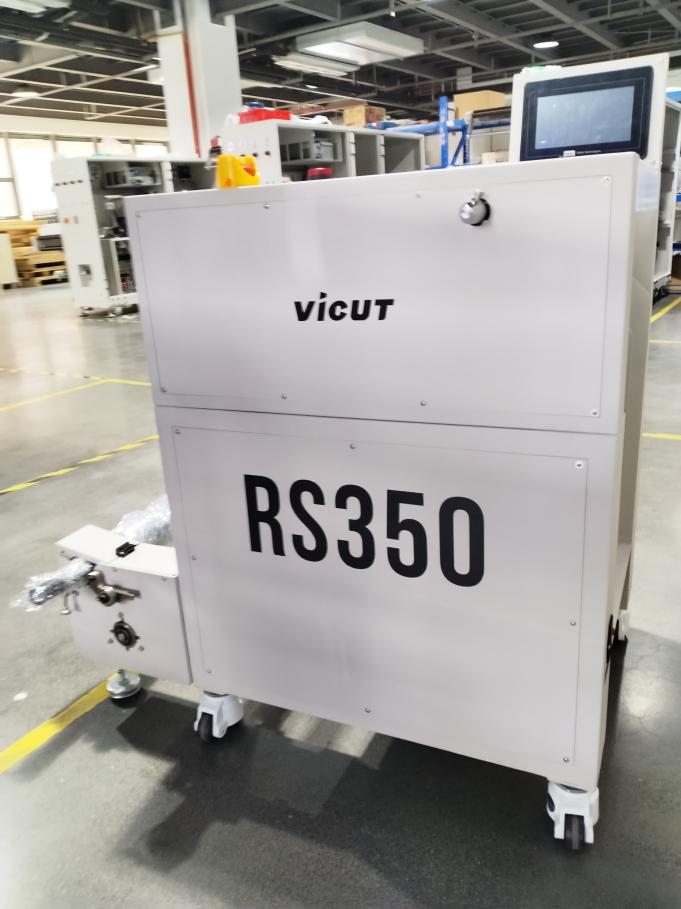

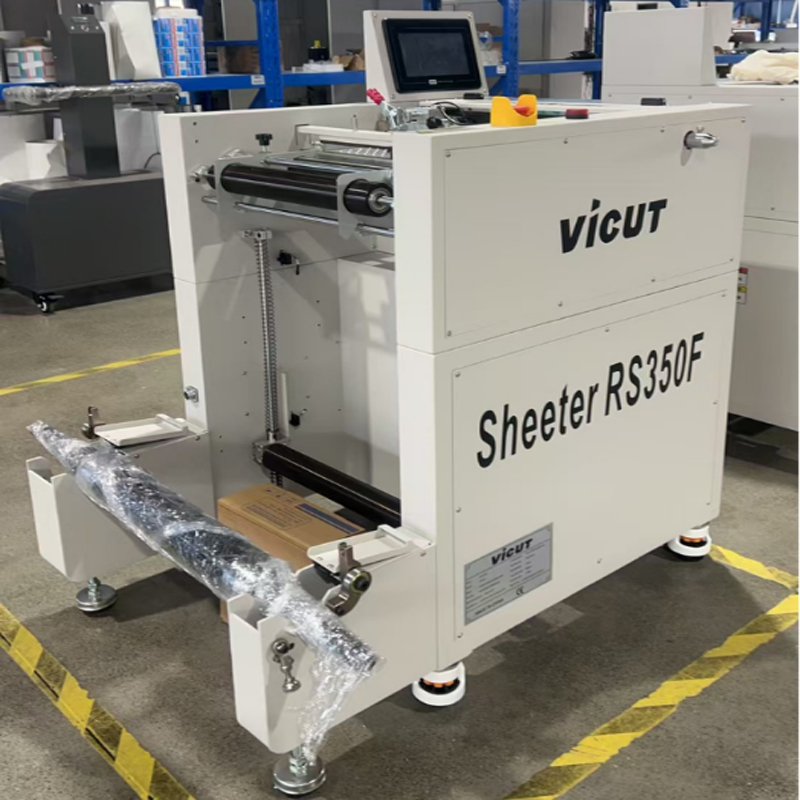

RS350 is a sheet cutting device designed to work with VICUT digital label cutter as separate “cut roll into sheets” function, which can be optional for users to choose with digital die cutting machine or it can “buy later”, provide users more flexible choices without sacrifice the configuration and functions of whole production line, at the same time, save the current buying cost.
RS350 comes standard to work inline with VICUT digital label cutter, and it can also be used independently as a “ roll to sheets” cutting device, with sensor control, it can cut the printed roll into sheets, and it can also cut all roll media into sheets media.
Technical Parameters
Model | Digital labels sheet cutter RS350F |
Max.media width | 350mm |
Max.label length | 500mm |
Min.label length | 10mm |
Cutting speed | Max 150 sheets/minutes |
Cutting track | Single mark or double mark |
Cutting precision | 0.1 mm |
Machine size | 73*48*92cm(L*W*H) |
Machine weight | 110 kg |
Power | 220-240VAC 50-60 10HZ, 500WATTS |
Packaging size | 117*86*115 cm(L*W*H) |
Packaging weight | 150 kg |
Application
Applicable Industry

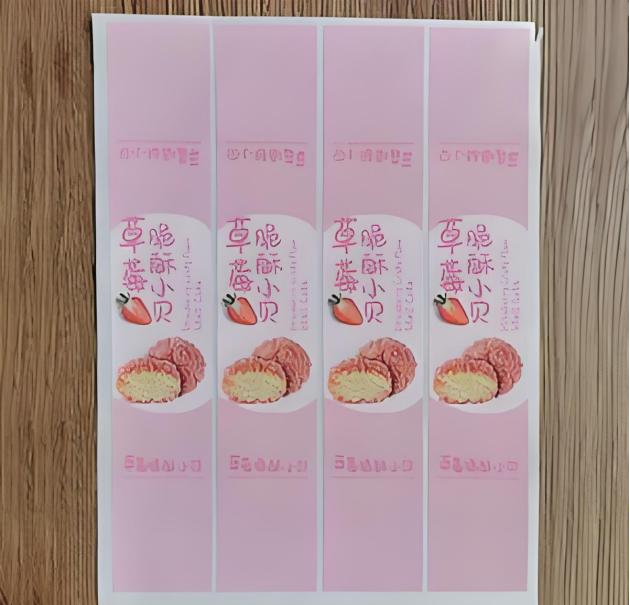

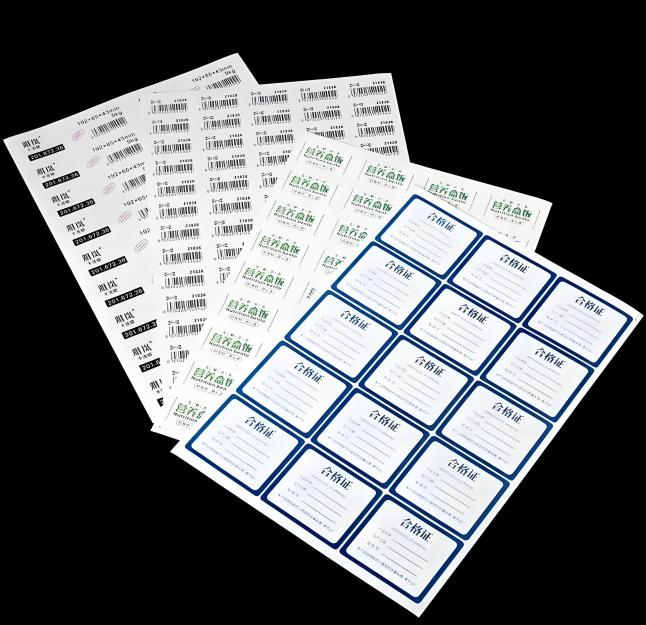

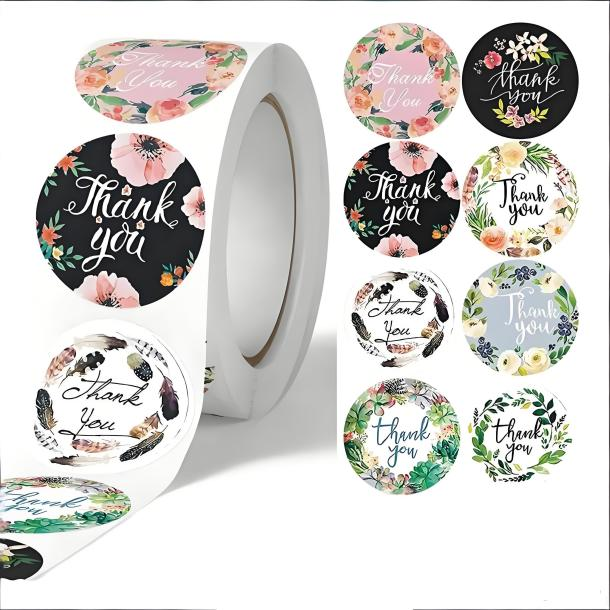

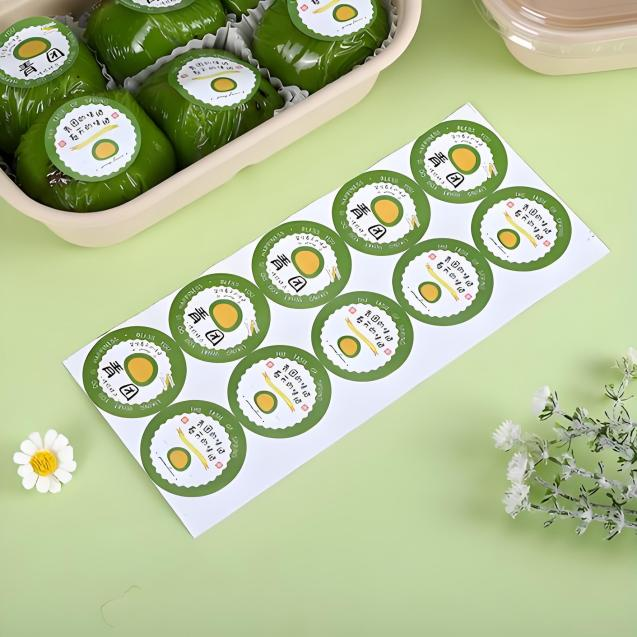

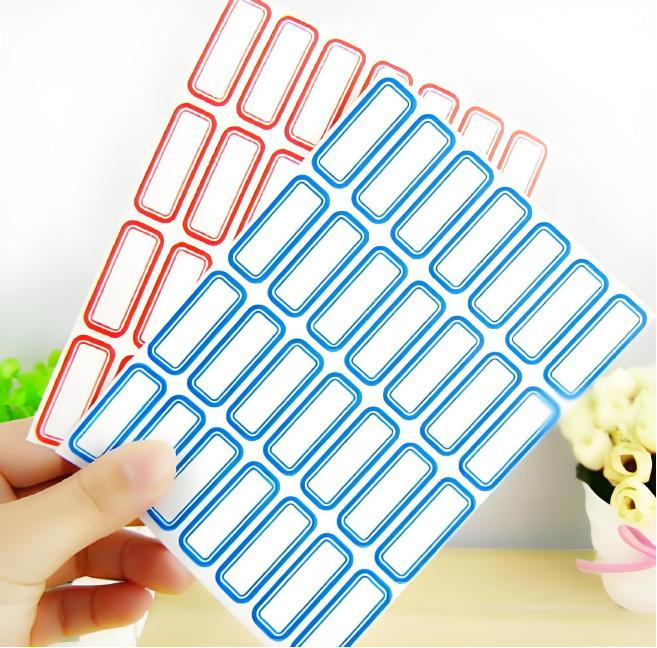

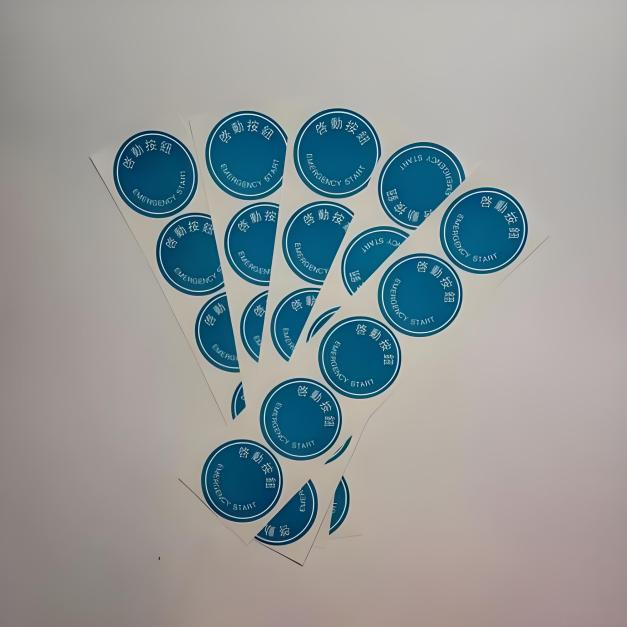

RS350F roll into sheet cutter is mainly used for on-demand sheet label production including blank sheet labels, ink sheet labels, chemical labels, beverage labels, bottled water labels, cosmetic labels, home appliance labels, gum labels, wine labels and more.

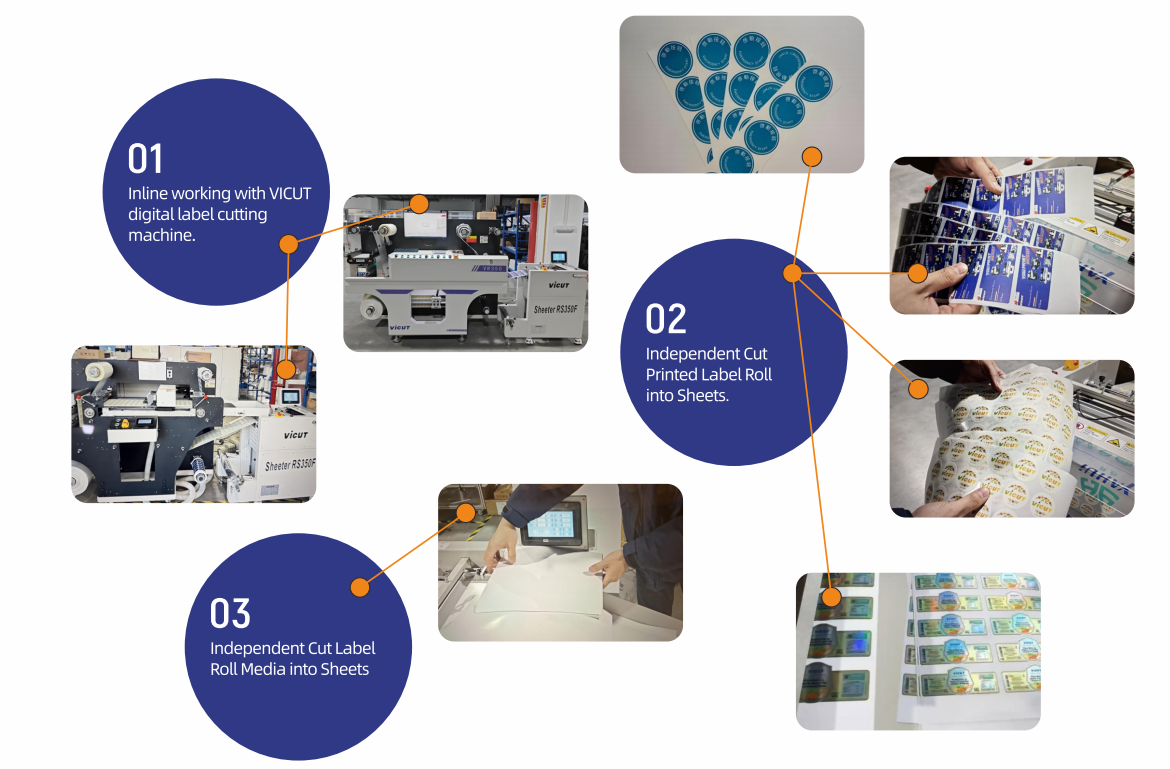

Inline working with Vicut digital label cutting machine.
Independent cut printed label roll into sheets.
Independent cut label roll media into sheet.
Applicable Materials
Stickers, Paper, PP, BOPP, PET, PVC & More!

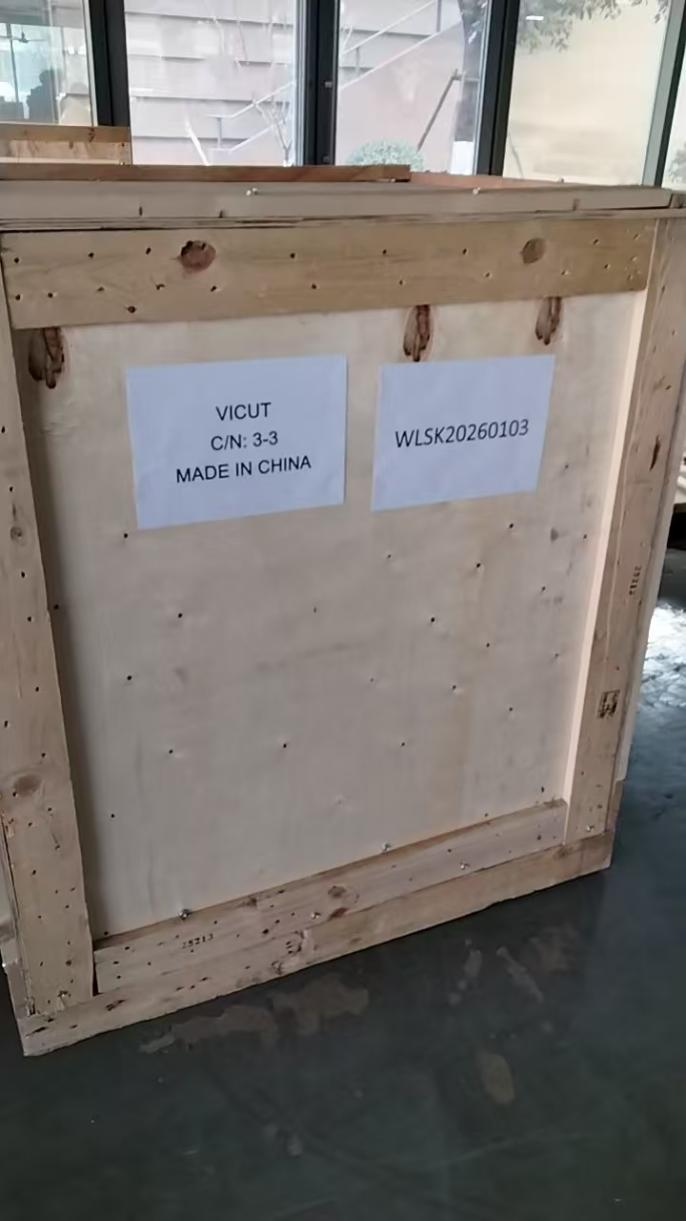

Packing photos
