camera, auto adjustable dual heads,job exchange

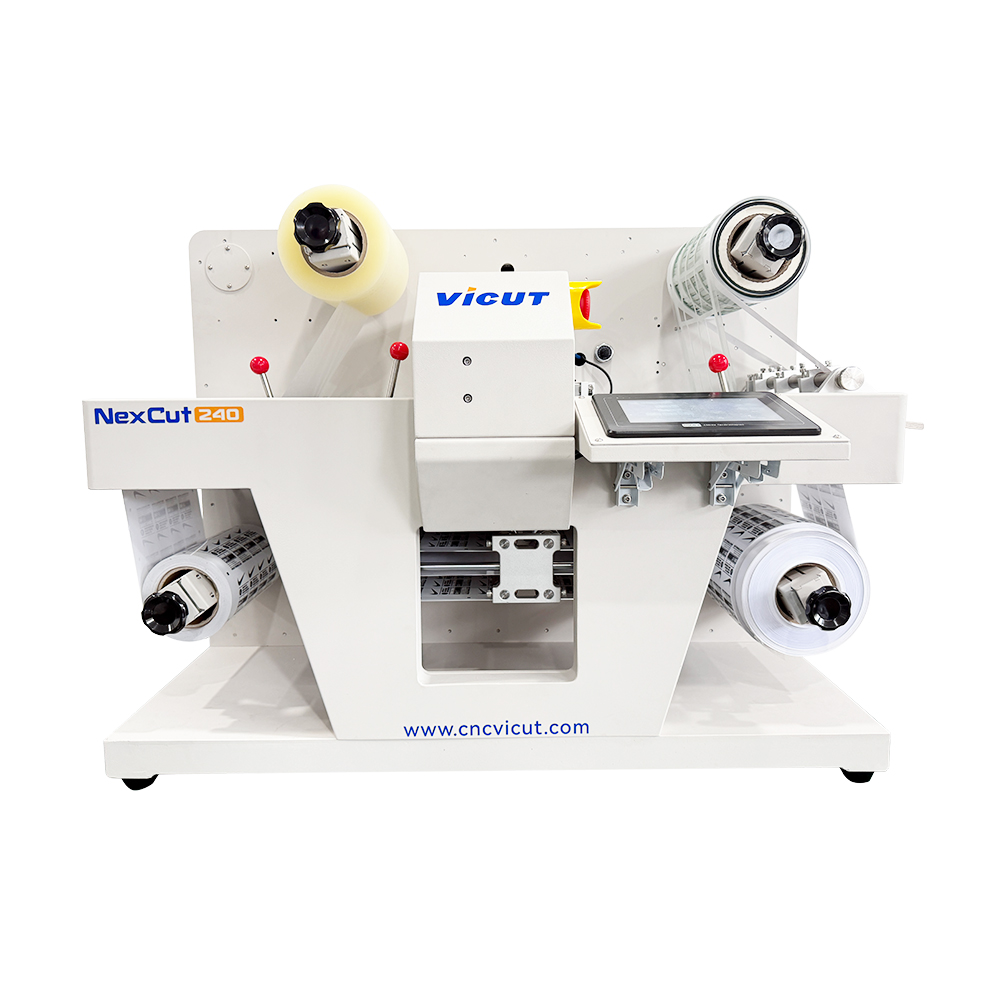

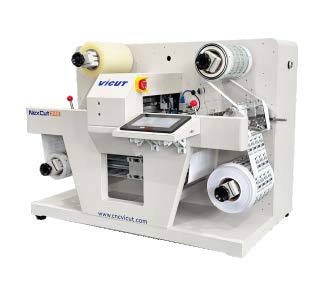

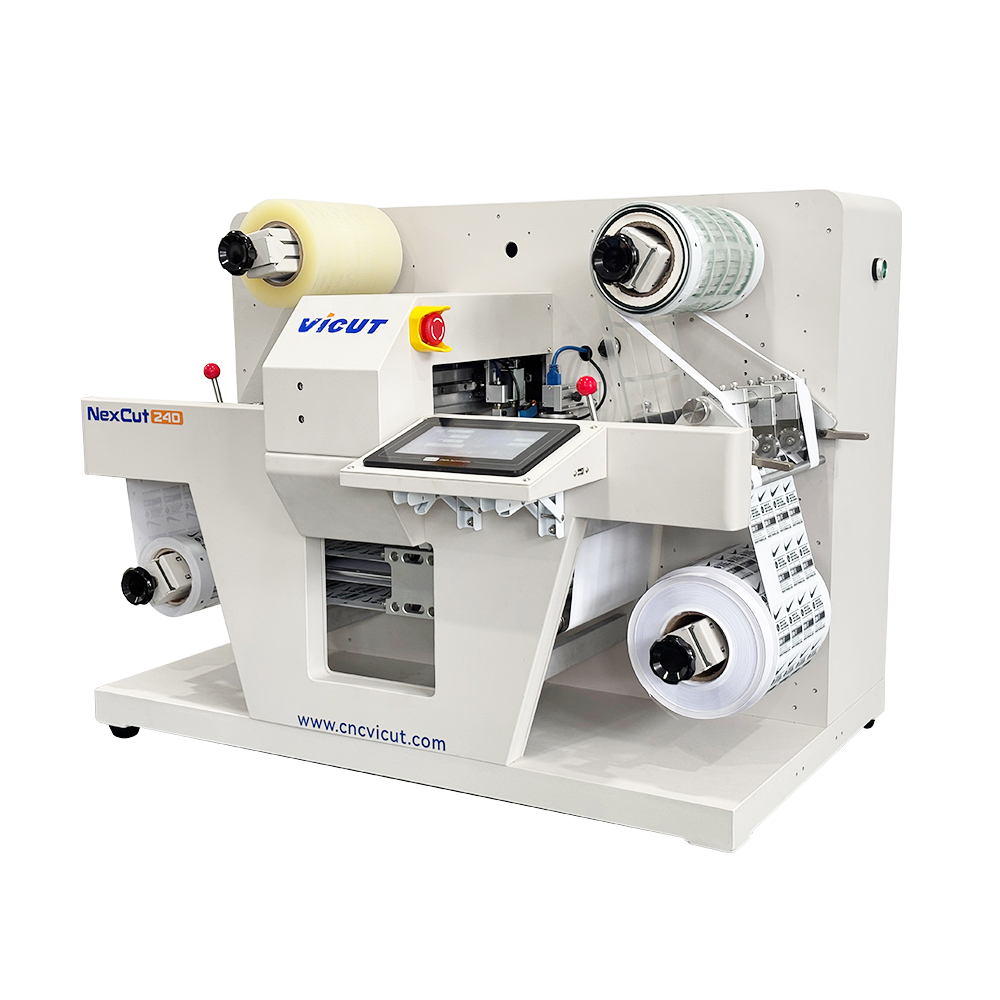

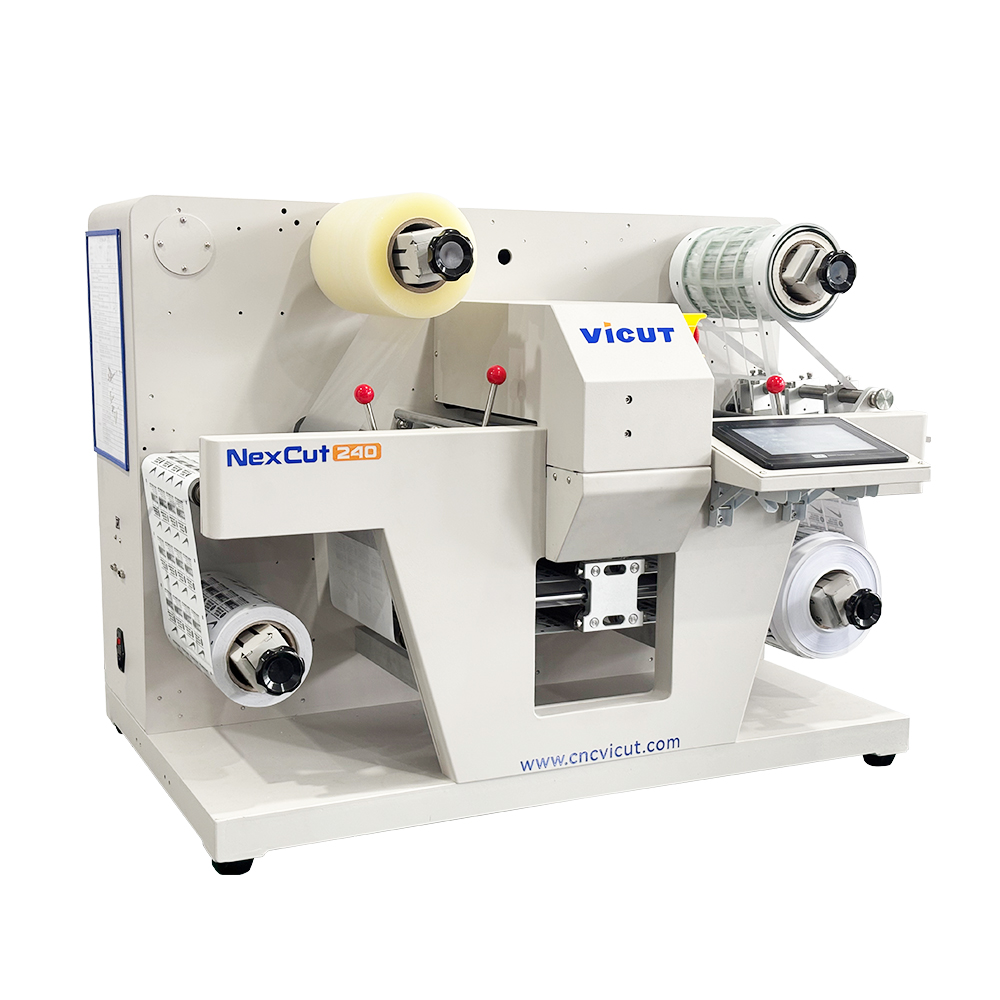

NexCut240 is a high cost-effective dual heads blade finisher developed for pre-cut labels and digital cut colorful labels, performs high cutting speed andprecision.
With CCD camera positioning system, the dual heads of NexCut240 will move automatically due to different label shapes,to realize job exchange function, which can meet the needs of customers
with small batches and many samples. lt is the best competitive label cutting solution for in-house applications.
KEY FEATURES
Automatic dual head gap control
Constant pressure control
Automatic matrix removal
Inline cold lamination
Up to 8pcs slitting knives
Support max. roll width 240mm
Max. die cutting speed 8m/min
Cut max. 330micron thickness
Able to work synchronized online with desktop label printer
CCD camera. Retrieval the codes on the printed media automatically
Job exchange function. Very convenient for different label jobs on one roll media.
Technical Parameters
Model Name | Digital Label Die Cutting Machine NexCut240 |
Cutting Technology | Advanced digital die cutting with blades |
Cut mode | Roll to roll fly |
Maxi. roll diameter | 290mm |
Max. die cutting speed | 8m/minute(cut 7cmx15cmsquare) |
Die cutting precision | 0.1mm(repeat) |
Cutting media width | 80--240mm |
Max. label width | 230mm |
Max. label length | 300mm |
Cut track | Contour cut(Sensor/CCD Camera)/Blank Cut |
Min.distance from mark to edge | 2mm |
Min.distance between jobs | 2mm |
No. of cutting heads | 2sets |
Laminating Width | 225mm |
Film roll diameter | 230mm |
Max.waste roll diameter | 300mm |
Slitting speed | same with cutting speed |
Slitting width | 10-230mm |
Slitting precision | 0.1mm |
No. of slitting blades | 4sets(up to 8 sets) |
No. of rewinder | 1 set (3'') |
Machine dimension | 91*63*74cm(L*W*H) |
Machine weight(N.W/G.W) | 150kg/233kg |
Working voltage | AC100-240V, 50-60HZ, 1000WATTS |
Data transfer method | USB2.0/Ethernet 10/100Base-T/GPIO |
Software | VICUT AI SW |
File format | PLT, PDF,DXF |
Die cutting blades | Tungsten steel blades |
Slitting blades | Rotary round blades |
Marking sensing method | Single mark or double mark |
Other function and device | Auto adjust head distance |
Auto change cut job | |
Auto set knife drop point | |
Waste removal | |
Optional | Connect printer device |
Laminating Liner System |
Optional Functions | ||
1 |  | Slitting unit. The standard slitting units for NexCut240 is 4pcs, user can choose the quantity of slitting blades as required, up to 8pcs. The slitting functions can be used alone, as slitting-only-mode. |
2 |
|
Online print components. Through this function, NexCut240 can be connected with the printer to realize inline work and speed synchronization. It can run with small roll label printers like Memjet VP series or OKI Pro series, ANY-002, EPSON, PRIMERA, UNINET, etc.
|
3 | | Roll to Sheet Cutter RS350. It is suitable for transverse cutting of various roll materials. Suitable materials: Self-adhesive, PP synthetic, aluminum plastic film, PET, PVC, white card, copper plate and other paper and flexible materials. Technical Parameters: Cutting media width: 100-350mm Maxi label width: 350mm Mini label length: 10mm Maxi label length: 500mm Highest paper cutting speed: 150/Minute Cutting tracking: single mark or double mark Cutting accuracy: 0.1mm Size (W*D*H) : 670*460*915mm Weight: 180kg Power supply: 220-240VAC 50-60HZ, 500W |
Details Description

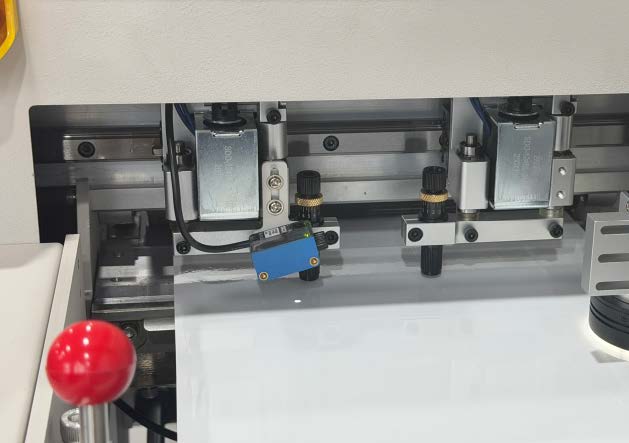

Auto adjustable dual cutting heads
NexCut240 equipped with a dual cutting head system, the gap between heads is adjusted automatically via control system, not manually,greatly improve the cutting efficiency.

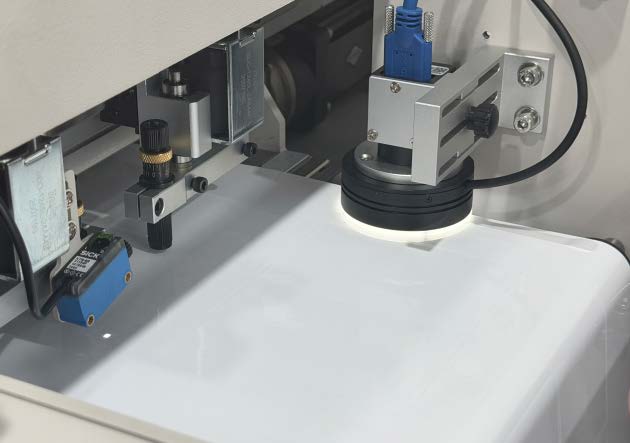

CCD Camera positioning system
The CCD camera scans the codes which printed on the media so that the cutting heads will move to the correct positin according to the different labels shape, to realize the job exchange function.

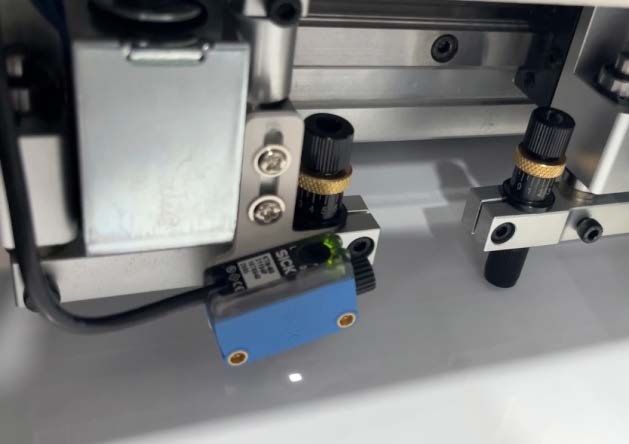

Mark points tracking sensor
The sick tracking sensor scans the mark points printed on the material to obtain the cutting dies information with fast speed and feed it back to the machine control system, so as to realizethedigital cutting.

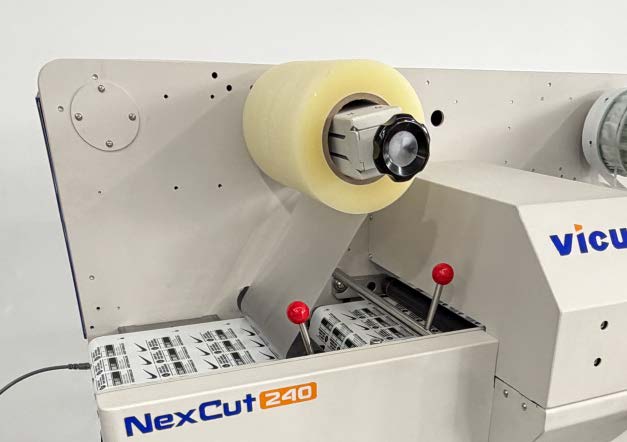

Cold lamination
Automatic lamination before die cutting, makes finishing labels more durable and more widely application.(Laminating liner roller is optional.)

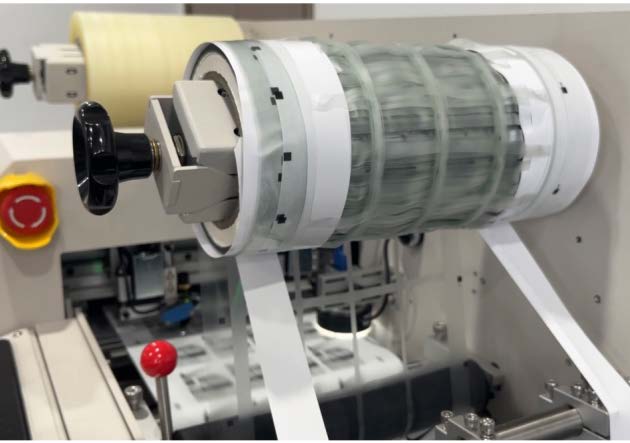

Automatic waste removal and tension system
Under the tension of the waste discharge system, the label cutting waste paper will be automatically removed and separated from the winding, so as to obtain a clean label roll for the next process.

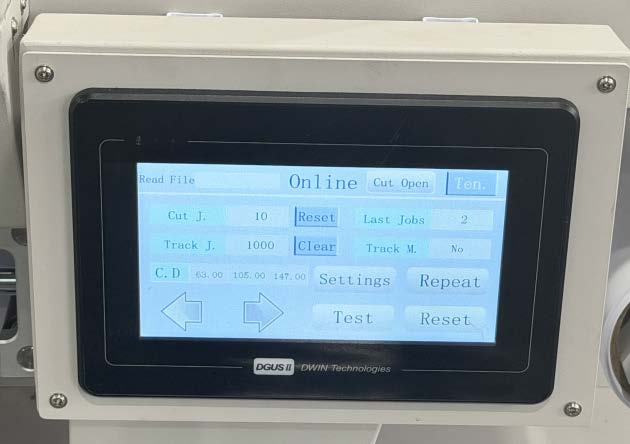

Flexible 7 inch touch screen panel
Large size 7inch touch screen panel with professional Ul design, user-friendly operation,adjustable position, foldable for convenient operation and transportation.

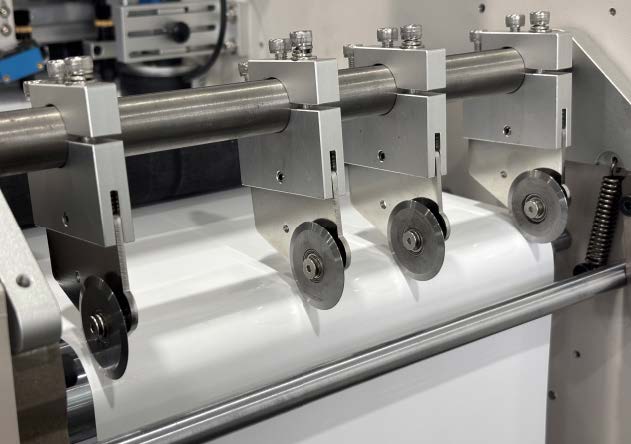

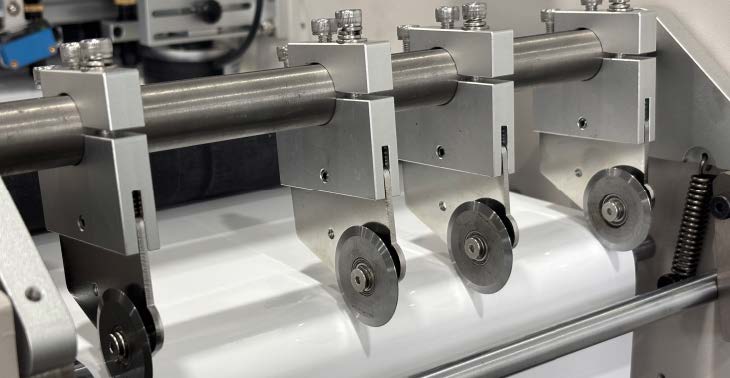

Slitting system
Utilize rotary round blades, automatically cut the label paper into small rolls as needed,up to 8pcs blades can be used.Maximum slitting speed can reach to 60m/min.

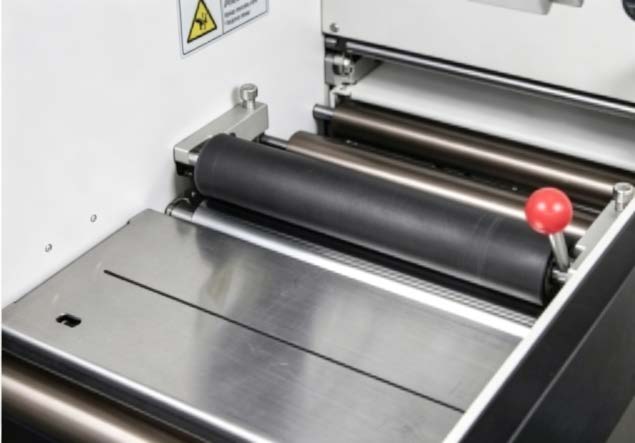

Platform for splicing materials
When you finish cutting a roll of label and prepare to cut another roll, you can use this platform to splice a new roll of material onto the one being processed, so as to realize smooth transition,save paper installation time
and improve work efficiency.

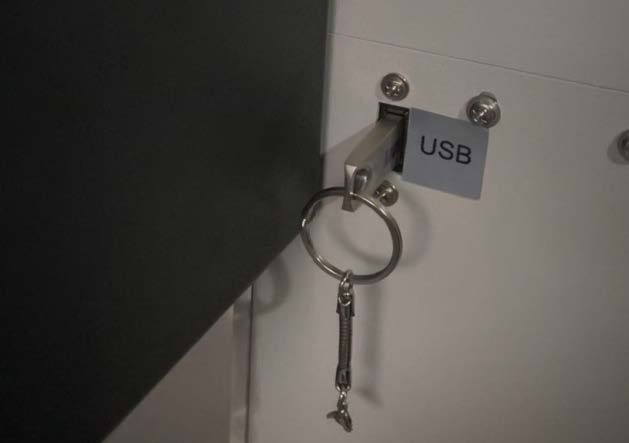

U-disk function
NexCut240 roll label cutter supports network and U disk for die cutting files transmission.

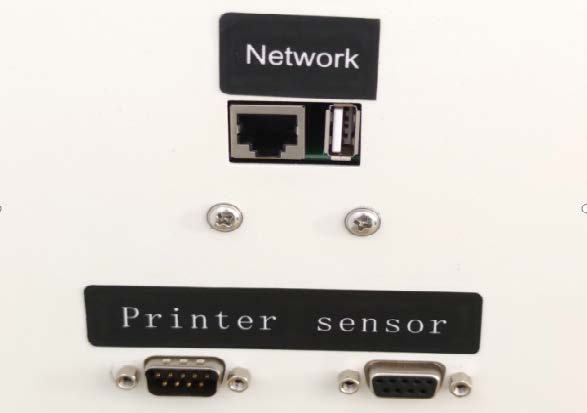

Multiple interface
Network interface for transfer cutting file from PC to machine, USB interface for connecting CCD camera. Printer sensor for connecting printing assembling device.

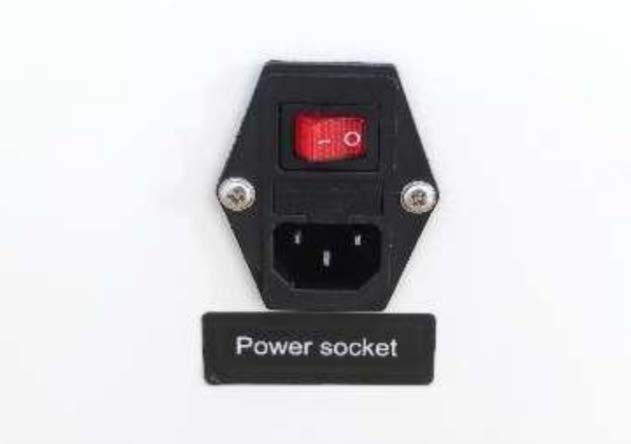

Power socket
Plug and play,long-lasting and durable.

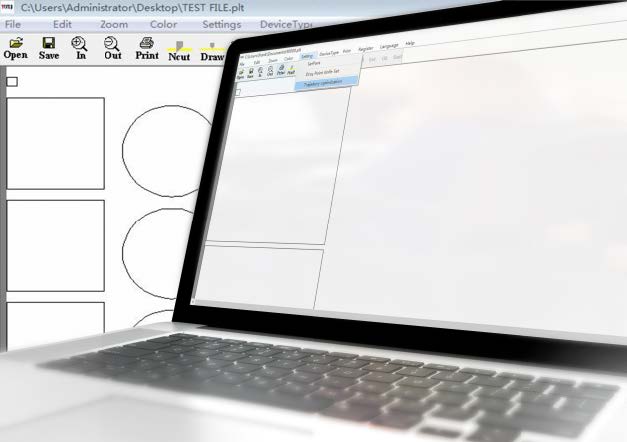

Easy-to-use software
Dedicated software support multiple format file including PLT,DXF and PDF, it can choose the knife down point according to shapes,trajectory optimization is for perfect cutting.
Application
Applicable Industry
NexCut240 roll to roll label finisher is mainly used for small volume on-demand label production including blank labels,
ink labels,chemical labels,beverage labels,bottled water labels,chilisource labels,coffee labels,cosmetic labels,home
appliance label,toiletries label,gum label,wine labels and more.
Applicable Materials
Stickers,Paper,PP,BOPP, PET,PVC & More!
