Industrial Digital Label Production & In-House Labels

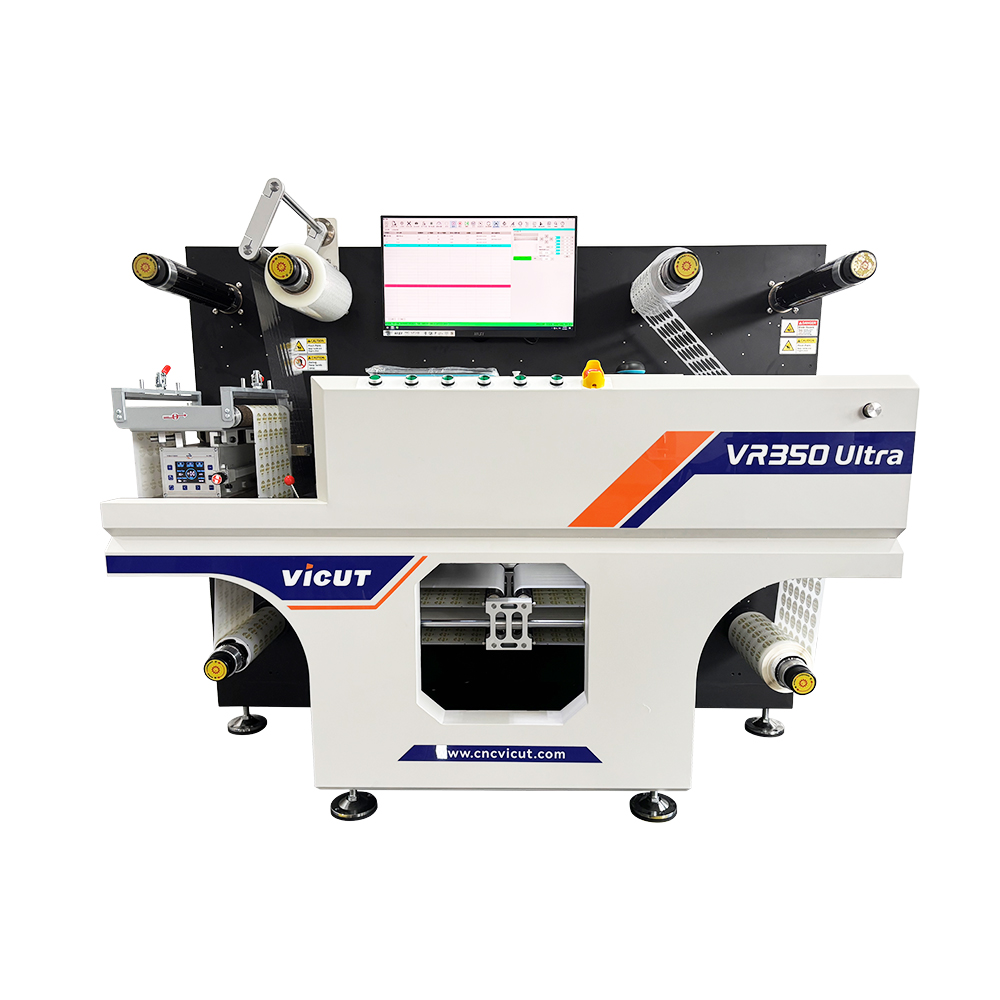

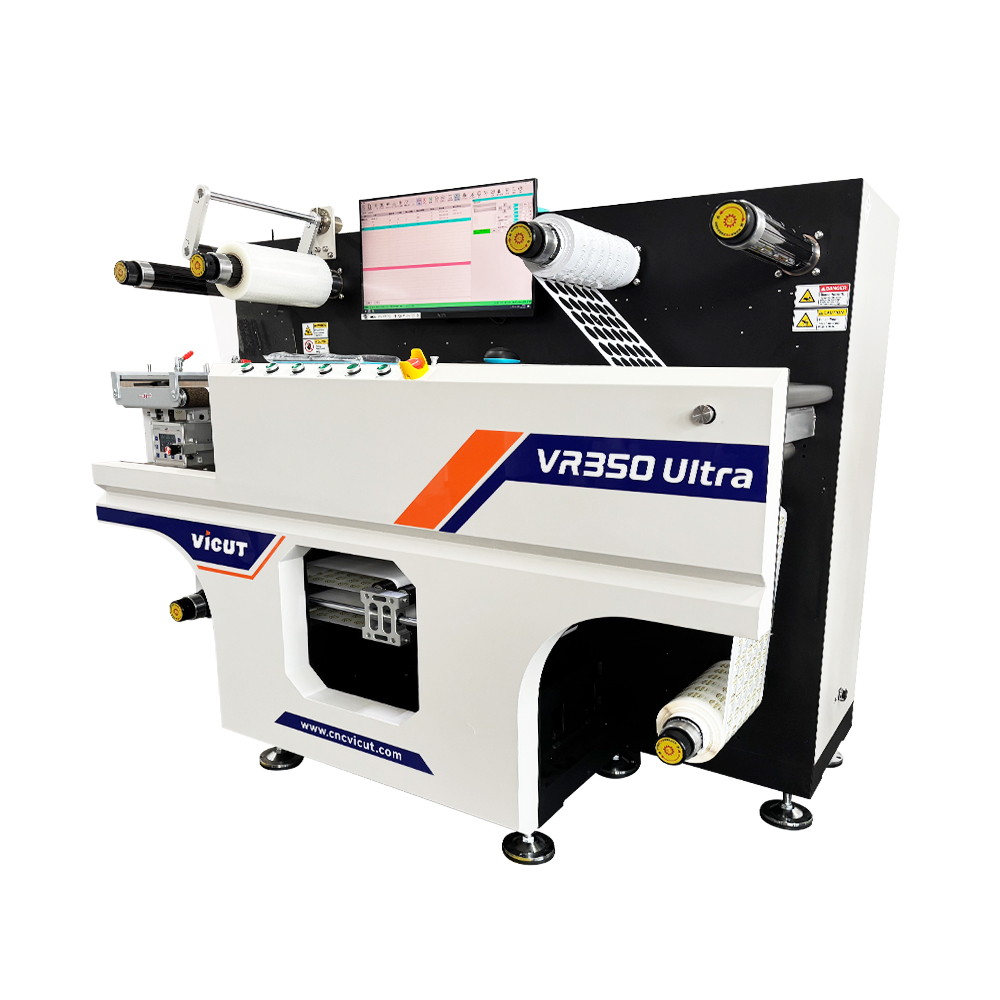

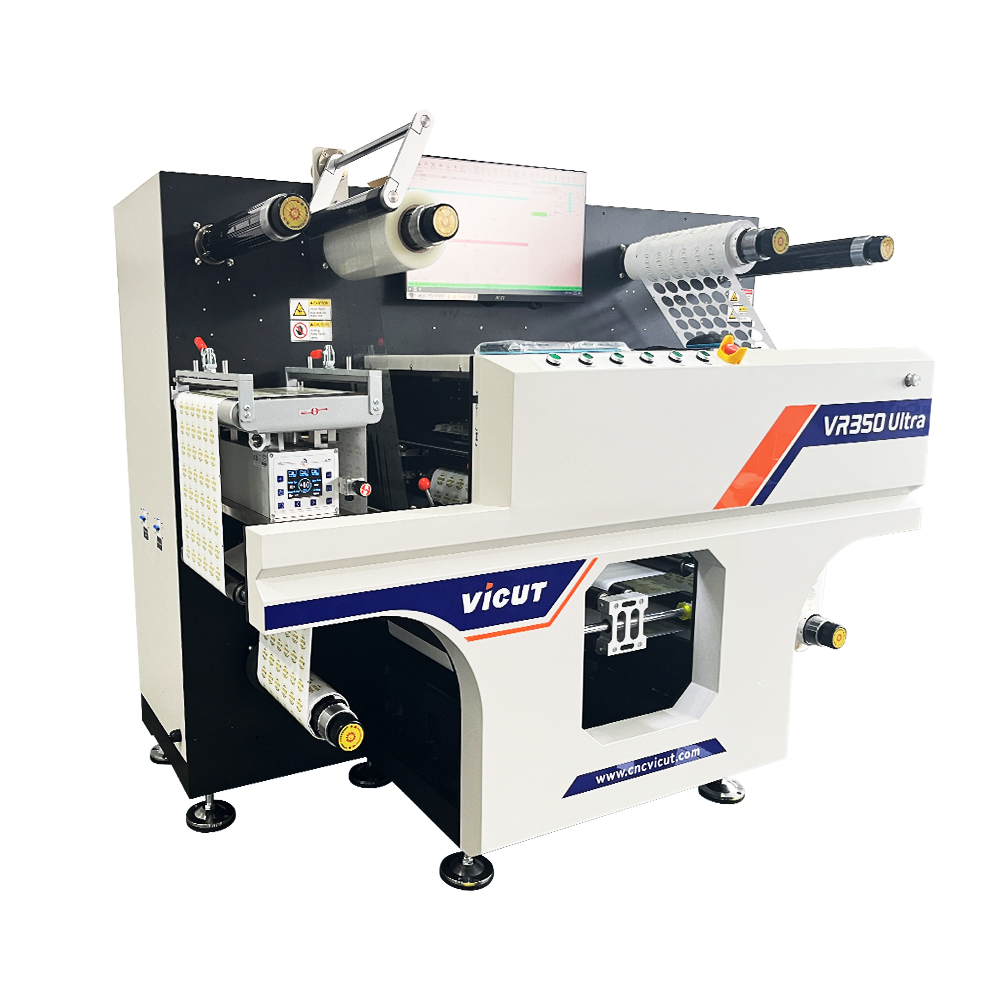

The VICUT multi-blade digital die cutter VR350Ultra comes standard with six blades, and heads distance is fully automatic adjustable with Al software control,ideal for short to medium runs.Adopting an advanced servo motor-controlled cutting head system, the cutting depth can be directly adjusted via software, offering precise cutting without manual intervention. With optional liner system, users are able to work with high end laminating films, two re-winders at final step can make it more convenient to rewind the small rolls after slitting.Optional inline sheeting system is able to cut roll into sheets easily, or it can be used as an offline solution to cut roll products to any length needed!
The VICUT VR350Ultra is also designed with the end user in mind. It features an intuitive software which is easy to learn, as well as an inline codes reader for automatic job changes.
In addition to lamination,slitting,and waste removal, the ViCUT VR350Ultra also features an automated web guide to ensure your product is running smooth through the machine at all times.
KEY FEATURES
All-in-One solution
Lamination,matrix removal,slitting,rewinding.ect.
Automatic job exchange
CCD Camera scans the code marks to read job data, to realized the cutting job exchanges.
Automatic Intelligence technology applied
The cutting heads distance is fully automatic adjustable.
Trajectory Optimization
Automatically calculates optimal usage of heads in each step of cutting for a specific job.
Long label cutting ability
Max.340mmx1100mm size label cutting.
Fast cutting speed
Max.die cutting speed 10m/min easily cutting 7x15cm square.
Automatic web guide
Ensure smooth paper feeding with no offset for next step working process.
Servo Controlled Cutting Head
Adjust cutting depth via software for faster setup, quieter and smoother,longer servicelife with low maintenance.
Technical Parameters
| Model Name | Multiblades Digital R2R Die Cutter VR350Ultra |
| No.of cutting heads | standard 6 heads |
| Working speed | 10m/minute(cut 7cm x 15 cm square labels,392pcs per minute) |
| Max.label length | 600 mm(standard);1100mm(extended) |
| Cutting media width | 340mm |
| Maxi.roll diameter | 450mm |
| Maxi.laminating roll diam. | 300mm |
| Max.matrix roll diam. | 350mm |
| Max.rewinder roll diam. | upper rewinder roller 350mm;down rewinder roller 450mm |
| Operation system | Embedded computer with Ai operation software and Large screen LCD monitor |
| Heads distance adjument | Automatic distance adjustment between all cutting heads |
| Unwinder & Rewinder | 1 unwinder and 2 rewinder with mechanic expansion |
| Reg. marks type | dot marks+number codes/QR Code |
| Positioning device | Electric eye+CCD camera |
| Job exchange function | Yes |
| Data transfer method | PC direct,Data transfer more stable and faster |
| Die cutting precision | 0.1mm(repeat) |
| Slitting width | 10-310mm |
| Slitting system | Round knife slitting System with position adjustment (4 slitters, max.15) |
| Slitting speed | max. 60m per minute |
| Slitting precision | 0.1mm |
| File format | PLT,DXF |
| Working voltage | AC l00-240V,50-60HZ,1000 Watts |
| Machine dimension | 1800*1080*1460mm |
| Packing Size | 216*130*197CM |
| G.W./N.W. | 960kg/1140kg |
| Optional | Multiple slitting units/Separate sheet cutting system/Laminating liner removal system |
Details Description
Unwinding System
The unwinding roller of the VR350Ultra machine can accommodate rolls with a maximum diameter of 450mm

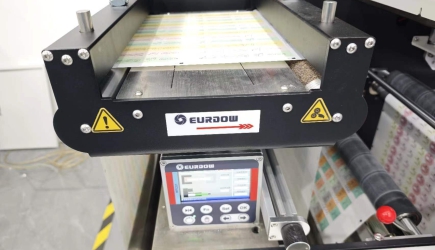

High Precision Web Guide Feeding System
Utilizing the ultrasonic web-guide system,it makes the feeding perfectly

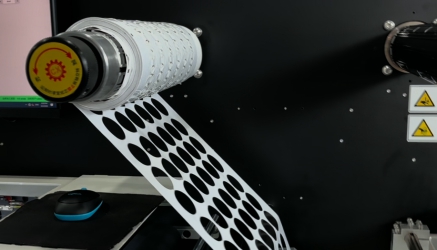

Waste Removing System
The Presion machinery design can control the roller rotating uniform,avoid removing waste discontinuously due to unstable pressure and keep finished labels clean
Cold Laminating
The VR350Ultra machine comes standard with a cold laminating function,making the labels more durable. The maximum diameter of the laminated shaft is 350MM
Laminating Linear system
Optional rewinding roller for removing the backing liner of laminating film enables users to apply premium laminating film and produces durable, upscale finished labels.
Precision Slitting System
Up to 15pcs slitting blades,easily slitting big roll into small rolls for final labeling process. High speed with 60m per minute,it also can be used as independent slitting System

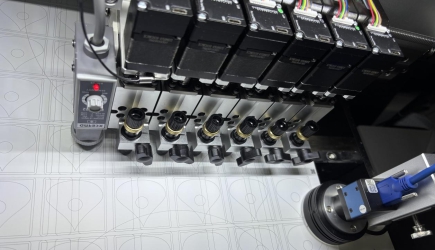

Digital Die-cutting System
The VR350Ultra digital label cutter is fitted with 6 cutting heads, and the head distance can be automatically adjusted based on label shapes. Adopting an advanced servo motor-controlled cutting head system, the machine features software-adjustable cutting depth to simplify operation, runs quieter and smoother, and offers extended service life with lifetime low maintenance performance.
CCD Identification System
The CCD camera positioning and identification system can recognize the sequence, enabling the function of changing files and automatically cutting the next patterns.
Rewinding System
VR350Ultra featured with two re-winders at final step of roll label finishing,easier to rewind small rolls after slitting. The appropriate tension makes the material collection more precise and the coil material neat, providing great convenience for the next labeling process

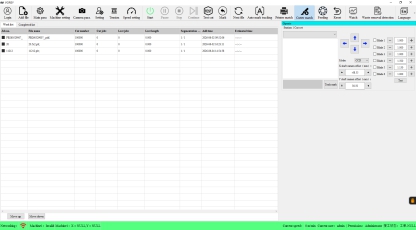

Easy-to-use Cutting Software
＊Real-time display of machine status & cutting speed, instant fault alerts during operation.
＊Built-in sensor monitoring system to accurately locate sensors with reset failure.
＊Flexible mark position adjustment inside system, no edits in design software needed.
＊Auto head calibration at a user-defined distance (e.g., every 50m/100m) , stable cutting & smooth matrix removal without frequent manual adjust.
＊10 levels-speed paper feeding range: 3m/min ( speed L1) up to 60m/min (speed L10).
Standard Industrial Computer
VR350Ultra label die cutter worked with high-end industrial computer,with software installation and parameters setting ready for users, providing extremely convenience for operators.Cutting files will be sent directly from PC to machine,no need additional U-disk or cables
Optinal Function
Roll to Sheet Cutter RS350
It is suitable for transverse cutting of various roll materials
Suitable materials:
Self-adhesive ,PP synthetic ,aluminum plastic film,PET,PVC,white card,copper plate and other paper and flexible materials.
Techical Parameters:
Cutting media width: 100-350mm
Maxi label width: 350mm
Mini label width: 10mm
Maxi label length: 500mm
Highest paper cutting speed: 150/min
Cutting Tracking: single mark or doulbe mark
Cutting accuracy: 0.1mm
Size(W*D*H)：670*460*915mm
Weight: 180kg
Power Supply: 220-240VAC 50-60HZ ,500W
Tools & Accessories
Blade holder
Precision blade holder,built-in bearing design,cooperate with machine blade compensation function, make cutting more smooth. Easy to install the blade and adjust the distance between the blade tips
Die cutting blades
Special 45 degree die cutting blade, suitable for cutting 0.25mm thick adhesive label materials such as sticker, coated paper,synthetic paper,PP, PET,etc.
Application
Applicable Industry
VR350Ultra roll to roll label finisher is mainly used for medium volume on-demand label production including blank labels, ink labels, chemical labels, beverage labels,bottled water labels,chilisource labels,coffee labels,cosmetic labels, home appliance label,toiletries label,gum label,wine labels and more.
Applicable Materials
Stickers,Paper,PP,BOPP,PET,PVC & More!
Working samples

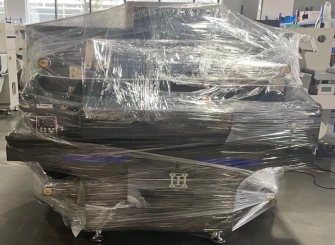

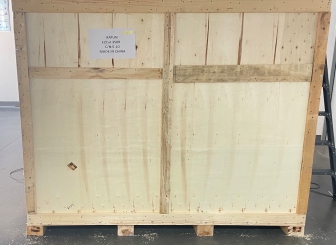

Packing photos
