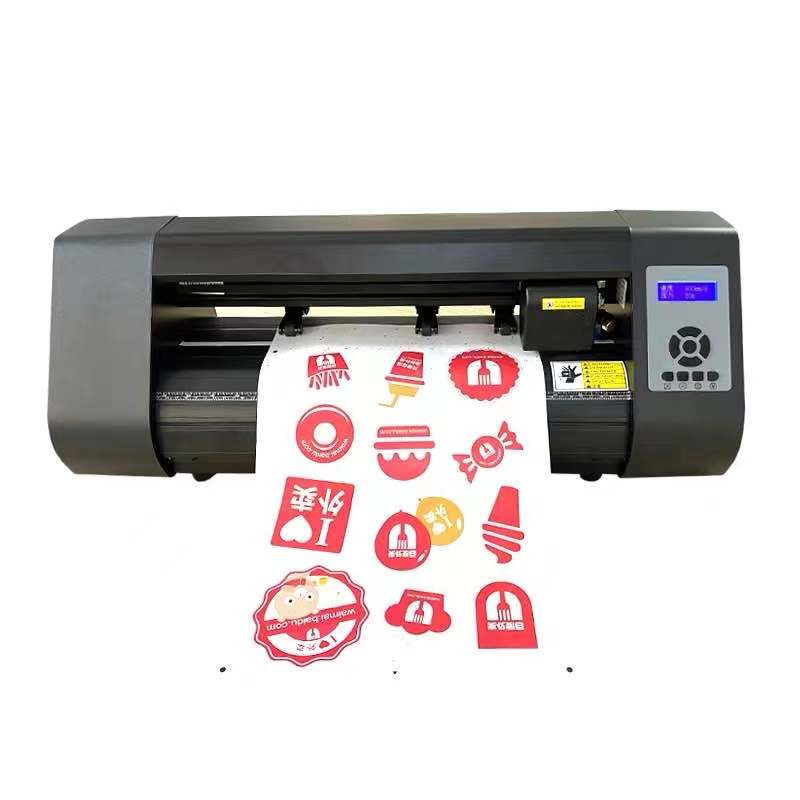

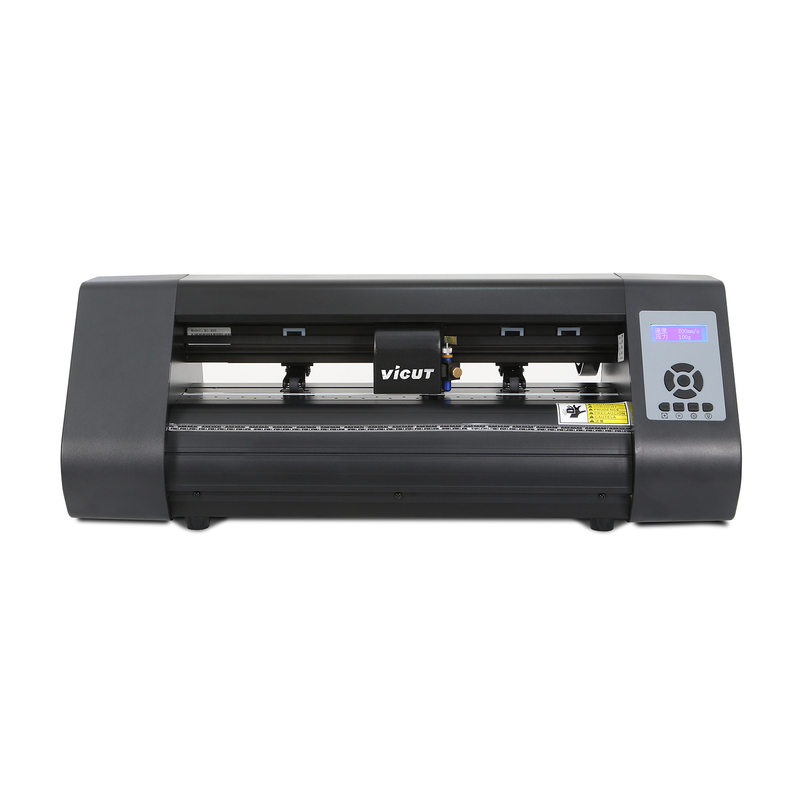

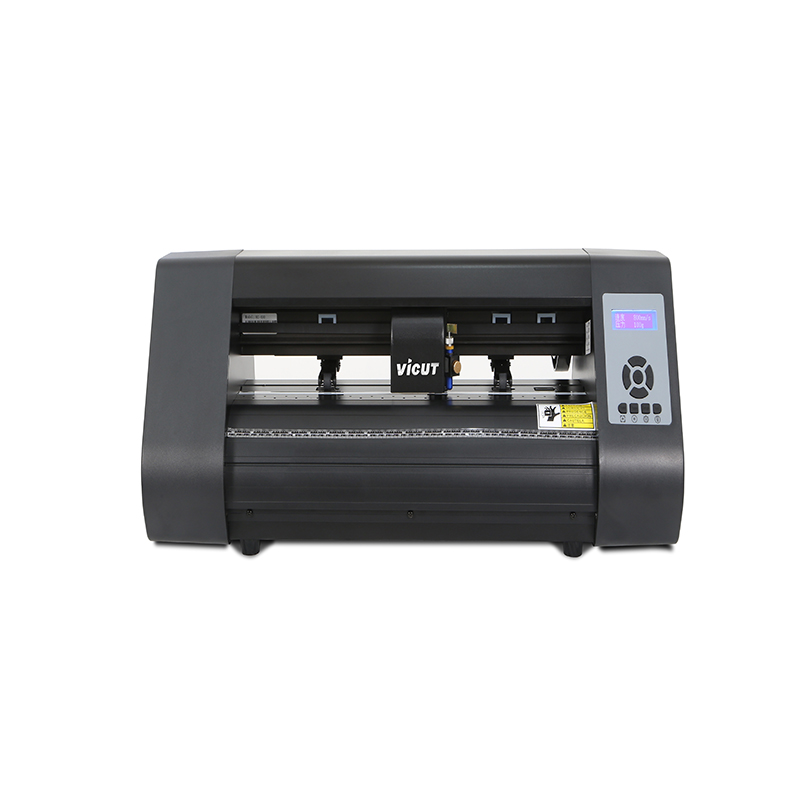

The VICUT RC series vinyl cutting plotter was special designed for users who require working with large plots and processing large quantities in professional quality, without sacrificing cutting speed.
● High speed CCD camera positioning system, accurately reads the 4 mark points within 4 seconds on an SRA3 sheet.
● The control system adopts advanced algorithms to ensure the maximum balance between speed and accuracy.
● The servo drives provides more stability and cutting precision.
● The tool drop point and the start point shall be smoothly connected without burrs.
● With advanced configuration, fast cutting speed, high precision and reasonable price, RC series vinyl cutter is becoming one of the most cost-effective in the market.
Plug and play
Simple installation, no additional driver necessary.
Silent, precise and powerful servo drivers for best cutting results.

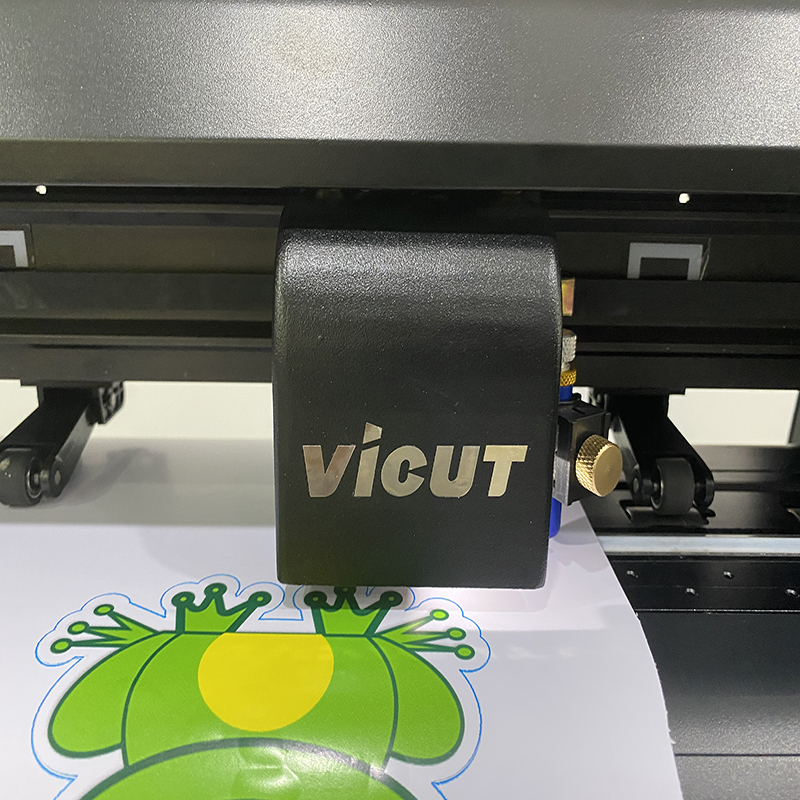

High resolution CCD Camera registration
It can accurately detect 5mm black mark points on materials of different colors, and it only takes 4 seconds to read 4 mark points on an SRA3 sheet, also suitable for more range of materials.
Able to cut small fonts and letters.
Maximum cutting speed 1200mm/s.
Long length tracking
Straight tracking to 3m/118 inch without offset, which makes processing long images easy and fast.
Easy menu navigation
Comfortable control panel with illuminated LCD -display and large buttons.
Multiple file transfer modes
Supports three methods of file transmission, U-disk, network interface and USB cable.
Work with both Windows & Mac OS
Match with Signmaster and Signcut Pro S/W, provides more options to users according to their user habit. Signcut S/W is able to work on Mac OS.
|Structure||Desktop||With stand||With stand||With stand|
|Max. media width||490mm||720mm||1400mm||1600mm|
|Max. cutting width||400mm||630mm||1310mm||1550mm|
|NO. of pressure roller||4pcs||5pcs||6pcs||8pcs|
|Cutting accuracy||+/- 0.02mm|
|Drive model||Servo drives|
|Cutting speed||10 to 1200mm/s|
|File transfer mode||USB/Network/U-Disk|
|Positioning system||High resolution CCD Camera|
|Registration marks||multiple black mark points|
|Software||Mufti-language SignMaster S/W (Signcut Pro is optional)|
|Feeding system||Pull shaft feeding structure, simple & time-saving|
|Power consumption||< 100W|
|Working voltage||100V-240V, 50hz/60hz|
|Ambient temperature||+5°C ~+ 35°C|
|Packing Size||800 x 340 x 390mm(0.11CBM)||1030 x 340 x 485mm(0.17CBM)||1710 x 340 x 485mm(0.28CBM)||199*36*49cm(0.35cbm)|
VICUT RC vinyl cutter matches with both Signmaster(from Australia) and Signcut PRO2 (from Sweden) S/W. Users can choose both according their use habit.
Steel frame with linear bearing, it is with more cutting pressure which is adjustable easily, and it is good in heat dispersion. With built-in high resolution CCD camera, it can scan the multiple mark points automatically to realize contour cutting function.
Steel thorn and pressure roller
The plotter equipped with steel thorn which can fix media effectively to avoid any sliding and ensure the feeding precision. There are several pressure rollers on up side of beam,the distance between each roller can be adjusted to fit for different size media. These high precision imported rollers, assures no offset feeding long distance.
User-friendly control panel with English display screen, the back-lit LCD and large gel buttons ensure simple and comfortable usability.

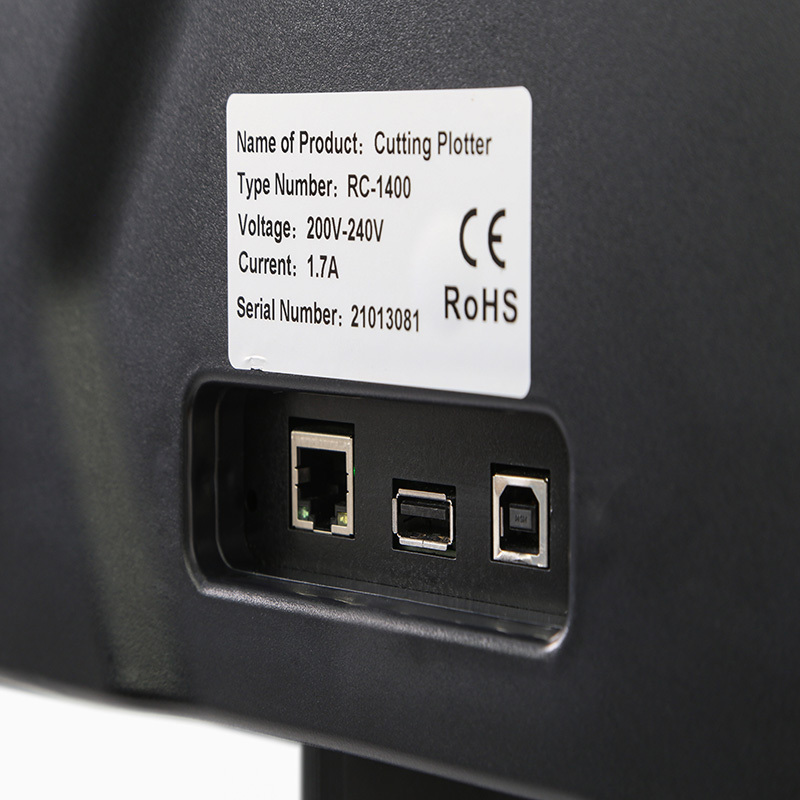

There are three methods of file transmission,U-disk, network interface and USB cable. U-disk provides convenient offline working, network interface allows plotter connecting with LAN, so that one computer can handle several machines simultaneously, and USB cable is very useful for online connecting when users’ computer only equipped with USB interface.
With many suction holes on the cutter working table, material can be fixed tightly, avoid bulging of materials during processing.
Paper feeding system
Auto feeding system, easy to feed the roll material, smooth and fast.
Paper pressing device
There is a row of paper pressing devices behind the plotter beam. During the working process, these paper presses can well fix the materials, ensure that the materials move within the fixed range and reduce the offset.
After loading the material, pull down the handle to press the material, so that the material can be fixed during the paper feeding process and reduce the offset.
The graduations are marked on the paper feeding side of the working platform. So that the material size can be easily measured and adjusted when feeding the material.
The machine equipped with a set of catch-up basket including 2pcs holding rollers and one piece of high quality nylon cloth bag, save space while keeping materials clean and tidy.
Switch on button & power interface
Switch on and off easily with a press button after connecting the power cable with plotter. We offer various worldwide standard power plug. The voltage is also can be customized due to customer needs.
A. stable communication over long distance.
B. Control one plotter from multiple computers.
C. Control different plotters from one computer.
Tools & Accessories
Fine Blade Holder
This precision engineered components sits in the advanced carriage and holds the cutting blade of choice. The tool is manually adjustable to obtain the desired amount of “ blade out” for the job in hand.
Calibration Tool (Pen & holder)
Used at set up and then periodically, to calibrate the cutter.
Roland compatible 30 degree cutting blade
Roland Cemented Carbide Blades 30 degrees, Knifepoint Offset 0.25. Good for thicker media or smaller character
Roland compatible 45 degree cutting blade
Roland Cemented Carbide Blades 45 degrees, Knifepoint Offset 0.25. A lower angle (45 degree) is great for thin materials, and its suitable for almost all kinds of materials in practical use.
Roland compatible 60 degree cutting blade
Roland Cemented Carbide Blades 60 degrees, Knifepoint Offset 0.25. A steeper angle (60 degrees) has a more vertical cutting orientation that penetrates deeper.
Replaceable Cutting strip
Replace your cutting strip every 6 months to a year depending on your usage. Gouges or adhesive residue on the strip can accumulate over time and usage and cause tracking errors on your cut job.
Every company needs to advertise for itself, but advertising is often far too expensive for small to medium-sized businesses. The vinyl cutter can offer relief. The vinyl cutter is the central device in a company to use in advertising. It doesn't only save a large amount of money, but also provides plenty of room to develop your own creativity and ideas. With a vinyl cutter, you can, for example, advertise in the following ways, quickly and easily:
● Corporate signmaking
● Corporate vehicle signage
● Design of the shop window advertising
● Creating banners and stadium advertising at events
● Design of the premises of the Company (Room label, signs, screening applications, design elements)
● Production of stickers and labels as so-called Print&Cut applications - first you print on eg. sign vinyl, then contour-cut with the vinyl cutter.
Anyone who wants to individually create his personal environment will find a vinyl cutter to be the right tool. With these machines, many different creative ideas can be realized like this selection shows.
● Customized wall tattoo
● Create kitchen surfaces
ØHobby applications in the fields of decoration, model making, etc.
● Create templates for painting colorful wall design including banners, ornaments, and children's artwork.
● Individual design of garments like t-shirts, jackets, sweat shirts etc. with flock or flex film.
