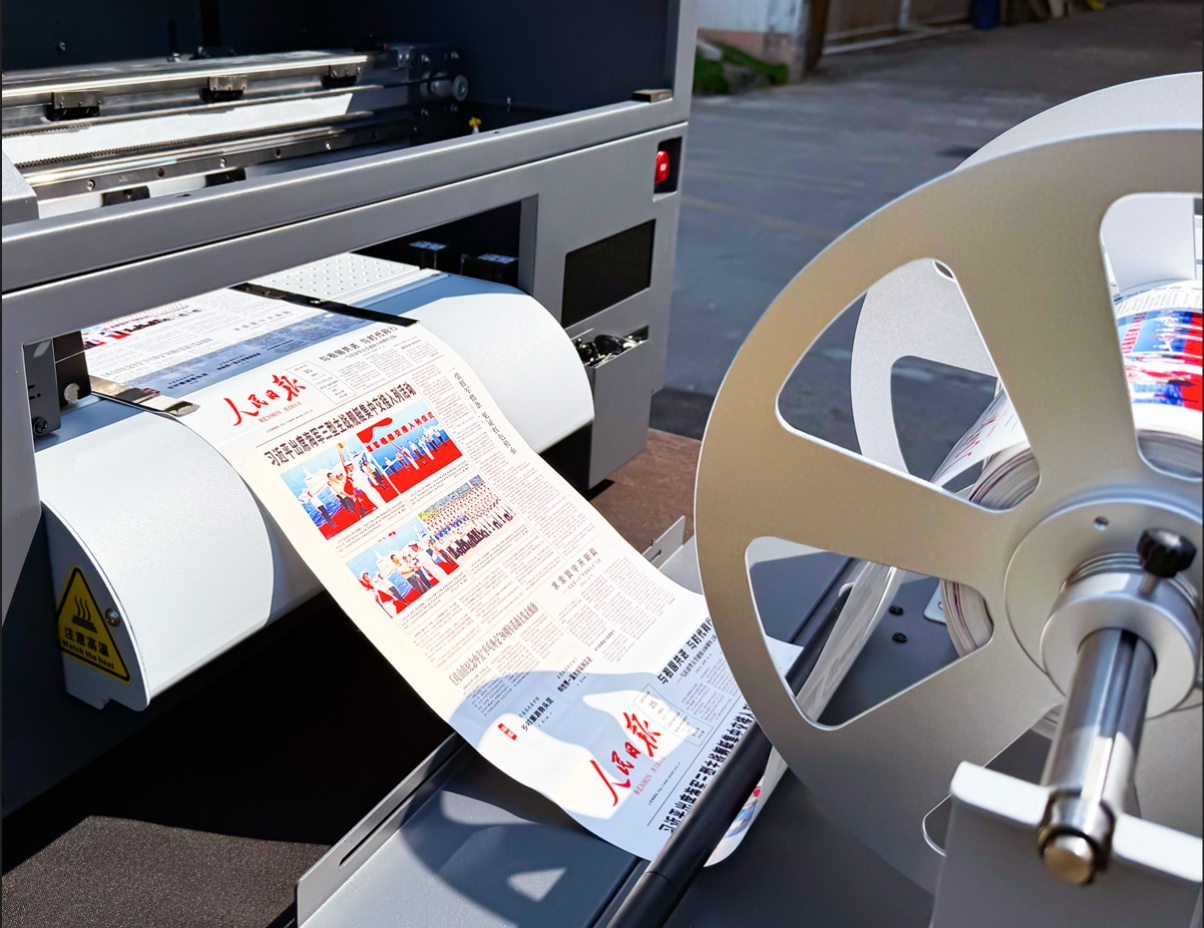

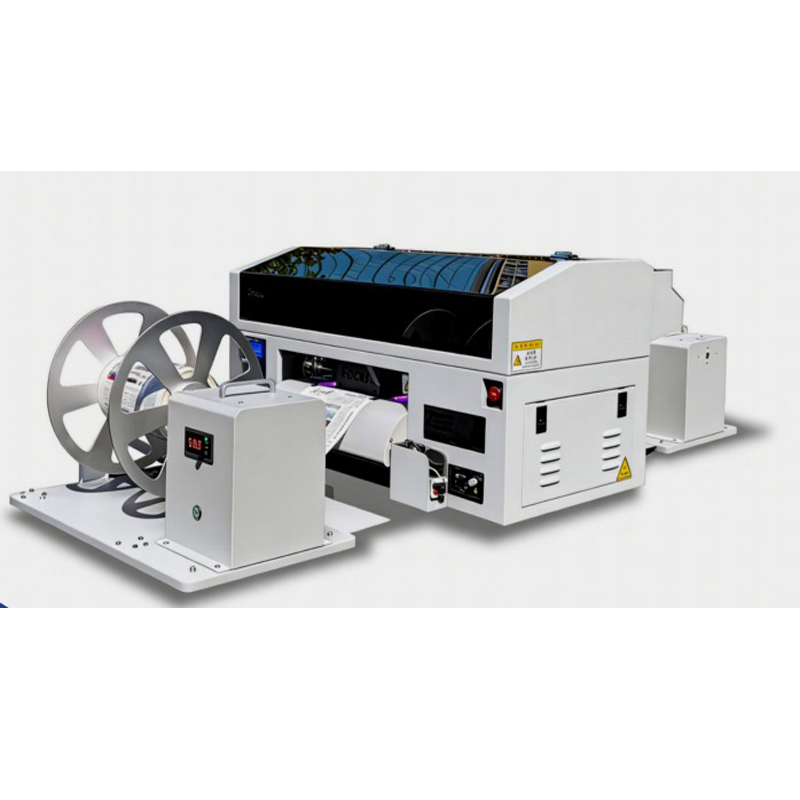

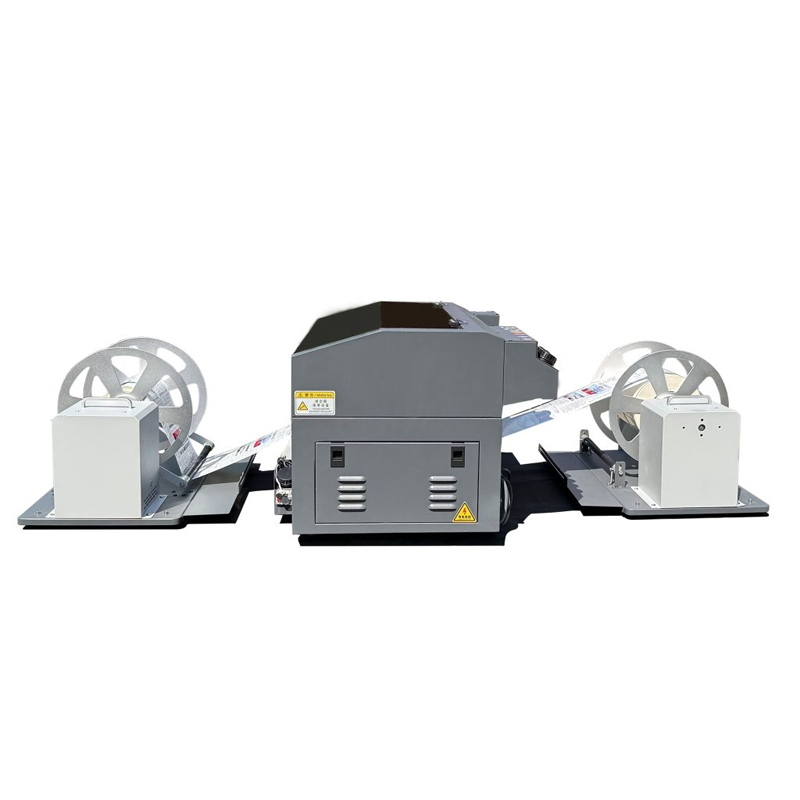

The ViPrint UV300 is a professional UV roll-to-roll label printer built for high-quality label production.lt achieves ultra-sharp,full-color printing on virtuallyall label materials,delivering consistent image quality even on challenging substrates.
Great for small to medium production runs,it supports fully customized label making with superior ink adhesion, outstanding durability, scratch resistance and long-lasting vibrant colors.
With its user-friendly interface and highly efficient workflow, the ViPrint UV300 offers a reliable, cost-effective on-demand label printing solution for businesses looking to boost productivity and product quality.
KEY FEATURES
1
Professional UV roll-to-roll label printer for diverse label applications
2
Ultra-sharp high-resolution full-color printing on wide range of materials
3
Strong ink adhesion,scratch resistance, waterproof and long durability
4
Ideal for small to medium production runs and custom label jobs
5
Intuitive operation and efficient printing process
6
Cost-effective on-demand printing solution for business growth
Technical Parameters
Model | UV300 | |
Maximum printing area | 11.8" (300mm×Y no limited) | |
Print head | Head type | 2pcs EPSON i3200 U1 Micro piezo print head |
Print Nozzle Amount | 6400 staggered, 400 × 16 rows (400 × 8 rows per each head) | |
Printing method | EPSON MEMS PRECISIONCORE micro piezo printing technology | |
Jetting frequency | 21.6~43.2kHz | |
Drop volume | 3.5~12.5pl (Variable data single drop & multi drop) 2~4 Grayscale | |
Print resolution (dots per inch) | 720×1200dpi, 720×1800dpi, 720×2400dpi : Uni-directional/Bi-direction | |
Print speed | 4Pass: 12~17㎡/hour, 6Pass: 10~12㎡/Hour, 8Pass: 8~10㎡/hour (According to different resolution and design) | |
Print Head maintenance technology | Auto keep wet cap station system & Clean flashing during printing and idle | |
Media size | Maximum load width | 11.8", 300mm |
Maximum external diameter | ≤φ350mm | |
Roller inner diameter | φ75mm, φ40mm, φ25mm | |
Film Feeding | Automatic Release | Automatic tension release roller |
Film Take up | Automatic Take up | Automatic detect electronic take up Roller |
Media vacuum system | Vacuum power | 200W |
Vacuum area | Full flatbed area adsorption | |
Vacuum control | Electronic button switch control | |
Media type | Roll type Film, paper, Canvas, leather Plastic type media: PE, PP, PET, PVC label or film, Inkjet-Coated Paper and Synthetics (BOPP, Vinyl, PET); Glossy, Matt. Non-coated paper Other Focus inc, approved media | |
Media margin alignment | Encode film+Encode sensor alignment | |
Media Process | Roll to Roll | |
Media Feeding | Unwinder, Rewinder, Self-Tension Control | |
Job format | Tiff, Png, Jpeg, Pdf. | |
Ink | Type | UV Curing ink, Aqueous Dye, Pigment, Edible |
Color | White, Black, Cyan, Magenta, Yellow | |

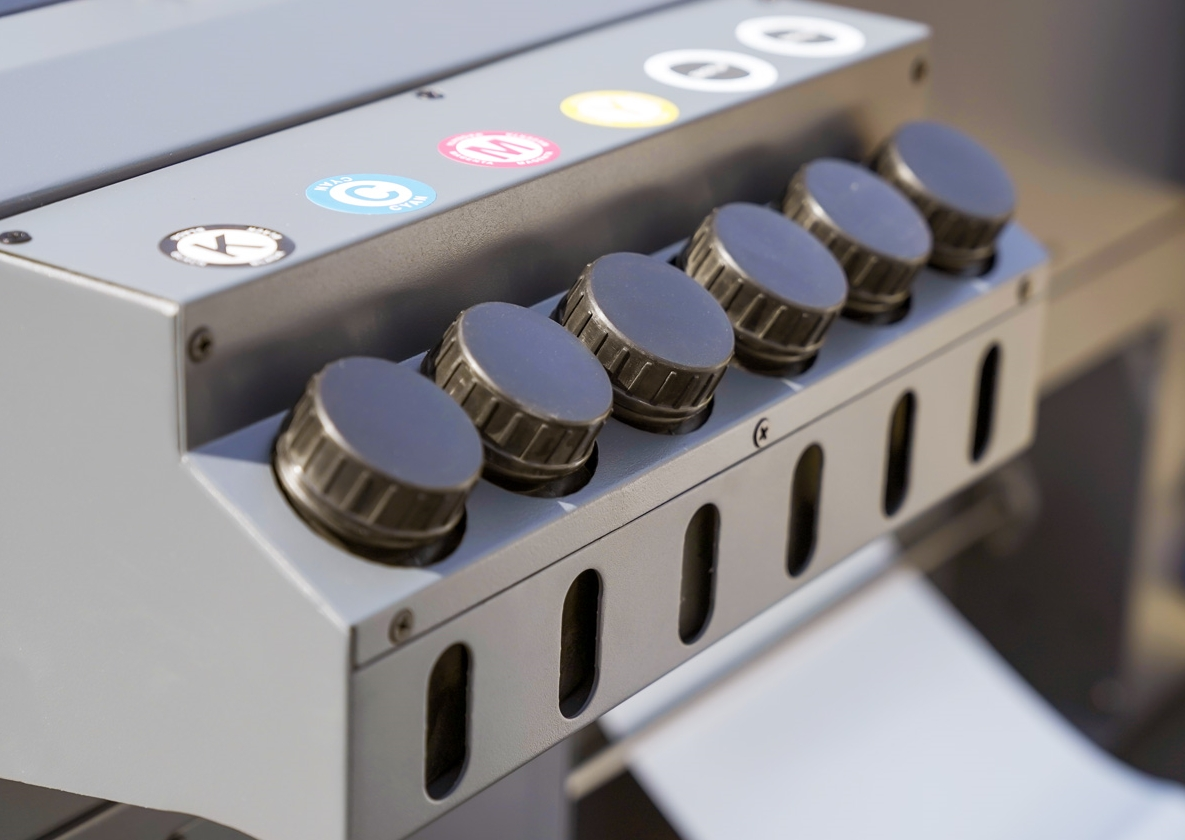

Ink tank capacity | 220ml per each color, 500ml for white ink tank, Refill | |
Ink process unit | White ink Stirring | Automatic white ink stirring system |
White ink circulation | Automatic white ink circulation system | |
Ink curing unit | Curing technology | 405nm UV-LED lamp × 2pcs |
Media vacuum system | Vacuum power | 200W |
Vacuum area | Full flatbed area adsorption | |
Vacuum control | Electronic button switch control | |

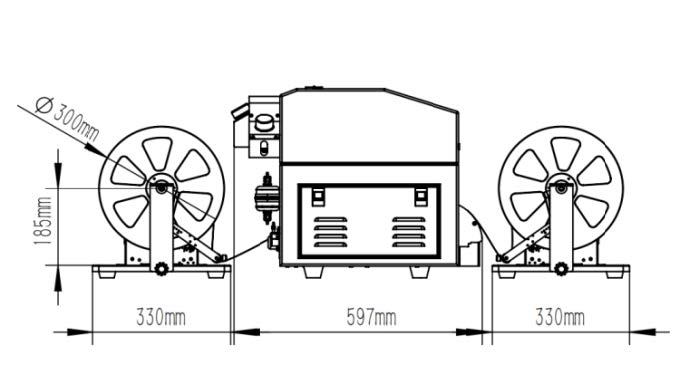

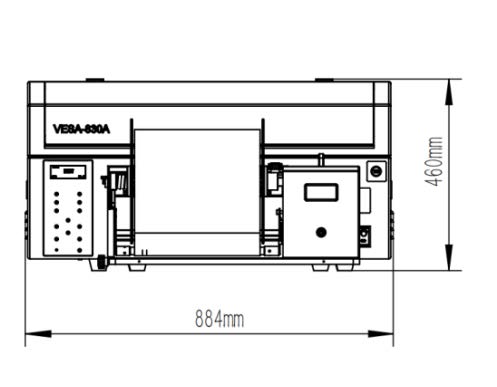

Dimensions | Printer only | Printer: 34.5(W) × 23.6(D) × 16.9(H) in. (876× 600× 431mm) Main printer |
Unwinder, Rewinder size | 13.0 (L) × 26.1 (W) × 14.3 (H) in. (330 × 664 × 364 mm) /One | |
Packing size | 54.3 (L) × 38.9 (W) × 28.4 (H) in. (1,380 × 990× 720 mm) All | |
Weight | Net weight | 251 lb (114kg) Printer only; 112lb (51Kg)Unwinder+Rewinder |
Packing weight | 407 lb (185 kg) All | |
Environment | Temperature | 59 to 86°F (15 to 30 °C) |
Humidity | 40 to 80 % | |
Included items | Print cable, Cleaning kit, USB flash of manuals and installation videos | |
Connectivity | Ethernet cable | |
Working Power | Printer 350W, Unwinder+Rewinder 120W | |
Power requirements | 12A, Single-phase 220V, 50~60HZ. | |
Acoustic noise level | 75 dB (A) or less | |
Print control | System | Windows® 7/10/11(64 bit) Recommend |
(bundled) | CPU | Intel® Core™ i5, 2.5 GHz or more |
RAM | 8 GB or more | |
Video card and monitor | A resolution of 1,152 × 854 with 16 bit color or higher | |
HDD | Install space 1 GB or more | |
Working space 100 GB | ||
Details Description

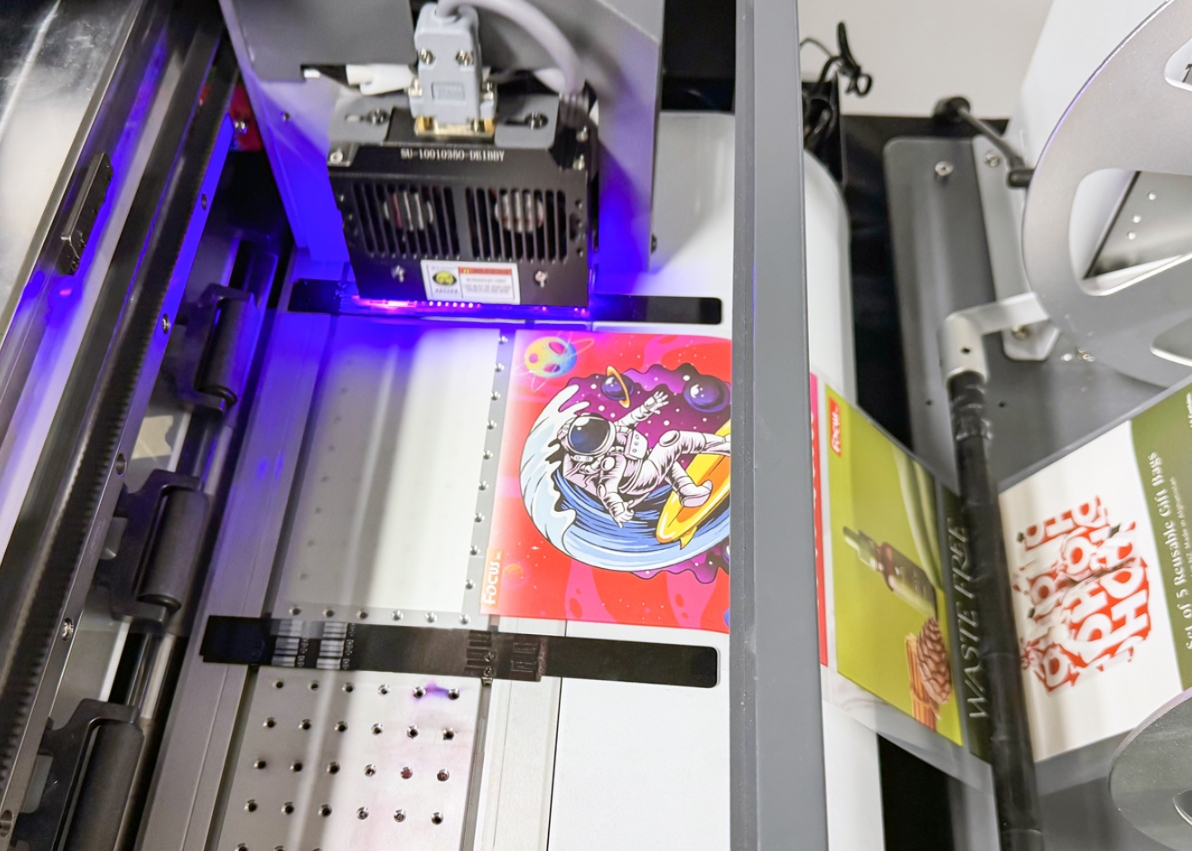

Advantage 1
LED UV real-time curing printing technology can achieve high-precision printing on different materials such as uncoated materials, dark materials and plastic materials such as PP, POPP,PE, PET, PVC, etc
Advantage 2
Maximum 300mm printing width is compatible with different width material printing
Advantage 3
Support White with CMYK print same time to entend the print media as transparent or dark film media
Advantage 4

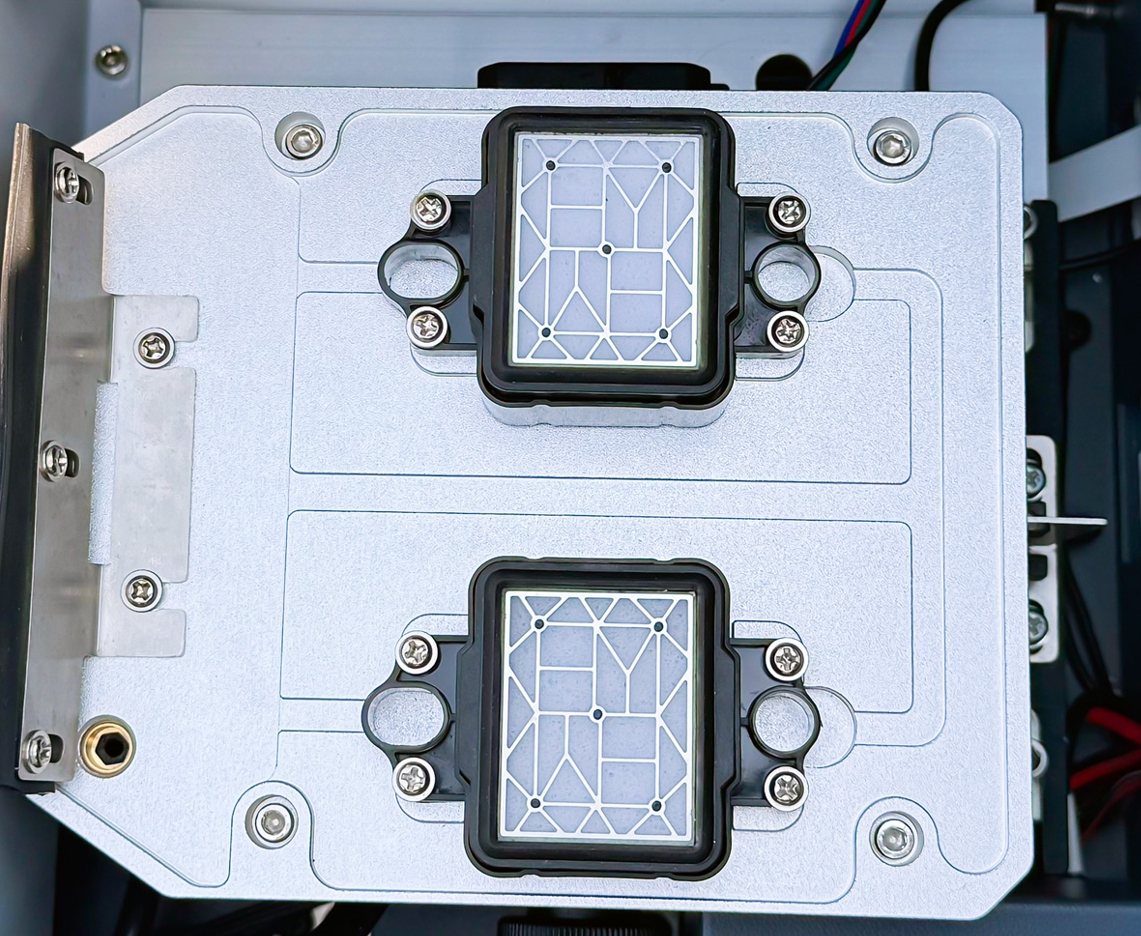

The automatic lifting type cap station design makes the head cleaning and moisturizing more smooth and efficient.
Advantage 5
The built-in material tension automatic adjustment function allows the material to be fed smoothly and positioned accurately

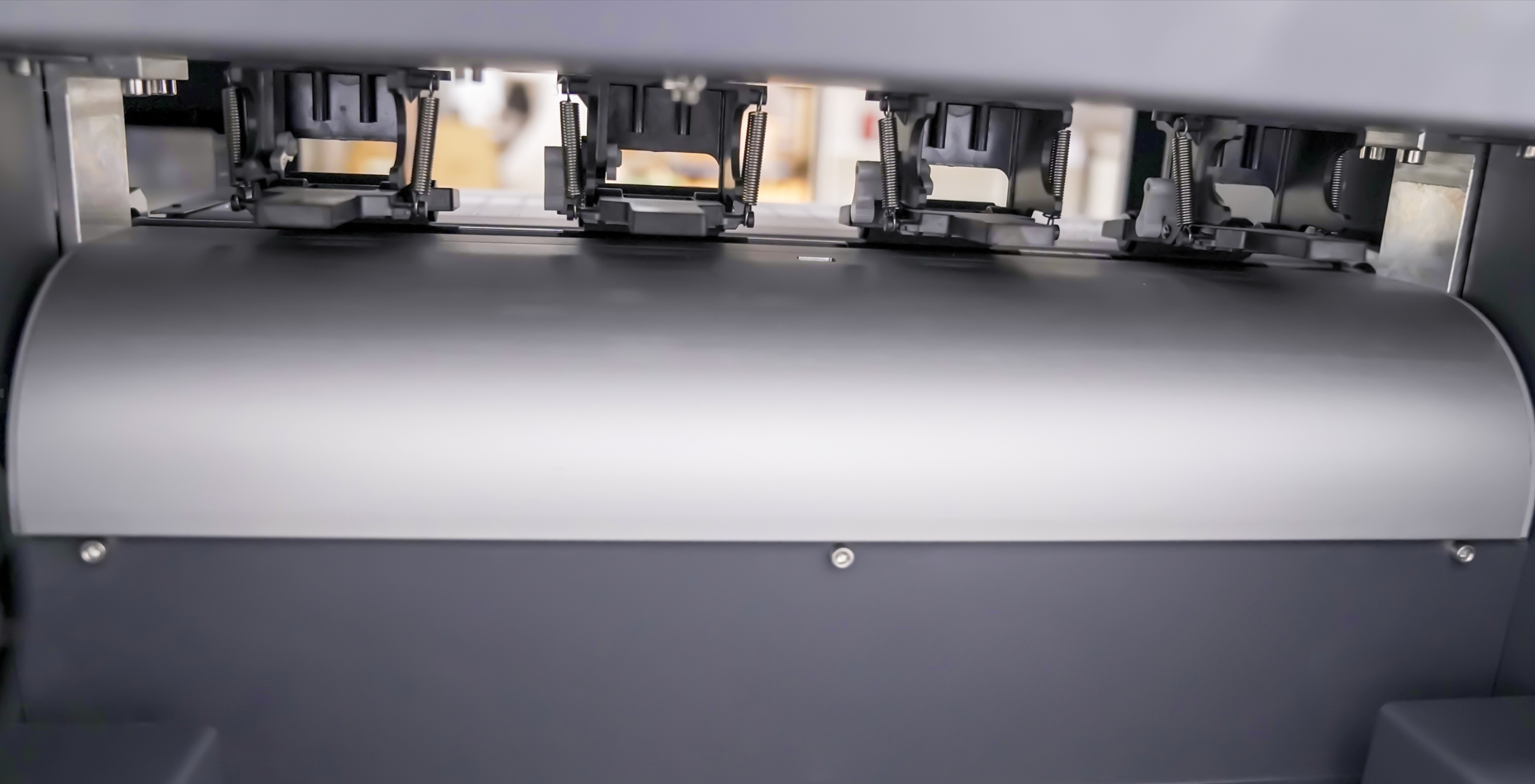

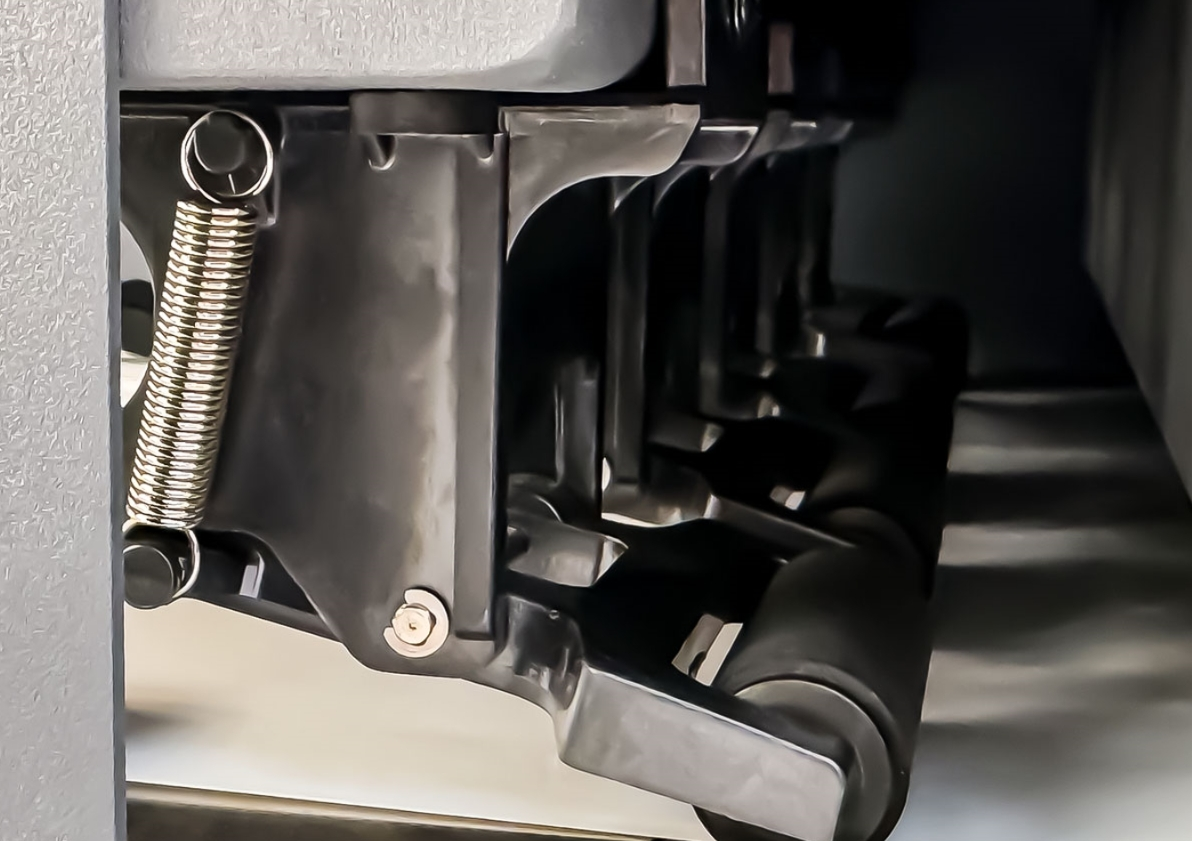

Advantage 6
The movable paper pinch sheet can prevent the material from arching during printing, thus effectively protecting the print head
Advantage 7
The pre-printing heating function can greatly improve the ink's firmness and scratch resistance on the material

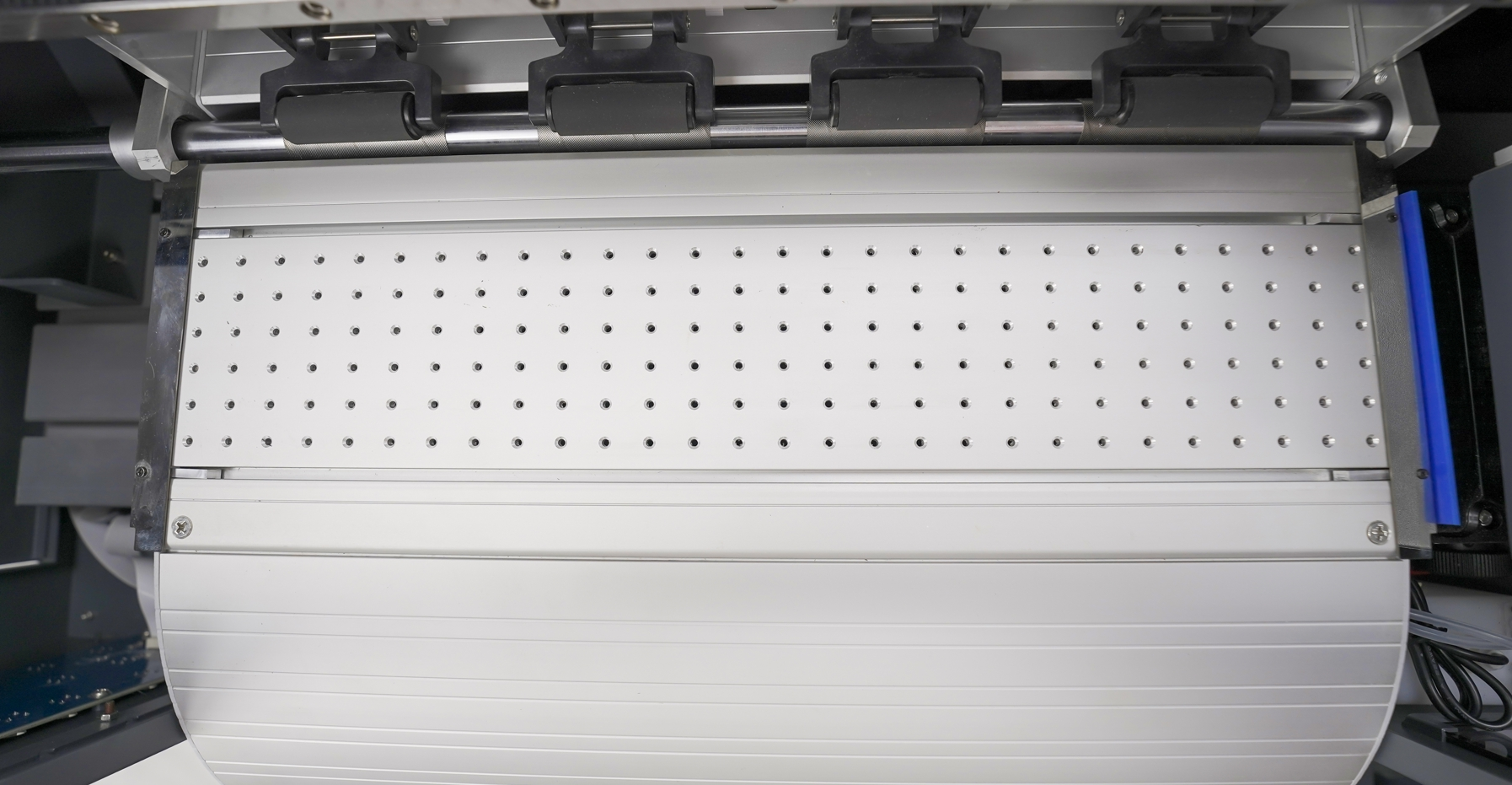

Advantage 8
The suction adjustable vacuum adsorption function can prevent the printing film bending from scraping the print heads.
Advantage 9

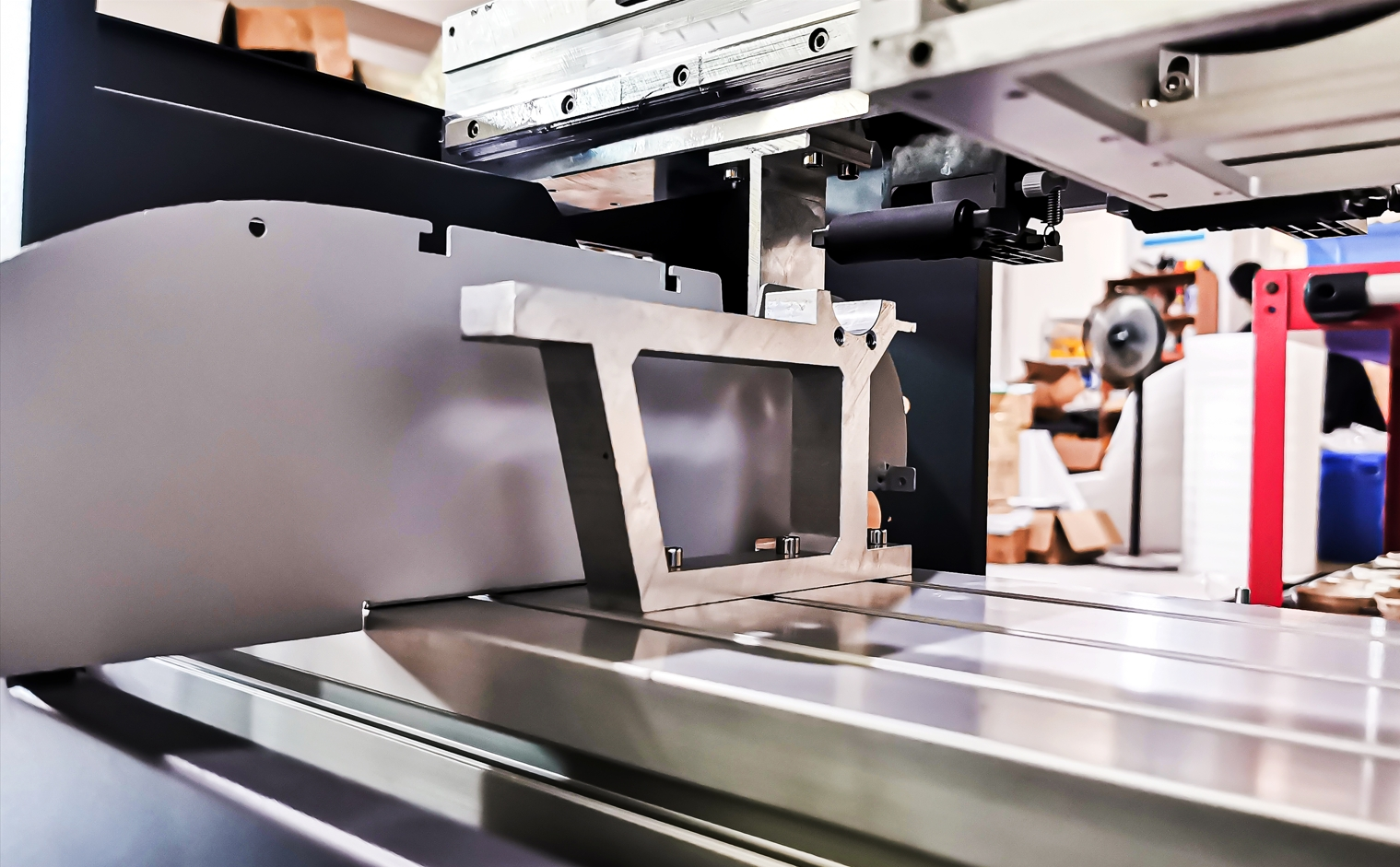

All keel made from high quality Pressure casting aluminum to ensure the high speed stable printing
Advantage 10
Configed with 2 pcs EPSON i3200 industrial printheads with 9600 nozzle achieve 3.8PL ink droplet under 43.2KHZ high-speed grayscale printing
Advantage 11
Configured with FOCUS INC. WIPCS white ink stirring system to prevent white ink precipitation and thus prevent nozzle clogging

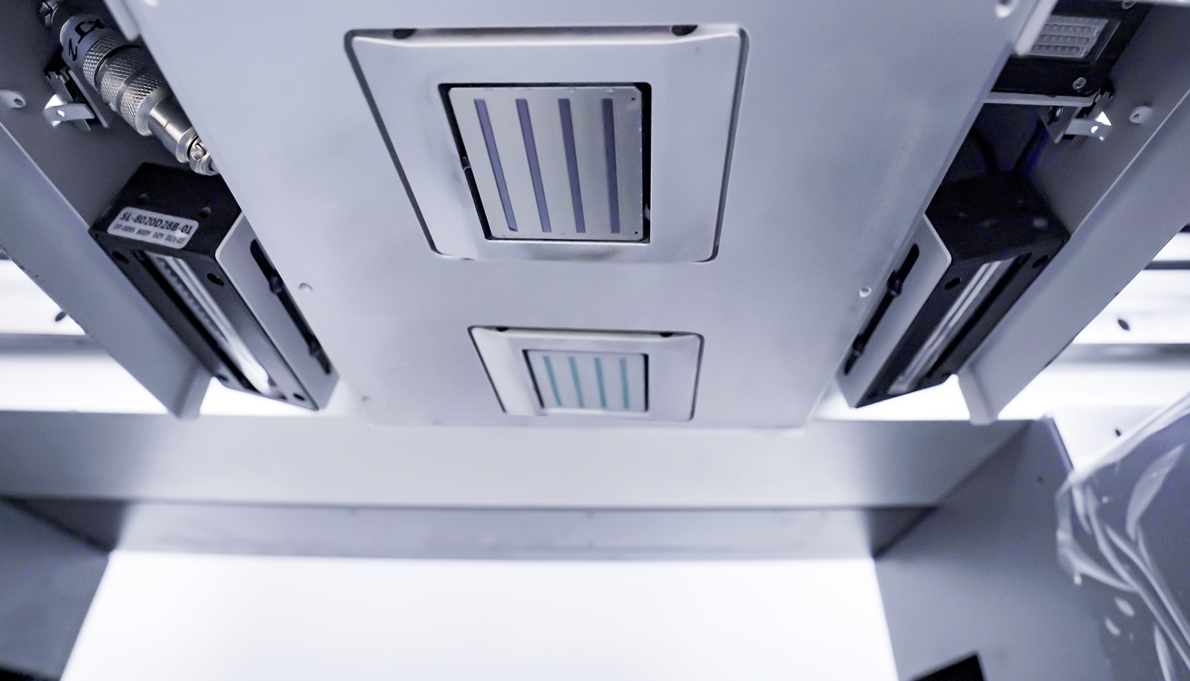

Advantage 12

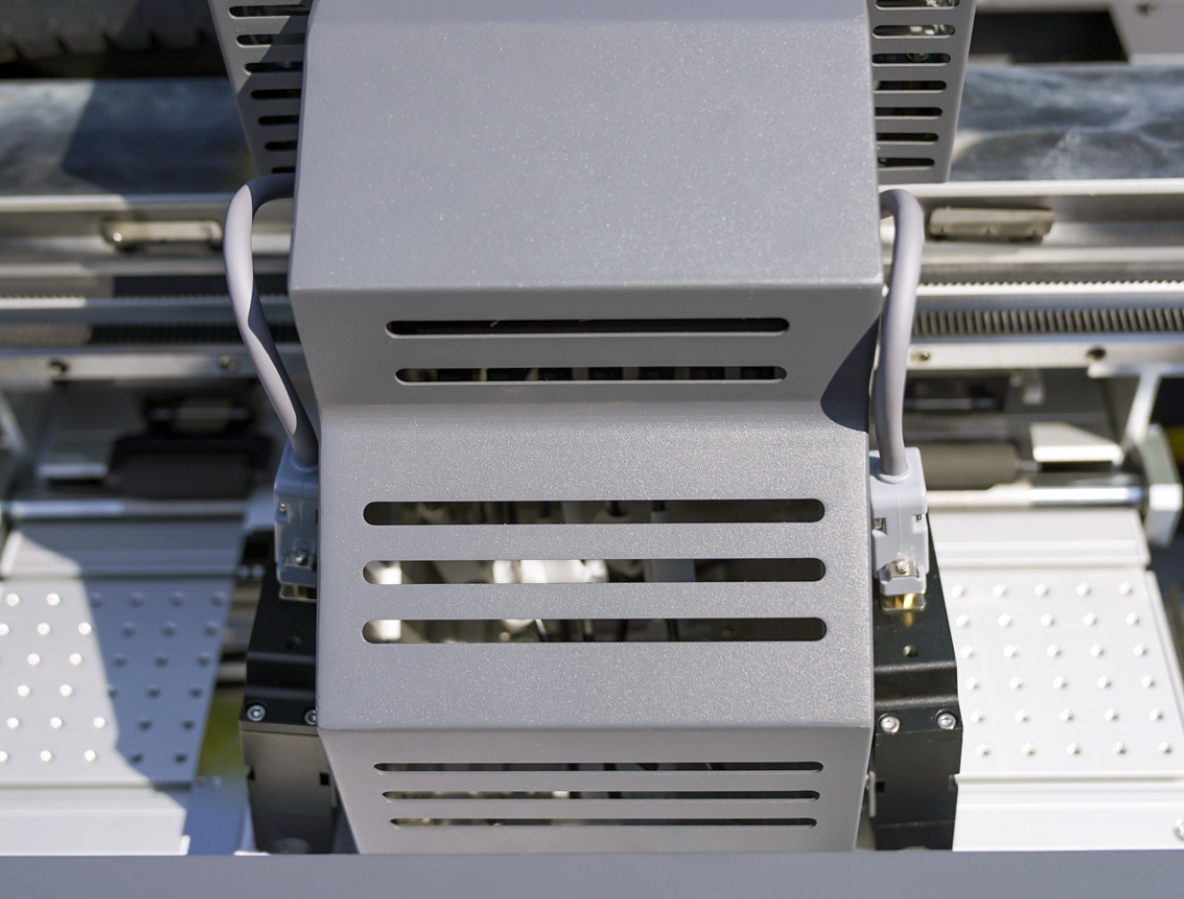

Dual UV LED Curing lamp can cure the ink after print efficaciously
Advantage 13

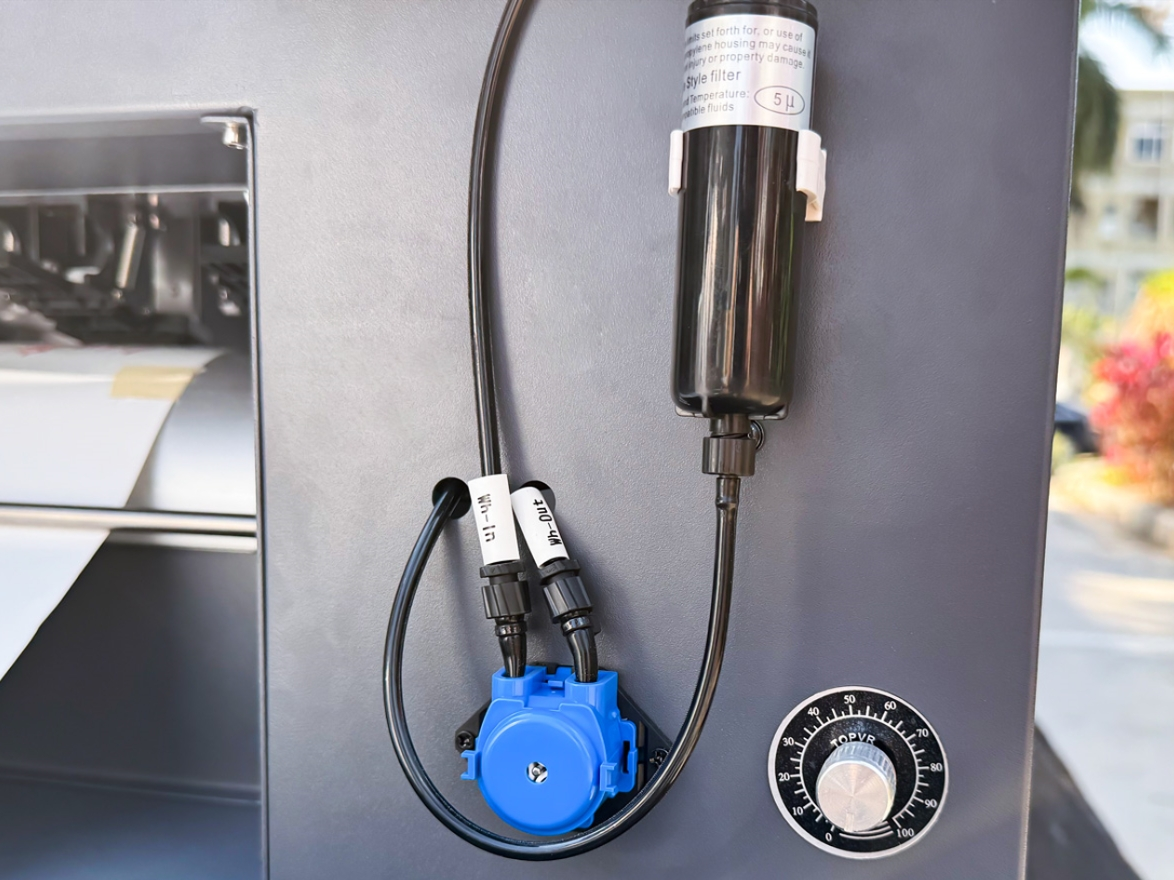

High quality white ink circulation peristaltic pump made from gear motor to extended the service life significantly

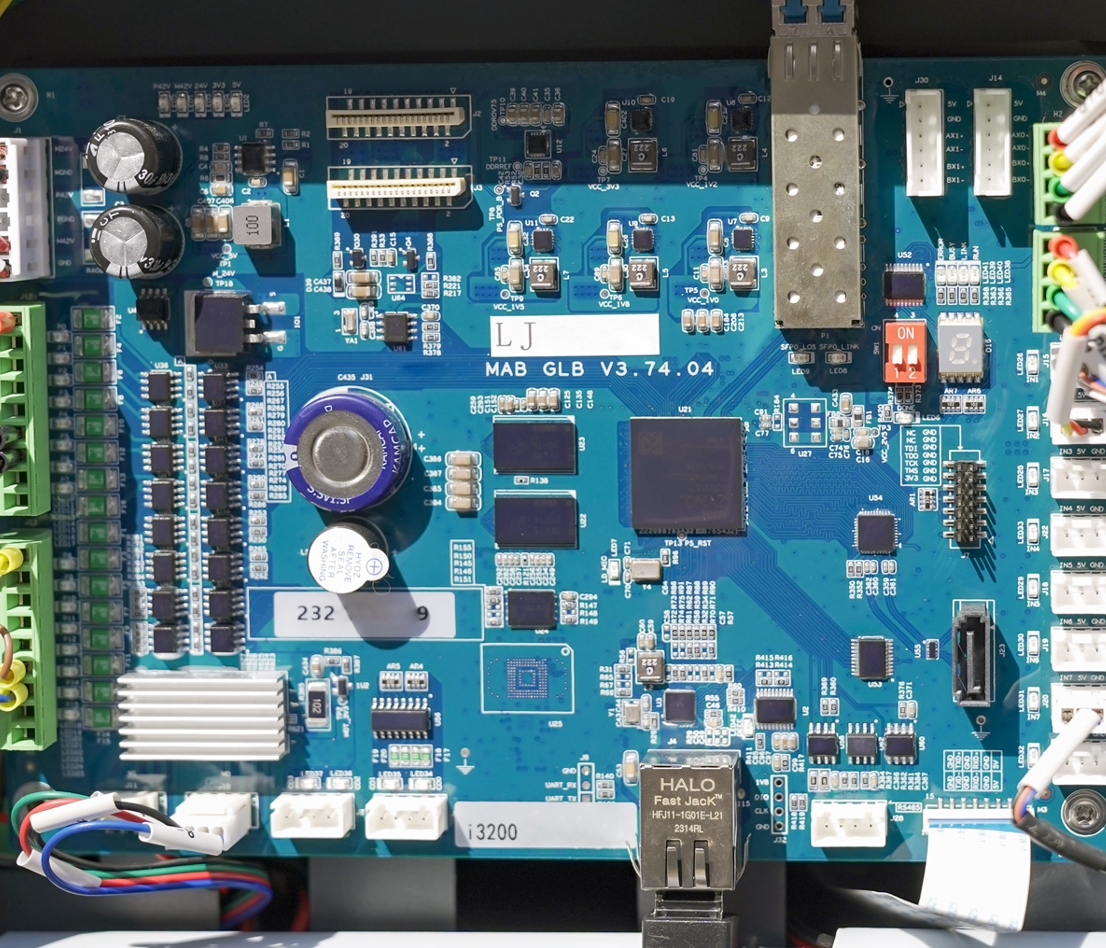

Advantage 14
Industry 4.0 tertiary circuit protection design of the multi-functional printing board greatly improve the printing speed and printing quality
Advantage 15

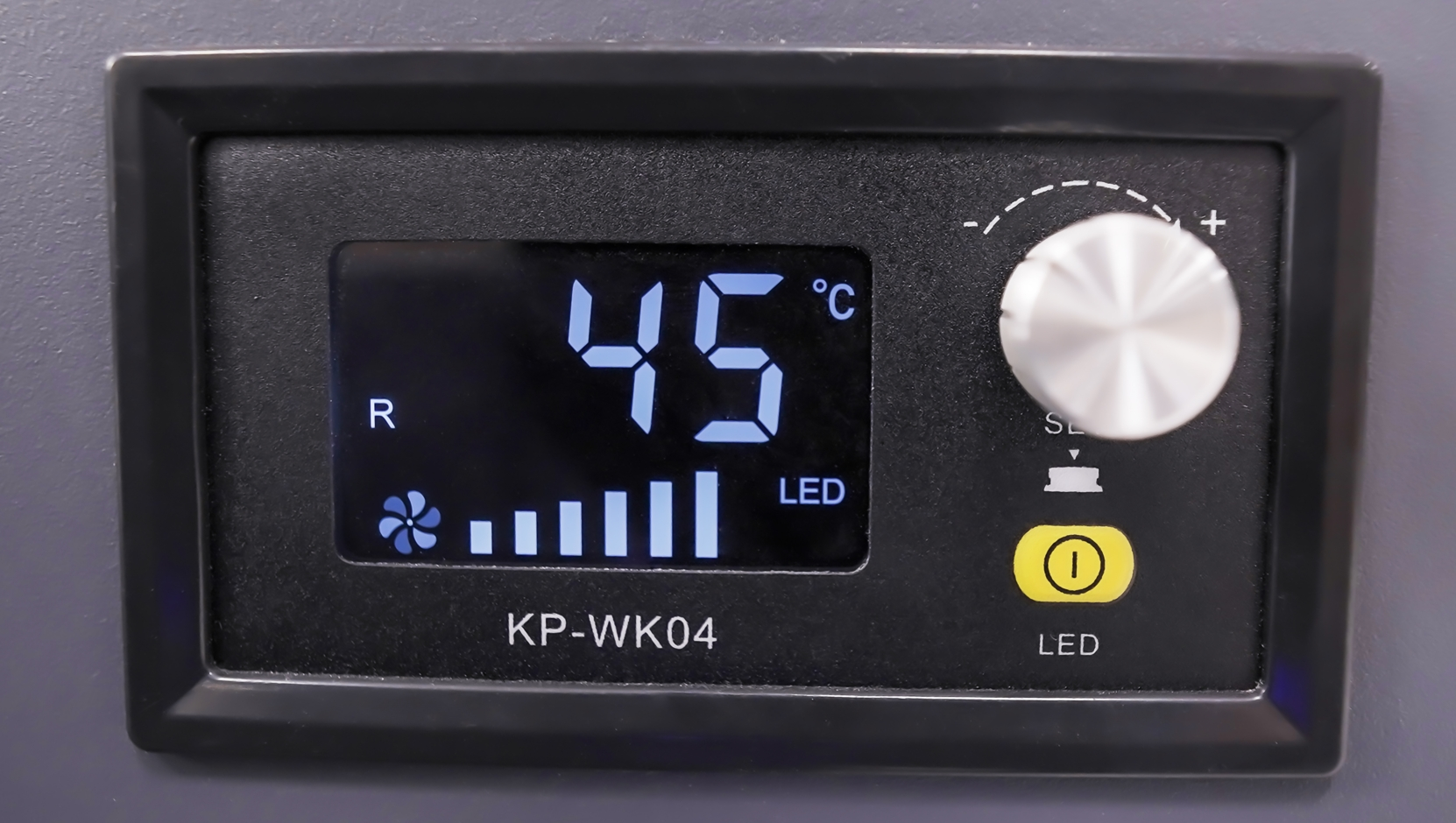

LED control panel for Pre-Heating Post heating &Table adsorption

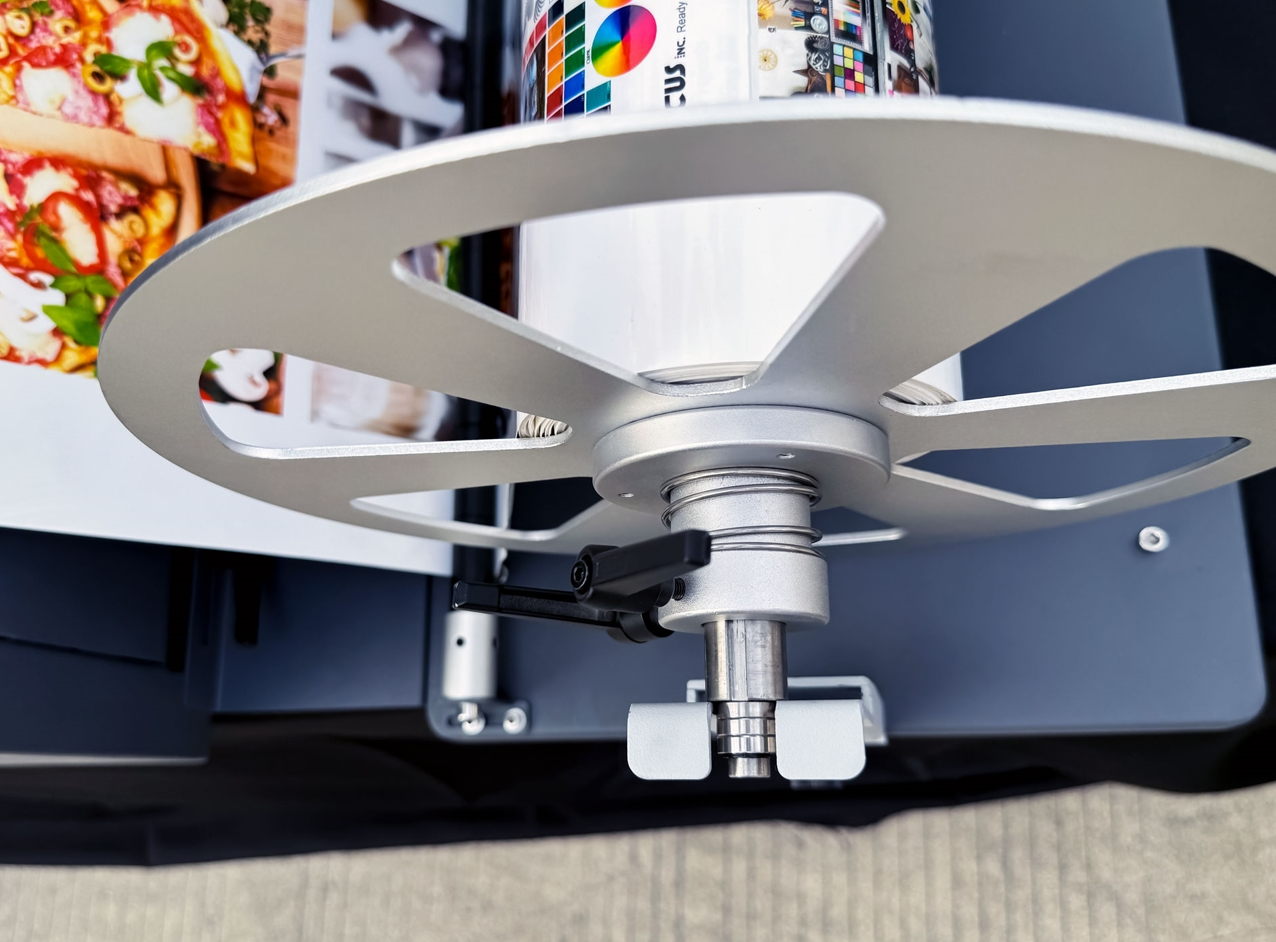

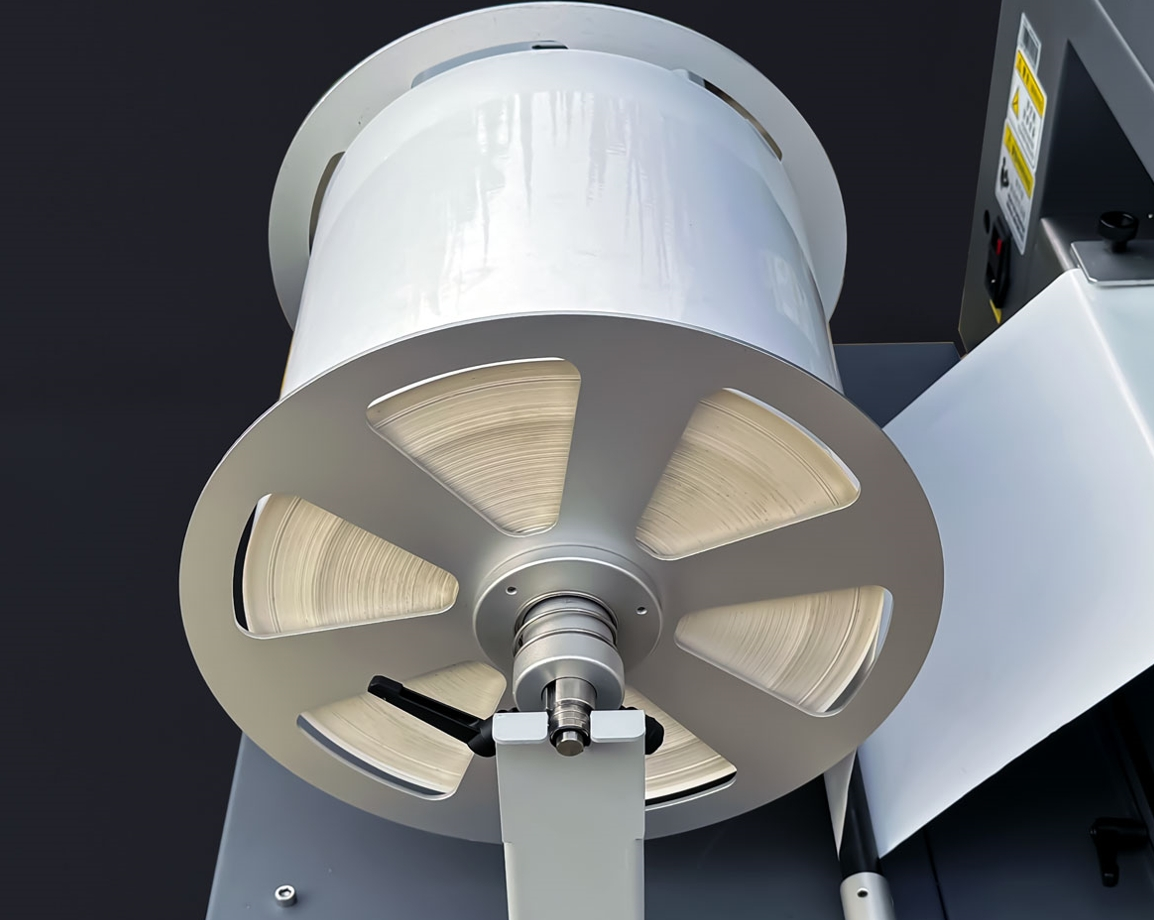

Advantage 16

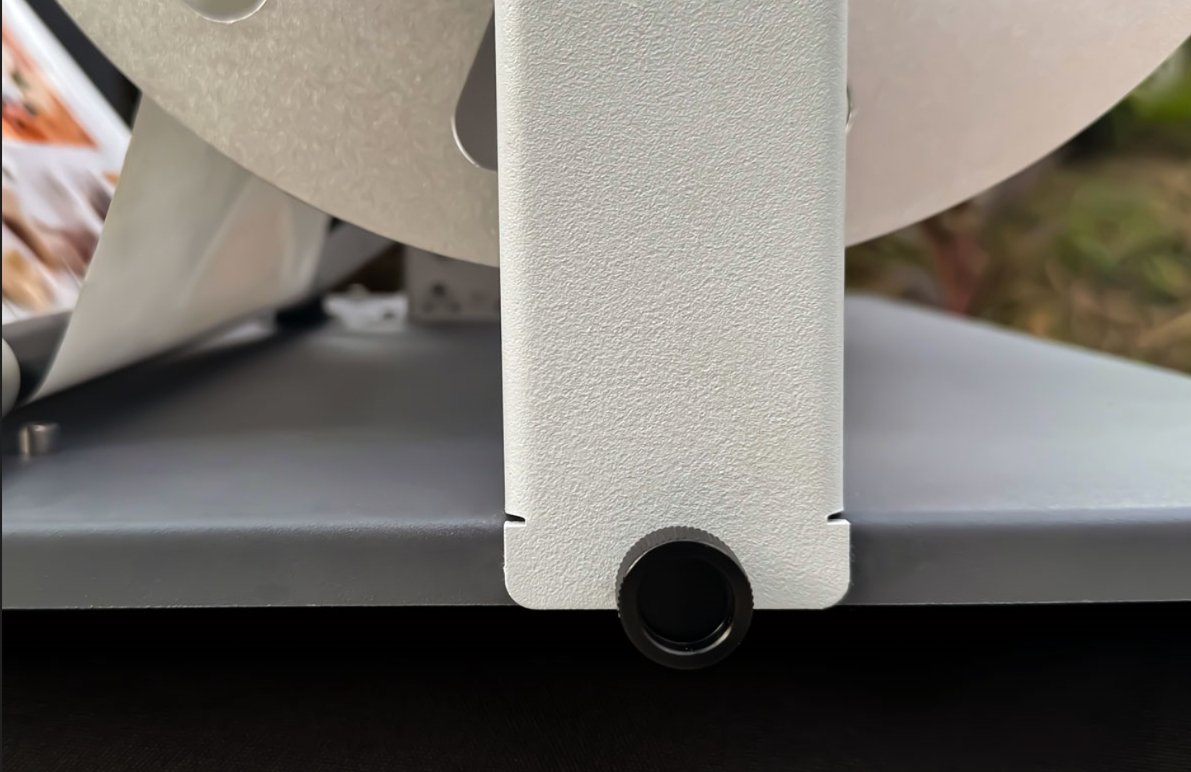

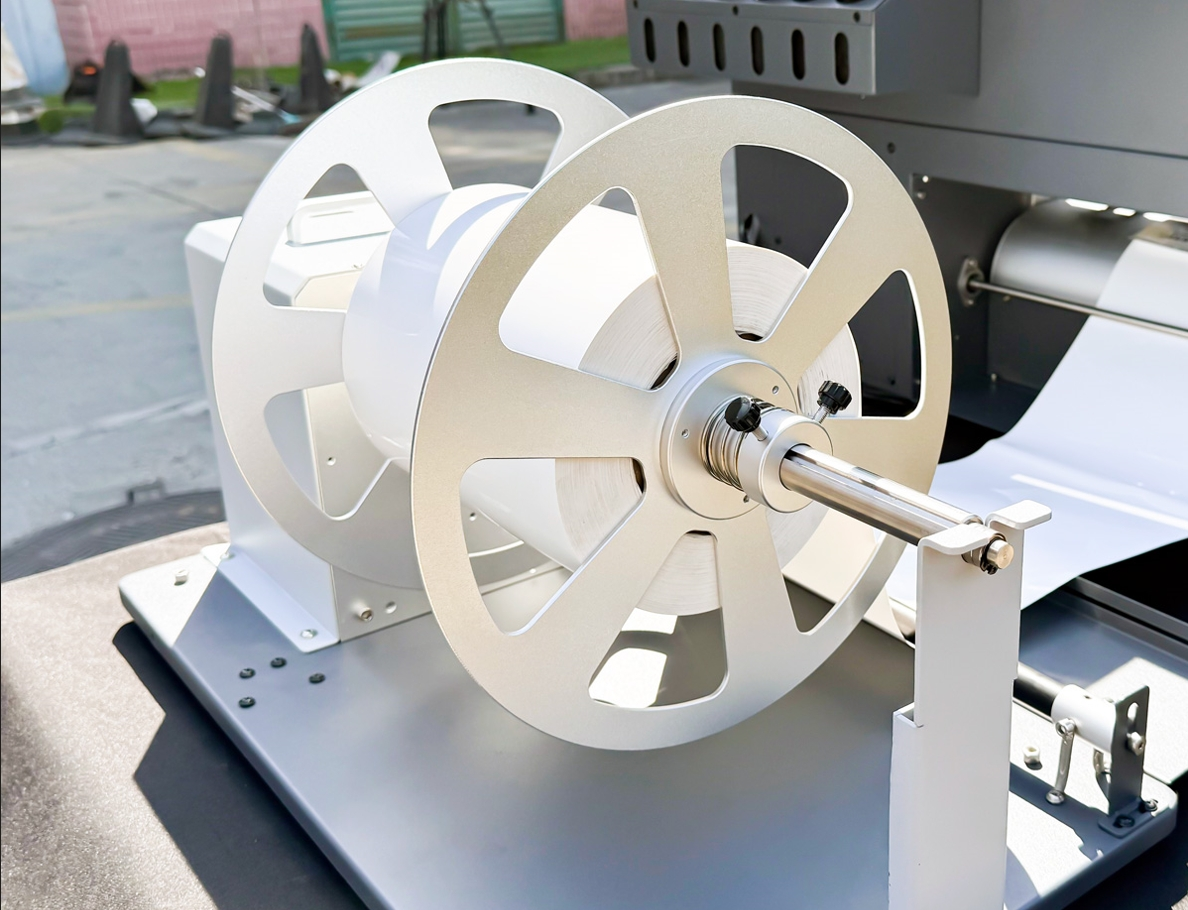

Self tension control baffle plate allow to load max.350mm diameter media loading.
Advantage 17

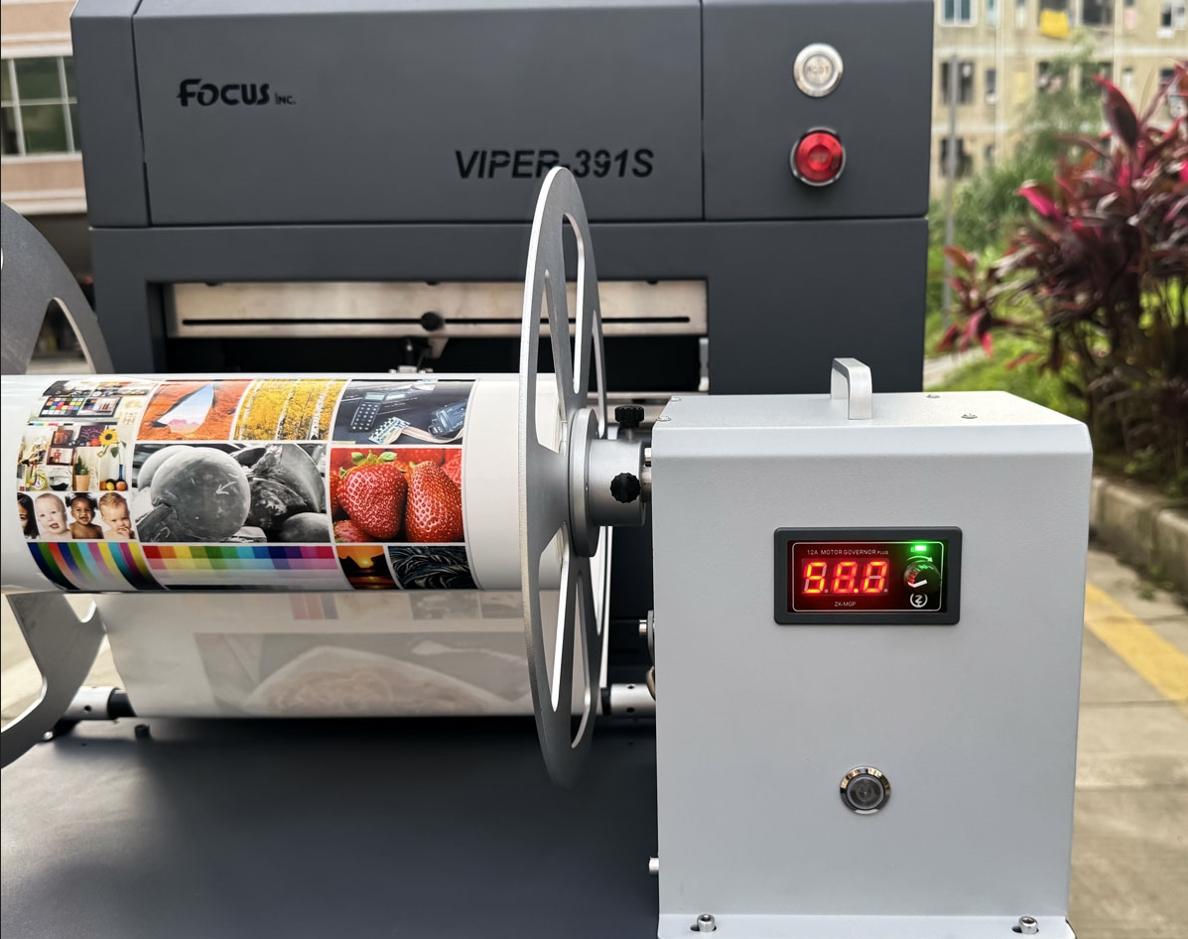

Self tension control rewinder

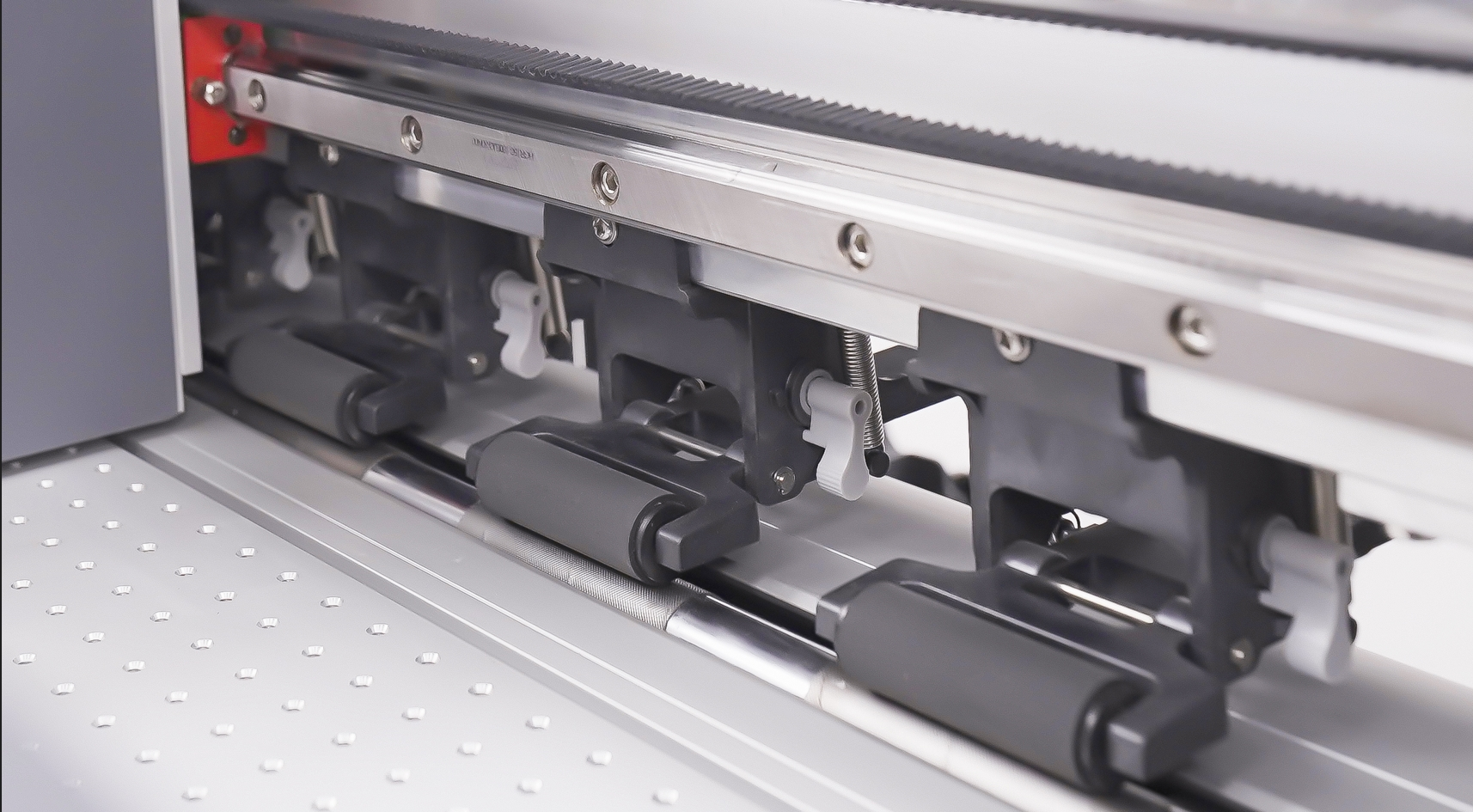

Advantage 18

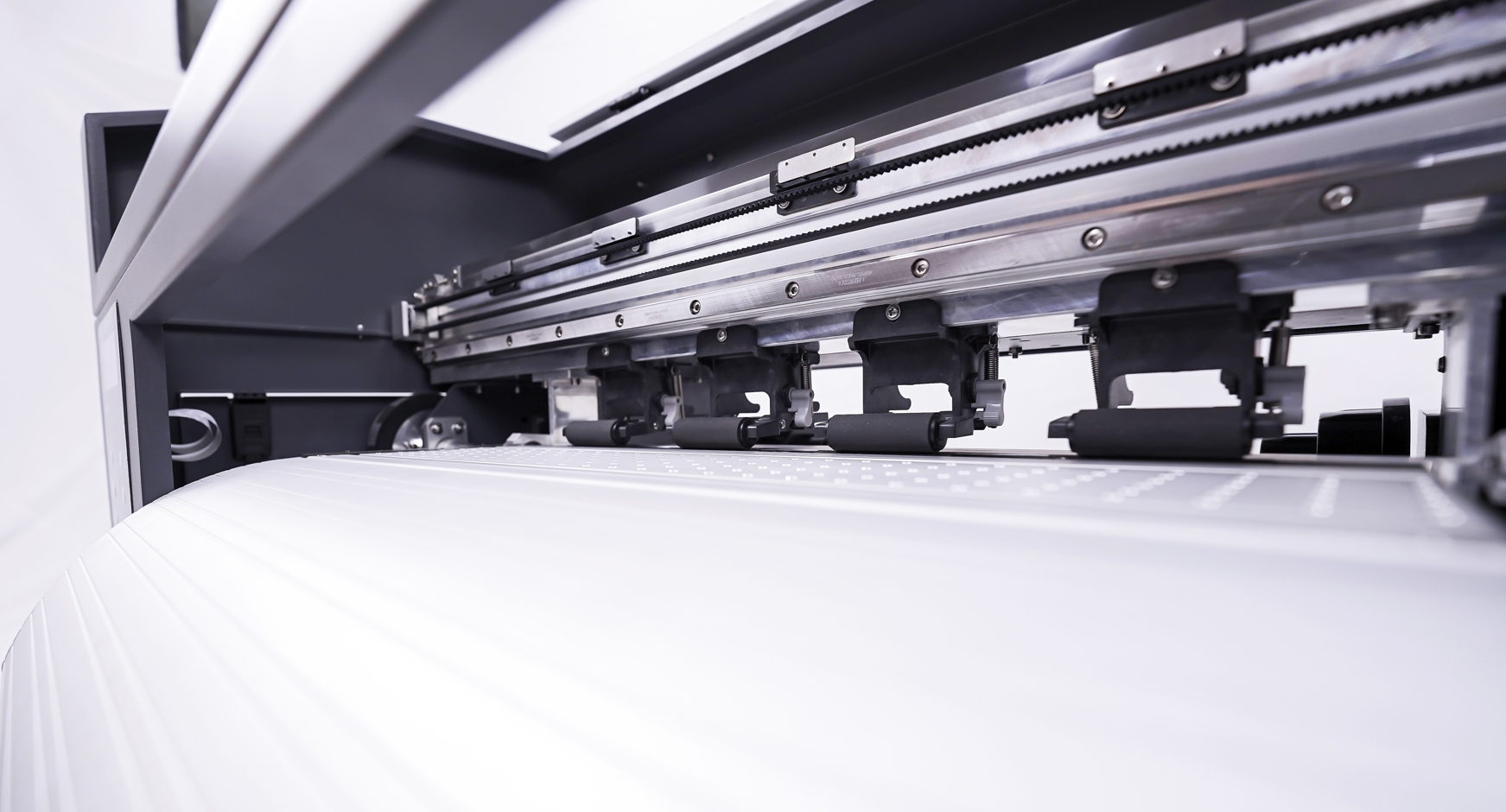

Multi pinch feed roller to make paper feeding stable and faster
Advantage 19
Fast exchange roll paper kit.
Advantage 20
Support 75mm 40mm 25mm different roller inner diameter paper loading.
Advantage 21

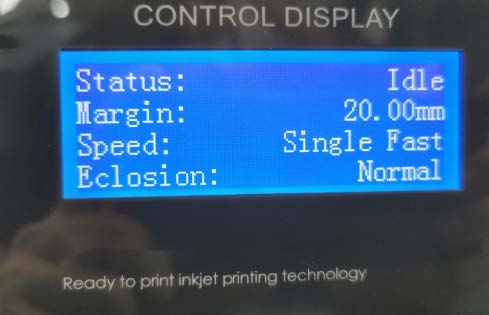

The multi-function printing control panel displays the printing process in real time and makes the printing operation more convenient and faster
Advantage 22
The quick material change and load design makes printing more convenient and faster
Advantage 23
Anti-static rubber Pinch roller can effectively prevent waste ink accumulation to keep film clean and improve the accuracy of step printing

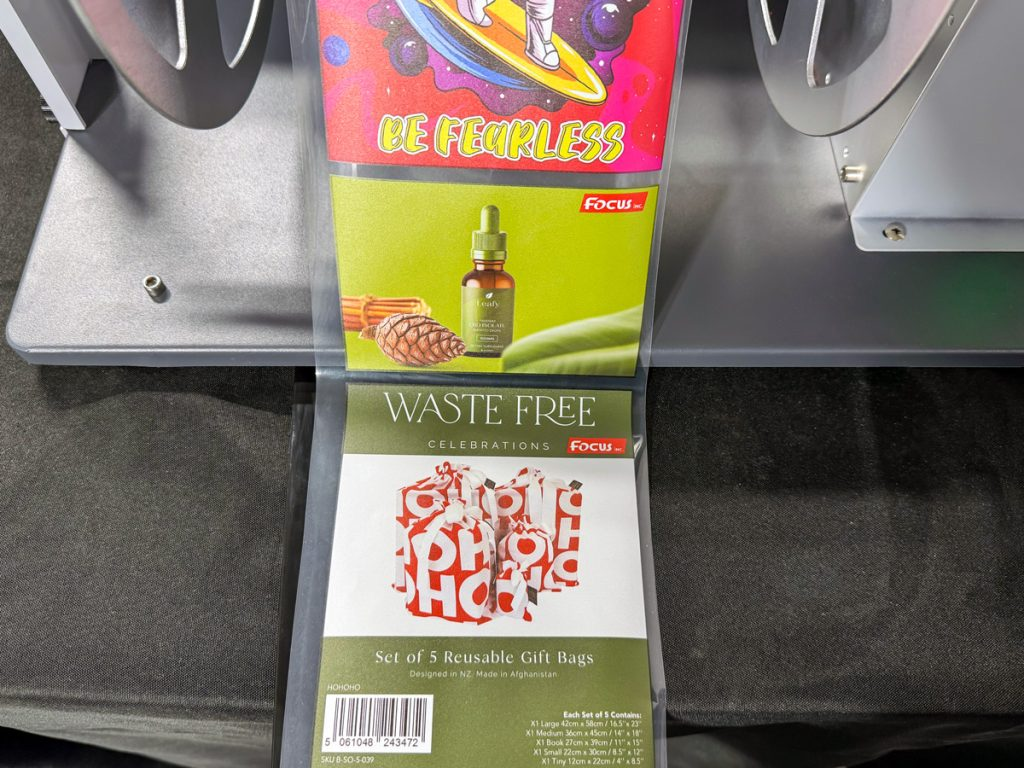

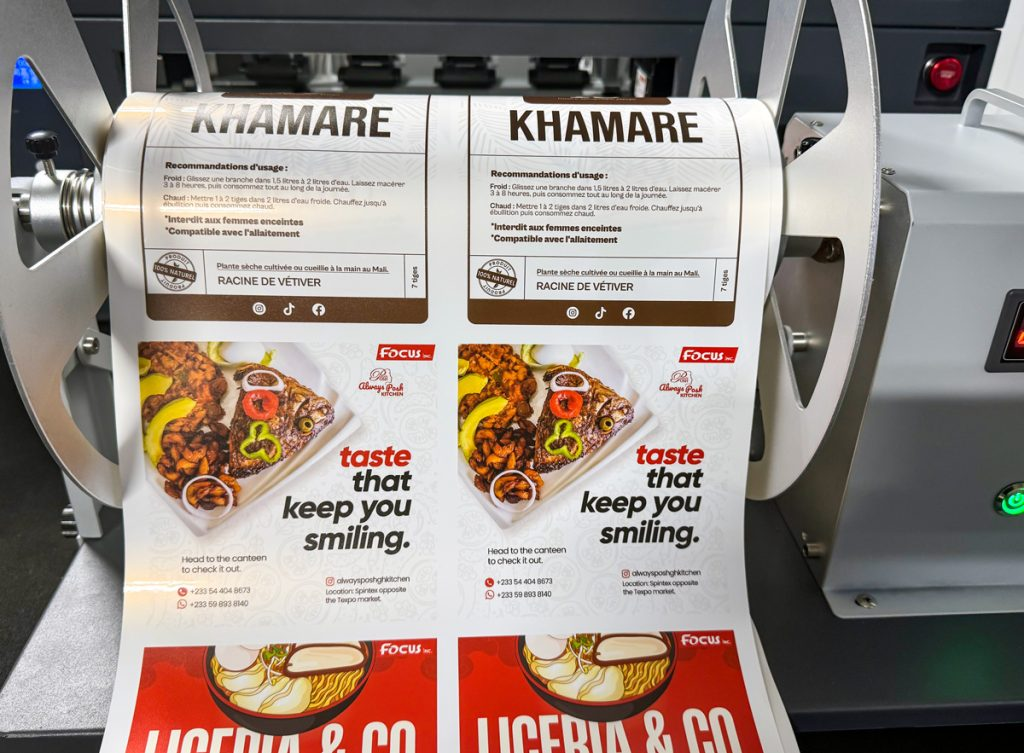

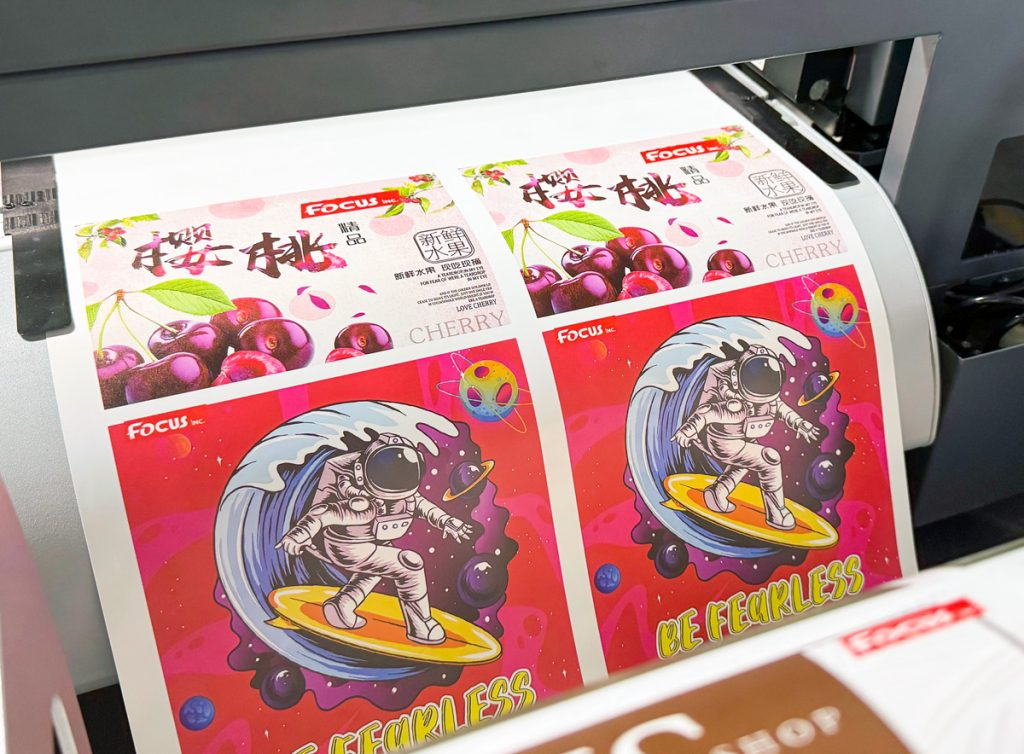

Application
ViPrint UV300 is designed to print high-quality,durable labels ona varietyof materials. It supports printing on a wide range of label types including adhesive, waterproof,scratch-resistant,and UV-resistant labels,making it ideal for bothindoor and outdoor applications.
Printing Media：
Roll type Film, paper, Canvas, leather
Plastic type media: PE, PP,PET,PVC label or film,
Inkjet-Coated Paper and Synthetics (BOPP, Vinyl, PET); Glossy, Matt
Non-coated paper
Other FocusInc, approved media
