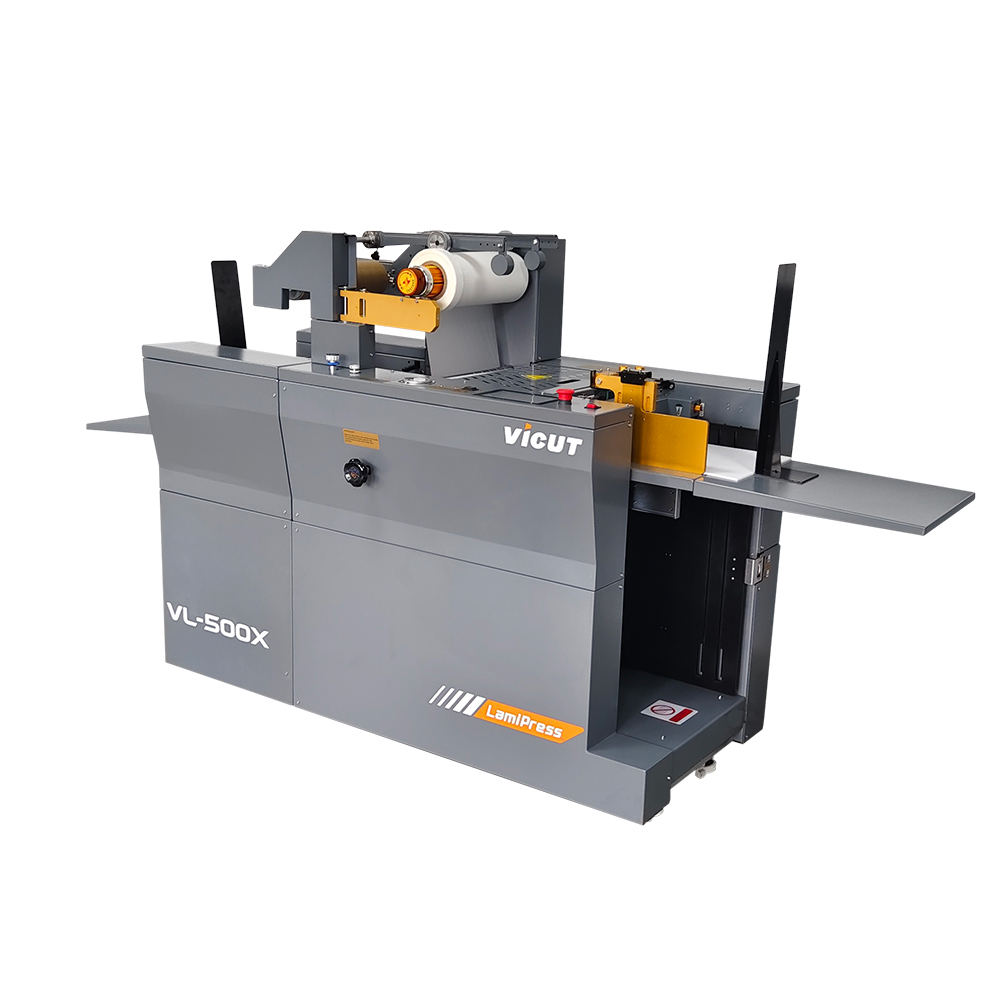

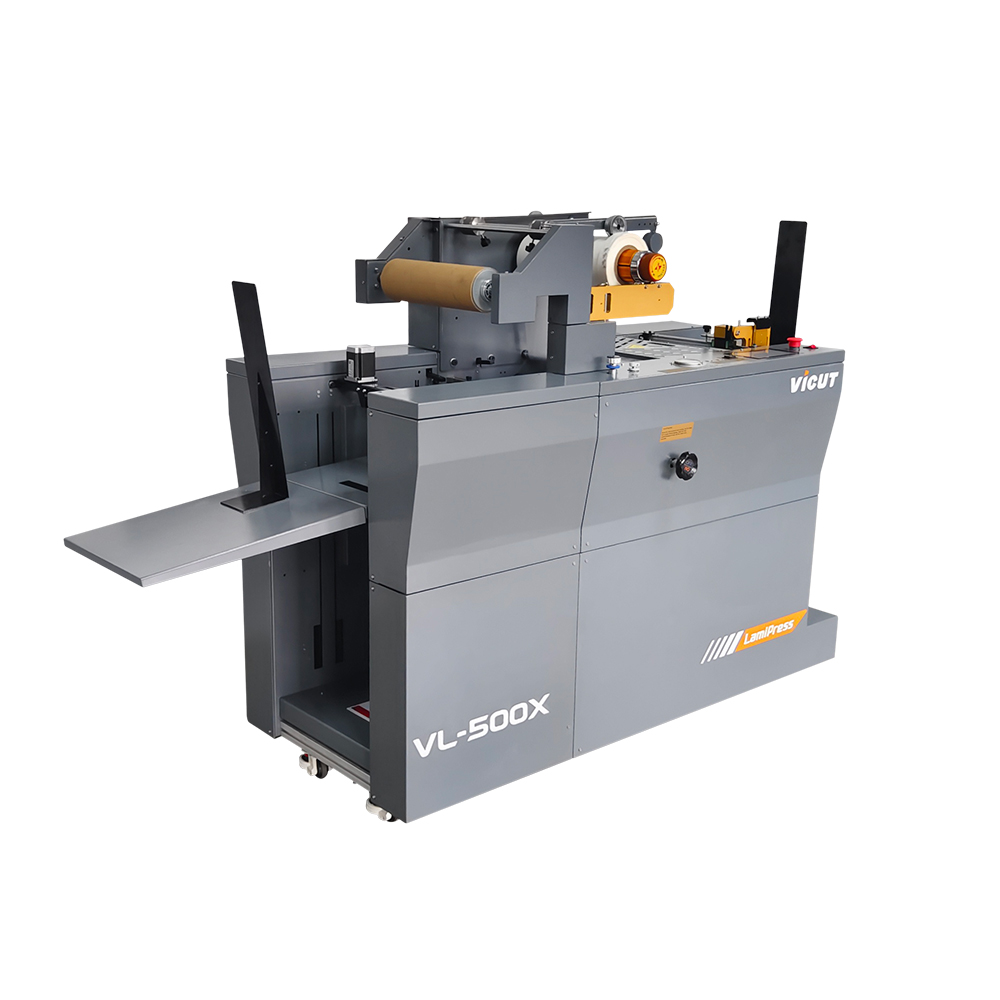

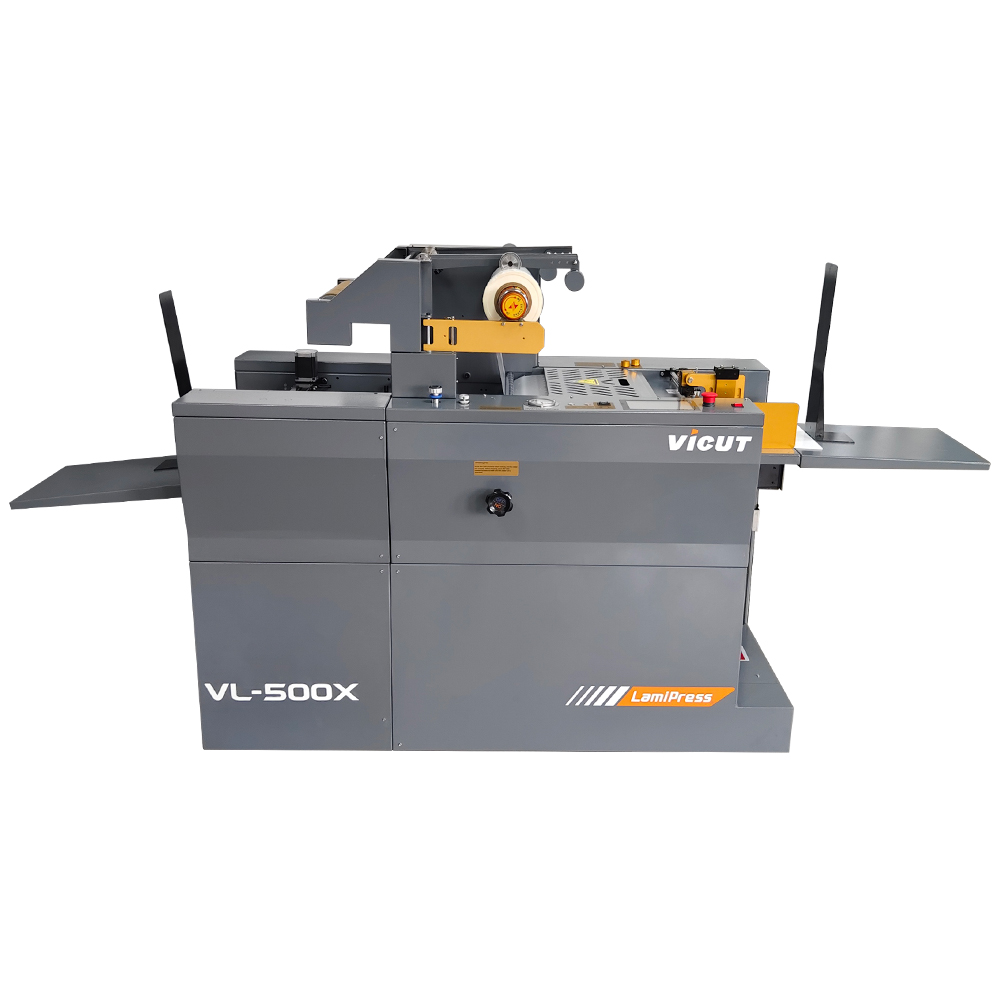

Digital Laminating & Foiling Machine VL-500X

45CM Paper Stacking Height

Automatic Hydraulic Pressure Control

Hot Lamination, Cold Lamination, Digital Foiling

VICUT multifunctional digital lamination system VL-500X, feeding paper by automatic air suction, the automatic lifting and feeding platform can accommodate media sheets with a height of 45cm, equals to 4000pcs sheets of copy paper (250gsm). The self-developed software design has a more user-friendly operation interface, automatic identification of paper length without setting, which improves the working efficiency of the whole machine, also guarantee the accuracy of lap and pull-off, so that the whole system runs more stably, and the productivity is greatly improved.

Inquire Now

Technical Parameters
Application

Technical Parameters

Model	Laminating and Foiling Machine VL-500X
Min. Paper sheets	130X200mm
Max. Paper sheets	340*630mm
Working mode	Single side hot film, cold film, Digital foiling
Heating method	Electric tube heating
Warm-up time	5-10 minutes
Laminating speed	1m/min--8m/min
Coating temperature	10---130°C
Paper thickness	157gsm--400gsm
Mirror roller diameter	105mm
Film Core diameter	3inch
Film diameter	300mm
Maxi. film width	340mm
Display control	Resistive LCD touch screen panel
Control mode	Electronic temperature control
Pressure mode	Automatic hydraulic control
Paper feeding mode	Automatic suction paper feeding
Paper collecting	Adjustable paper collecting tray
Automatic pull-off	Electric CAM control
Perforation	yes
Anti-curl technology	yes
Breaking function	Automatic breaking
Electric power	3400W
Working Voltage	220-240V/50-60HZ
Humidity	20%-80%
Net weight	340kgs
Gross weight	418kgs
Machine floor size	15607501300mm
Packing size	16008601390mm

Application

Application Field

Equipped with laminating and foiling devices, adding metallic, laminating and holographic effects to digital prints, with compact and environmentally-friendly design, VL-500X is designed to offer an in-house decorative effects solution for short-run, on demand digital applications, as well as lamination for traditional lithographic offset output too!

Working Samples
