TM160 is digital paper trimmer with XY automatic adjustment function, which is used to cut the flexible media rolls into sheets with a maximum thickness of 0.6mm. Using a CCD camera, TM160 can read the cutting marks on the printed media, and immediately cut both vertically and horizontally. With the automatic deviation correction system, fully automatic cutting is realized.
KEY FEATURES
Automatic correction on longitudinal direction
If the printer cannot print parallel to the edge of the media, or if the printer cannot roll up vertically,the TM160 automatically realigns the edges of the printed image.
CCD camera scan cut marks
The high resolution CCD camera is used to scan the marking points and locate the cutting path so as to achieve precise cutting. Camera scanning can also make the range of cutting materials wider.
Vertically and horizontally synchronous cutting
The XY direction works at the same time, and truly realizes automatic cutting.
Complete firmware control
The camera reads printed marks then feedback to machine, the machine will cut posters automatically, no need to do any data transfer, very convenient to use.
No consumable parts
The cutting blades can be used to cut more than 100 thousand times. No consumable parts during regular usage.
Technical Parameters
| Model Name | Automatic XY Trimmer TM160 |
| Max. Cutting size | 160cm |
| Cutting speed | 1.5m/s |
| Max. cutting thickness | 0.6mm |
| Max.roll diameter | 300mm |
| Max. roll weight | 30kg |
| Positioning method | High resolution CCD camera |
| Cutting method | vertically and horizontally synchronous cutting |
| Tool type | Horizontally cutting:double round knife Vertically cutting: high speed steel |
| Tool life | able to finish at least 100,000 times cutting |
| Correction deviation | Camera scan marks and align itself automatically |
| Cut marks type | black square marks created by maintop software |
| Mark distance to image | 2mm |
| Mechanical resolution | 0.2mm |
| Cutting precision | 0.1mm(duplicate) |
| Control panel | Touch screen |
| Motor type | Servo motor |
| Compatible software | Maintop software |
| Power | 600W |
| Working voltage | 100VAC-120VAC,50/60Hz,Maximum current 6.8A 200VAC-240VAC,50/60Hz,Maximum current3.4A |
| Operation environment | Temperature +5℃ to +35 ℃ (Fahrenheit 41-95),Humility 30% -75% (Non-condensing) |
| Machine dimension | L2540mm x W820mm x H1230mm(without the bracket) |
| Package dimension | 2650mm x 770mm x 670mm |
| Machine weight(N.W/G.W) | 177kg/258kg+-5kg |
Details Description
Longitudinal and vertical blades combined cutting mode
The TM160 is equipped with 4 sets of slitting knives and a set of horizontal cutting knives. The distance between the slitting knives can be adjusted according to the actual cutting needs. Cutting vertically and horizontally, truly realize the fully automation.
CCD Camera registration cut marks
The high resolution CCD camera is used to scan the marking points and locate the cutting path so as to achieve precise cutting. The camera also collect the data of paper feeding alignment and feedback to controller, to realize the correction deviation automatically.
Adjustable unwinding reel
The size of unwinding reel is adjustable for real cutting needs. It can bear a weight of 30kg, supports maxi roll diameter 300mm.
Large capacity sheets collection tray
The TM160 equipped with a separate large capacity paper tray for collecting the cutting sheets. This large paper tray is movable, it can be moved to any required unloading place.
User friendly touch screen panel
Easy-to-use touch screen makes the operation more convenient.
Easy to use dedicated software
Input images to Maintop design software, create cut marks, set up parameters, save the file, ready for printing and cutting. Very easy to operate.
Emergency stop
If any accident occurs during the operation of the machine, press the emergency stop button to stop the machine.
Feet with moving wheels
The machine is equipped with adjustable fixed feet and moving wheels. Use the moving wheel to move the machine to a suitable working position, adjust the height of the machine feet, and ensure that the machine is fixed horizontally.
Tools & Accessories
Rotary cutting bladesjpg
Rotary cutting blades longitudinal knife, 4sets as default with machine, users can add more sets according to practical usage.
Application
Material: Most flexible media up to a maximum thickness of 0.6mm including polycarbonate, photo paper, wall paper, vinyl, PVC, film, canvas, laminated or encapsulated prints and much more.
Field: Widely used in advertising signs, posters, public decoration, wallpaper, packaging and printing etc.
Working Samples:
 |  |  |
 |  |  |

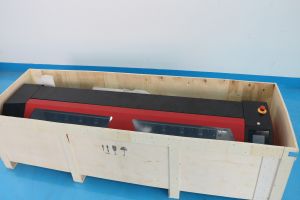

Packing photos
 |  |  |
