Digital Laminating Machine F350DH

Hot Lamination, Cold Lamination, Digital Foiling

Sheet to Sheet, Roll to Roll, Double Side Lamination

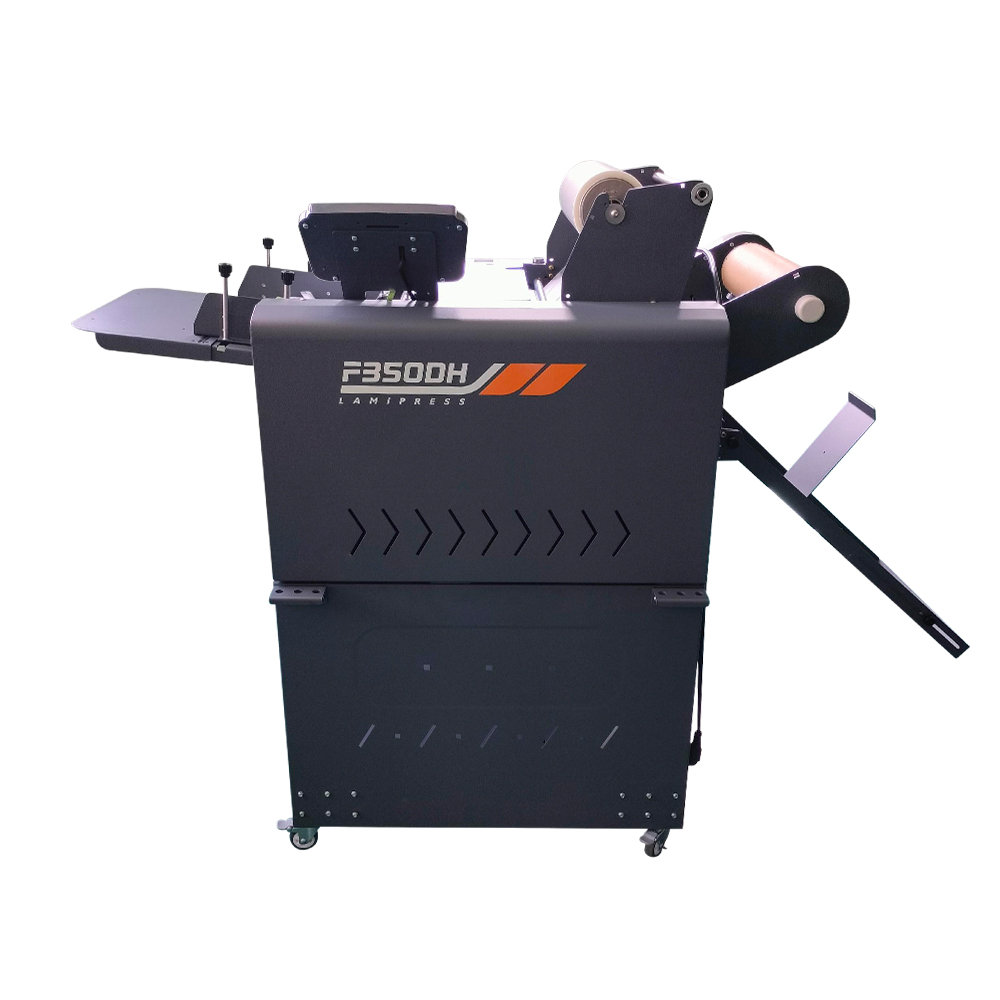

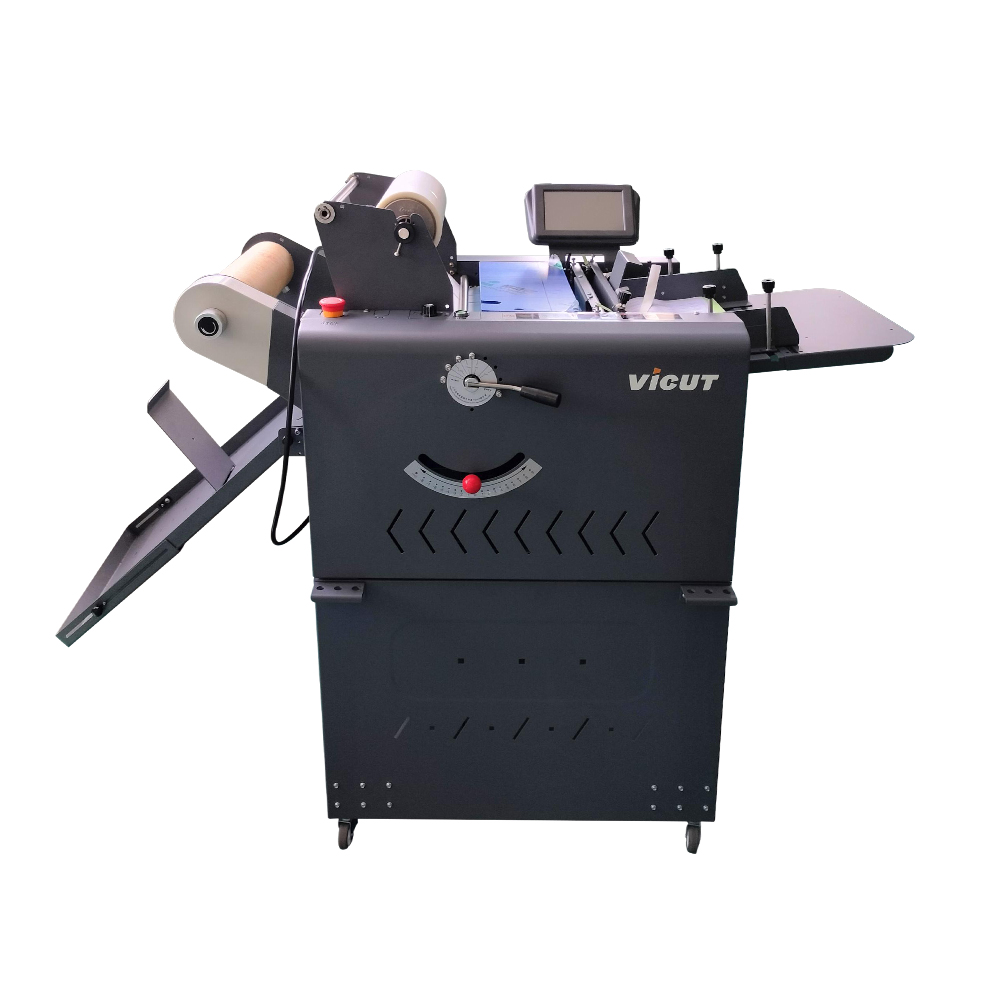

The VICUT F350DH A3 size double-side laminator comes with an innovative dual-mode design (roll-to-roll & sheet-to-sheet). Its 350mm working width is fully compatible with A3 and smaller formats.

Roll-to-roll mode enables continuous lamination with automatic winding, ensuring flat, wrinkle-free finished products. Sheet-to-sheet mode processes loose documents directly without pre-cutting, supported by a built-in automatic cutting function.

The machine features 5-level speed adjustment and a user-friendly touch screen for simple operation, ideal for beginners. Compact and mobile with durable casters, it supports dual-roll film loading to greatly reduce film replacement time.

By balancing high efficiency and stable lamination quality, the F350DH is an essential solution for print shops, studios and modern offices.

Inquire Now

KEY FEATURES

Touchscreen with 6 sub menu
Easy foiling function
Anti curl function
Film perforation before separation
Stable bottom suction feeder
Manual lamination pressure
Auto separation with help of differential and booster

Technical Parameters

Model	F350DH
Roller Width	360mm
Lamination Width	182-350mm
Paper Weight	150-300gsm
Feeder Volume	A4:40mm; A3:20mm
Lamination Speed	8m/min
Max Film Diameter	200mm
Temperature range	0-130℃
Warming Up	5-8min
Anti-curl Level	18 levels
Heating roller diameter	83mm
Digital Overlap	yes
Roll Collecting	yes
Cabinet	yes
Power	2500W
Voltage	220V/110V 50Hz
N.W	120kg
Machine Dimension	14526801130mm

Application

Application Field

Equipped with laminating and foiling devices, adding metallic, laminating and holographic effects to digital prints, with compact and environmentally-friendly design, F350DH is designed to offer an in-house decorative effects solution for short-run, on demand digital applications, as well as lamination for traditional lithographic offset output too!

Suitable laminating film for F350DH
Hot lamination film

Various finishes including: gloss, matt and soft touch, for litho and digital print. Digital laminates are corona-treated for subsequent over-printing.

Digital Laminating Machine F350DH

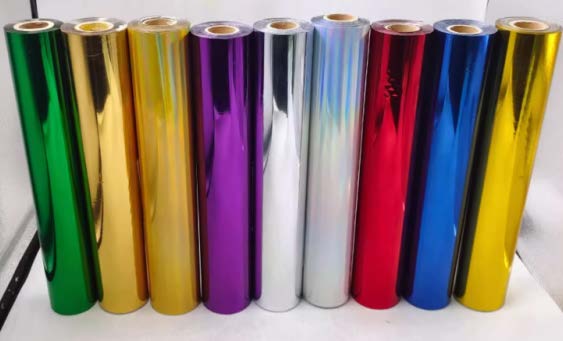

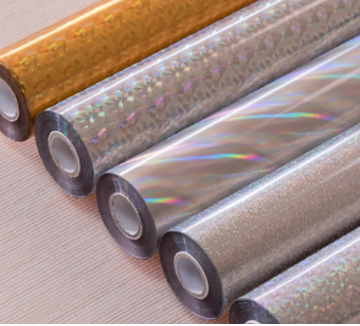

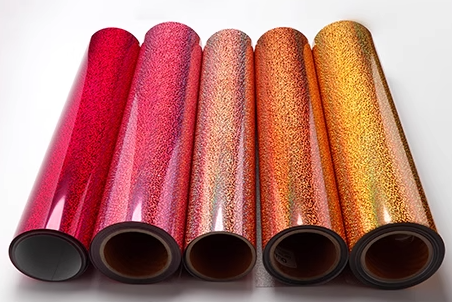

Foil flaring film

Various finishes including: gloss, matt and soft touch, for litho and digital print. Digital laminates are corona-treated for subsequent over-printing.
